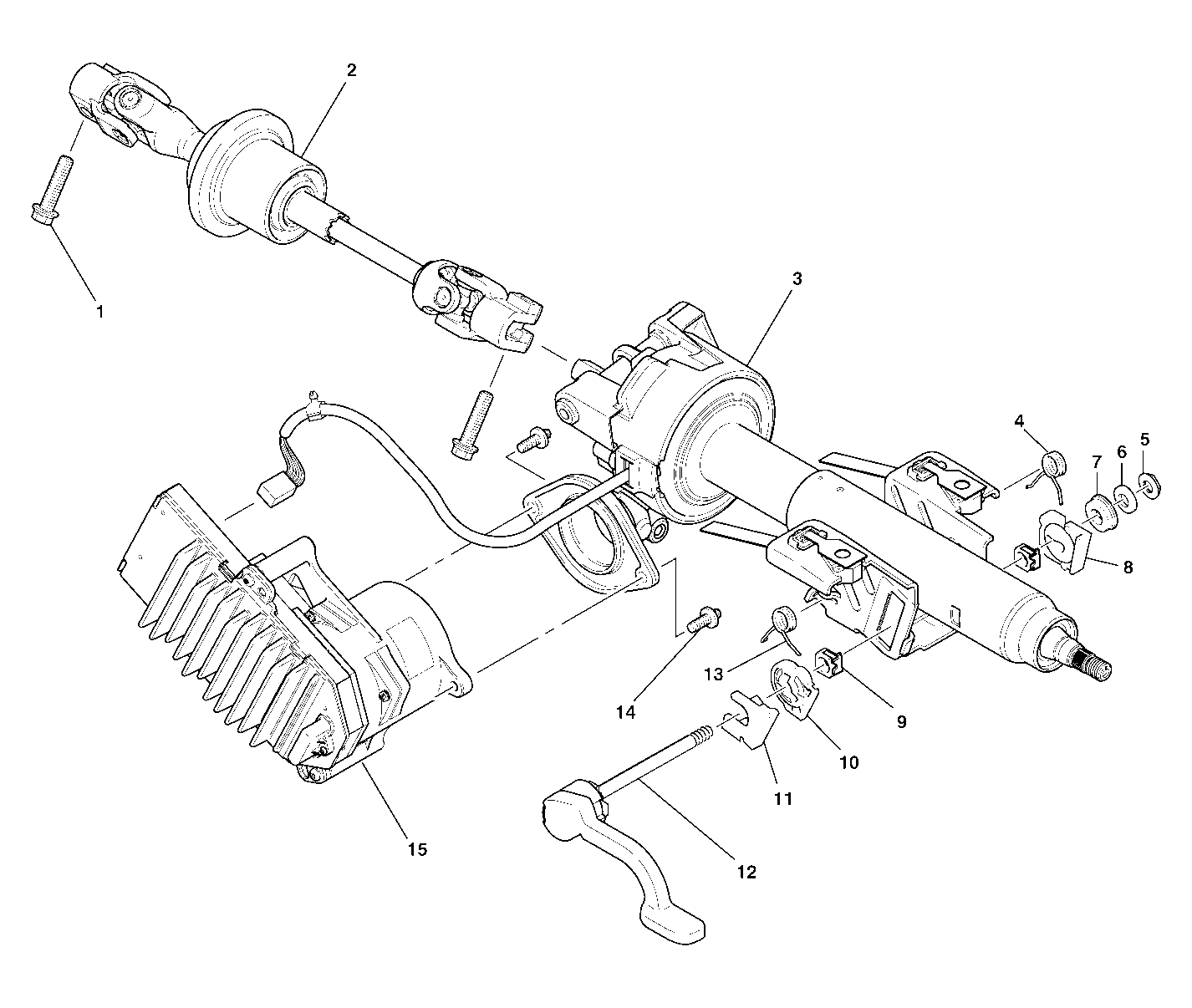

Power Steering System Disassembled View (Motor/Module EPS)
| Callout | Component Name |
|---|---|
| 1 | Pinch Bolt |
| 2 | Intermediate Steering Shaft |
| 3 | Column and Assist Mechanism |
| 4 | R/H Tilt Spring |
| 5 | Nylon Insert Nut |
| 6 | Thrust Bearing Assembly |
| 7 | Bolt Spacer |
| 8 | Bolt Retainer |
| 9 | Tilt and Tele Teeth |
| 10 | Tilt and Tele Adj Cam |
| 11 | Follower Release |
| 12 | Tilt Lever Assembly |
| 13 | L/H Tilt Spring |
| 14 | TORX® Bolt |
| 15 | Motor and Controller Assembly |
