Lighting Systems Component Views

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

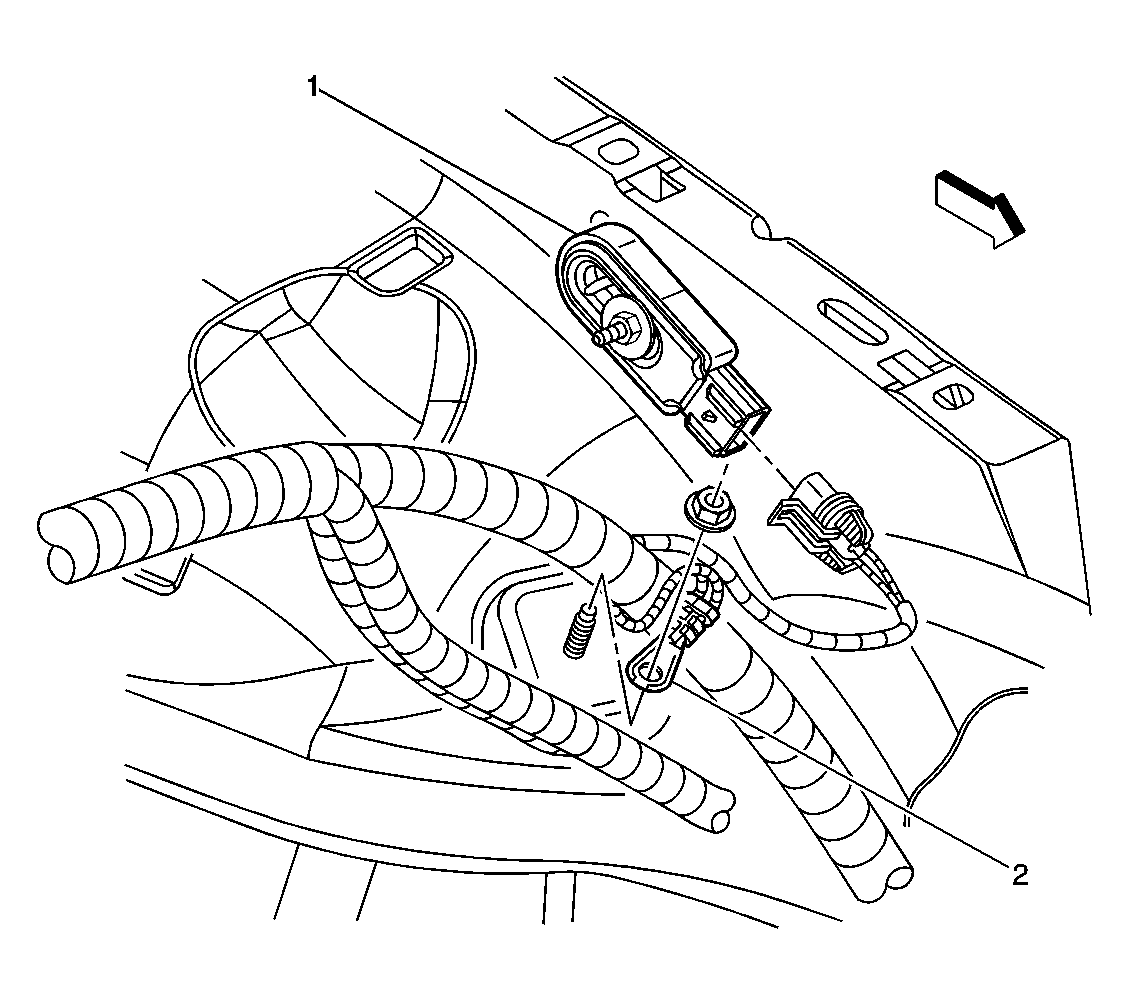

Fig 1: Identifying Lighting System Components At Left Front Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Daytime Running Lamp (DRL) Resistor
2	G103

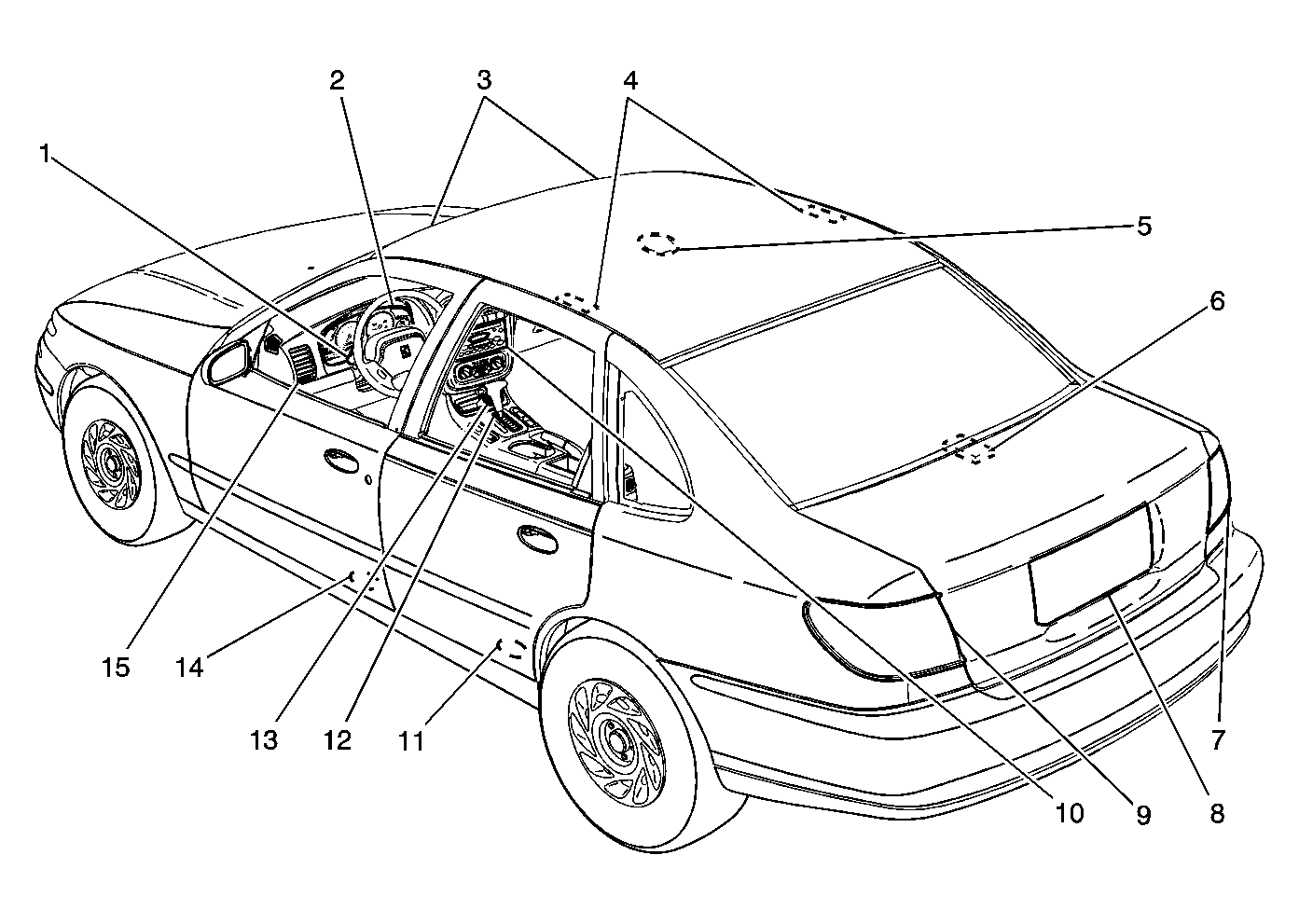

Fig 2: Identifying Interior Lighting Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp/Turn Signal Switch
2	Instrument Panel Cluster (IPC)
3	Vanity Lamps
4	Courtesy/ Reading Lamps
5	Dome Lamp
6	Rear Compartment Lamp
7	Tail Lamp Assembly- Right
8	License Lamp
9	Tail Lamp Assembly- Left
10	Radio
11	Courtesy Lamp- LR Door (RR Similar)
12	Electronic PRNDL Module
13	Cigar Lighter
14	Courtesy Lamp- Driver Door (Front Passenger Similar)
15	Dimmer/ Rear Compartment Lid Release Switch

Fig 3: Identifying I/P Harness Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	Right Heated Seat/Traction Switch
3	Hazard Switch
4	Left Heated Seat/Fog Lamp Switch
5	Passlock Sensor
6	Ambient Light Sensor
7	Ignition Lock Cylinder Solenoid
8	Windshield Wiper/Washer Switch
9	Ignition Switch C1
10	Headlamp/Turn Signal Switch
11	Ignition Switch C2
12	Inflatable Restraint Steering Wheel Module Coil C4
13	Instrument Panel Cluster (IPC)
14	Dimmer/Rear Compartment Lid Release Switch
15	Wheel Speed Conditioner Module
16	Cruise/ Brake Switch
17	Fuse Block - I/P - Left
18	C207
19	Data Link Connector (DLC)
20	C215
21	Accelerator Pedal Position (APP) Sensor
22	Cruise Control Module
23	C215
24	C205
25	I/P Compartment Lamp
26	Body Control Module (BCM)
27	C204 (w/o UE1)
28	C204 (w/ UE1)
29	Fuse Block - I/P - Right
30	C200 Body Harness Side
31	C200 Headliner Harness Side
32	Inflatable Restraint I/P Module

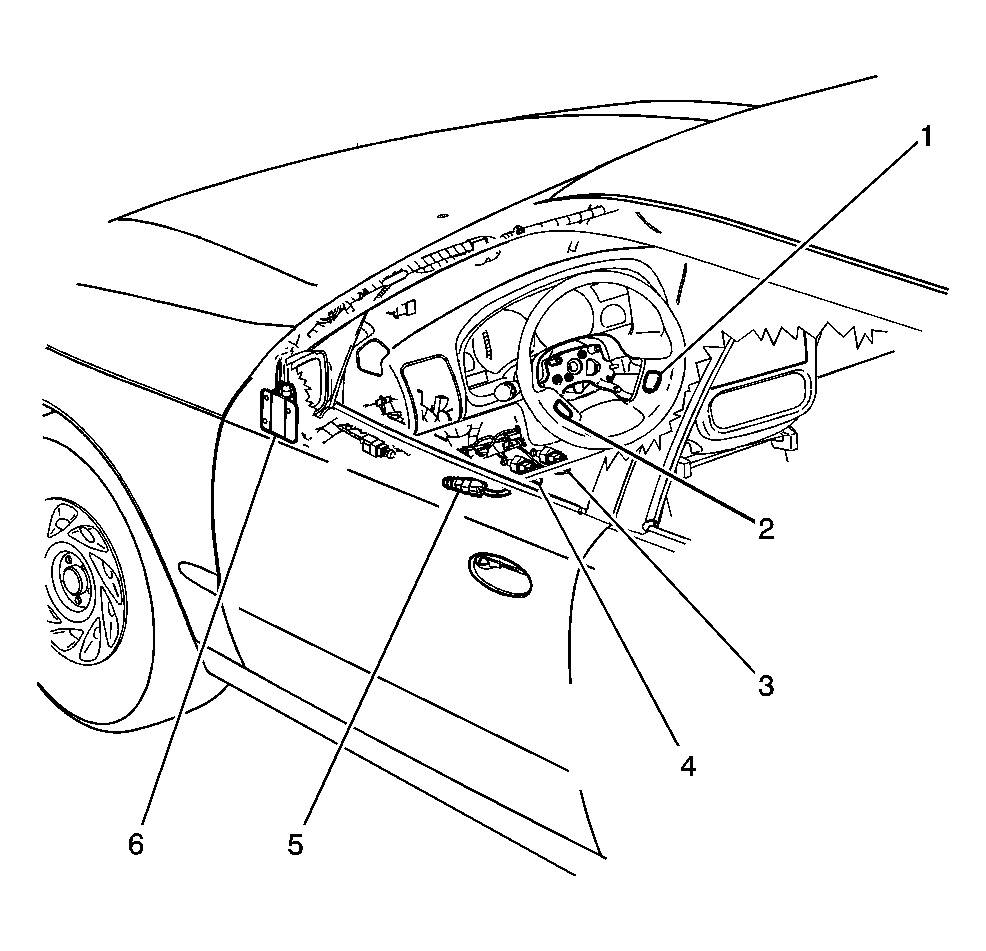

Fig 4: Identifying Cruise Control Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cruise Set/Resume Switch
2	Cruise On/Off Switch
3	Stop Lamp Switch
4	Cruise Brake Switch
5	Cruise Clutch Switch (M/T) (Not Used)
6	Cruise Control Module (CCM) (Not Used)

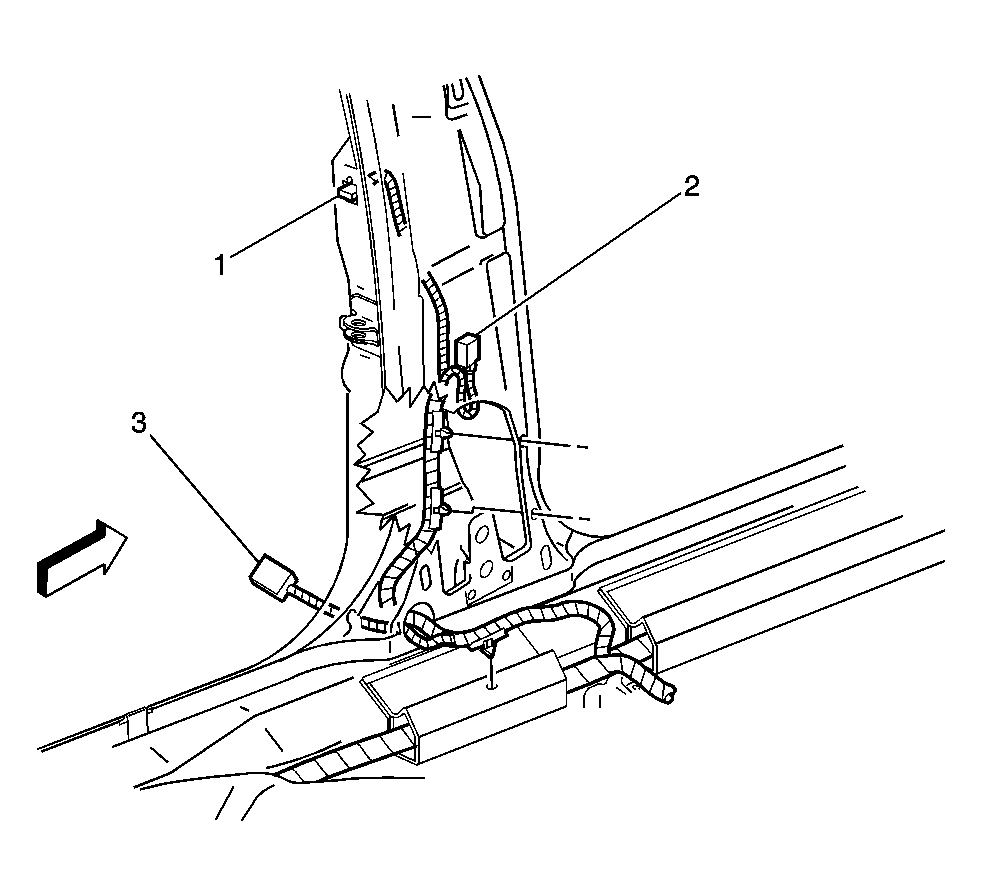

Fig 5: Identifying Left Side Of Passenger Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - LR - RR Similar
2	Inflatable Restraint Side Impact Sensor (SIS) - Left Connector - Right Similar)
3	C800 - C700 Similar

Fig 6: Identifying Exterior Lighting Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail Lamp Assembly-Left (Right Similar)
2	Park/Turn Signal Lamp-LF
3	Left Headlamp Assembly
4	Fog Lamp-Left
5	Fog Lamp-Right
6	Horn (Behind Fascia)
7	Right Headlamp Assembly

Fig 7: Identifying Instrument Panel Component Locations

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Light Sensor
2	Windshield Wiper/Washer Switch
3	Left Heated Seat/Fog Lamp Switch
4	Hazard Switch
5	Right Heated Seat/Traction Switch
6	Radio
7	HVAC Control Module
8	Headlamp/Turn Signal Switch
9	Dimmer/Rear Compartment Lid Release Switch
10	Instrument Panel Cluster (IPC)
11	Ignition Lock Cylinder Solenoid
