Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
Ambient Light Sensor Connector End View

GM39661Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047786
  • 4-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A L-GN/BK 1137 DRL Ambient Light Sensor Signal
B YE/BK 1138 DRL Ambient Light Low Reference
C BK 476 Low Reference
D L-BU/BK 590 Sunload Sensor Signal
Rear Compartment Lamp Connector End View

GM1282874Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186713
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
1 RD/BK 744 Rear Compartment Lid Ajar Switch
2 OG 1732 Courtesy Lamps Supply Voltage
Center High Mounted Stop Lamp (CHMSL) Connector End View

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A L-BU 20 Stop Lamp Supply Voltage
B BK 450 Ground
Daytime Running Lamp (DRL) Resistor Connector End View

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A D-BU 545 DRL Supply Voltage
B BK 150 Ground
Dimmer/Rear Compartment Lid Release Switch Connector End View

GM62439Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047886
  • 8-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A BK 1576 Rear Compartment Lid Release Switch
B-C - - Not Used
D OG 2540 Battery Positive Voltage
E GY 8 Instrument Panel Lamp Supply Voltage
F BK 550 Ground
G GY/BK 1381 LCD Dimming Signal
H GY 1359 LCD Backlighting Lamp Control

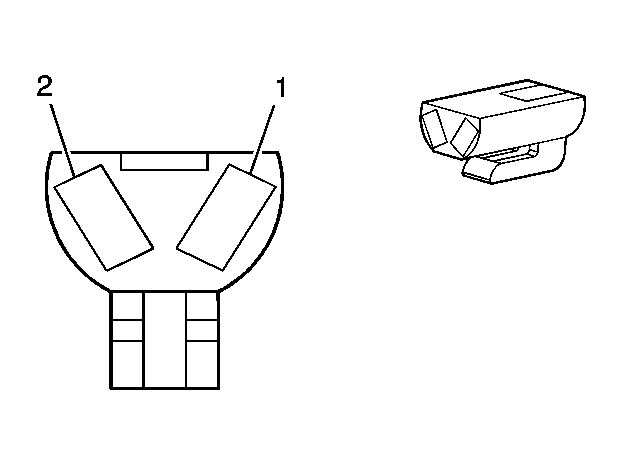

Door Jamb Switch - Driver Connector End View

GM1341514Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186721
  • 2-Way F Timer Micro II Series (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 GY/BK 745 Left Front Door Ajar Switch Signal
Door Jamb Switch - Front Passenger Connector End View

GM1341514Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186721
  • 2-Way F Timer Micro II Series (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 BK/WH 746 Right Front Door Ajar Switch Signal
Door Jamb Switch - LR Connector End View

GM1341514Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186721
  • 2-Way F Timer Micro II Series (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 BK/WH 746 Right Front Door Ajar Switch Signal
Door Jamb Switch - RR Connector End View

GM1341514Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186721
  • 2-Way F Timer Micro II Series (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 BK/WH 746 Right Front Door Ajar Switch Signal
Dome Lamps Connector End View

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A WH 156 Courtesy Lamp Low Control
B BK 450 Ground
C OG 1732 Courtesy Lamps Supply Voltage
I/P Compartment Lamp Connector End View

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A BK 550 Ground
B OG 1732 Courtesy Lamps Supply Voltage
Hazard Switch Connector End View

GM62464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064769
  • 10-Way F Metri-Pack 150 Series (NA)
Pin Wire Color Circuit No. Function
A BK 550 Ground
B OG 1040 Battery Positive Voltage
C PK 239 Ignition 1 Voltage
D - - Not Used
E GY 8 Instrument Panel Lamps Dimmer Switch Signal
F L-BU 14 Left Turn Signal Lamps Supply Voltage
G D-BU 15 Right Turn Signal Lamps Supply Voltage
H-J - - Not Used
K PU 16 Turn Signal Flasher Signal
Headlamp/Turn Signal Switch Connector End View

GM1283124Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15318085
  • 8-Way F Junior Power Timer Series (BK)
Pin Wire Color Circuit No. Function
1 BK 550 Ground
2 L-BU 14 Left Turn Signal Lamps Supply Voltage
3 GY 691 Headlamp Switch
4 PU 16 Turn Signal Flasher Signal
5 D-BU 1201 Headlamp Low Beam Signal
6 D-BU 15 Right Turn Signal Lamps Supply Voltage
7 PK 1200 Headlamp High Beam Signal
8 L-BU 74 Park Lamp Switch Signal

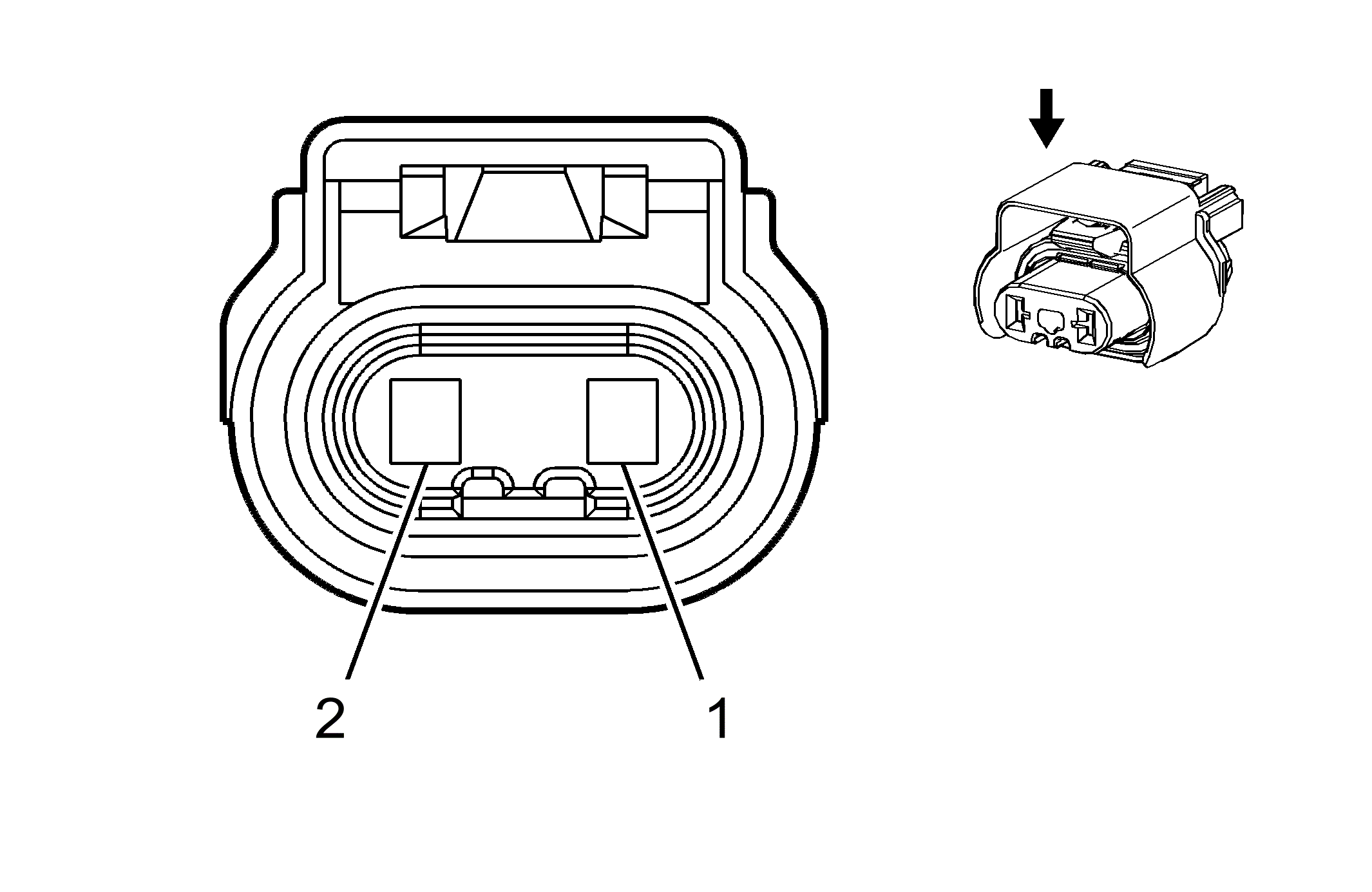

Headlamp - Left - High Beam Connector End View

GM1341464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336116
  • 2-Way F GT 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
1 OG 40 Battery Positive Voltage
2 PK 1200 Headlamp High Beam Signal
Headlamp - Right - High Beam Connector End View

GM1341464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336116
  • 2-Way F GT 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
1 OG 140 Battery Positive Voltage
2 PK 1200 Headlamp High Beam Signal
Headlamp - Left - Low Beam Connector End View

GM1341464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336117
  • 2-Way F GT280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
1 OG 40 Battery Positive Voltage
2 D-BU 1201 Headlamp Low Beam Signal
Headlamp - Right - Low Beam Connector End View

GM1341464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336117
  • 2-Way F GT 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
1 OG 140 Battery Positive Voltage
2 D-BU 1201 Headlamp Low Beam Signal
Inside Rearview Mirror (ISRVM) Connector End View

GM153632Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124782
  • 7-Way F (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 BK 450 Ground
3-6 - - Not Used
7 D-BU/WH 1732 Courtesy Lamps Supply Voltage
License Lamps Connector End View

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage
B BK 650 Ground

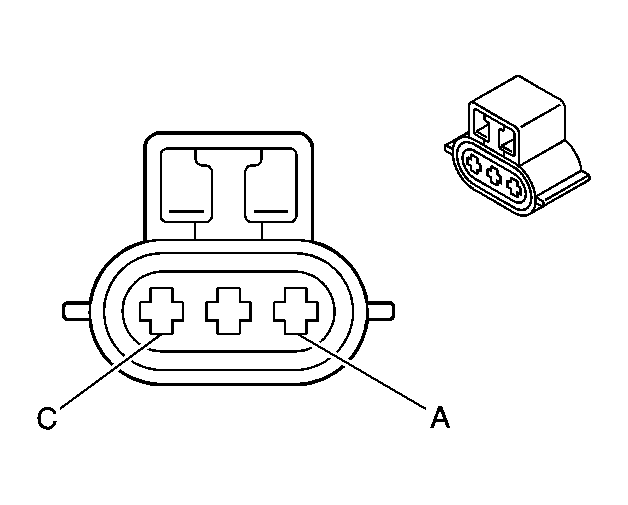

Park/Turn Signal Lamp - LF Connector End View

GM1341453Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186704
  • 3-Way F Timer Series (GY)
Pin Wire Color Circuit No. Function
A BK 150 Ground
B BN 9 Park Lamp Supply Voltage
C L-BU 14 Left Turn Signal Lamps Supply Voltage
Park/Turn Signal Lamp - RF Connector End View

GM1341453Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186704
  • 3-Way F Timer Series (GY)
Pin Wire Color Circuit No. Function
A BK 150 Ground
B BN 9 Park Lamp Supply Voltage
C D-BU 15 Right Turn Signal Lamps Supply Voltage

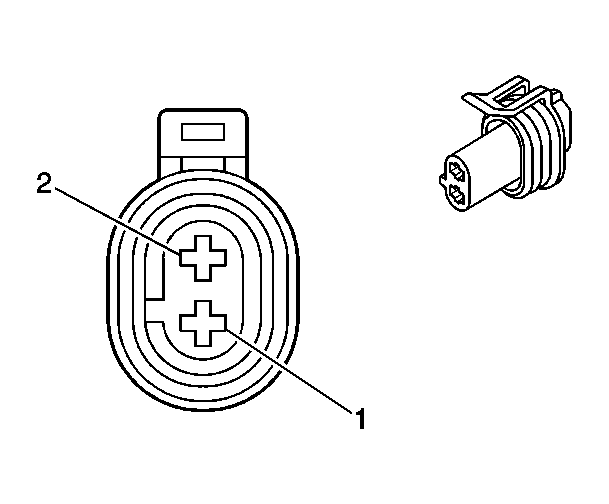

Marker Lamp - LF Connector End View

GM1341452Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186706
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
1 BN 9 Park Lamp Supply Voltage
2 BK 150 Ground
Marker Lamp - RF Connector End View

GM1341452Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186706
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
1 BN 9 Park Lamp Supply Voltage
2 BK 150 Ground

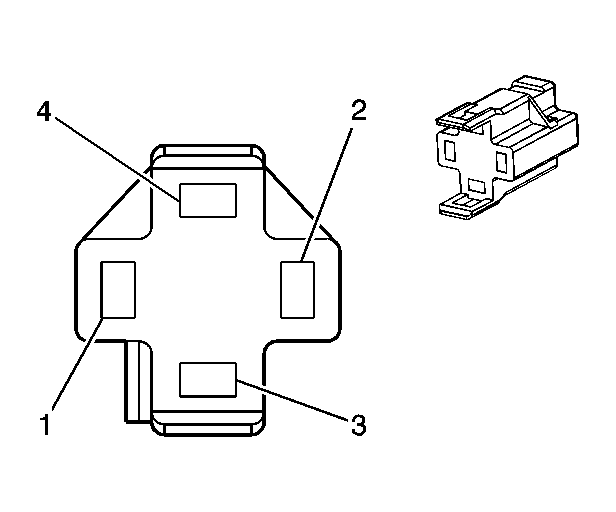

Stop Lamp Switch Connector End View

GM1341509Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15317343
  • 4-Way F Standard Power Timer Series (BK)
Pin Wire Color Circuit No. Function
1-2 - - Not Used
3 L-BU 20 Stop Lamp Switch Signal
4 OG 540 Battery Positive Voltage

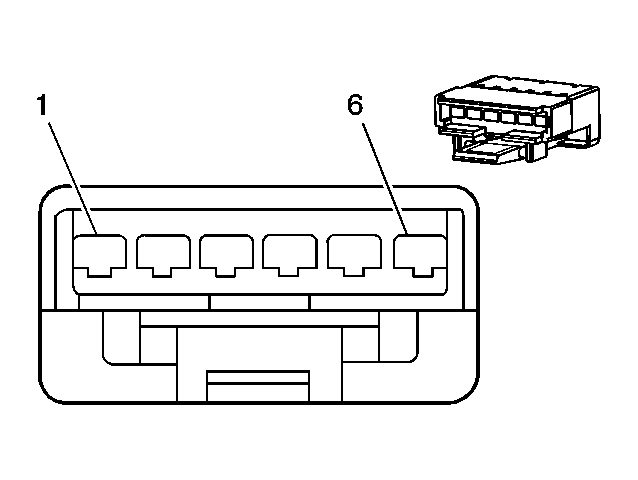

Tail Lamp Assembly - Left Connector End View

GM1341479Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186717
  • 6-Way F (BK)
Pin Wire Color Circuit No. Function
1 L-GN 24 Backup Lamp Supply Voltage
2 L-BU 14 Left Turn Signal Lamps Supply Voltage
3 BK 650 Ground
4 L-BU 20 Stop Lamp Supply Voltage
5 BN 9 Park Lamp Supply Voltage
6 BK 650 Ground
Tail Lamp Assembly - Right Connector End View

GM1341479Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186717
  • 6-Way F (BK)
Pin Wire Color Circuit No. Function
1 BK 650 Ground
2 L-BU 20 Stop Lamp
3 BN 9 Park Lamp
4 BK 650 Ground
5 D-BU 15 Turn Lamp
6 L-GN 24 Back-up Lamp
Vanity Lamps Connector End View

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A OG 1732 Courtesy Lamps Supply Voltage
B BK 450 Ground
