Wiper/Washer System Component Views

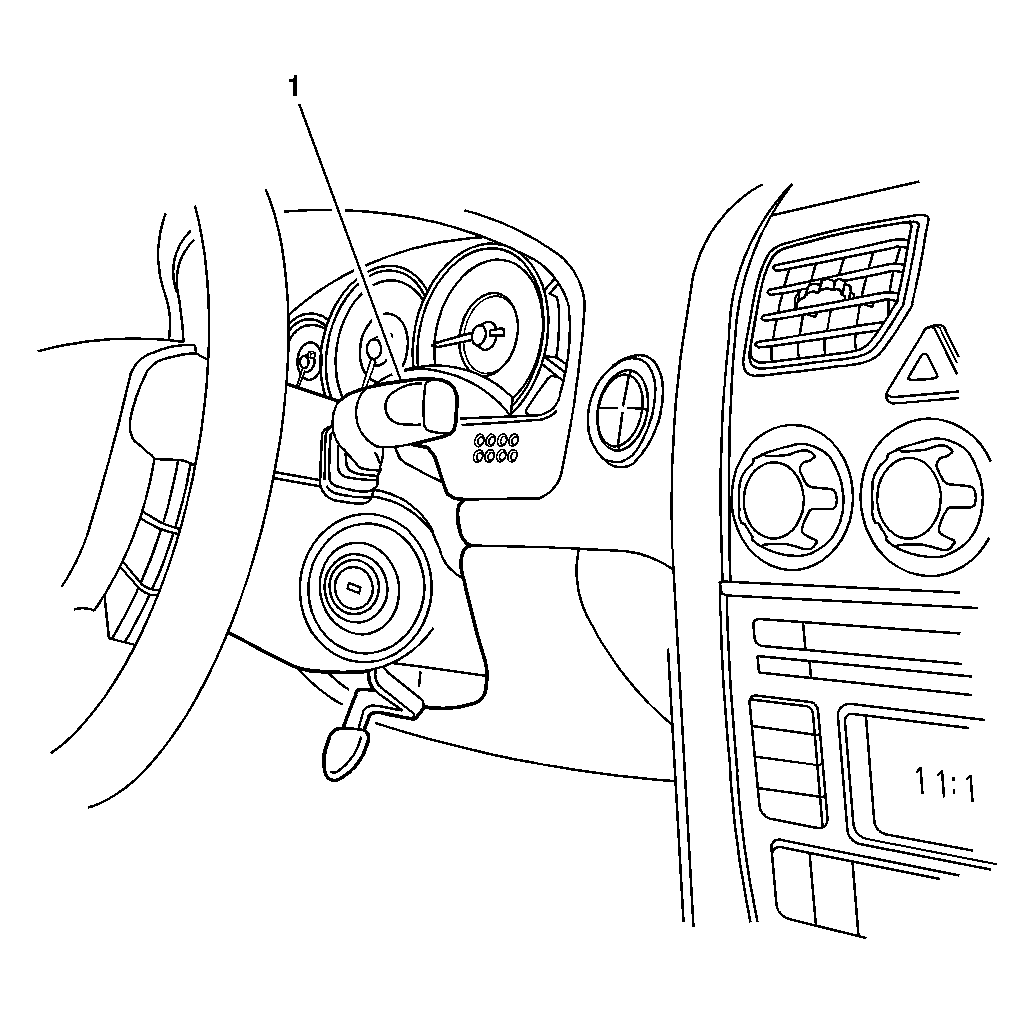

Fig 1: Wiper/Washer Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wiper/Washer Switch

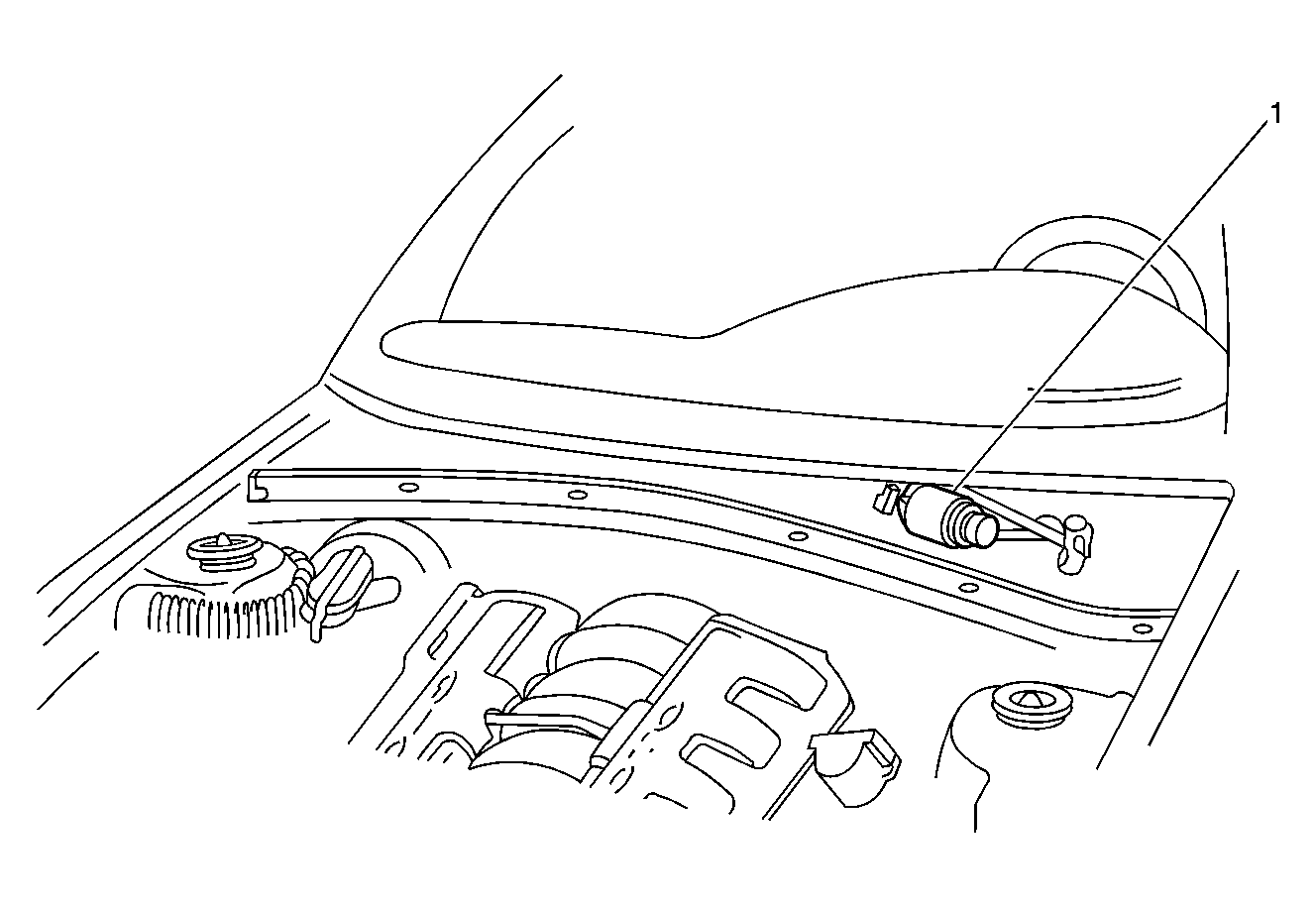

Fig 2: Wiper Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor

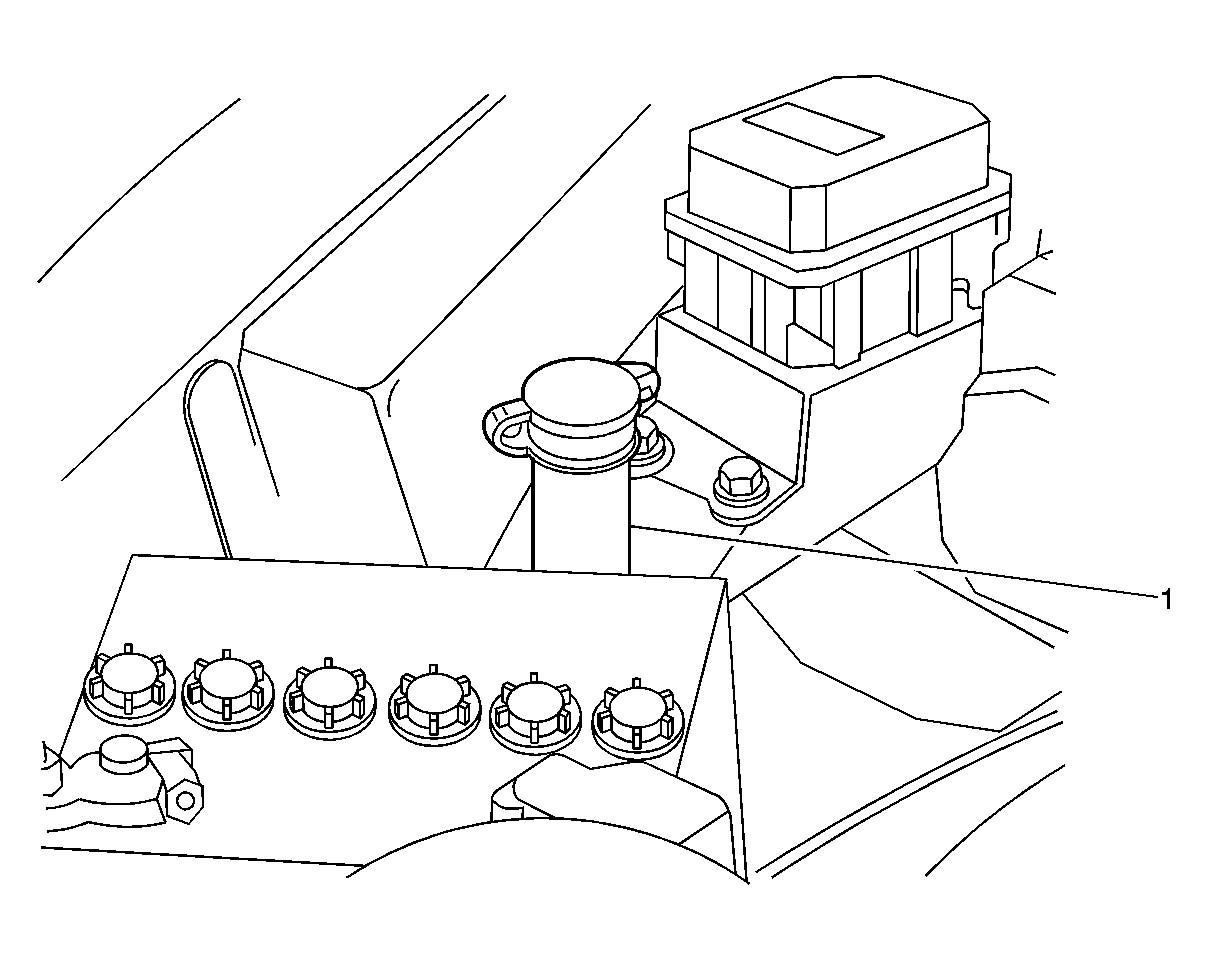

Fig 3: Wiper/Washer Reservoir

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Washer Fluid Reservoir
