Entertainment Component Views

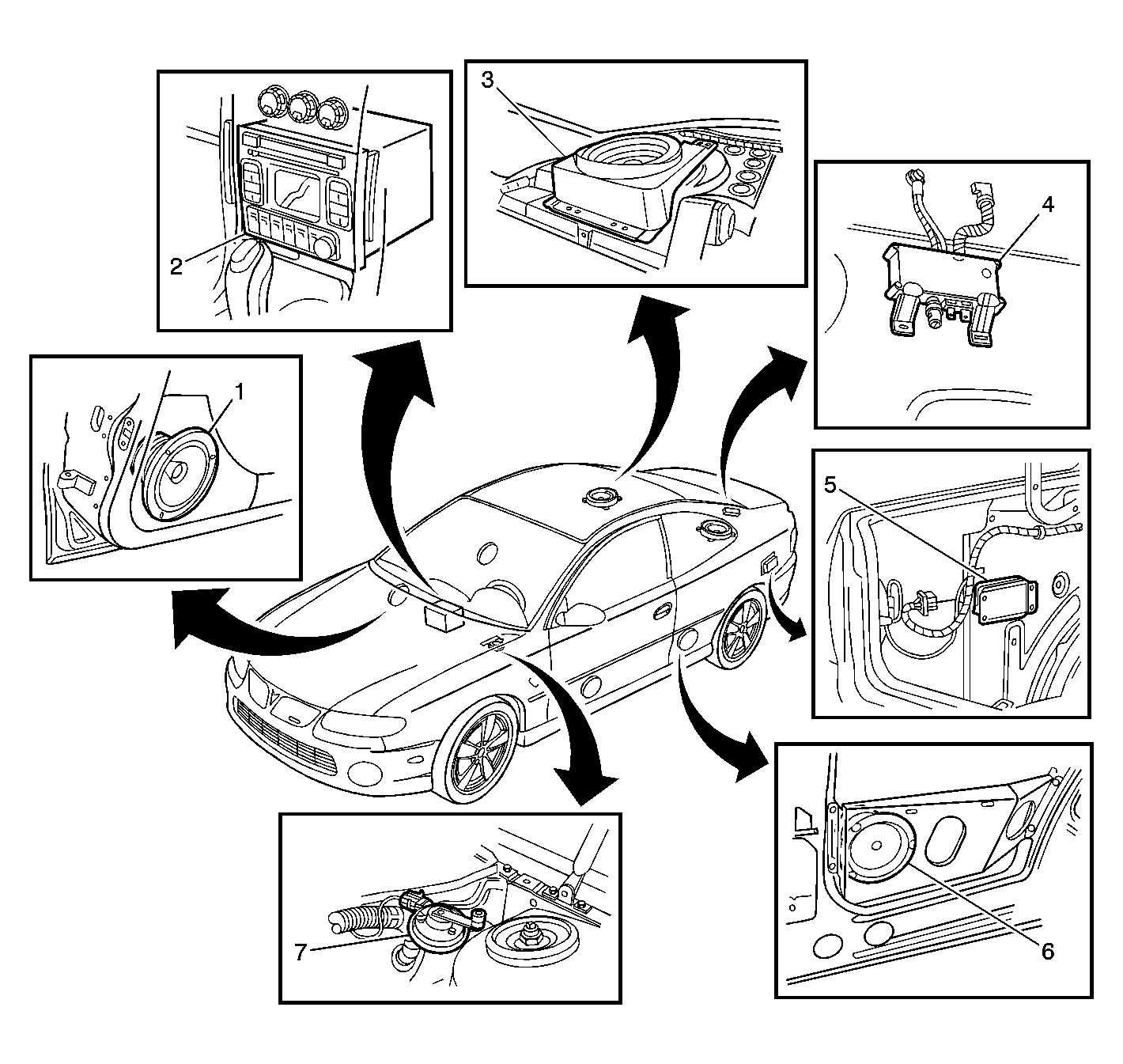

Fig 1: Entertainment System Component Views
GM1310263Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Speaker Assembly
2 Radio
3 Subwoofer
4 Antenna/Rear Defogger Module
5 Subwoofer Amplifier
6 Rear Speaker
7 Anti-Theft Horn
