Engine Controls Component Views

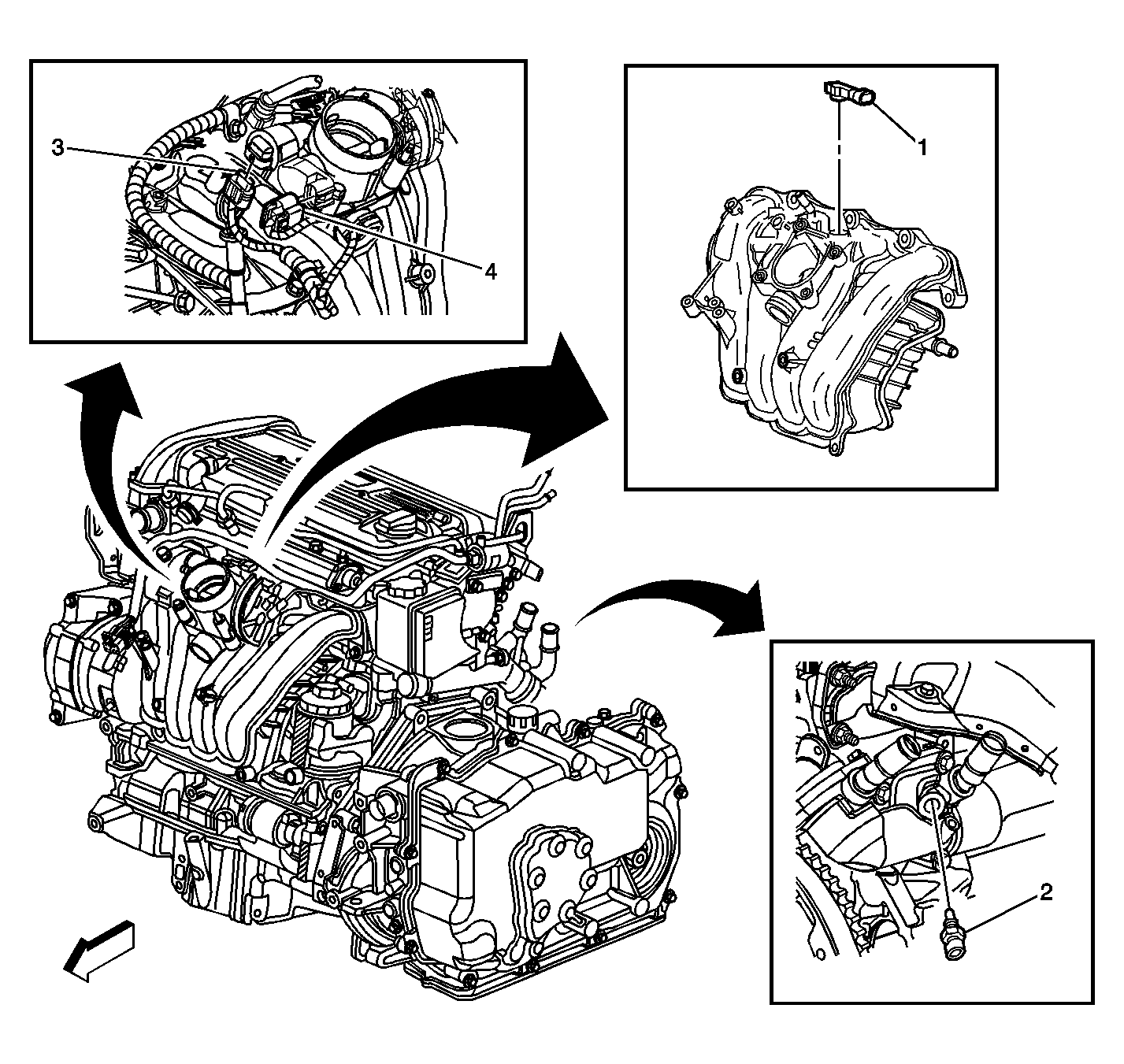

Fig 1: Front Of Engine Component Views - (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Manifold Absolute Pressure (MAP) Sensor
2	Engine Coolant Temperature (ECT) Sensor
3	Idle Air Control (IAC) Valve
4	Throttle Position (TP) Sensor

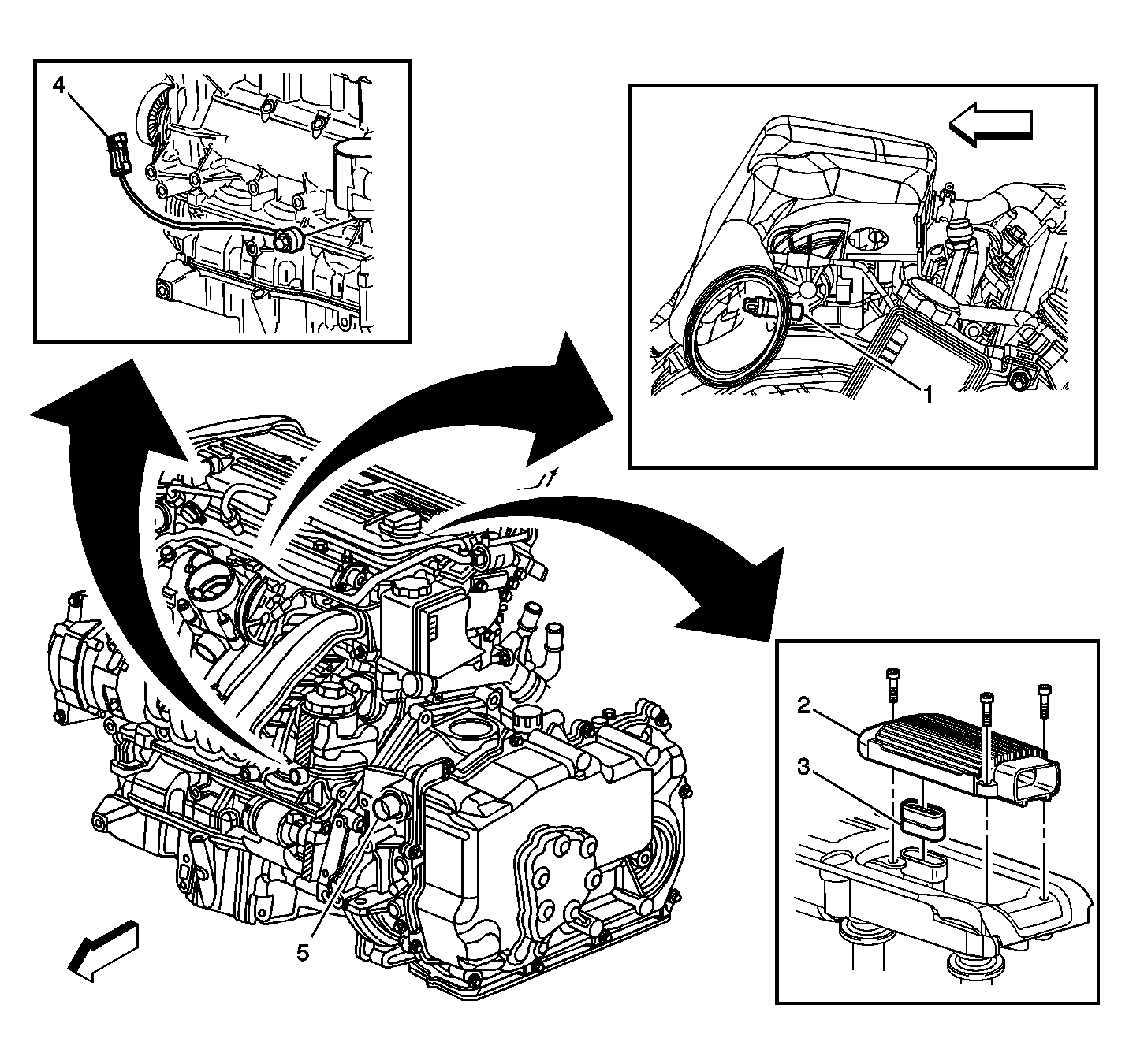

Fig 2: Front Of Engine Component Views - (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Intake Air Temperature (IAT) Sensor
2	Ignition Control Module (ICM)
3	Interconnect
4	Knock Sensor (KS)
5	C102

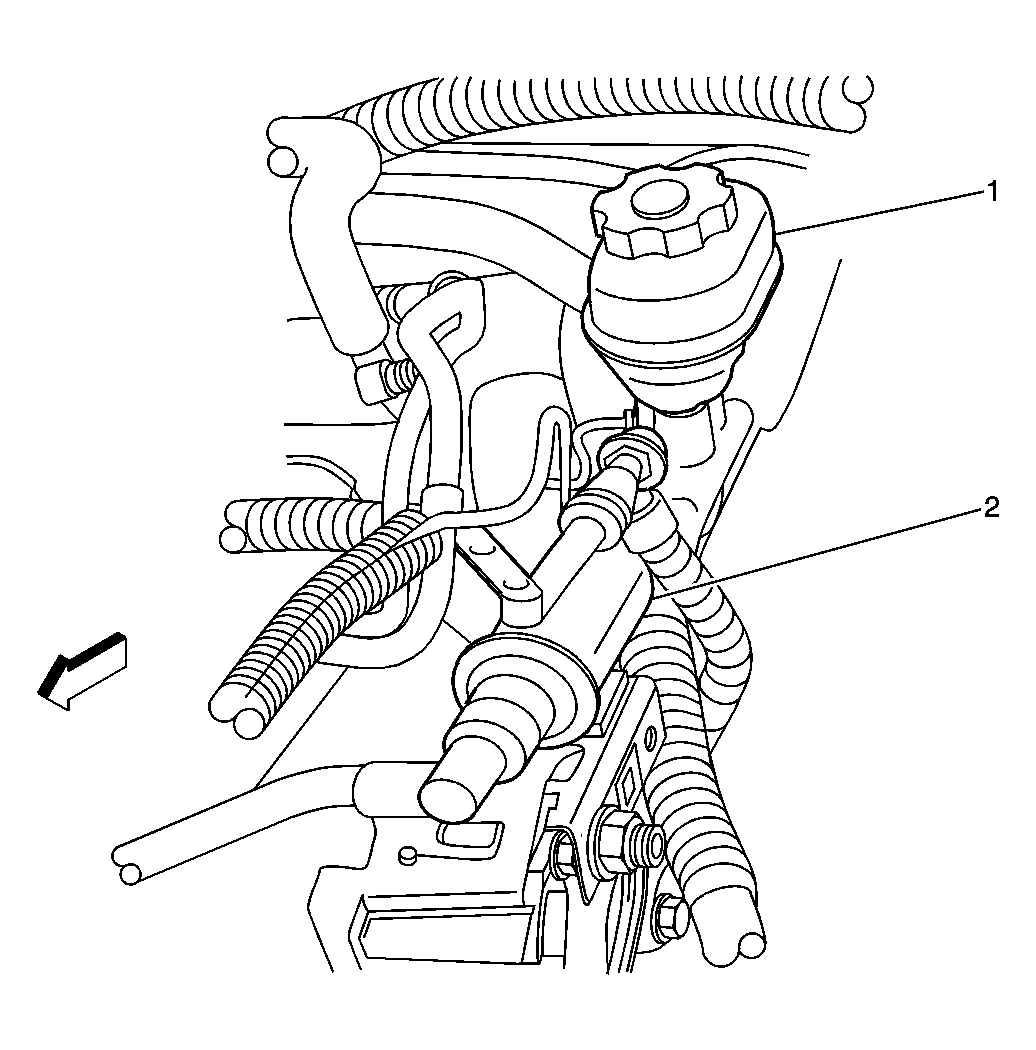

Fig 3: Upper Right Side Of Engine Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Reservoir
2	Evaporative Emission (EVAP) Canister Purge Solenoid

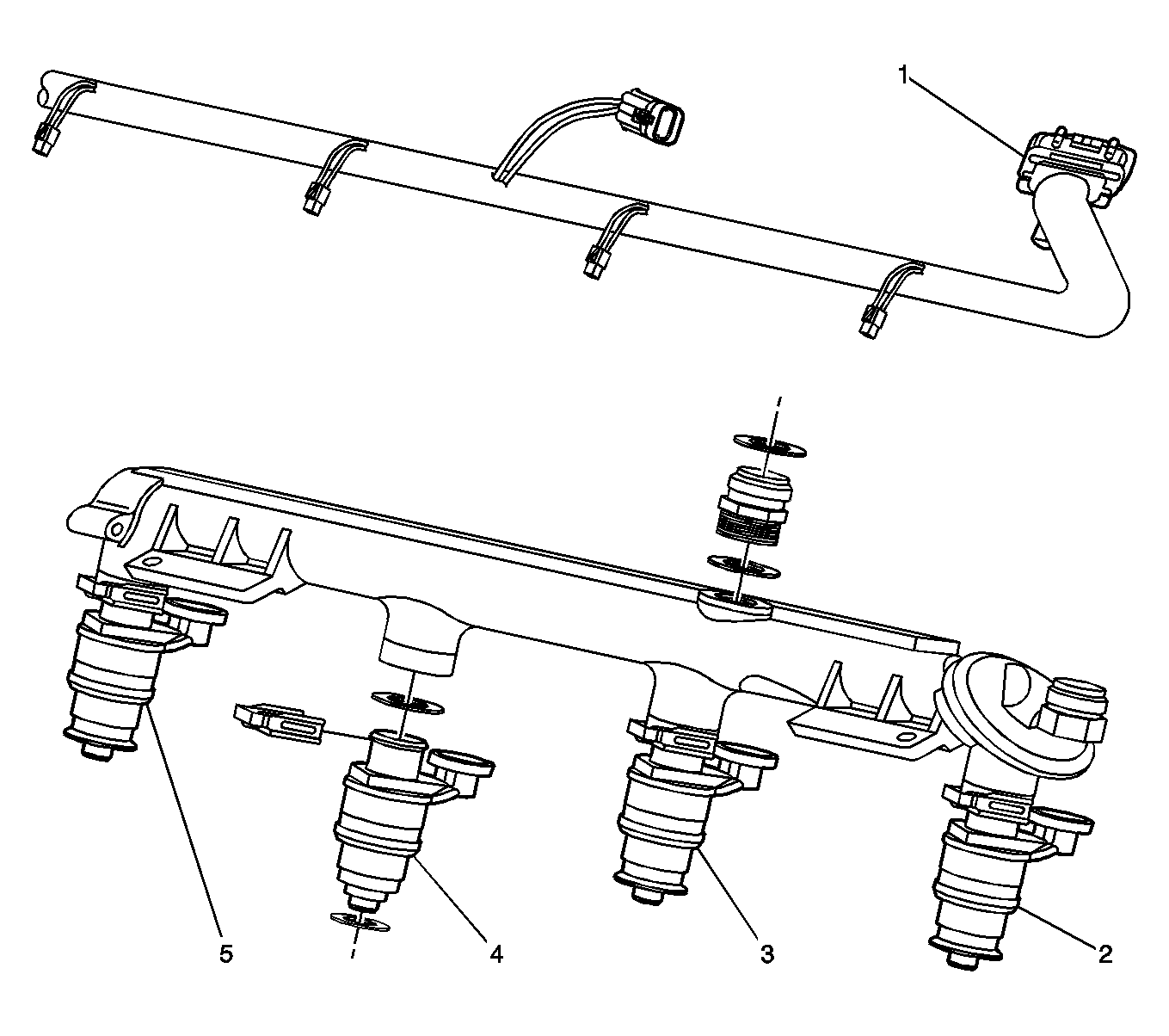

Fig 4: Fuel Injection System Component Views

Courtesy of GENERAL MOTORS CORP.

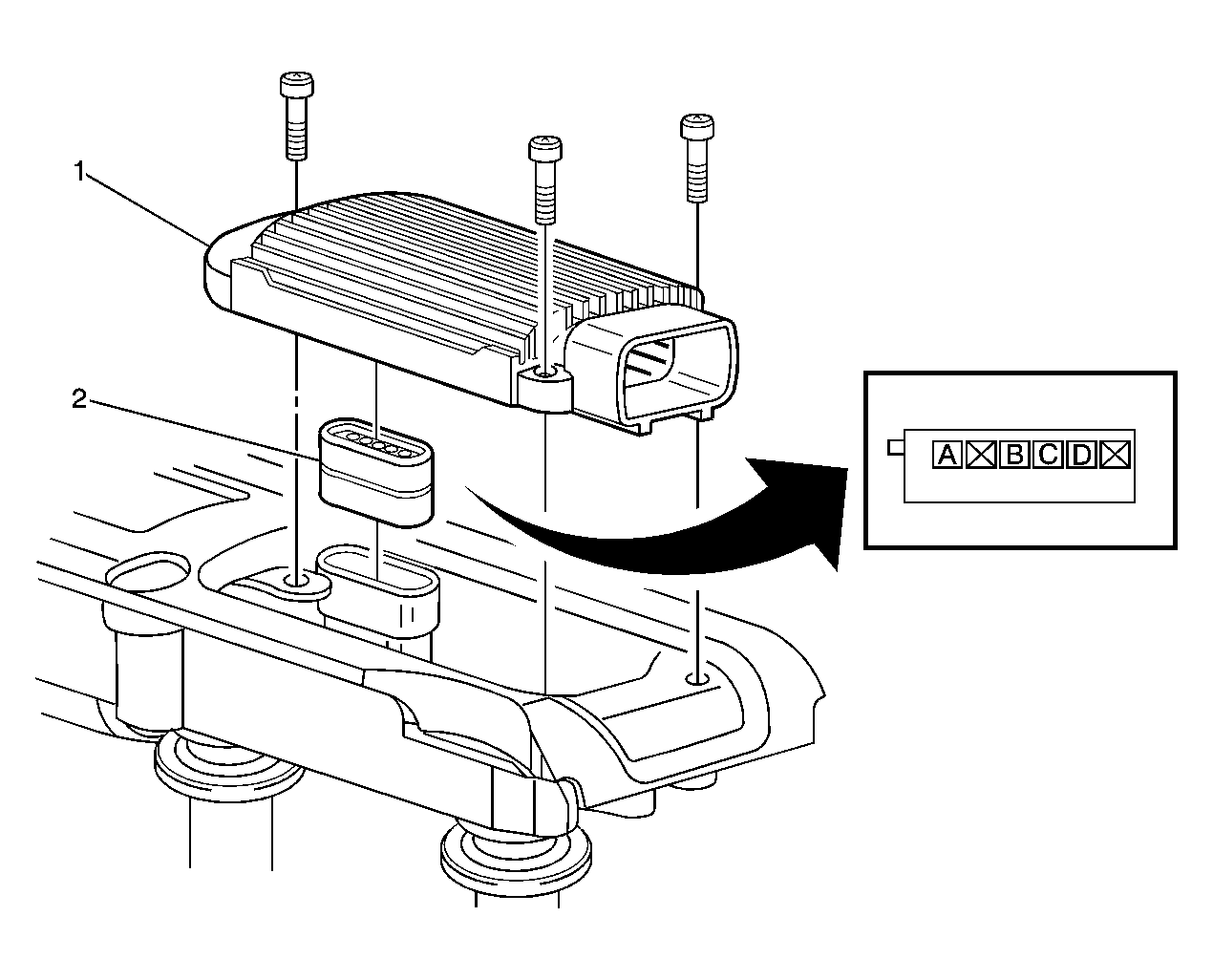

Fig 5: Ignition System Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Control Module (ICM)
2	Interconnect

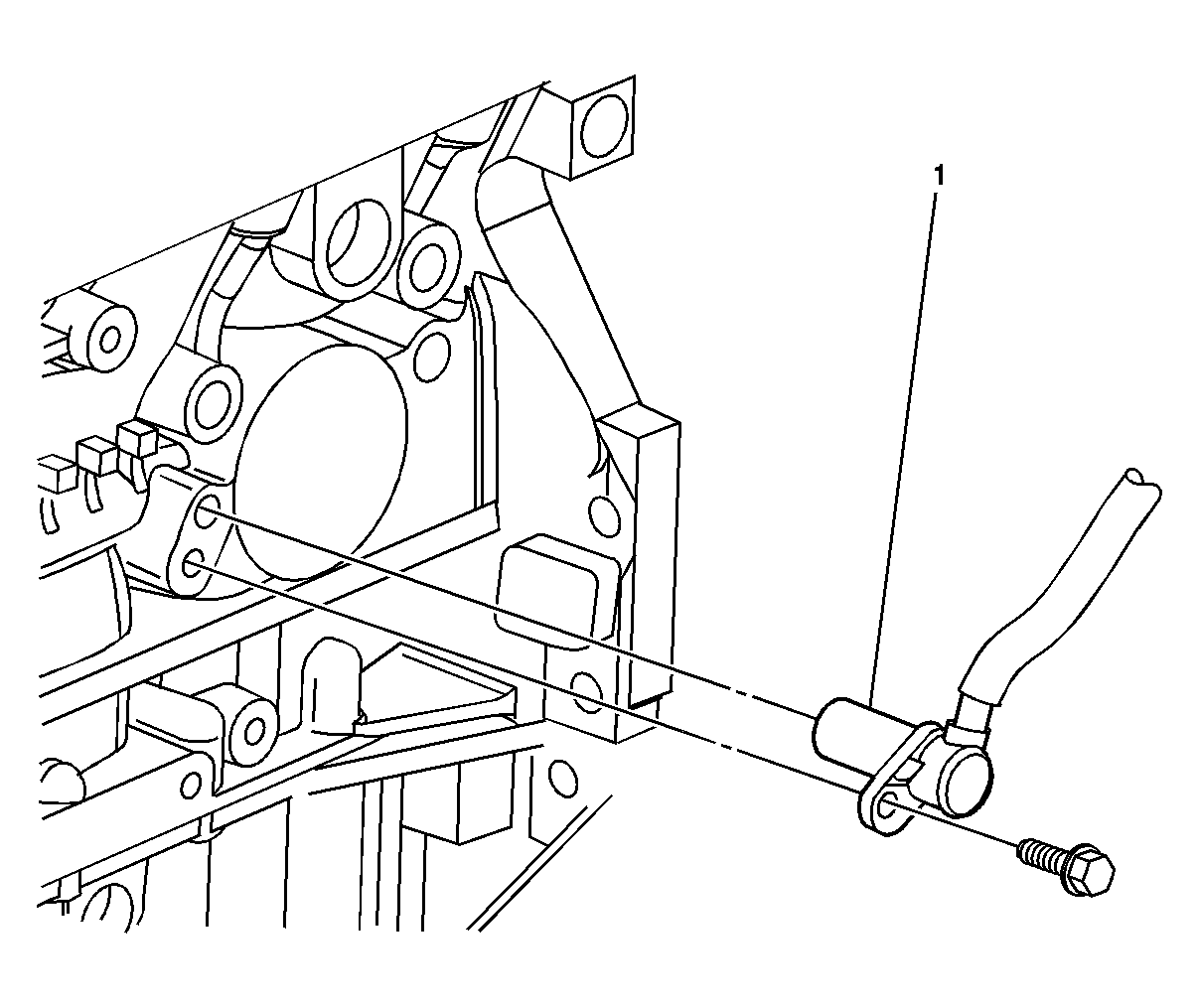

Fig 6: Crankshaft Position (CKP) Sensor Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Crankshaft Position (CKP) Sensor

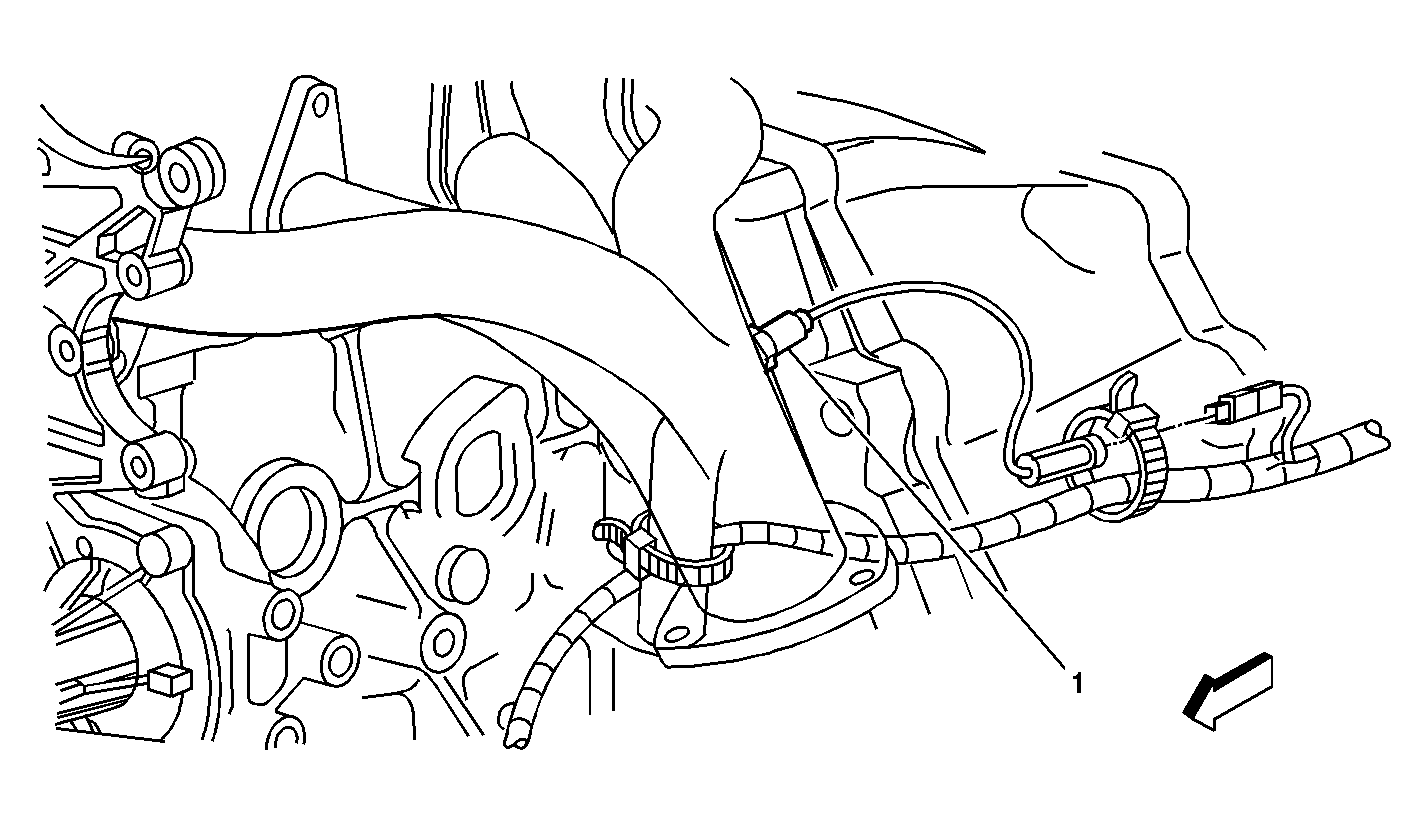

Fig 7: Heated Oxygen Sensor (HO2S) Sensor 1 Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Oxygen Sensor (HO2S) Sensor 1

Fig 8: Left Side Of Passenger Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Left I/P
2	C500
3	C501
4	Seat Belt Switch Connector
5	C306
6	G301
7	C300
8	Powertrain Control Module (PCM)

Fig 9: Evaporative Emission (EVAP) Canister Vent Solenoid Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Evaporative Emission (EVAP) Canister Vent Solenoid

Fig 10: Heated Oxygen Sensor (HO2S) Sensor 2 Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Oxygen Sensor (HO2S) Sensor 2

Fig 11: Fuel Pump & Sender Assembly Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank Pressure (FTP) Sensor
2	Fuel Pump and Sender Assembly
3	Fuel Level Sensor
