Engine Controls Schematics

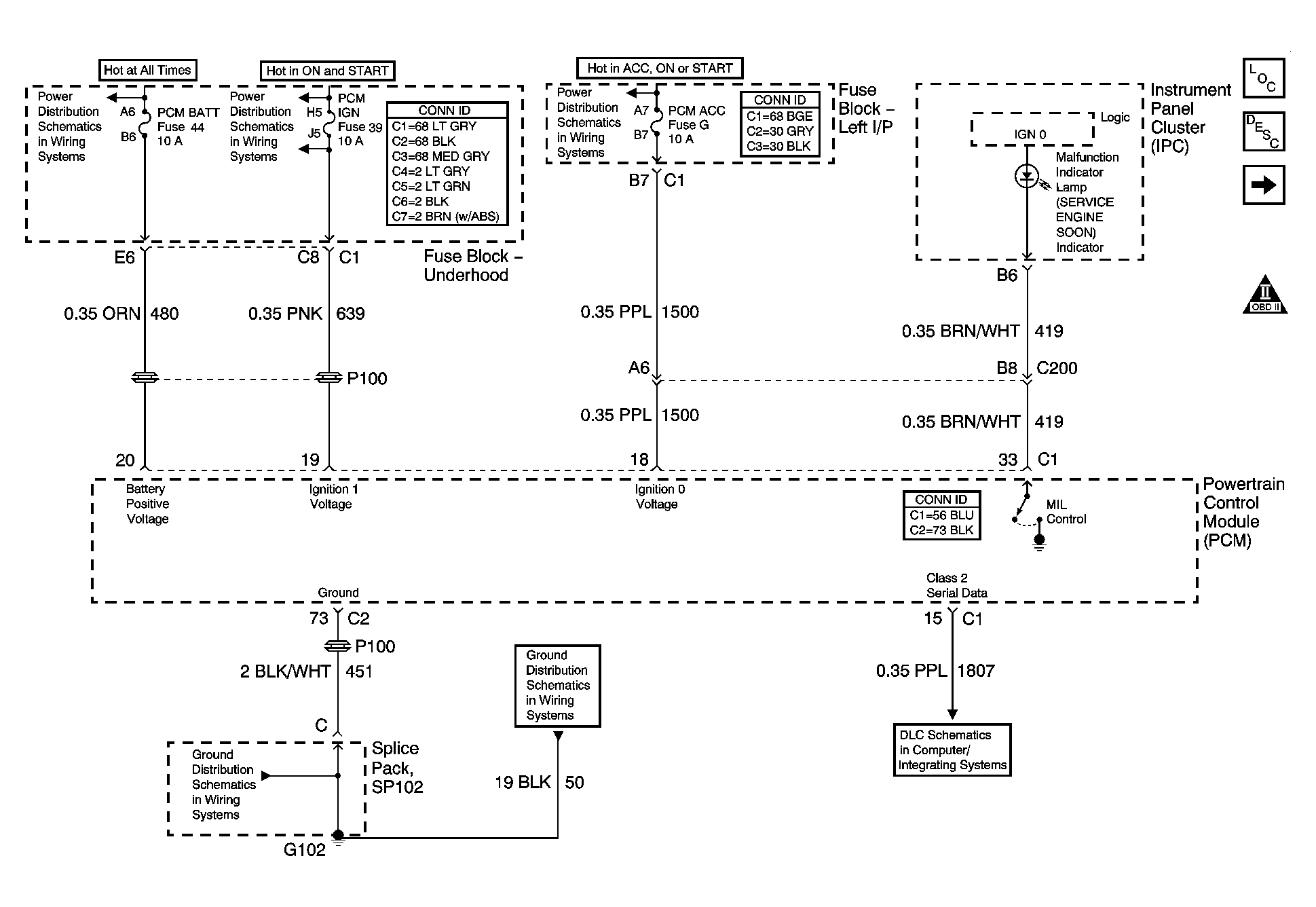

Fig 1: Power, Ground, Serial Data & MIL Schematic
GM1391398Courtesy of GENERAL MOTORS CORP.

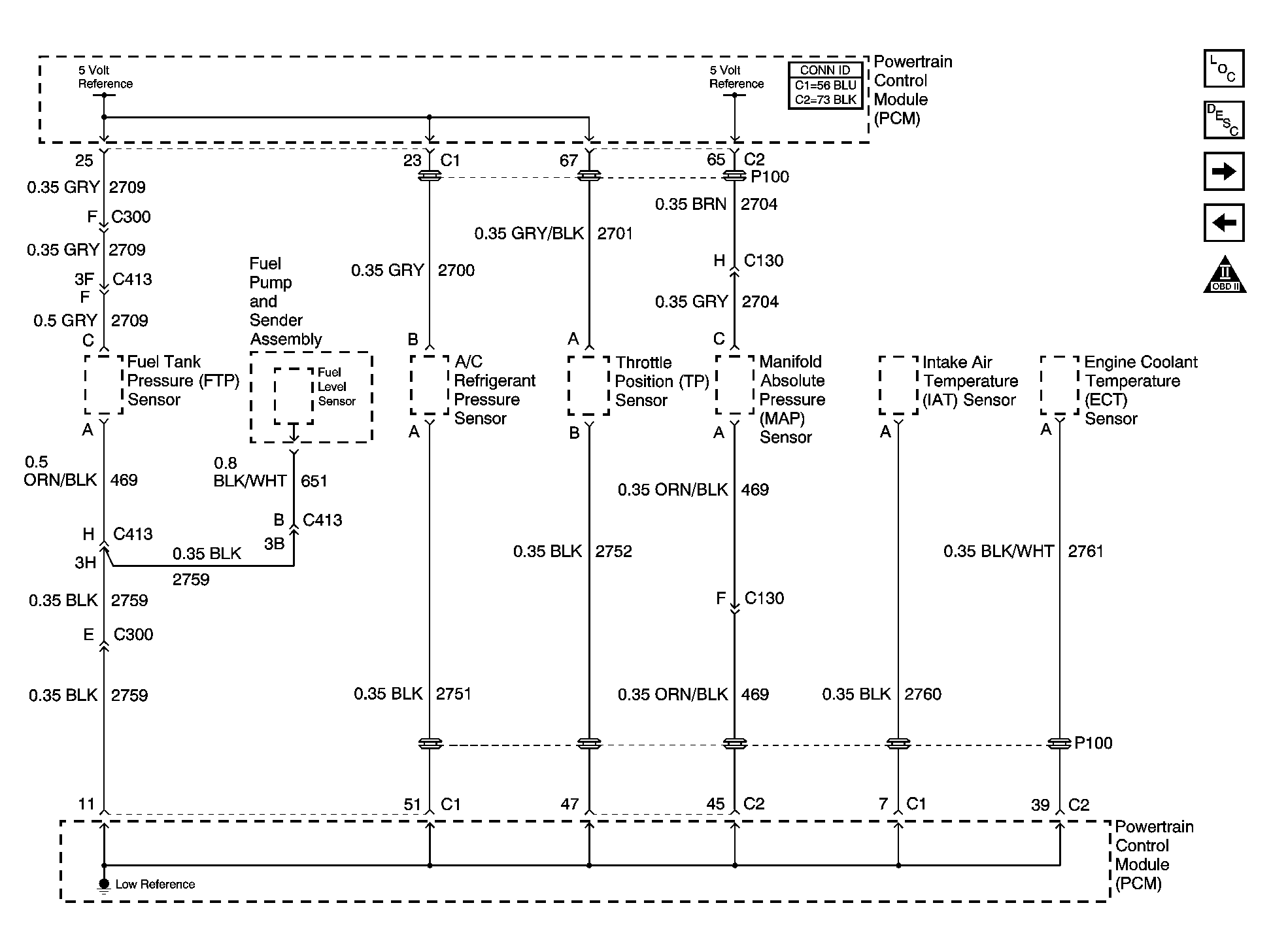

Fig 2: 5-Volt and Low Reference Bussing
GM1391424Courtesy of GENERAL MOTORS CORP.

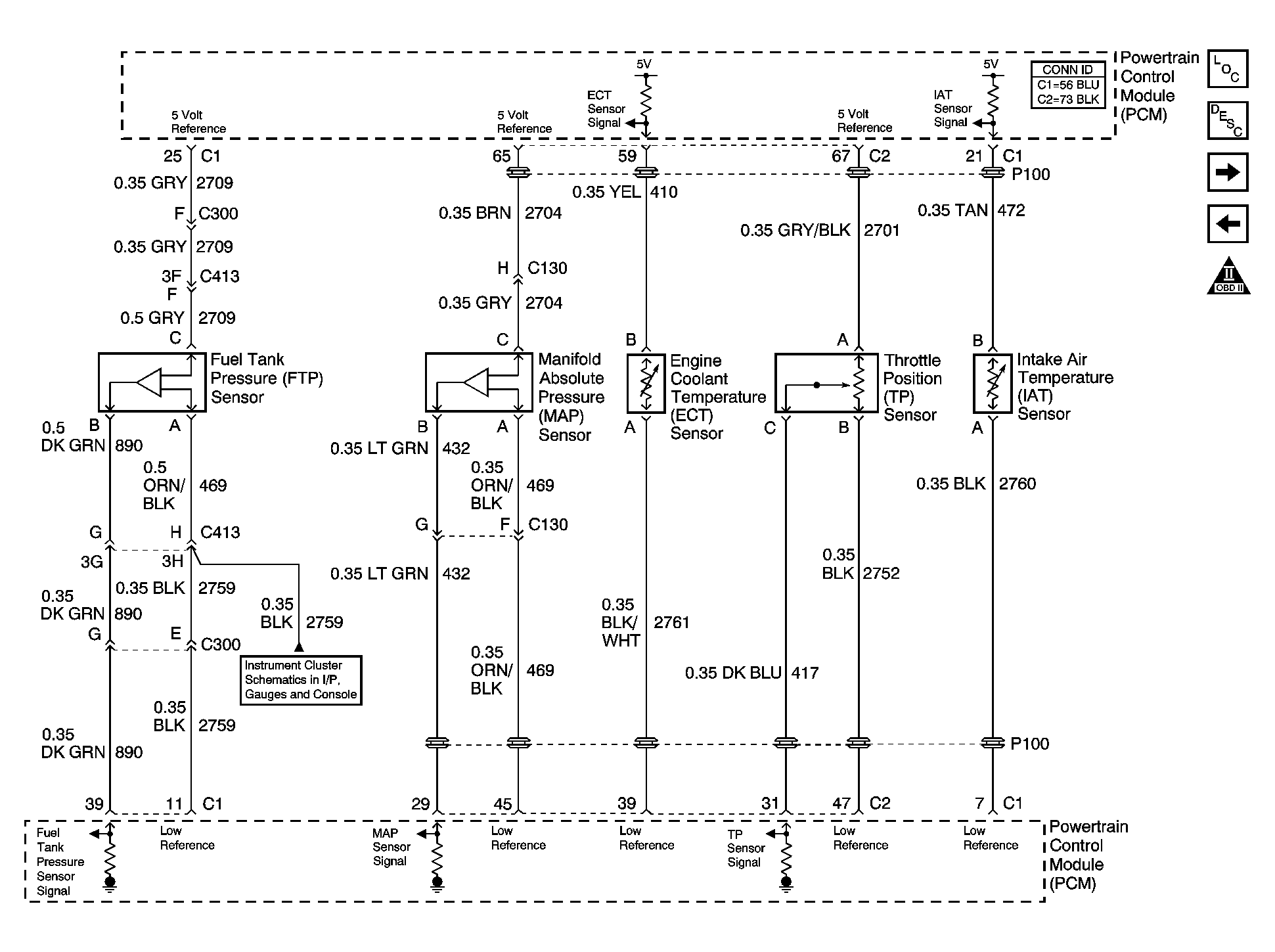

Fig 3: Engine Data Sensors Schematic - Pressure & Temperature
GM1391426Courtesy of GENERAL MOTORS CORP.

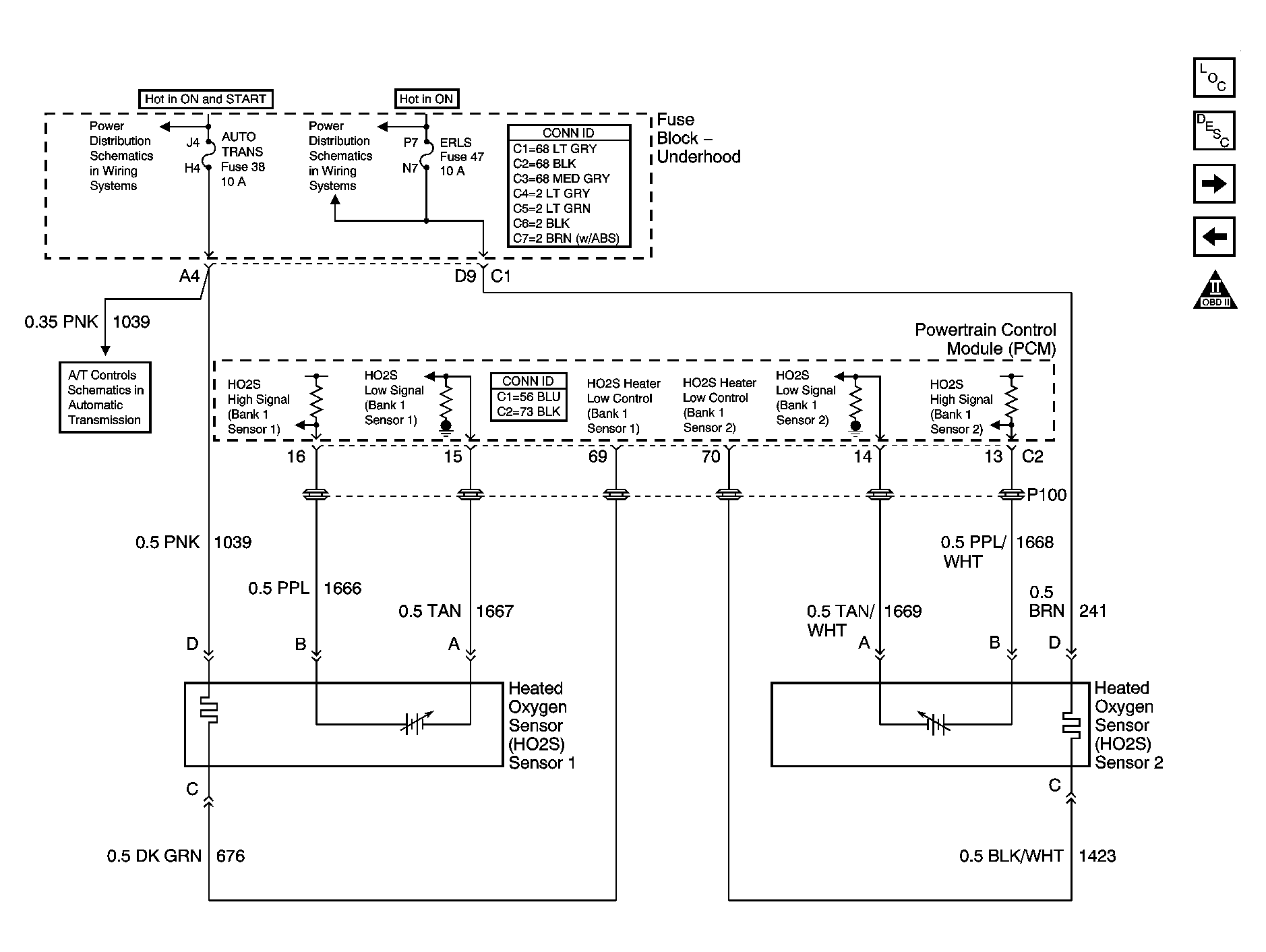

Fig 4: Heated Oxygen Sensors Schematic
GM1391429Courtesy of GENERAL MOTORS CORP.

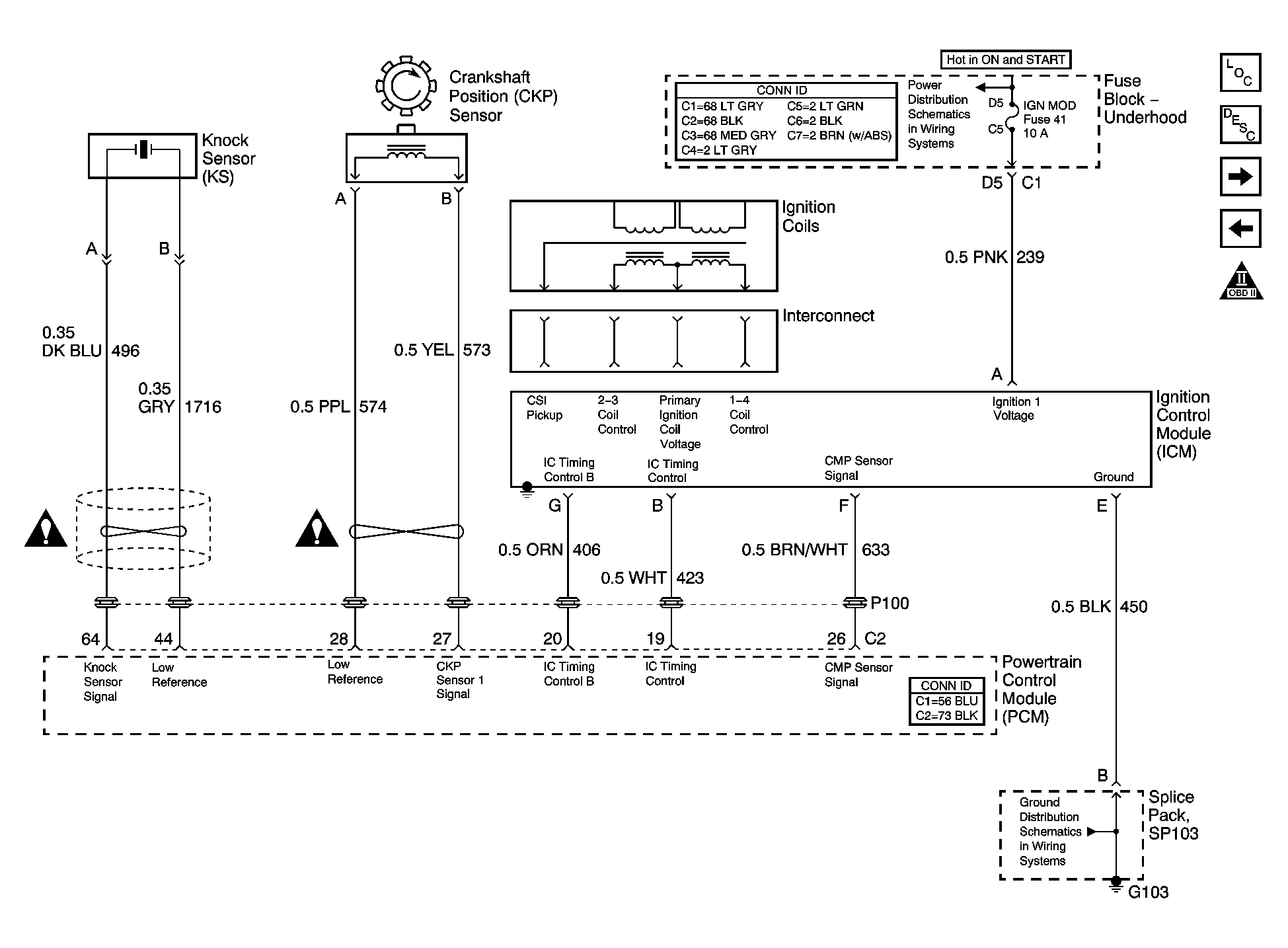

Fig 5: Ignition System Schematic
GM1391432Courtesy of GENERAL MOTORS CORP.

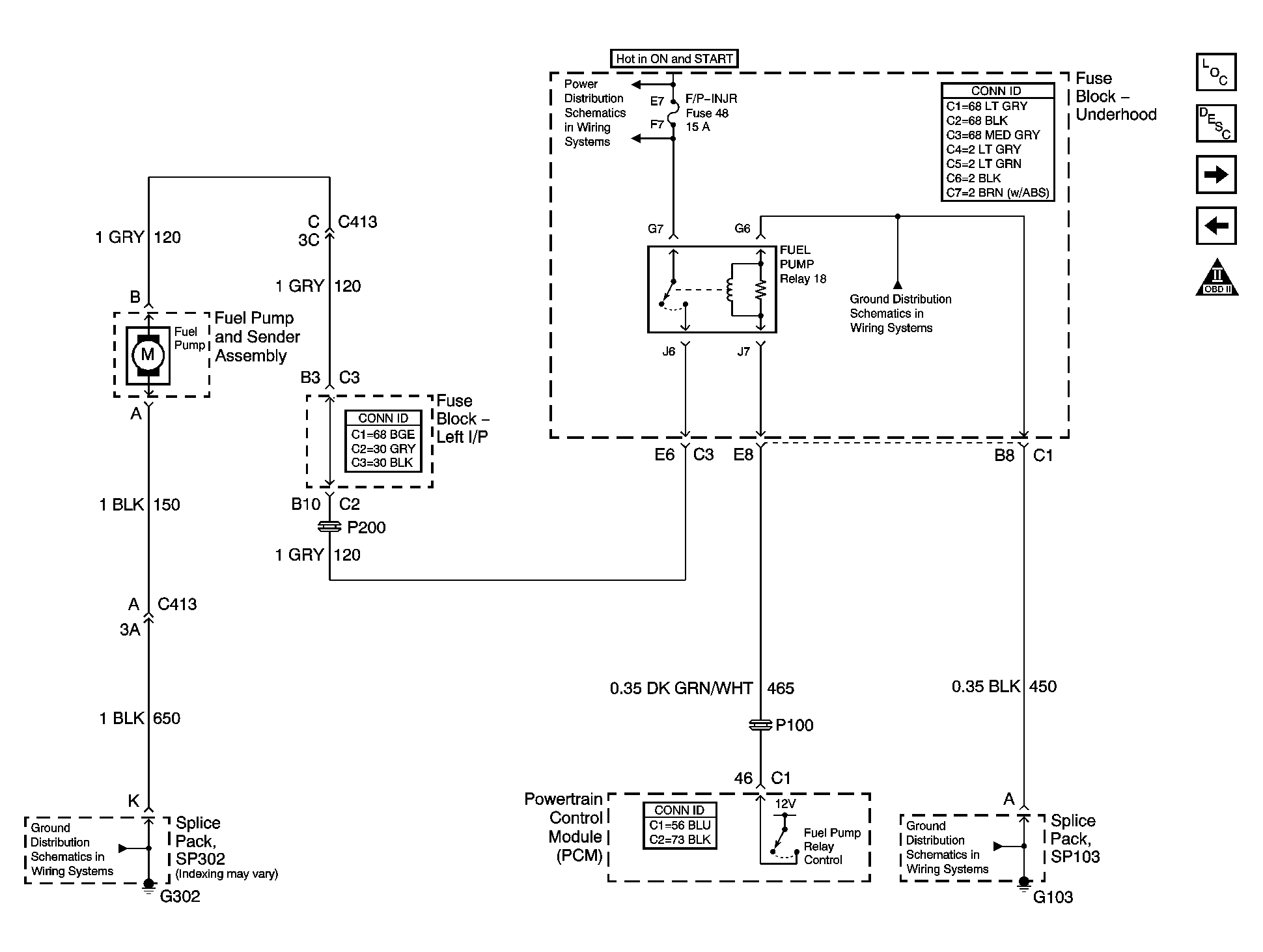

Fig 6: Fuel Pump Controls Schematic
GM1391433Courtesy of GENERAL MOTORS CORP.

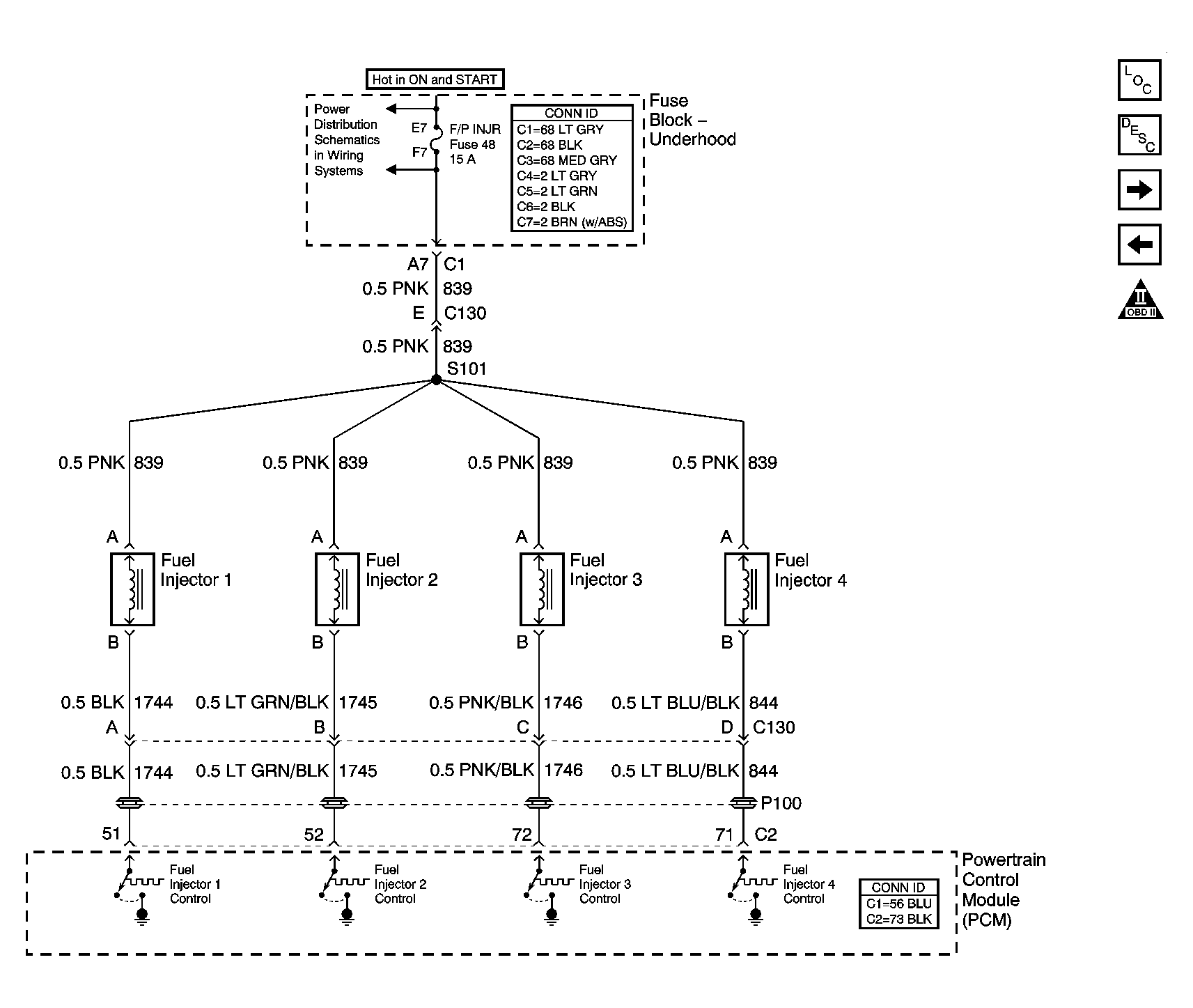

Fig 7: Fuel Injectors Schematic
GM1391434Courtesy of GENERAL MOTORS CORP.

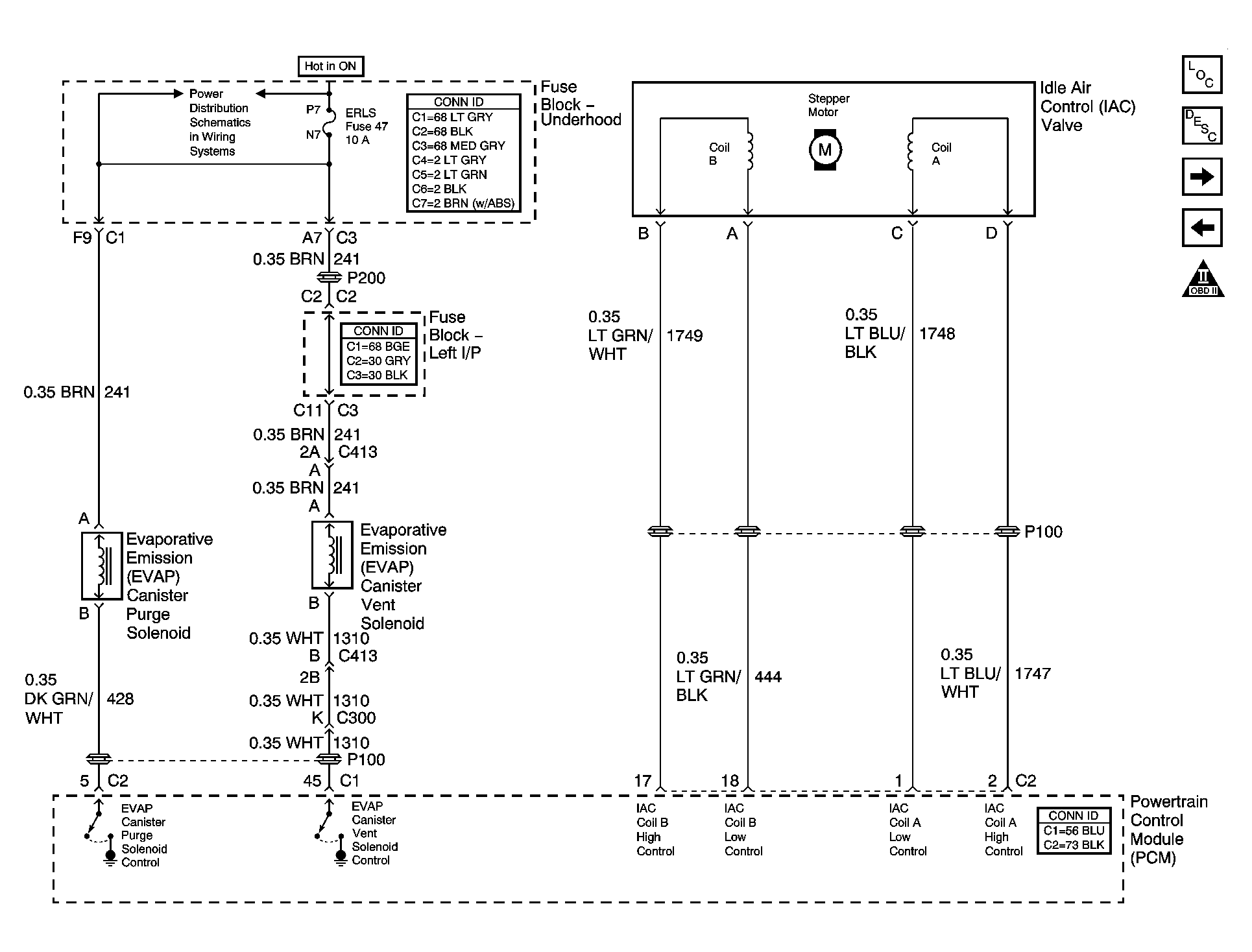

Fig 8: EVAP & IAC Controls Schematic
GM1391436Courtesy of GENERAL MOTORS CORP.

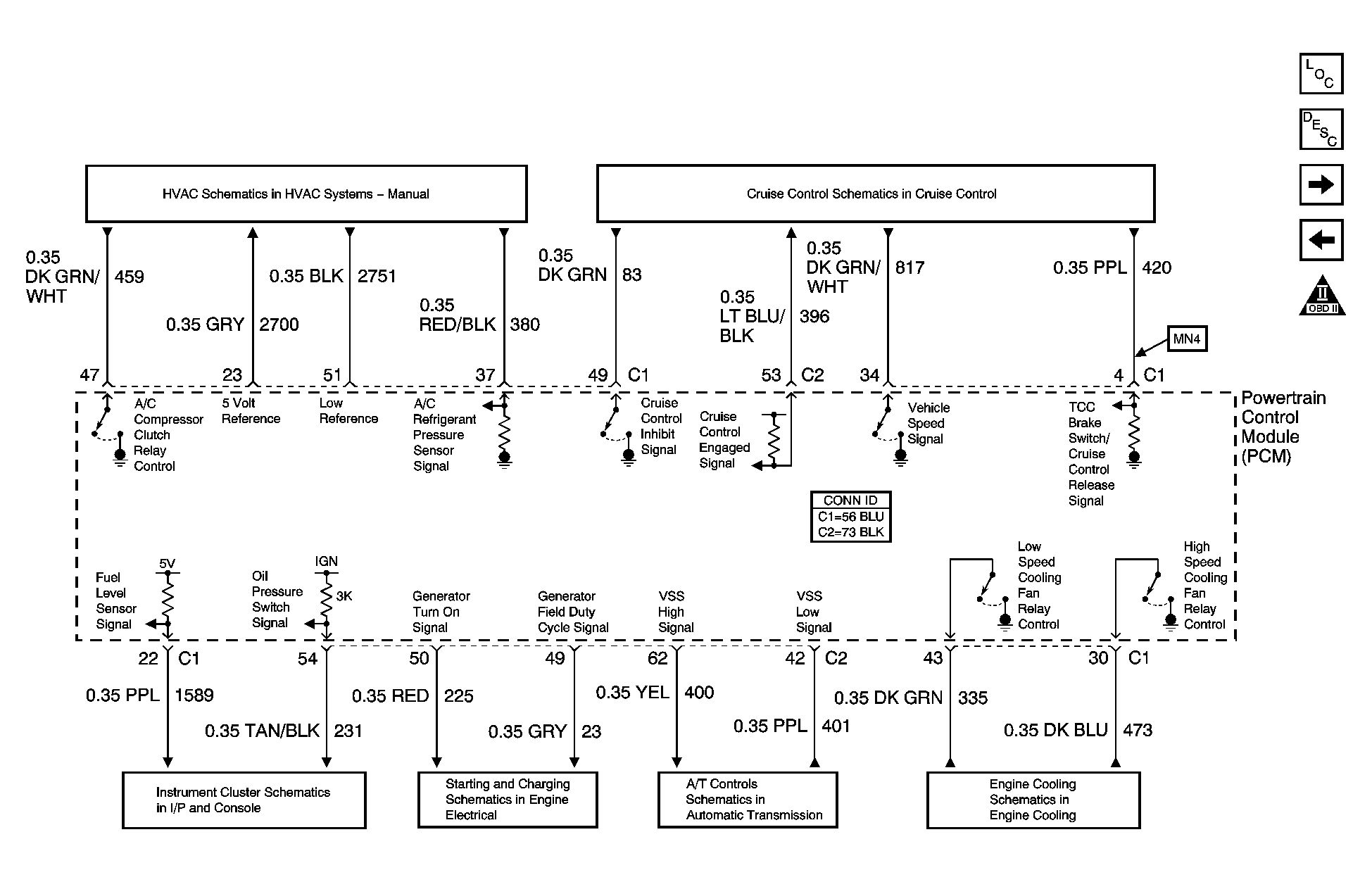

Fig 9: Controlled/Monitored Subsystem References Schematic
GM1391437Courtesy of GENERAL MOTORS CORP.

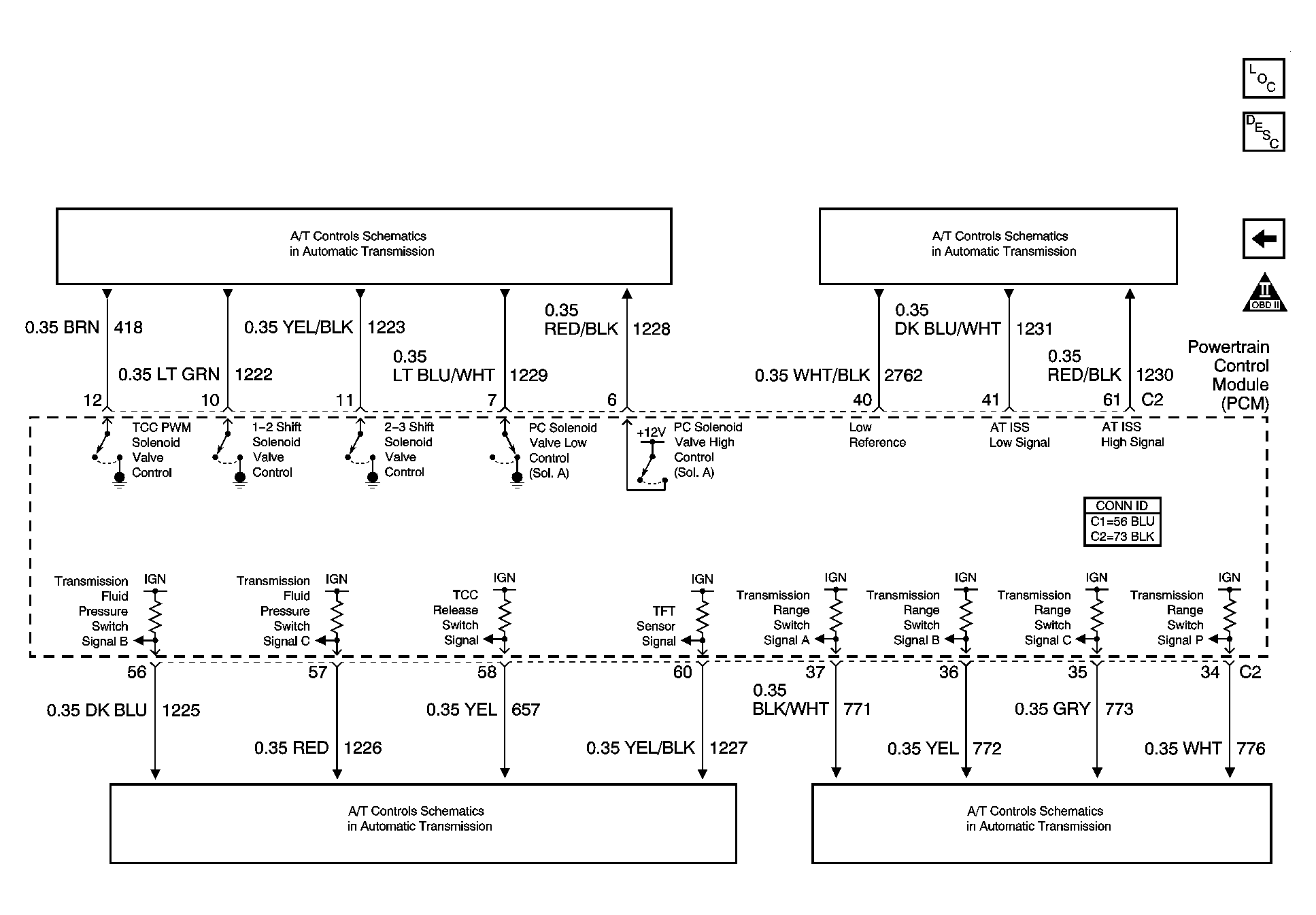

Fig 10: Transmission Controls Schematic - A/T
GM1261635Courtesy of GENERAL MOTORS CORP.
