Wiper/Washer System Component Views

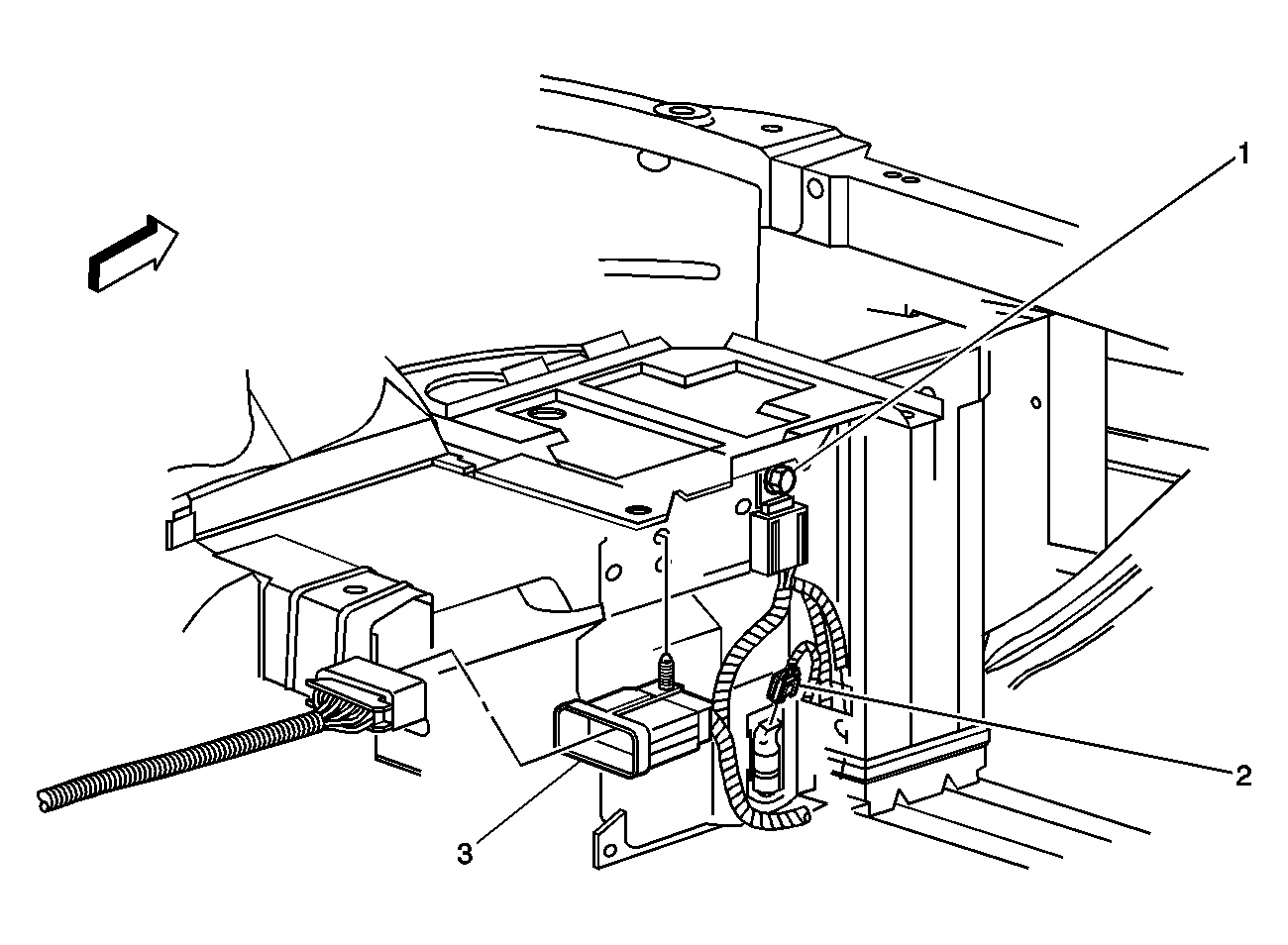

Fig 1: Under Battery Tray Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	SP102, G102
2	Windshield Washer Fluid Pump
3	C101

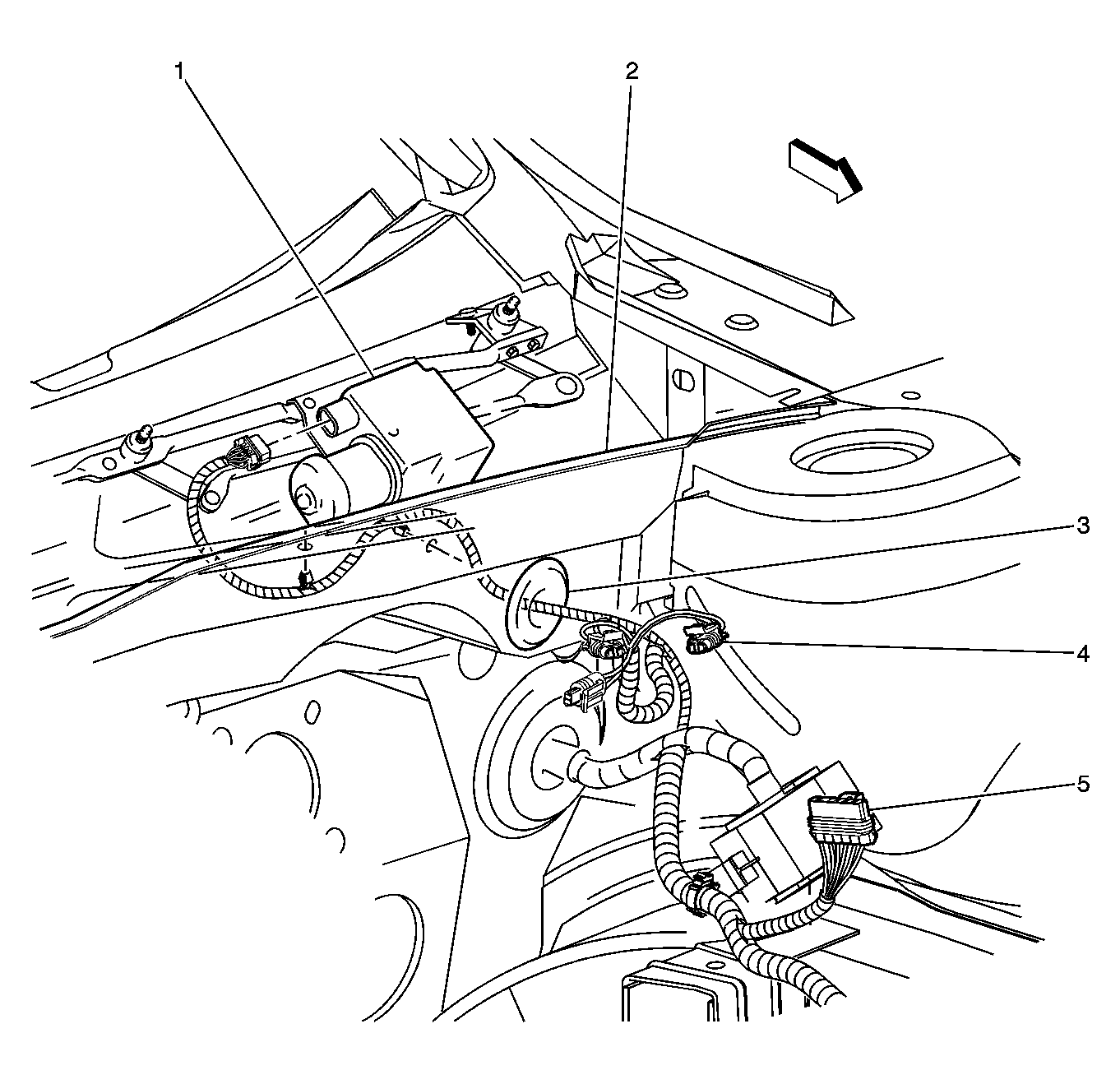

Fig 2: Left Rear Of Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor Assembly
2	Dash Panel Extension
3	P200
4	Brake Fluid Level Switch
5	Electronic Brake Control Module (EBCM) Connector

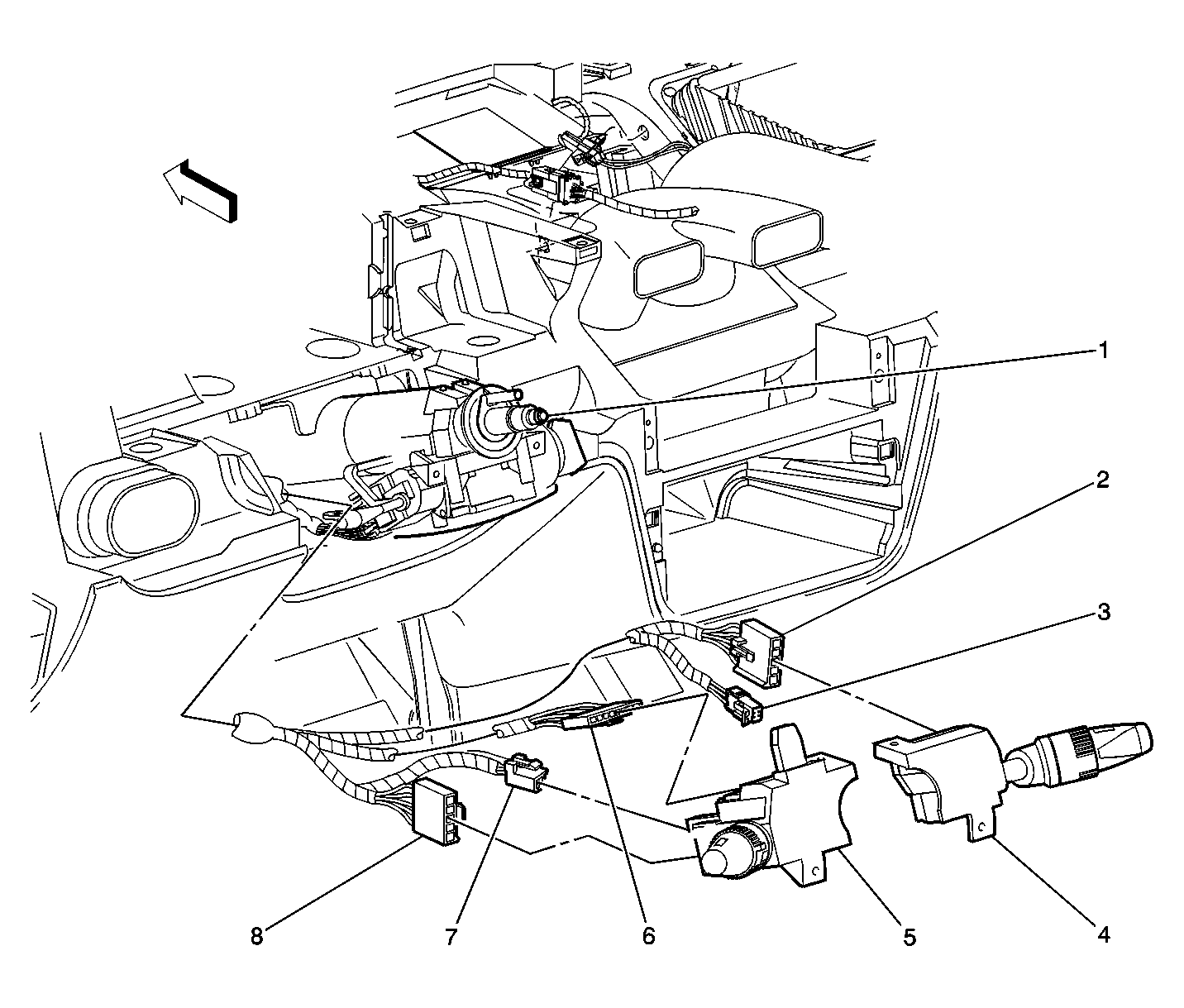

Fig 3: Steering Column Component Connectors Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Column Assembly
2	Windshield Wiper Connector
3	Passlock™ Lock Sensor Connector
4	Windshield Wiper Switch Assembly
5	Turn Signal/Multifunction Switch
6	Turn Signal/Malfunction Connector C1
7	Turn Signal/Malfunction Connector C2
8	Headlamp Connector
