Transaxle Specifications (Selective Snap Ring Table)

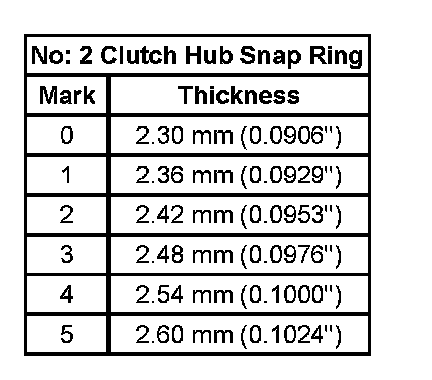

Transaxle Specifications (Selective Snap Ring Table):

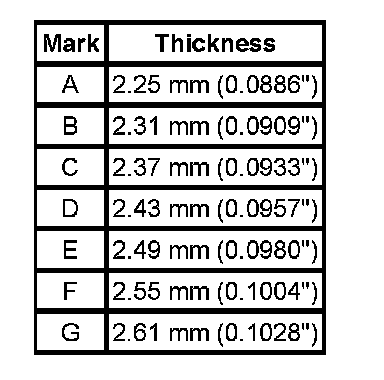

Transaxle Specifications (Selective Snap Ring Table):

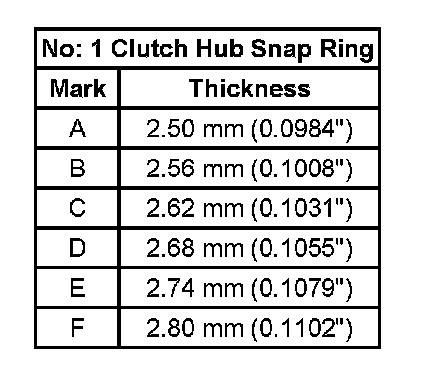

Transaxle Specifications (Selective Snap Ring Table):





Transaxle Specifications (Selective Snap Ring Table)
