Removal Procedure

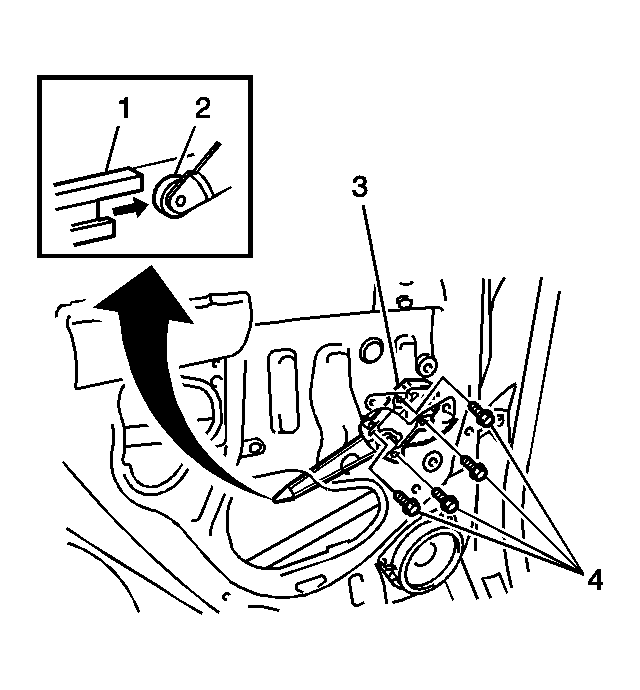

Fig 1: Window Regulator With Retaining Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the rear side door water deflector. Refer to Water Deflector Replacement - Rear Door .
Remove the window guide channel from the rear door. Refer to Window Guide Replacement - Door .
Disconnect the power window motor electrical connector, if equipped.
Remove the 4 bolts (4) that retain the regulator (3).
Slide the regulator arm roller (2) out of the window bottom channel (1).
Lift and remove the window from the rear door.
