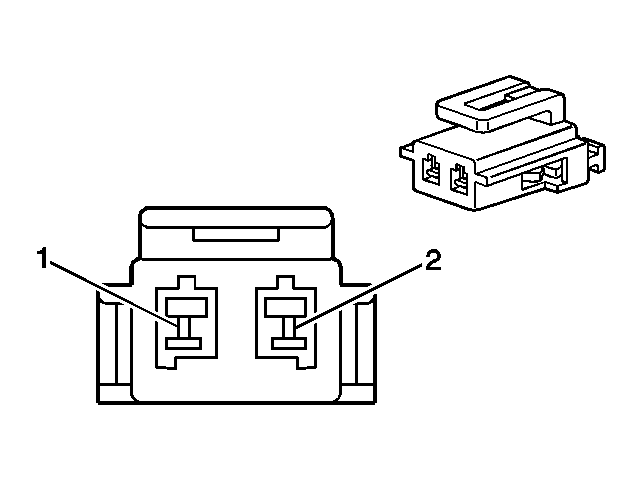

Fresh/Recirculation Air Inlet Actuator - Connector End View
Fresh/Recirculation Air Inlet Actuator - Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
|
| Pin |
Wire Color |
Function |
| 1 |
GN/WH |
Fresh Position Control |
| 2 |
BU/WH |
Recirculation Position Control |
