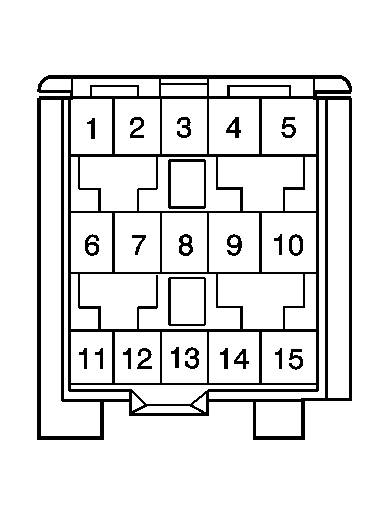

SIR Sensing and Diagnostic Module (SDM) C2 - Connector End View
SIR Sensing and Diagnostic Module (SDM) C2 - Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | YE | Left Seat Belt Pretensioner Low Signal |
| 2 | YE/BK | Left Seat Belt Pretensioner High Signal |
| 3 | - | Not Used |
| 4 | - | Not Used |
| 5 | - | Not Used |
| 6 | L-GN/BK | Left Roof Rail Module Drivers Seat Low Signal |
| 7 | PK/BU | Left Roof Rail Module Drivers Seat High Signal |
| 8 | PK | Left Side Impact Sensor Drivers Seat Signal |
| 9 | YE/RD | Left Side Impact Module Drivers Seat High Signal |
| 10 | YE/GN | Left Side Impact Module Drivers Seat Low Signal |
| 11 | GN | Driver Seat Belt Signal |
| 12 | RD | Driver Seat Belt Signal |
| 13 | RD/BK | Driver Seat Belt Signal |
| 14 | GN/WH | Driver Seat Belt Signal |
| 15 | GY | Left Side Impact Sensor Drivers Seat Signal |
