Removal Procedure

  1. Relieve the fuel pressure. Refer to the Fuel Pressure Relief Procedure .

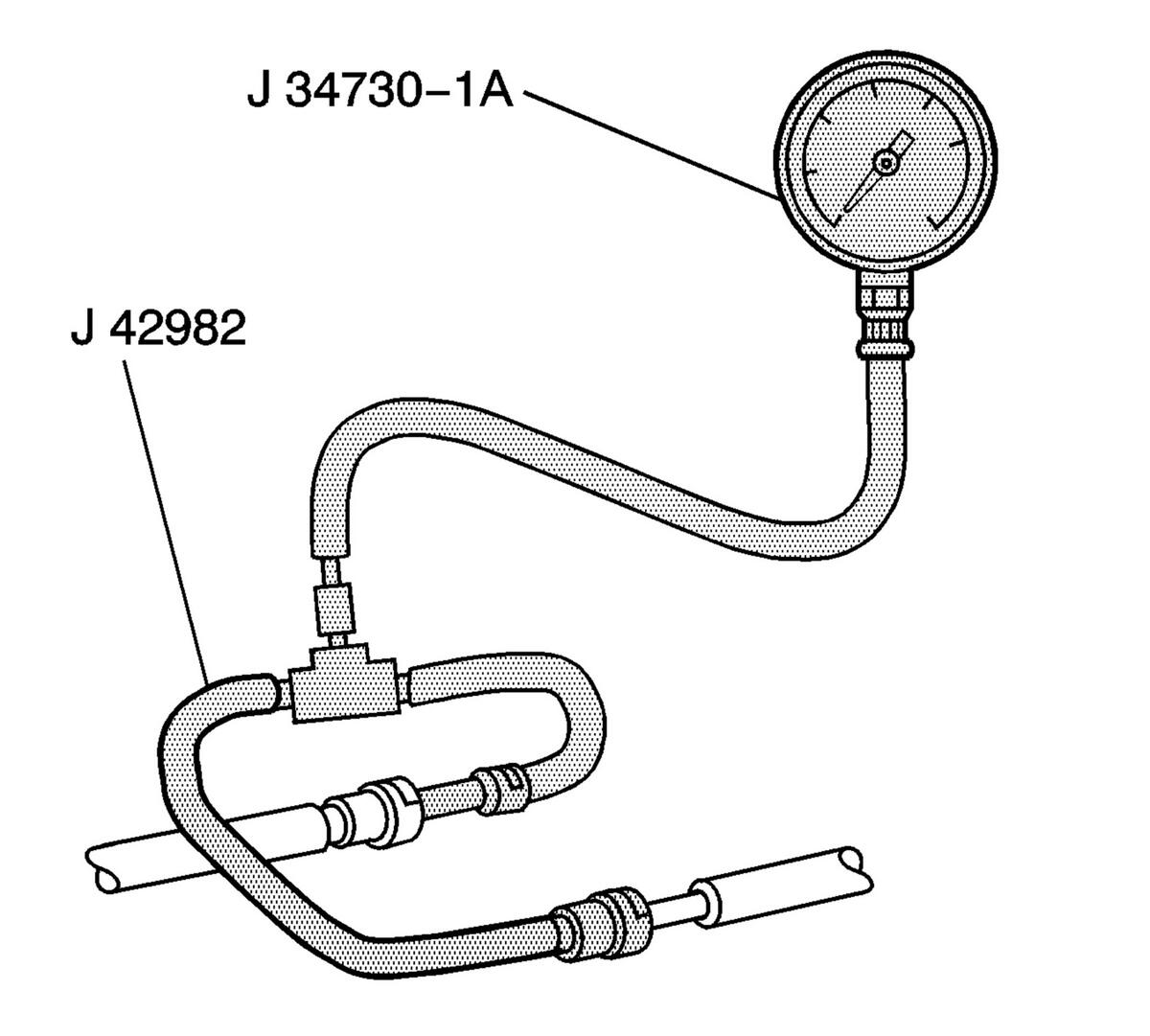

    2. Fig 1: Fuel Pressure Gage
    GM320792Courtesy of GENERAL MOTORS CORP.
  2. Remove the J 34730-1A  from the J 42982  .
  3. Using the J 43178  , disconnect the quick connect coupling of the J 42982  from the fuel feed pipe of the fuel rail. Use a shop towel in order to catch any remaining fuel that may leak.
  4. Disconnect the quick connect coupling of the fuel feed hose from the J 42982  , and remove the adapter. Use a shop towel in order to catch any remaining fuel that may leak.
    5. Fig 2: Installing Quick-Connect Fitting
    GM624247Courtesy of GENERAL MOTORS CORP.
  5. Connect the quick-connect fitting of the fuel feed hose (1) to the fuel feed pipe (2) of the fuel rail. Refer to Quick Connect Fitting(s) Service (Metal Collar) .
  6. Install the cover for the quick connect coupling of the fuel feed hose.
    7. NOTE: Refer to Fastener Notice in Cautions and Notices.
  7. Connect the negative battery cable.

    Tighten:  Tighten the retainer for the negative battery cable terminal to 15 N.m (11 lb ft).

  8. Turn ON the ignition in order to pressurize the fuel system.
  9. Turn OFF the ignition.
  10. Check for any fuel leaks.
    11. Fig 3: View Of Engine Top Cover, Plastic Retainers And Fasteners
    GM856569Courtesy of GENERAL MOTORS CORP.
  11. Install the engine cover (1).
  12. Secure the engine cover (1) with the 2 fasteners.

    Tighten:  Tighten the two fasteners to 7 N.m (62 lb in).

  13. Install the 2 plastic retainers.
