Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

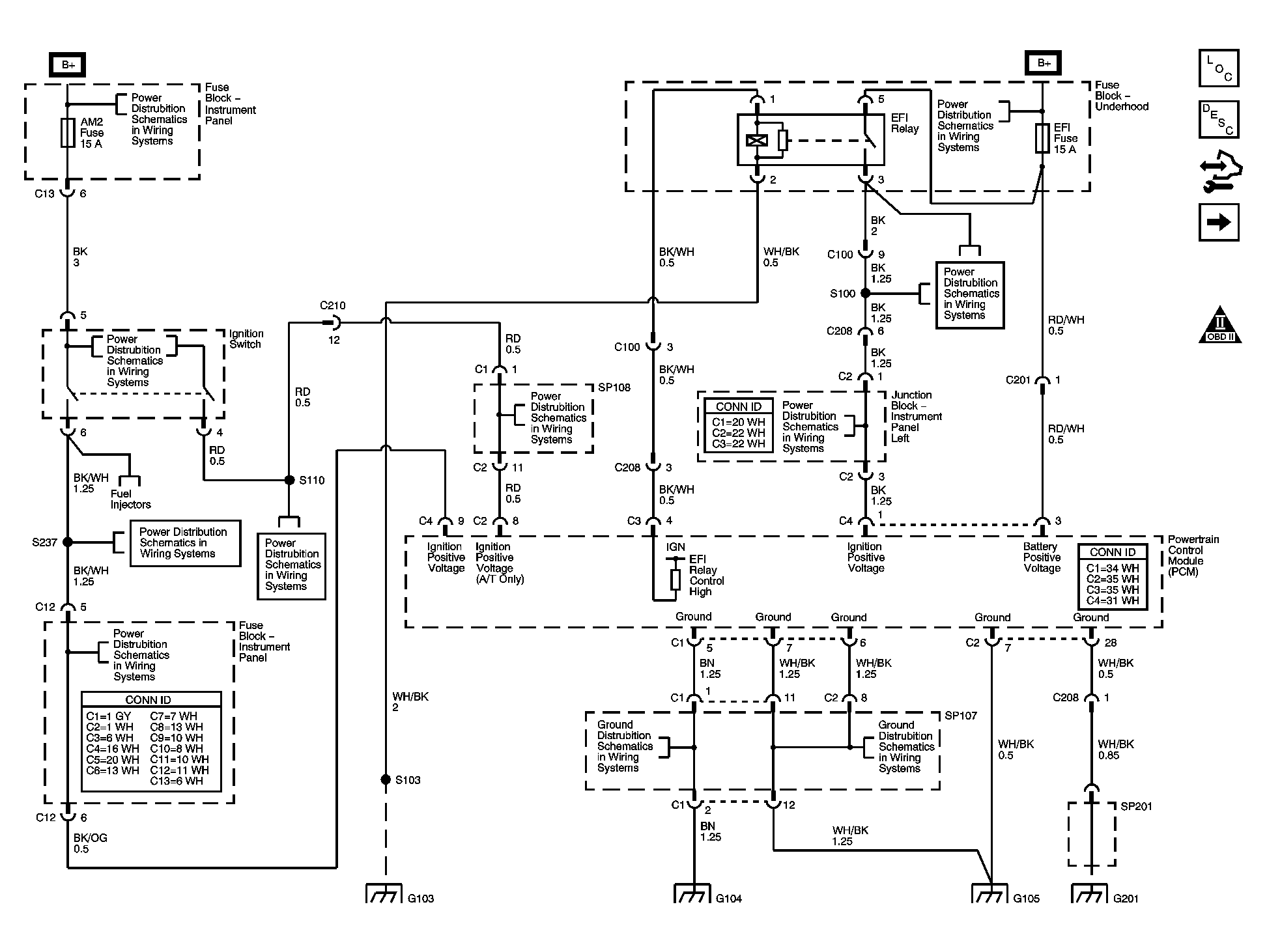

Fig 1: Powertrain Control Module (PCM) Power and Ground Schematic

Courtesy of GENERAL MOTORS CORP.

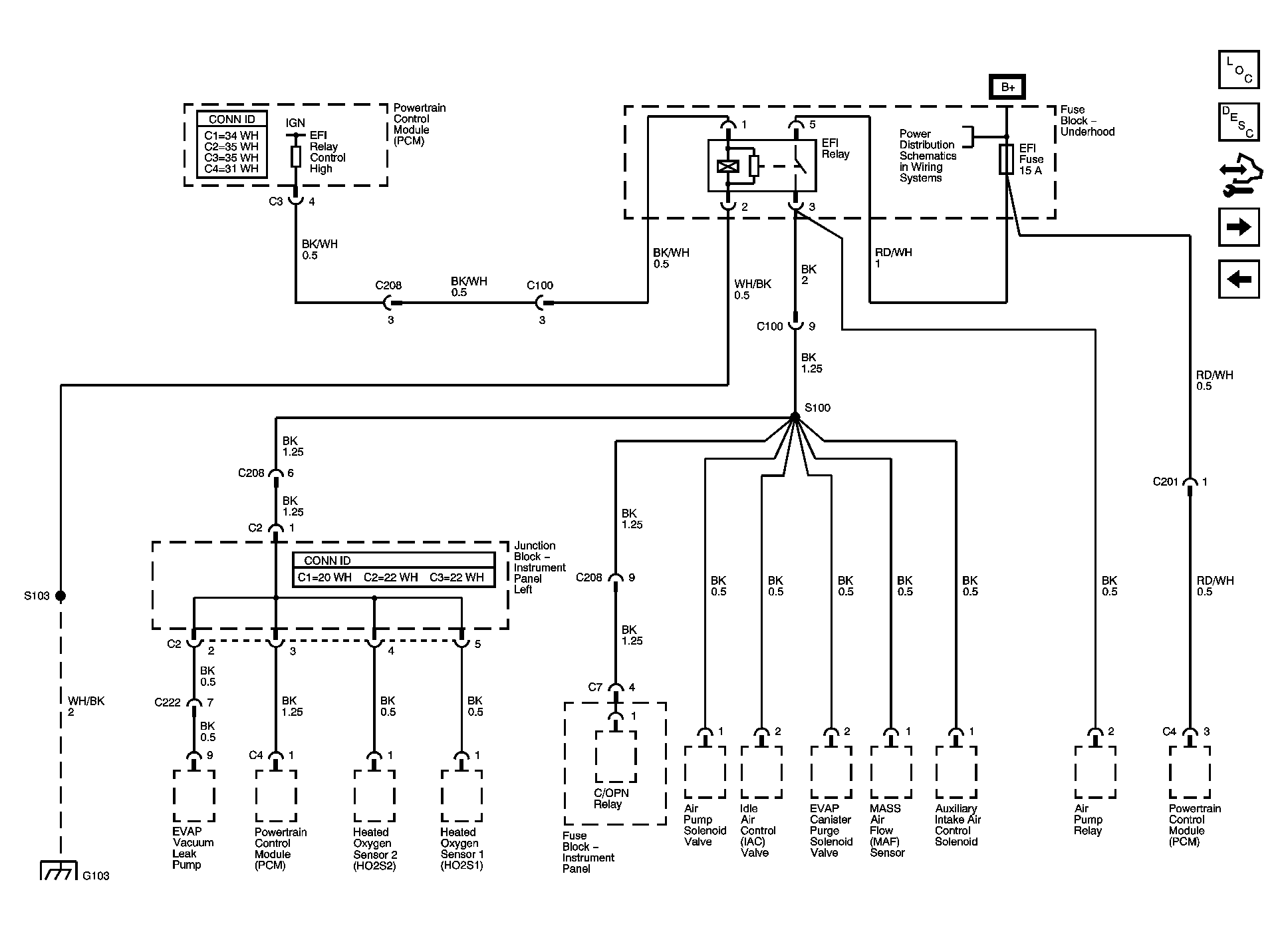

Fig 2: EFI Relay And S100 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Data Link Connector (DLC) Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Fuel Sender Assembly Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: Ignition Coils Schematic

Courtesy of GENERAL MOTORS CORP.

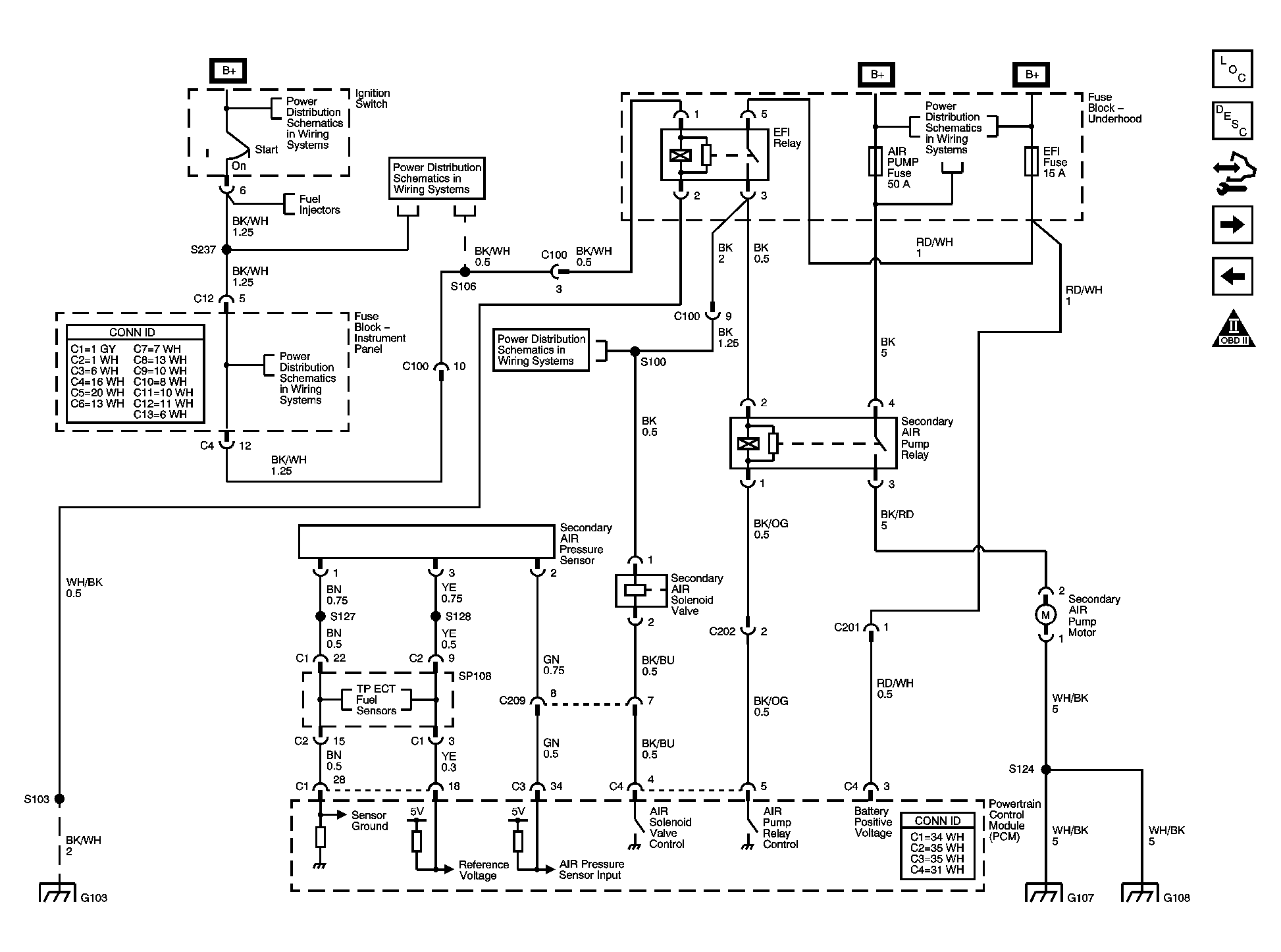

Fig 7: AIR System Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 8: EVAP System Schematic

Courtesy of GENERAL MOTORS CORP.

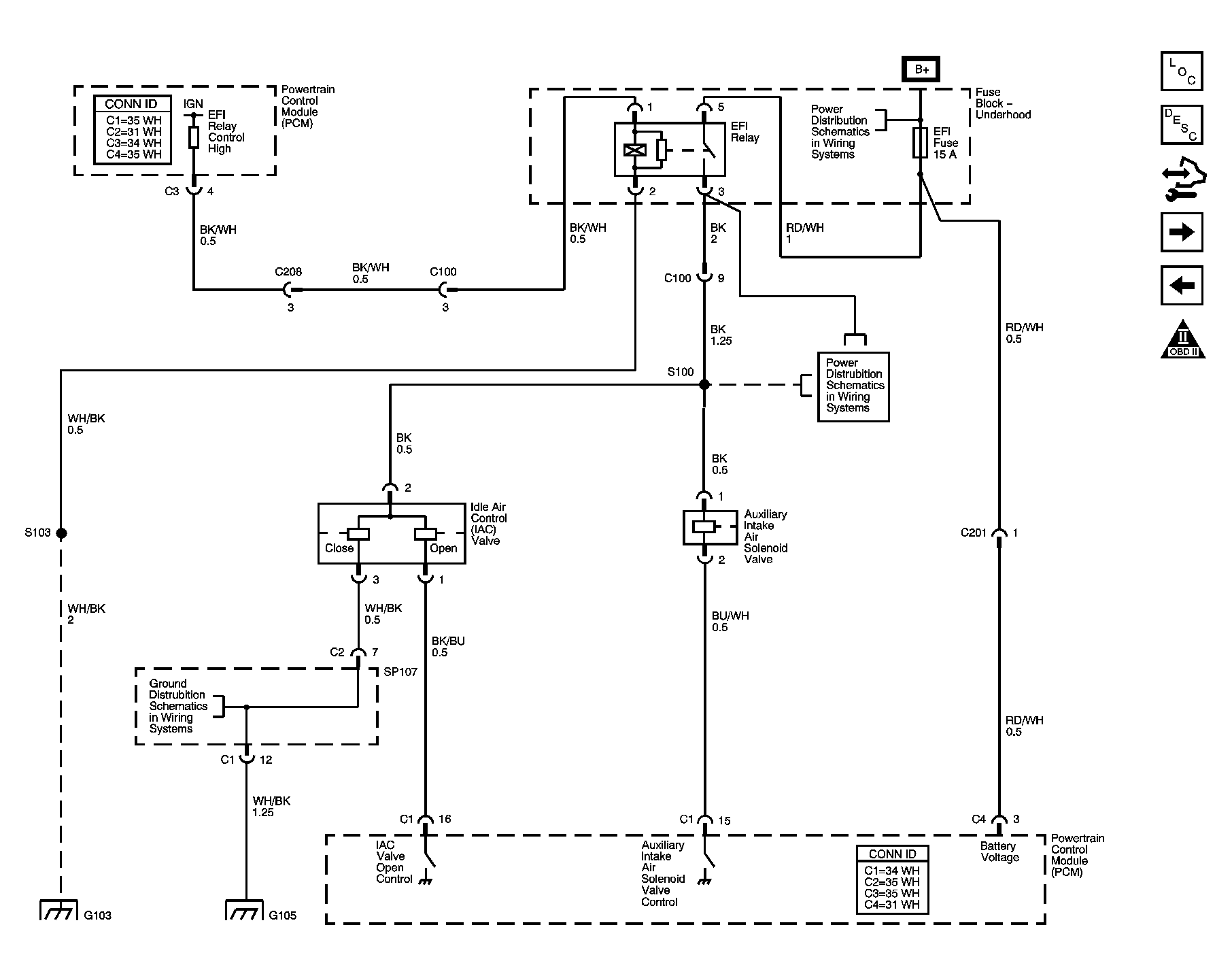

Fig 9: Idle Air Control Valve And Auxiliary Intake Air Solenoid Schematic

Courtesy of GENERAL MOTORS CORP.

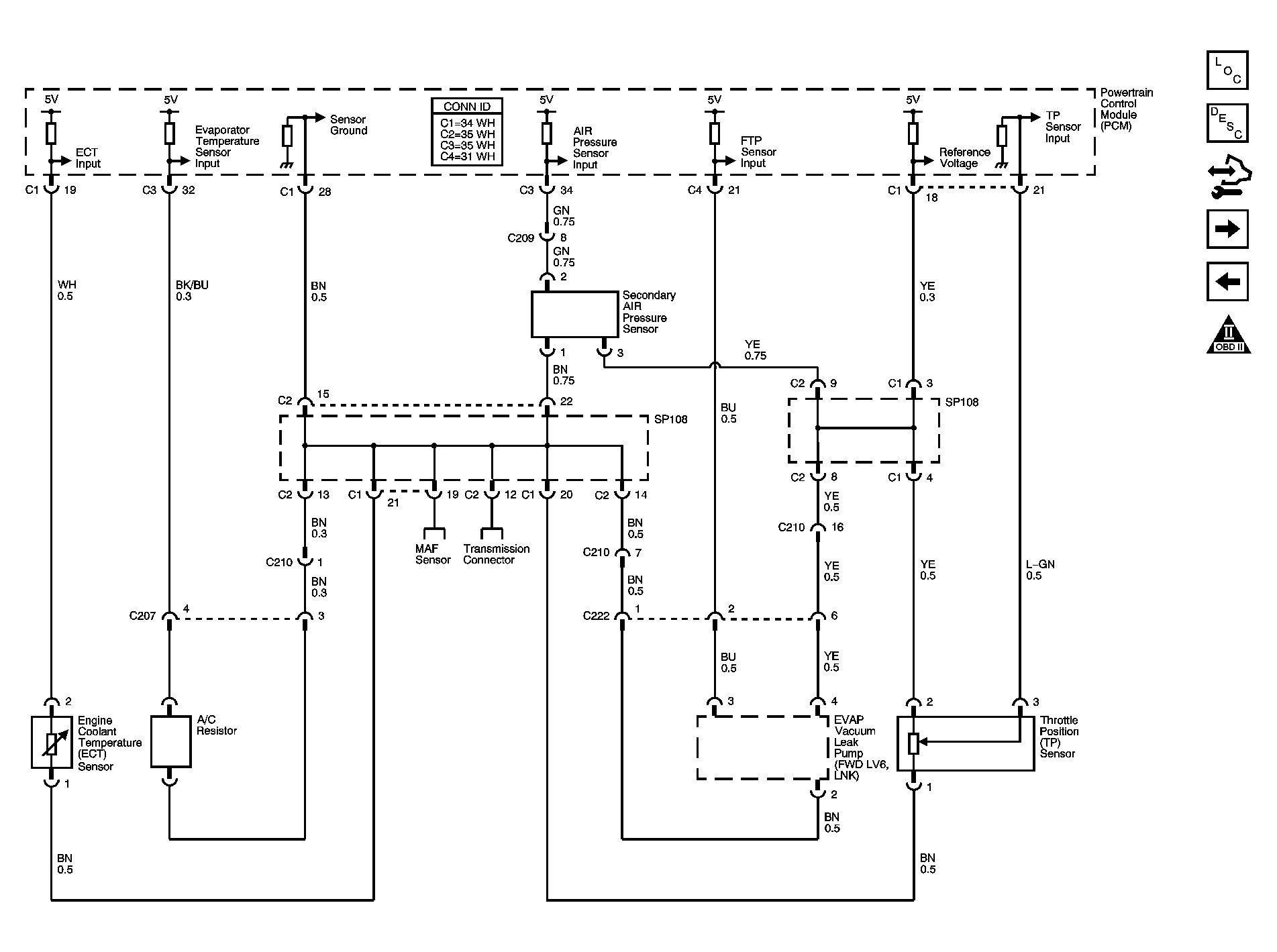

Fig 10: Engine Coolant Temperature (ECT) Sensor, A/C Resistor, EVAP Vacuum Leak Pump And Throttle Position (TP) Sensor Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 11: Mass Air Flow (MAF) Sensor Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 12: Knock Sensor (KS), Camshaft Position (CMP), Crankshaft Position (CKP) Sensors And Camshaft Position Actuator Solenoid Valve Schematic

Courtesy of GENERAL MOTORS CORP.

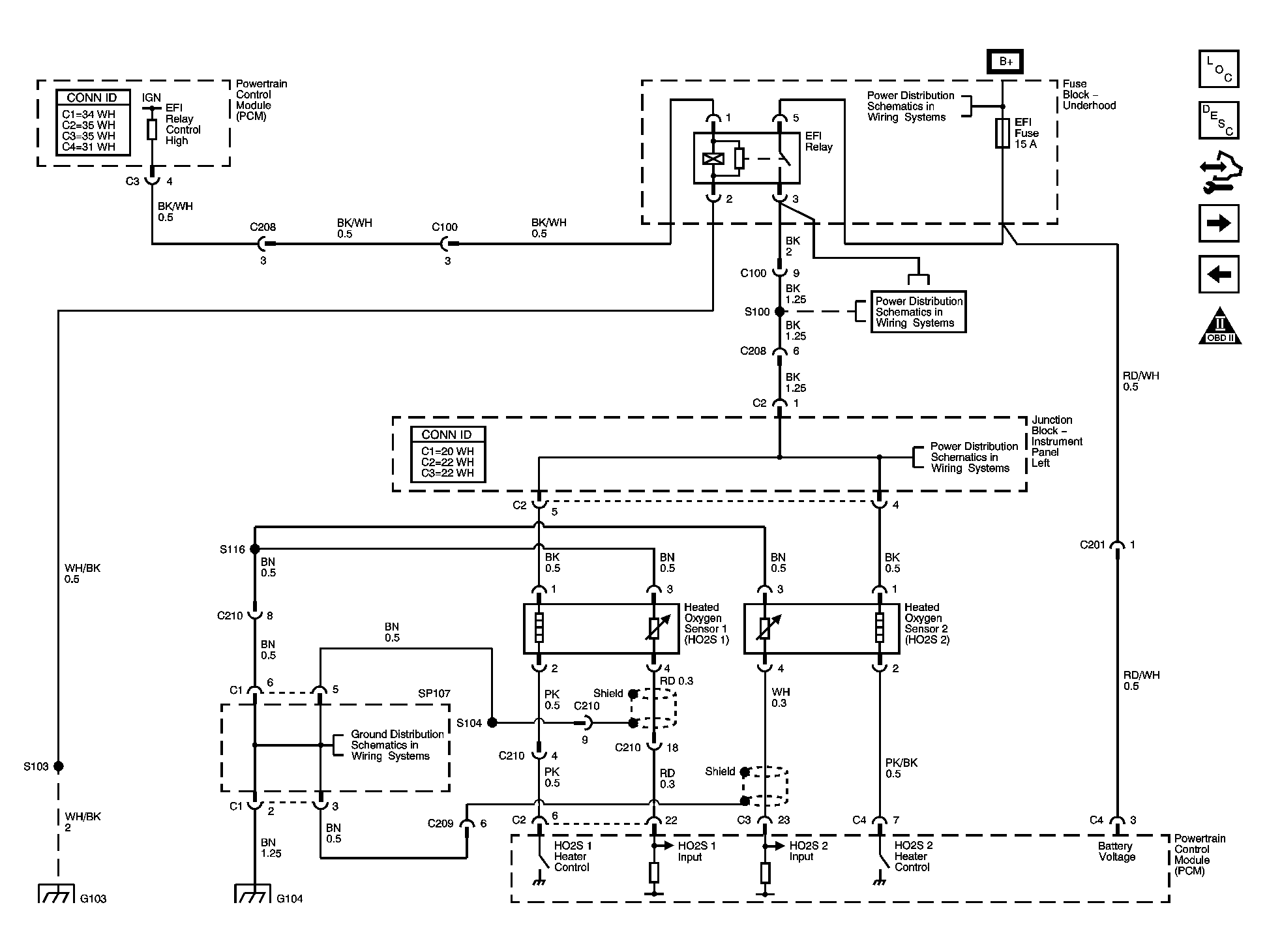

Fig 13: Heated Oxygen Sensors (HO2S) Schematic

Courtesy of GENERAL MOTORS CORP.

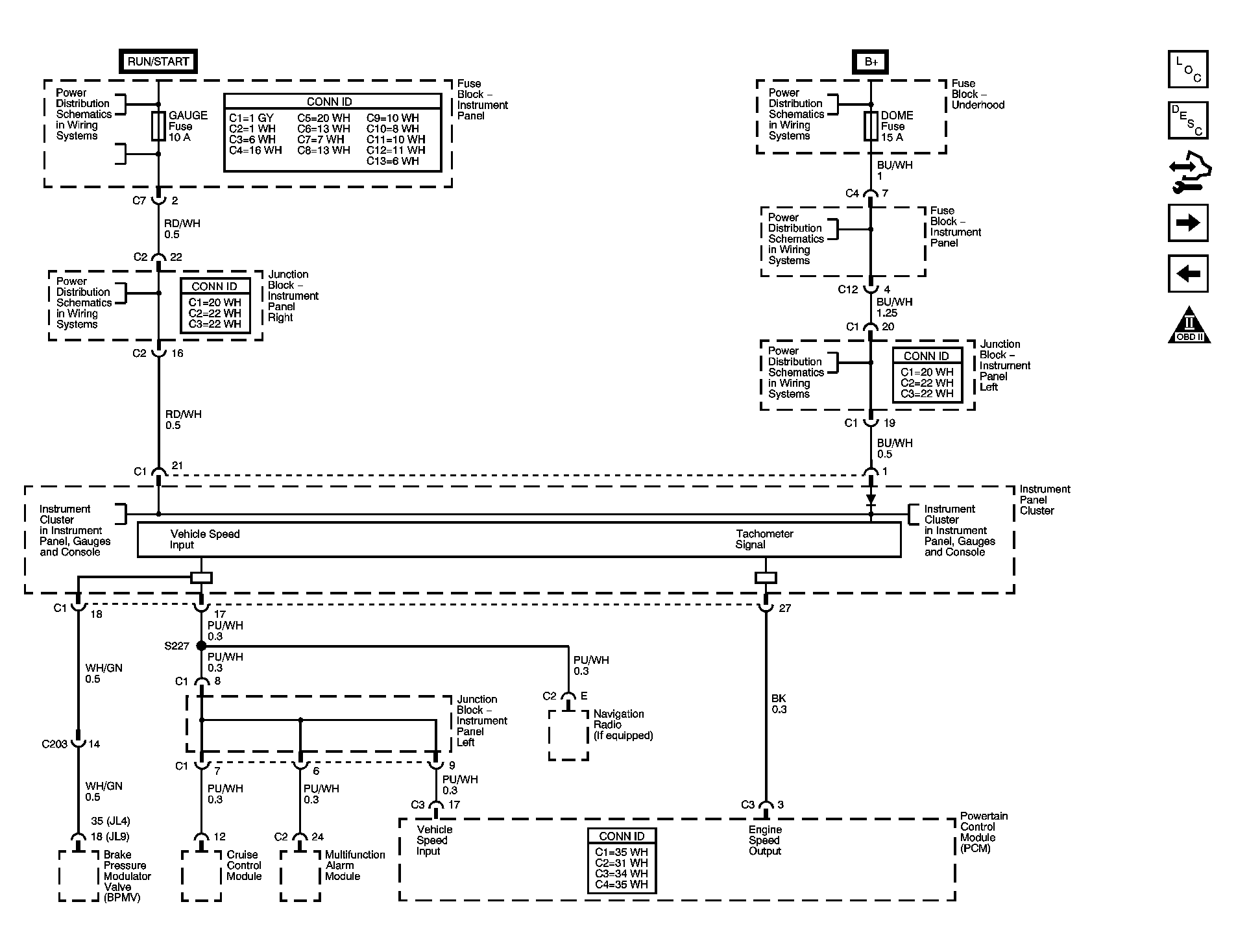

Fig 14: Vehicle Speed Signal Schematic

Courtesy of GENERAL MOTORS CORP.

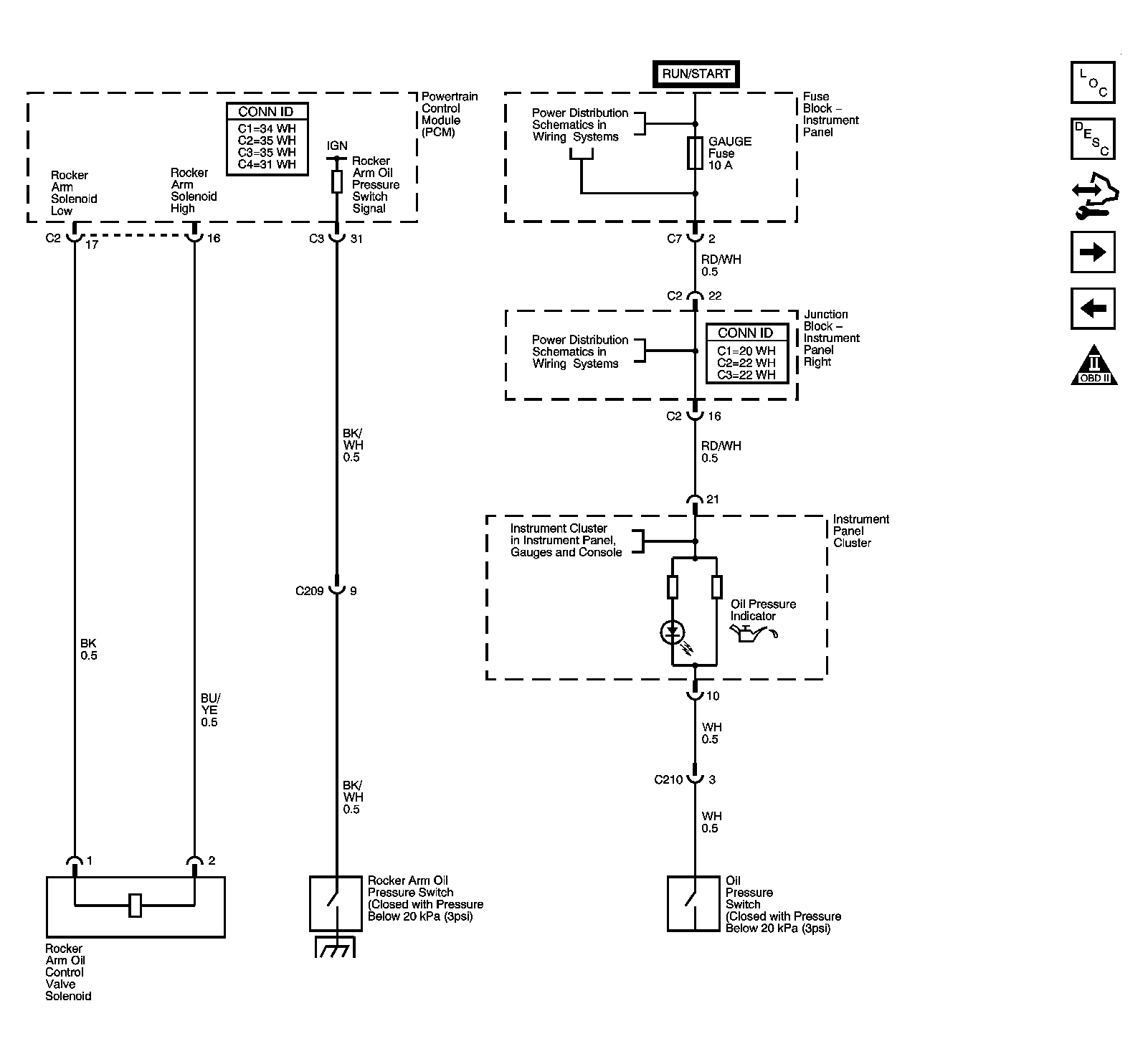

Fig 15: Rocker Arm Oil Control Valve And Rocker Arm Oil Pressure Switch Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 16: Powertrain Control Module (PCM) Idle-Up Inputs Schematic

Courtesy of GENERAL MOTORS CORP.
