Installation Procedure

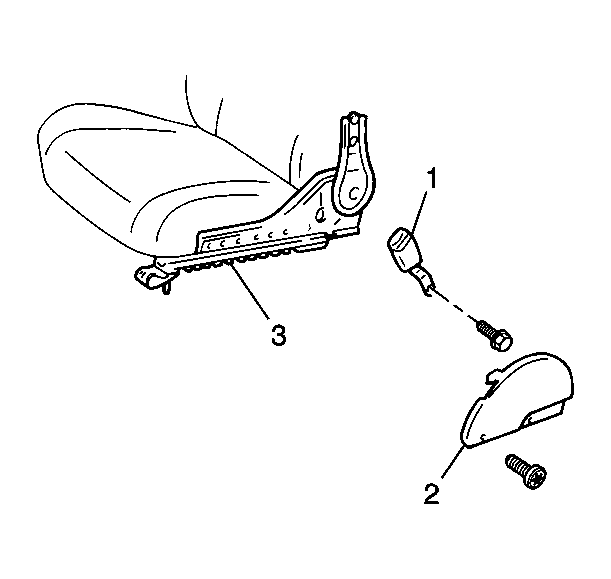

    Fig 1: Seat Belt Buckle, Inner Adjuster Finish Cover And Seat Bracket
    GM241543Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the seat belt buckle (1) to the front seat. Secure the buckle with the bolt.

    Tighten:  Tighten the front seat belt buckle bolt to 41 N.m (30 lb ft).

  2. Install the inner adjuster finish cover (2) to the front seat. Secure the cover with the screw.

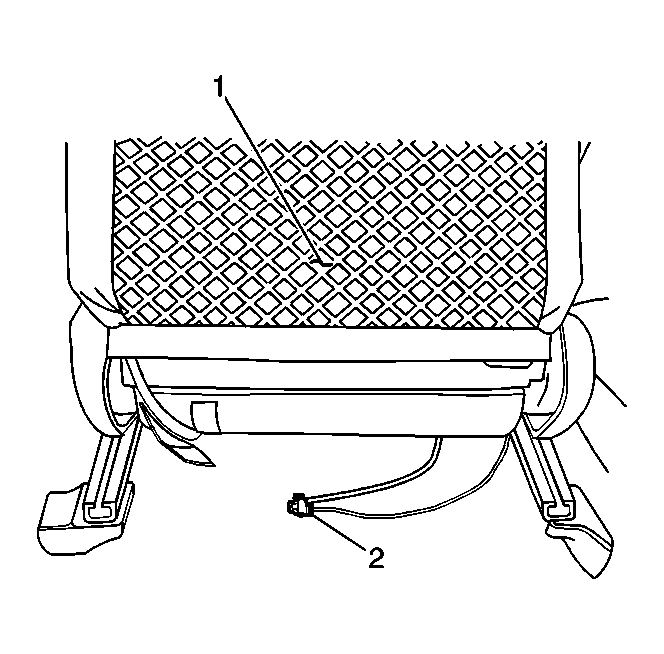

    3. Fig 2: Front Seat And Seat Belt Switch Electrical Connector
    GM743464Courtesy of GENERAL MOTORS CORP.
  3. Connect the seat belt switch electrical connector (2).
  4. Install the front floor rear console. Refer to Console Replacement - Rear Floor in Instrument Panel, Gages, and Console.
  5. Return the front seat (1) to the upright position.
