Fuse Block - I/P C1
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Fuse Block - I/P C1

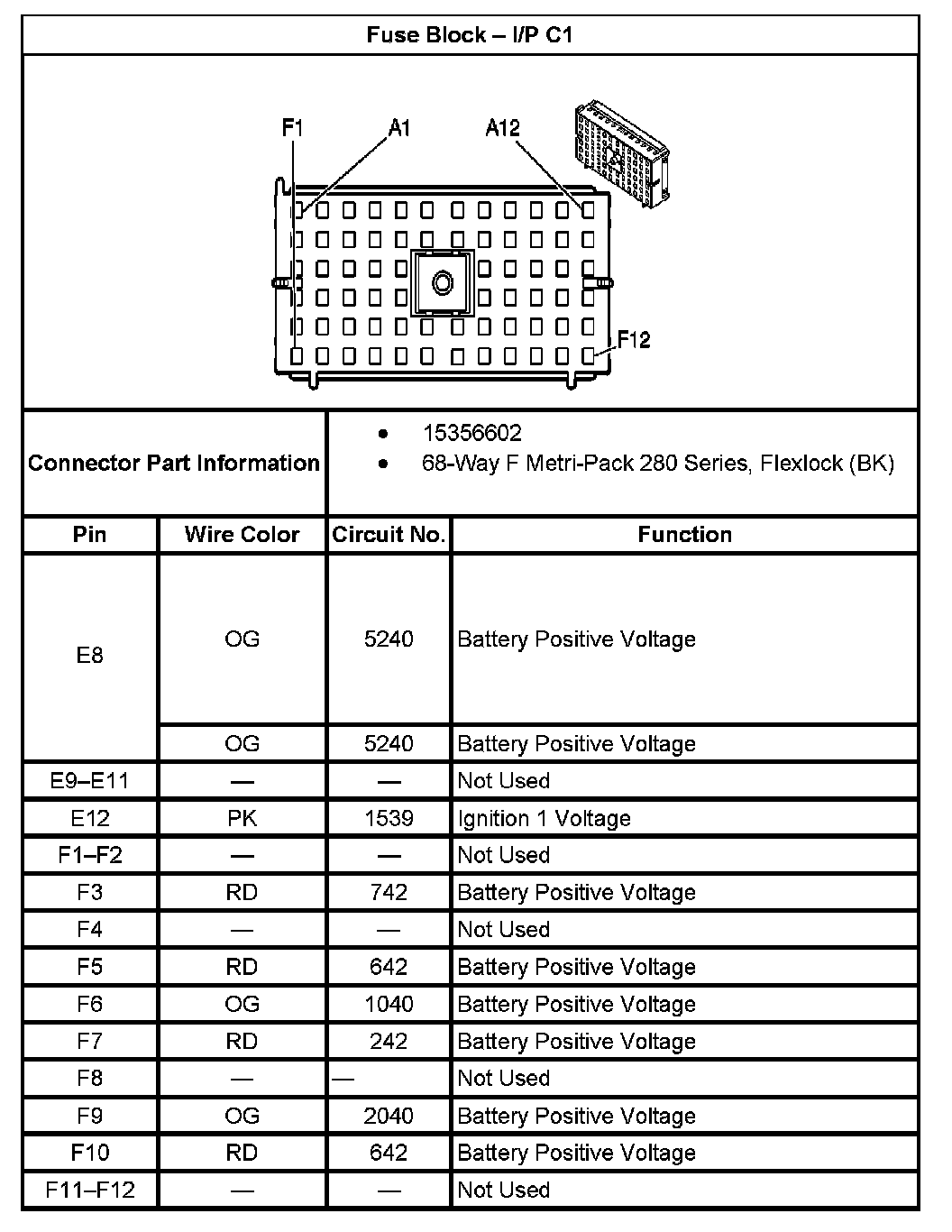

Fuse Block - I/P C1 (Part 1):

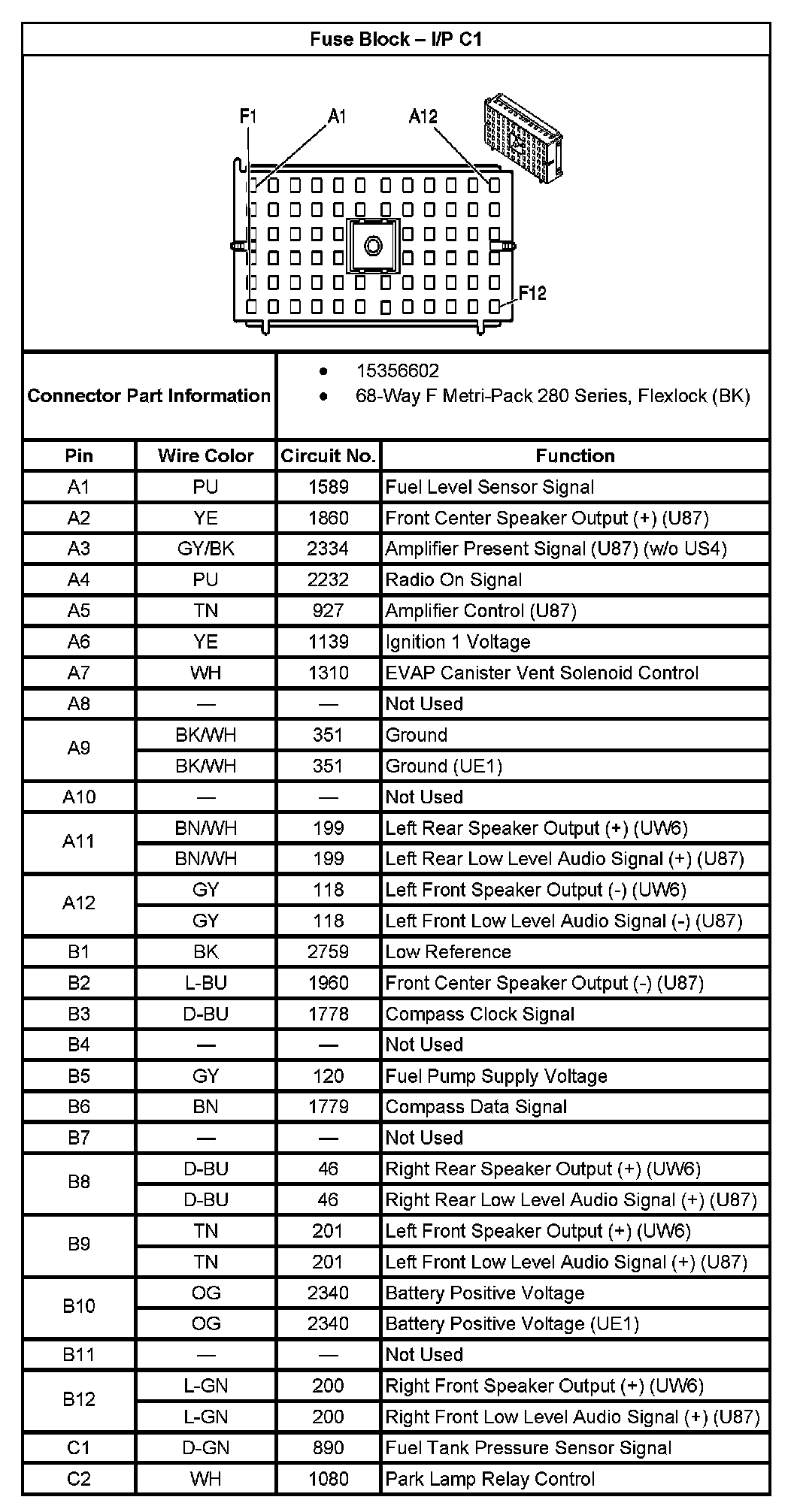

Fuse Block - I/P C1 (Part 2):

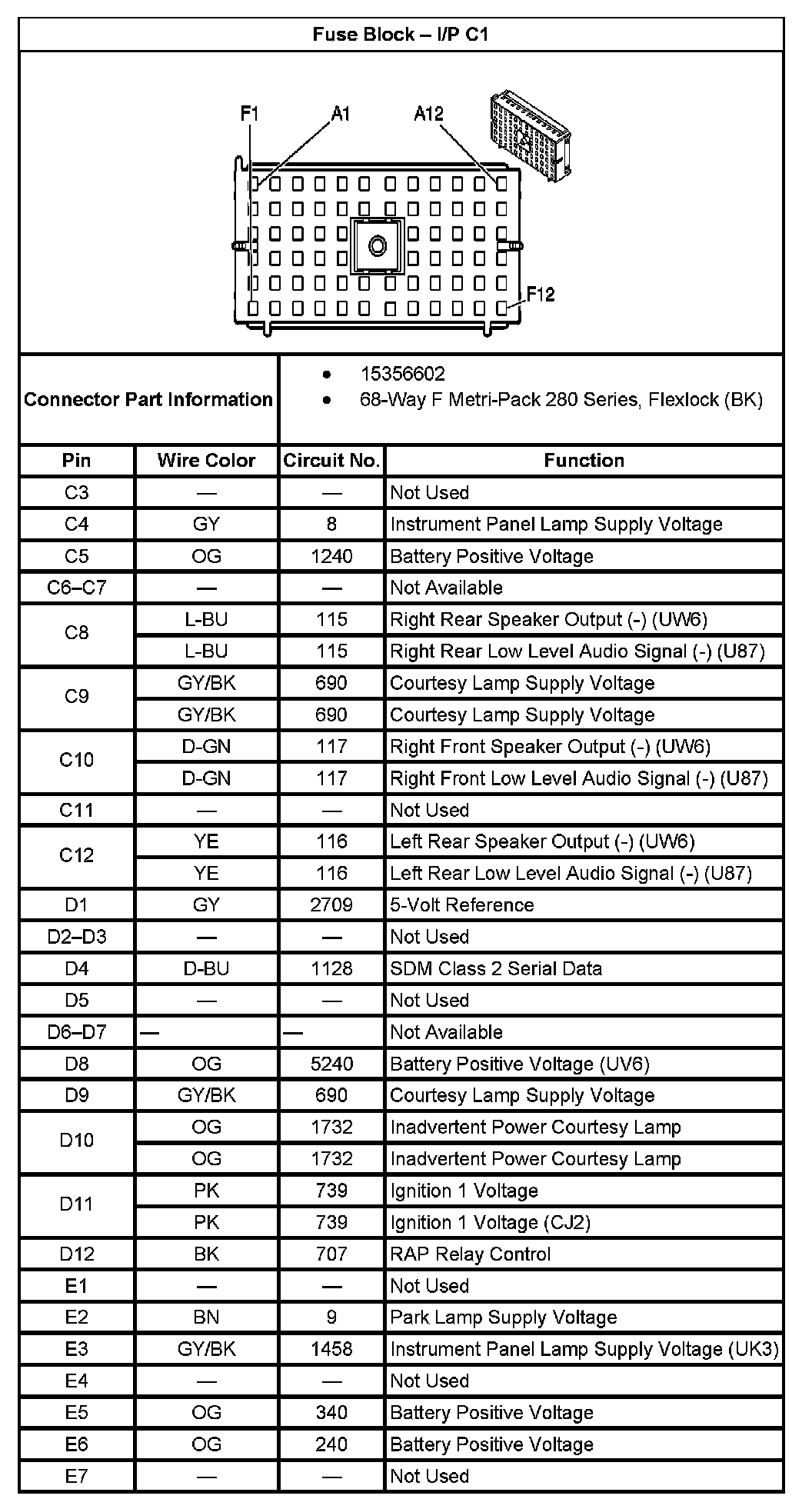

Fuse Block - I/P C1 (Part 3):
