Seat Temperature Control Module
Heated Seat Module - Driver (With RPO Code KA1):

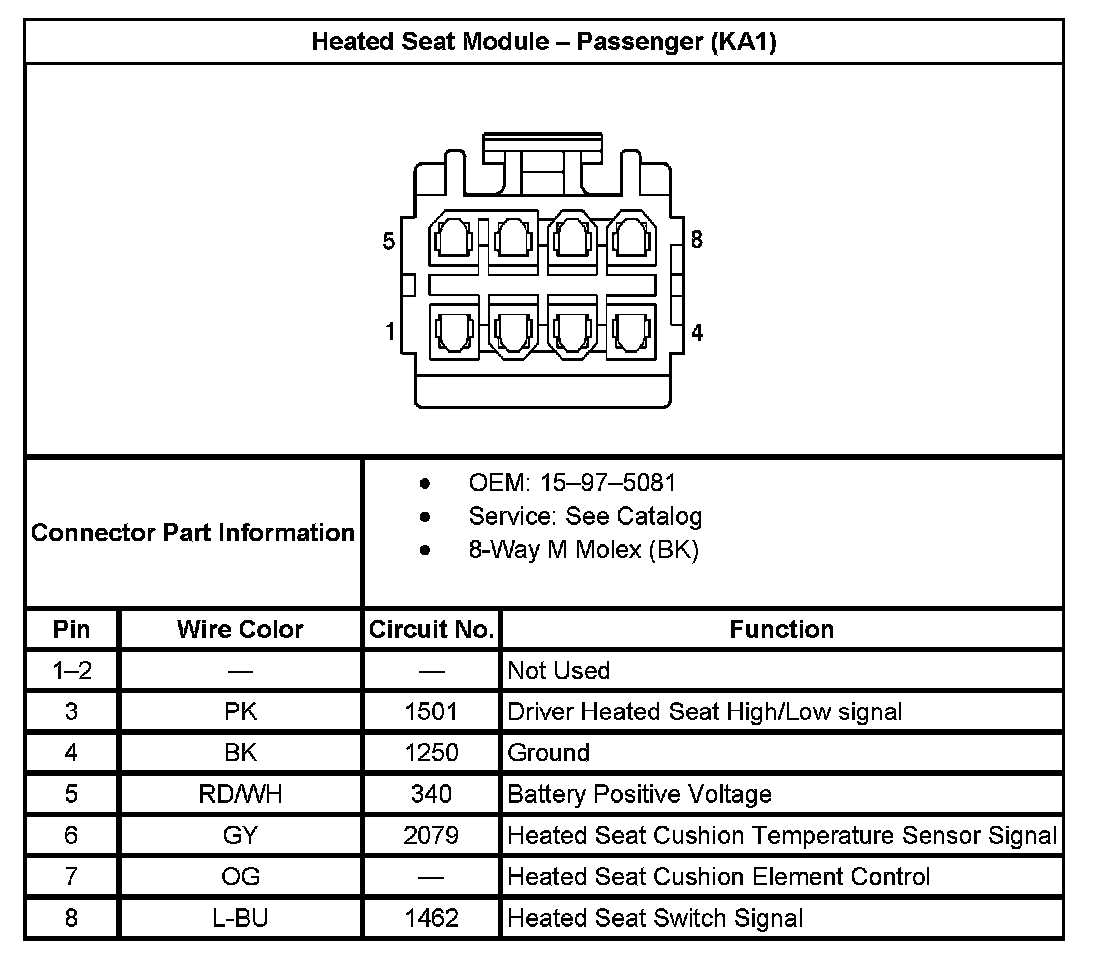

Heated Seat Module - Passenger (With RPO Code KA1):
