Communication Interface Module Replacement

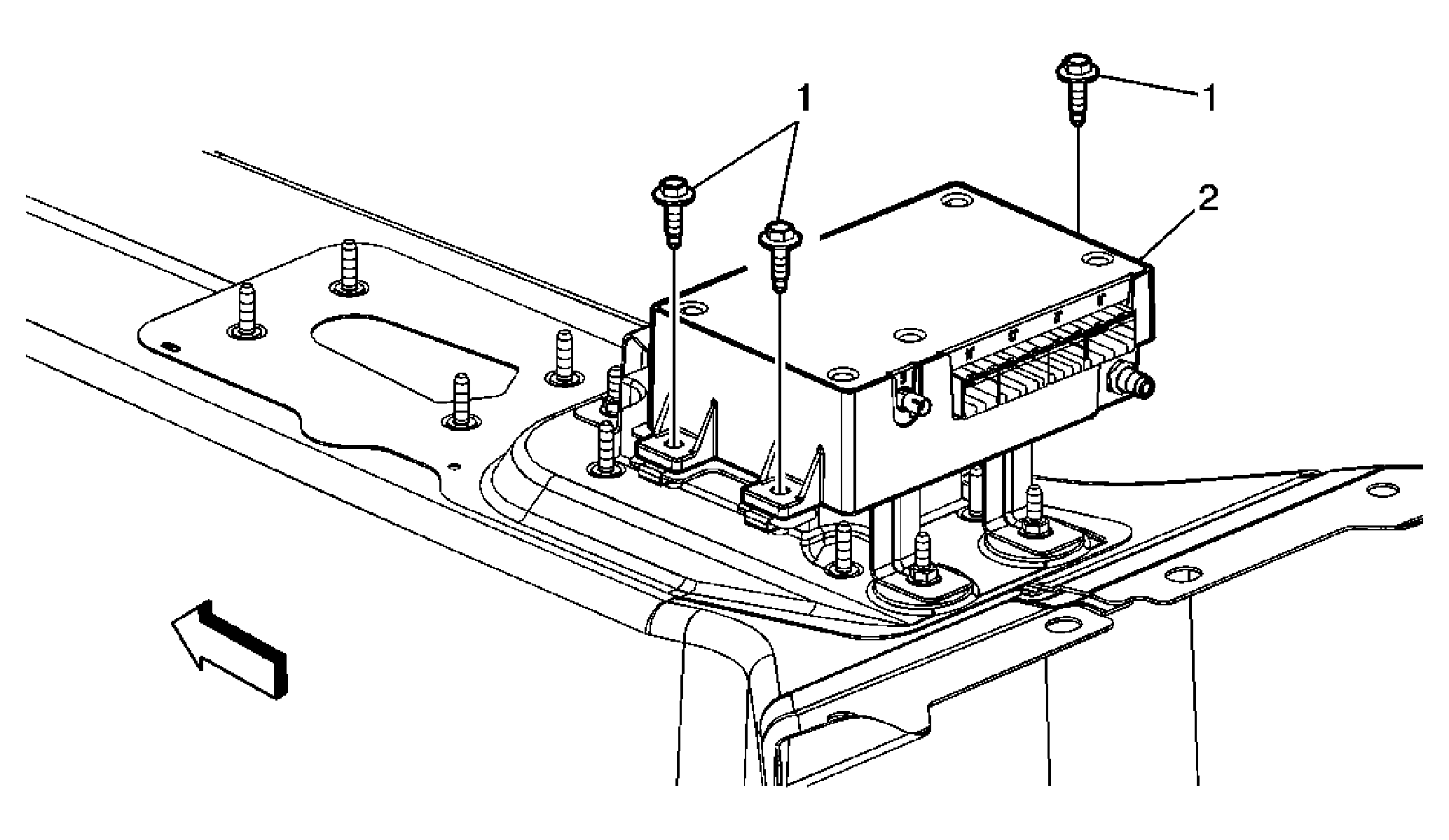

Fig 1: Communication Interface Module Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the front seat back body panel. Refer to Front Seat Back Body Panel Replacement . Program the communication interface module (OnStar®) after replacement. Refer to Control Module References .
1	Bolt/Screw, Communication Interface Module Bracket Tighten: 10 N.m (89 lb in)
2	Module Assembly, Communication Interface

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the front seat back body panel. Refer to Front Seat Back Body Panel Replacement .
Program the communication interface module (OnStar®) after replacement. Refer to Control Module References .

Bolt/Screw, Communication Interface Module Bracket

Tighten: 10 N.m (89 lb in)

Module Assembly, Communication Interface
