Window Handle Replacement

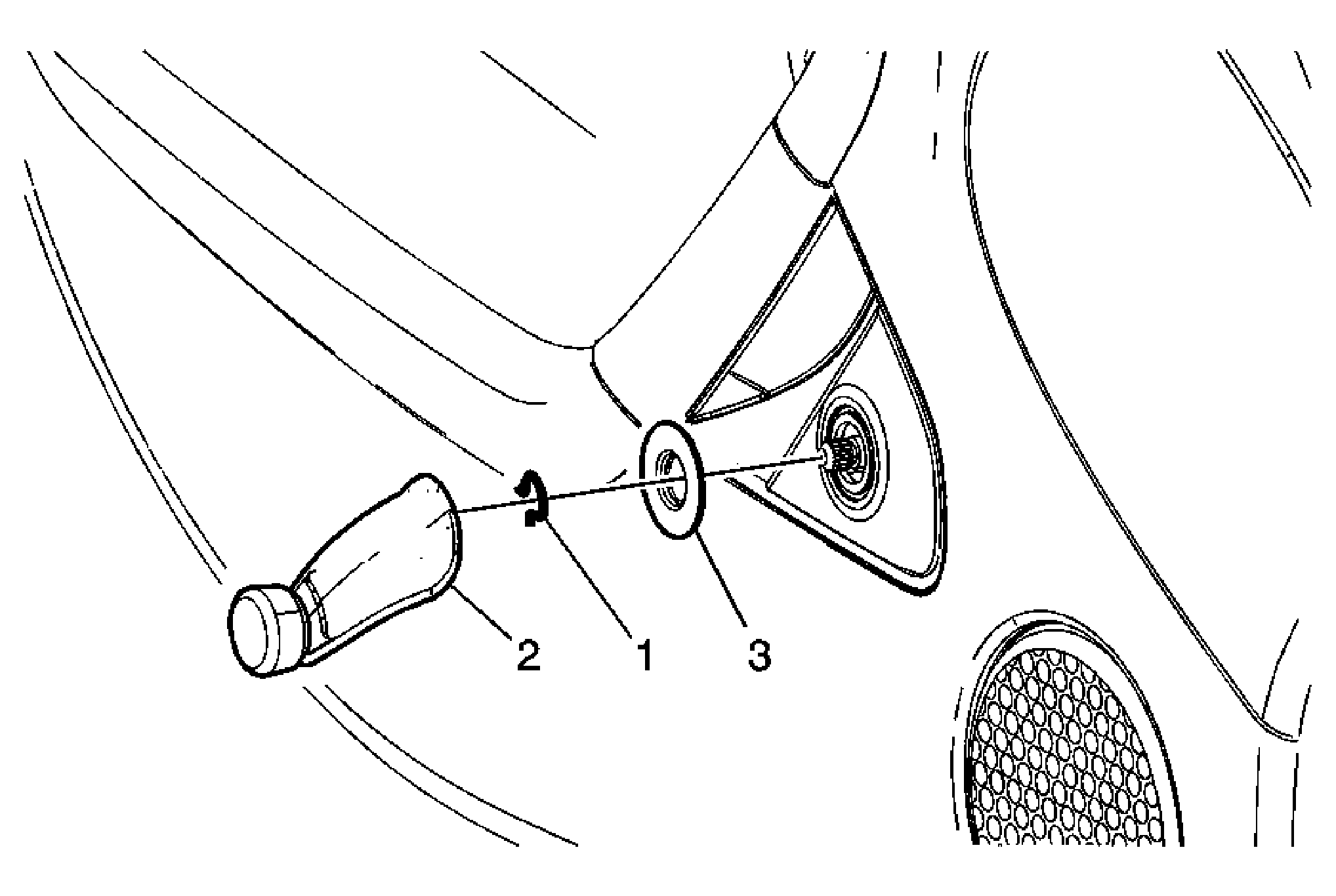

Fig 1: Window Handle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Front Side Door Window Regulator Clip Tip: Use a J 9886-01 Door Handle Clip Remover, or equivalent to remove the window regulator handle clip.
2	Front Side Door Window Regulator Handle Assembly
3	Side Door Window Regulator Handle Bearing
