Electronic Brake Control Module Replacement

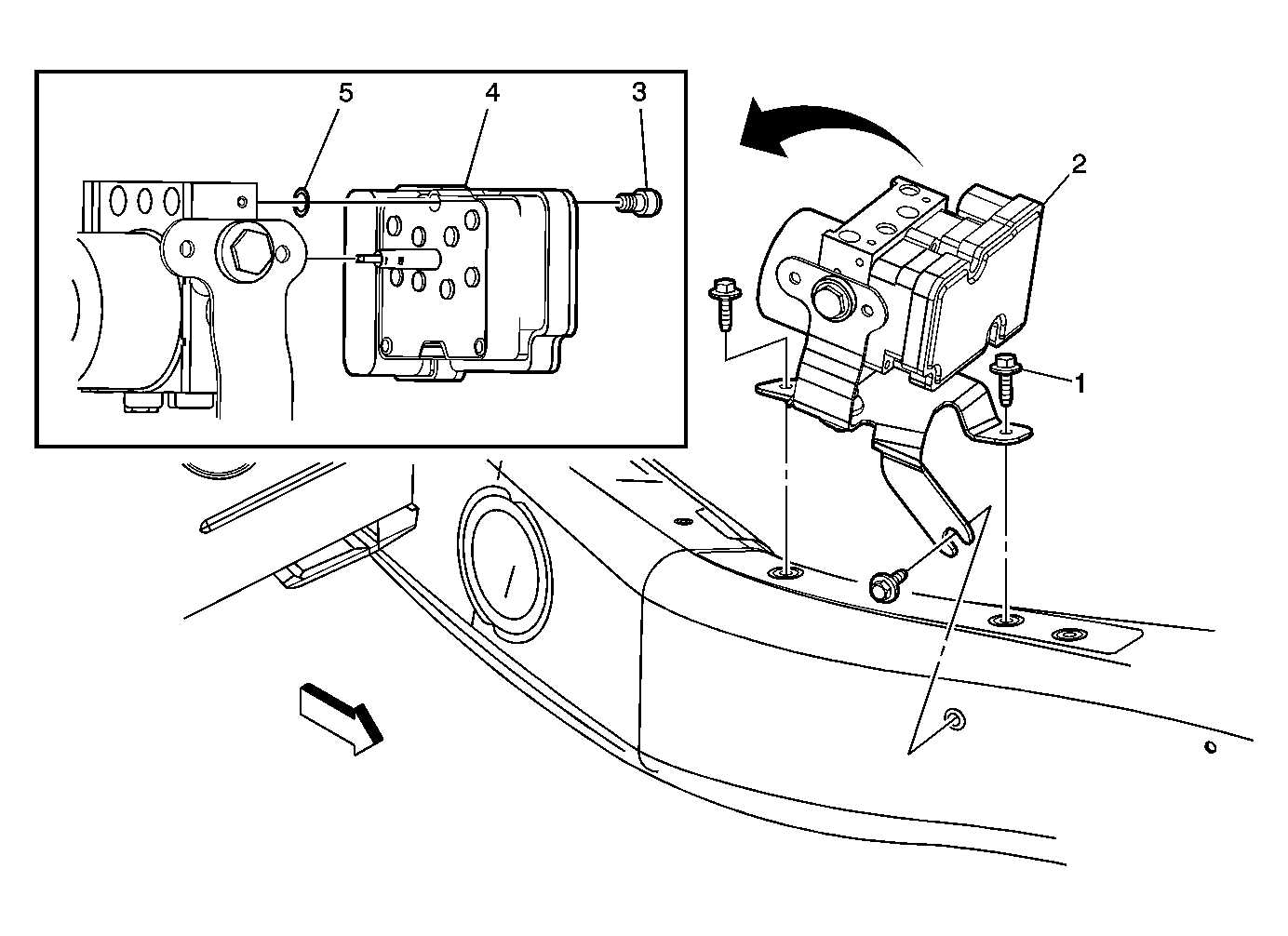

Fig 1: Electronic Brake Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the wheelhouse inner liner. Refer to Wheelhouse Liner Replacement - Front . Remove the brake lines from the Anti-Lock Brake System (ABS) control module.
1	Bolts, ABS Control Module Mounting (Qty: 3). Tightening Specifications: Tighten the brake pipe fittings to 20 N.m (15 lb ft). Tightening Specifications: Tighten the mounting bolts to 10 N.m (89 lb in).
2	Module, ABS Control
3	Bolt, Electronic Brake Control Module (Qty: 3). Tightening Specifications: Tighten the mounting bolts to 2.3 N.m (20 lb in).
4	Module, Electronic Brake Control.
5	Seal, Electronic Brake Control Module O-ring (Qty: 8) Tip: Ensure that the area between the EBCM and the BPCM is free of dirt and debris. DO NOT re-use the O-rings for the EBCM, USE NEW ONLY Apply a small amount of clean DOT 3 brake fluid to the seals before installing the NEW O-rings. Bleed the Brake System. Refer to Hydraulic Brake System Bleeding (Manual Bleed) or Hydraulic Brake System Bleeding (Pressure Bleed)
