Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |
| Blower Motor Resistor |
Under right side of dash, next to blower motor. |

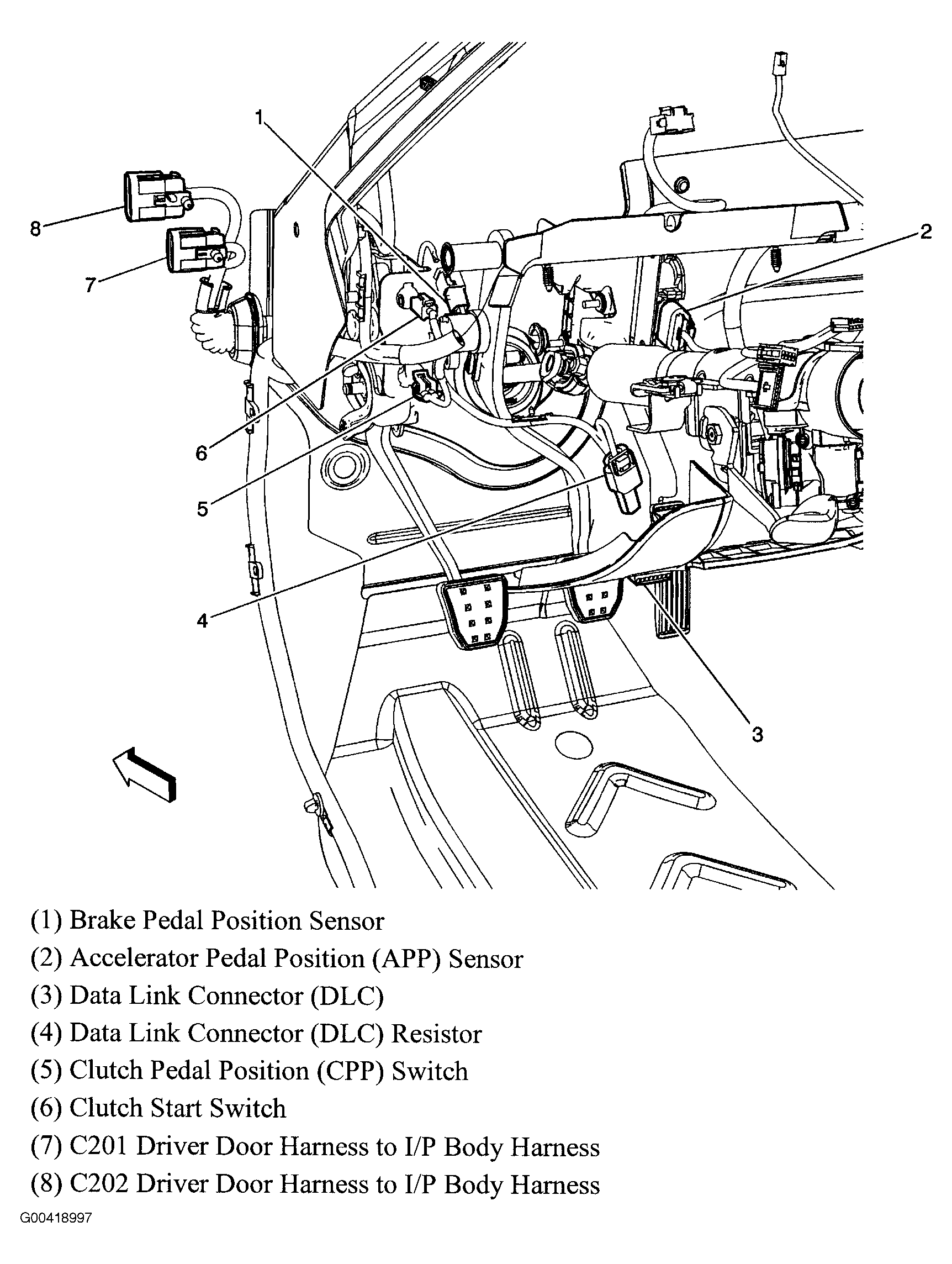

| Data Link Connector (DLC) Resistor |
Left side of dash. See Figure. |
| Underhood Fuse Block |
In the right rear corner of the engine compartment. See Figure. |
