Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Front Engine Compartment Frame Rail

G00418996

Courtesy of GENERAL MOTORS CORP.

Fig 2: Left Side Of Dash

G00418997

Courtesy of GENERAL MOTORS CORP.

Fig 3: Vehicle Overview

G00418998

Courtesy of GENERAL MOTORS CORP.

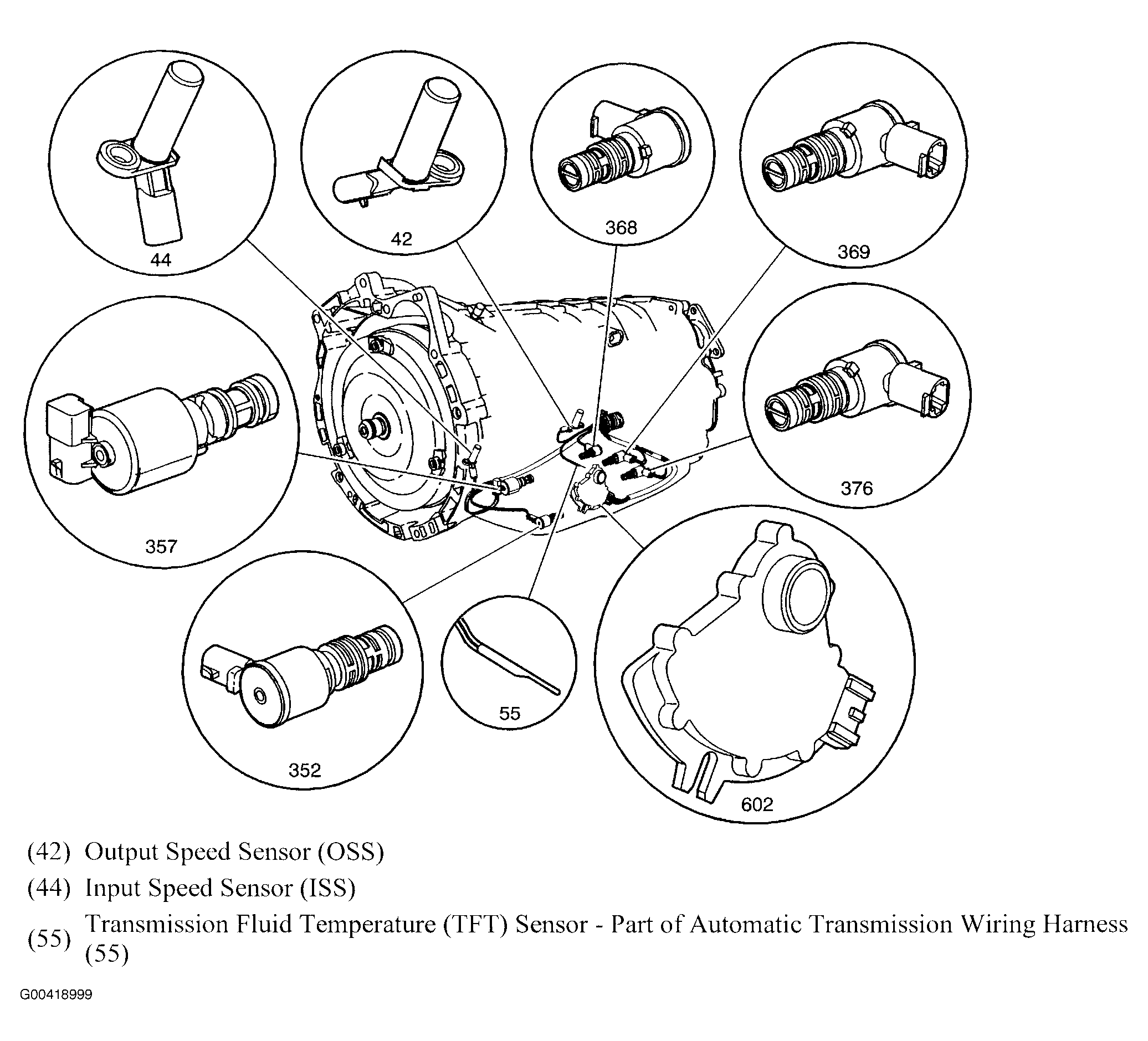

Fig 4: Automatic Transmission Electronic Component Views (1 Of 2)

G00418999

Courtesy of GENERAL MOTORS CORP.

Fig 5: Automatic Transmission Electronic Component Views (2 Of 2)

G00419000

Courtesy of GENERAL MOTORS CORP.

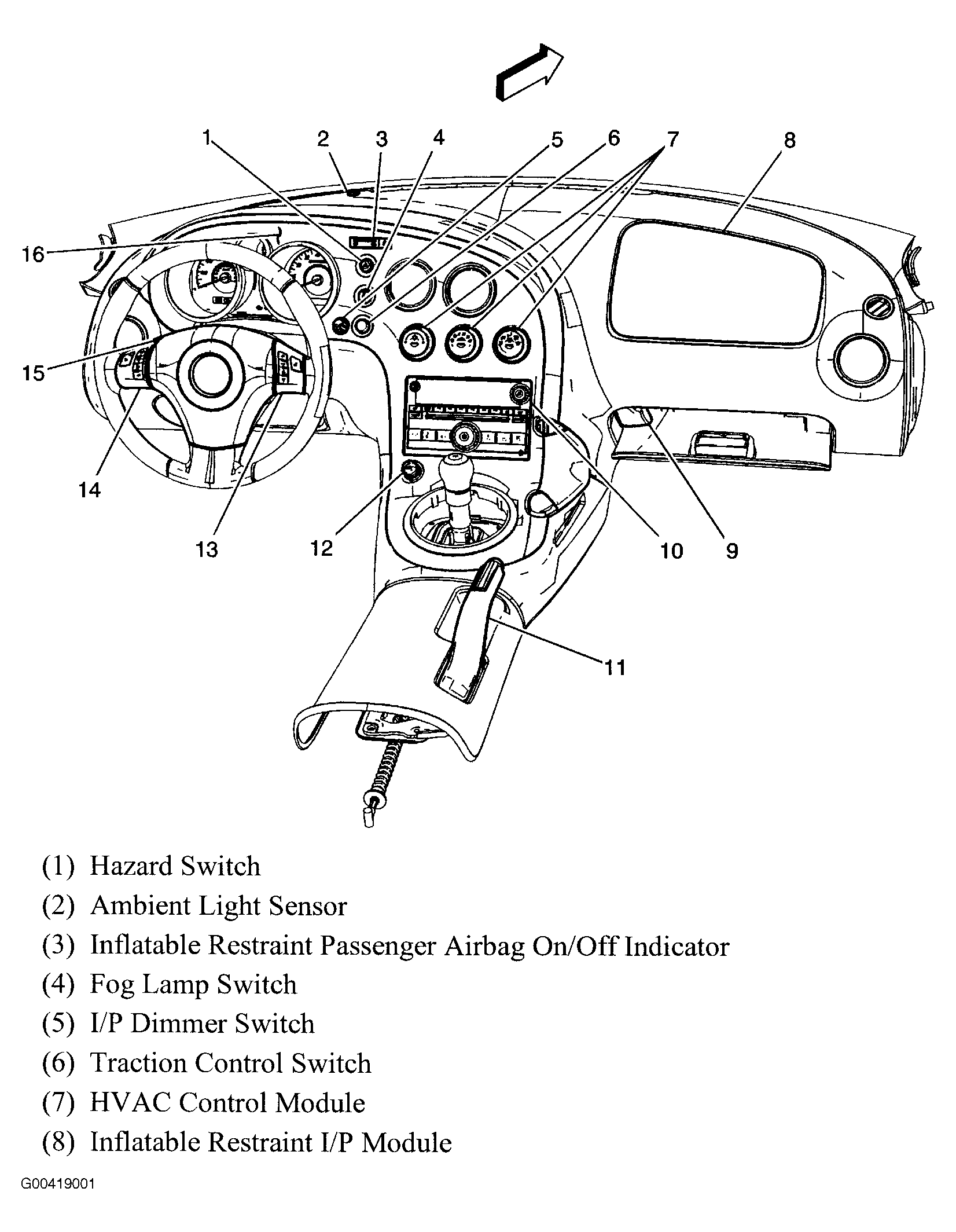

Fig 6: Dash Assembly Overview

G00419001

Courtesy of GENERAL MOTORS CORP.

Fig 7: Rear Cargo Area (Convertible)

G00419003

Courtesy of GENERAL MOTORS CORP.

Fig 8: Cellular Communication Components

G00419004

Courtesy of GENERAL MOTORS CORP.

Fig 9: Right Side Of Dash

G00419005

Courtesy of GENERAL MOTORS CORP.

Fig 10: Driver's Door Components

G00419006

Courtesy of GENERAL MOTORS CORP.

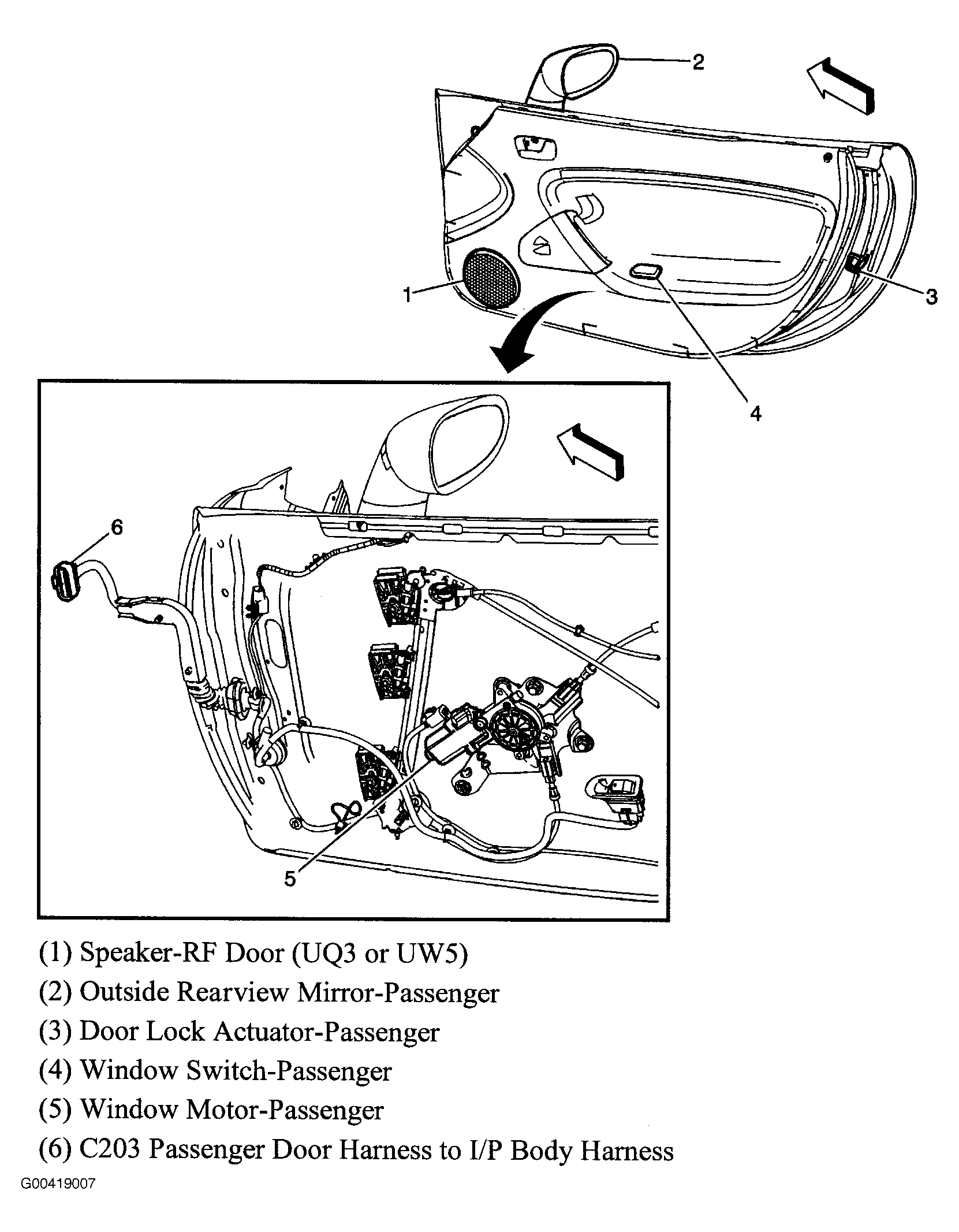

Fig 11: Passenger's Door Components

G00419007

Courtesy of GENERAL MOTORS CORP.

Fig 12: Rear Compartment Components

G00419008

Courtesy of GENERAL MOTORS CORP.

Fig 13: Engine & Automatic Transmission Overview

G00419009

Courtesy of GENERAL MOTORS CORP.

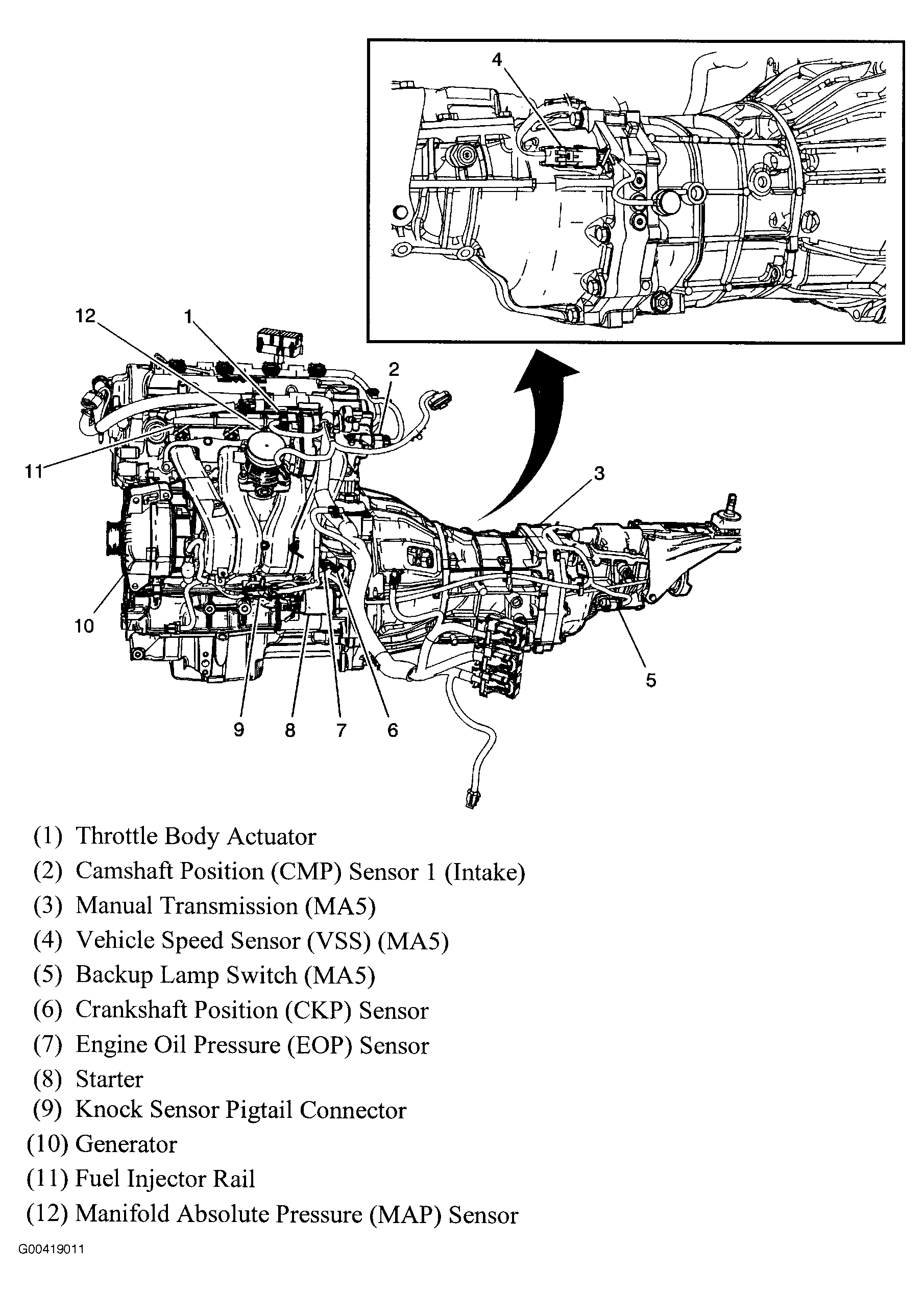

Fig 14: Engine & Manual Transmission Assembly

G00419011

Courtesy of GENERAL MOTORS CORP.

Fig 15: Rear Of Engine

G00419013

Courtesy of GENERAL MOTORS CORP.

Fig 16: Engine Components

G00419014

Courtesy of GENERAL MOTORS CORP.

Fig 17: Front Of Engine Compartment

G00419016

Courtesy of GENERAL MOTORS CORP.

Fig 18: Fuel Tank Components

G00419017

Courtesy of GENERAL MOTORS CORP.

Fig 19: Front Of Engine Compartment

G00419018

Courtesy of GENERAL MOTORS CORP.

Fig 20: Left Side Of Engine

G00419019

Courtesy of GENERAL MOTORS CORP.

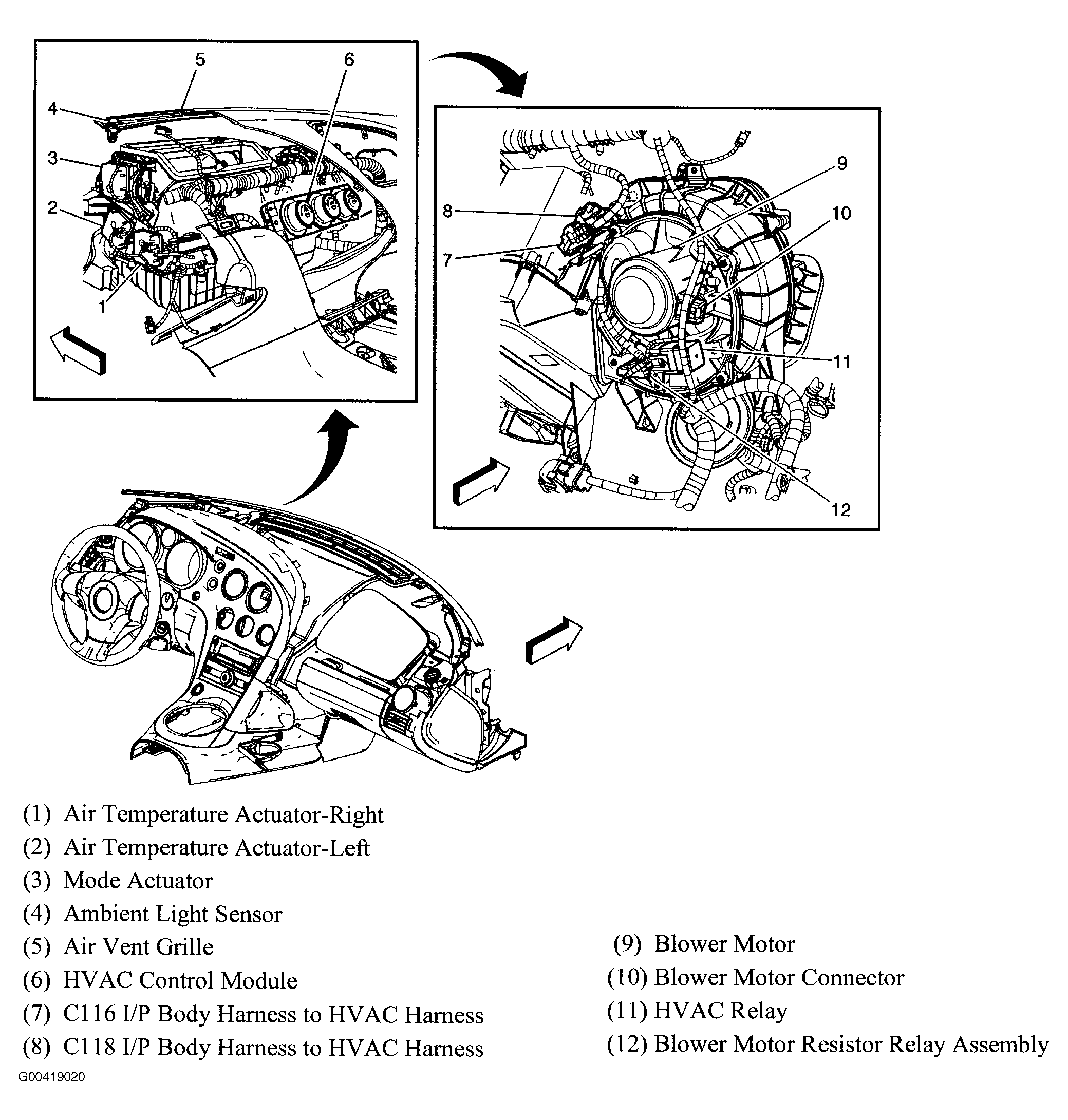

Fig 21: HVAC Module Components

G00419020

Courtesy of GENERAL MOTORS CORP.

Fig 22: Right Side Of Dash

G00419021

Courtesy of GENERAL MOTORS CORP.

Fig 23: Horn Component Views

G00419022

Courtesy of GENERAL MOTORS CORP.

Fig 24: Floor Console

G00419023

Courtesy of GENERAL MOTORS CORP.

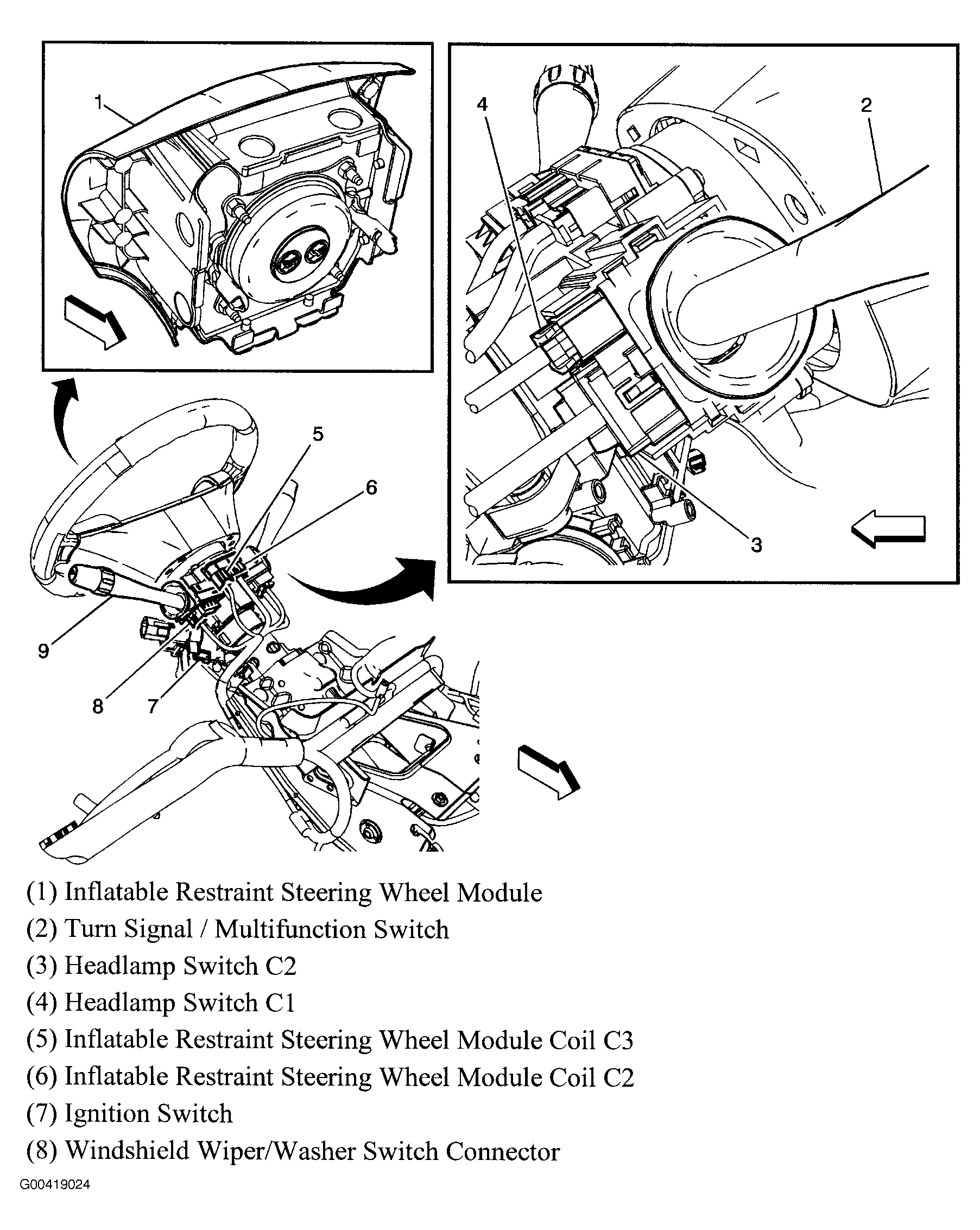

Fig 25: Steering Column Components

G00419024

Courtesy of GENERAL MOTORS CORP.

Fig 26: Rear Cargo Area

G00419025

Courtesy of GENERAL MOTORS CORP.

Fig 27: Supplemental Restraint Components

G00419026

Courtesy of GENERAL MOTORS CORP.

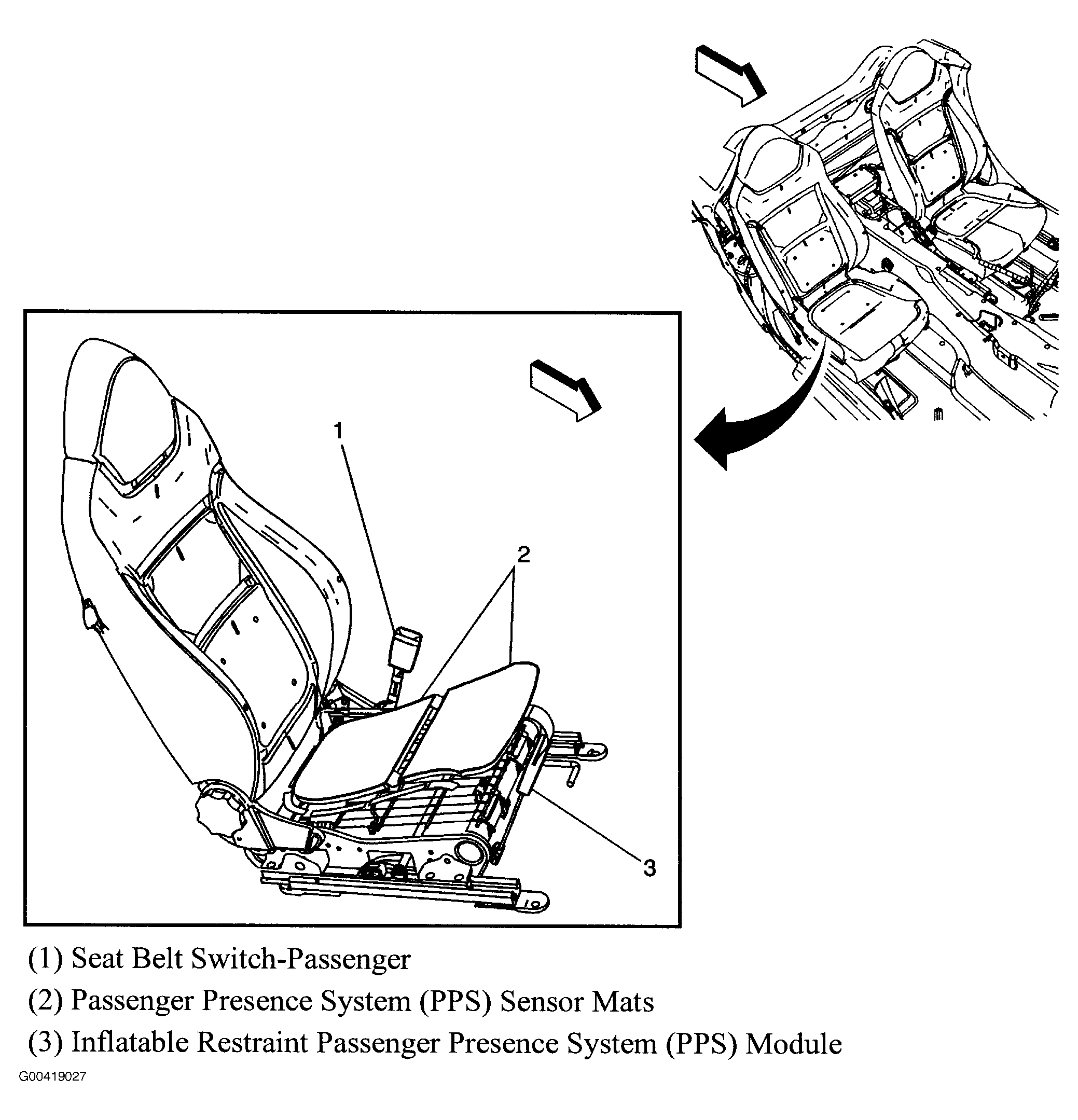

Fig 28: Passenger Seat

G00419027

Courtesy of GENERAL MOTORS CORP.

Fig 29: Shift Lock Control Component Views

G00419028

Courtesy of GENERAL MOTORS CORP.

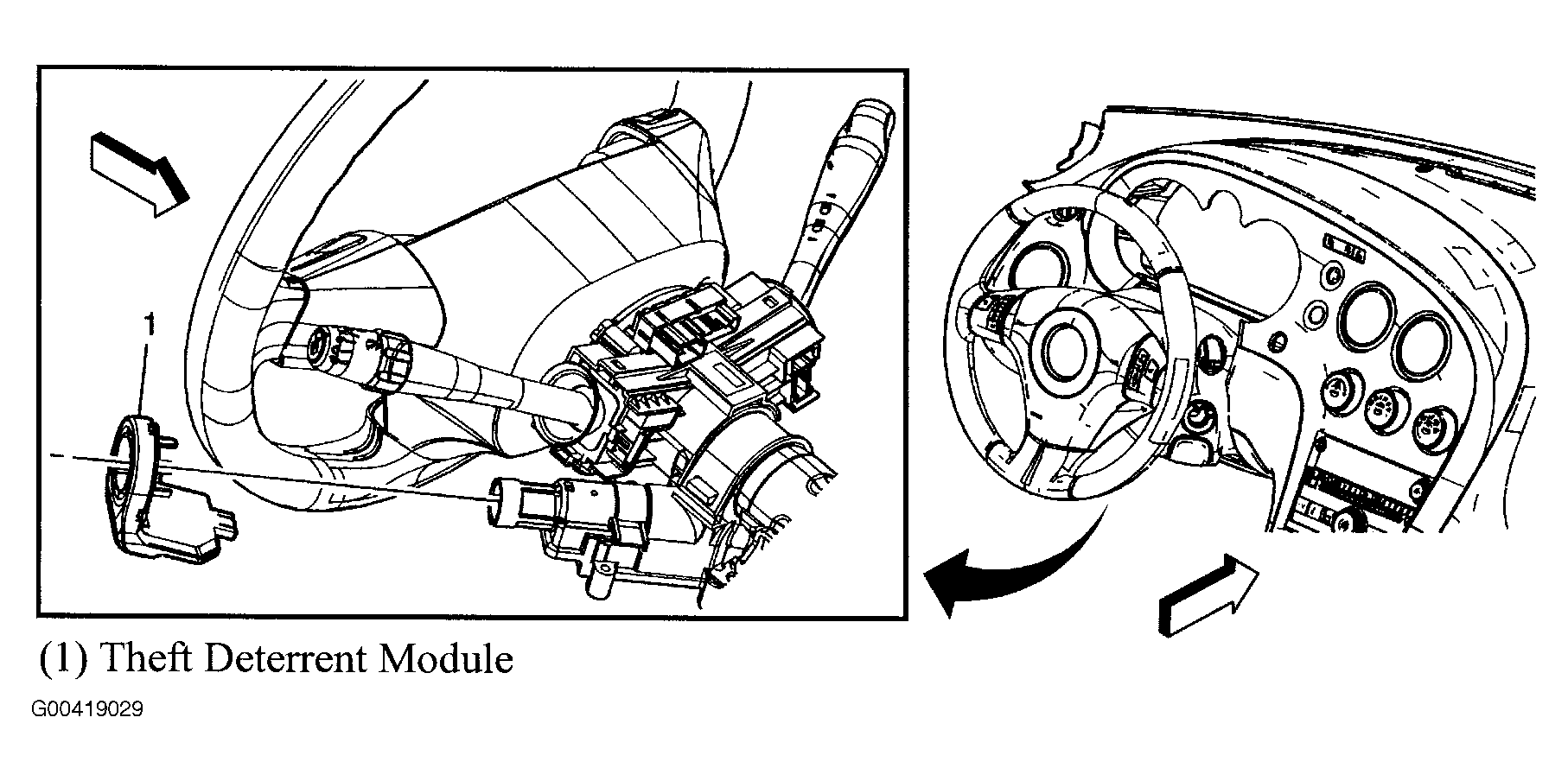

Fig 30: Theft Deterrent System Views

G00419029

Courtesy of GENERAL MOTORS CORP.

Fig 31: Front Engine Compartment

G00419030

Courtesy of GENERAL MOTORS CORP.

Fig 32: Engine Assembly

G00419031

Courtesy of GENERAL MOTORS CORP.

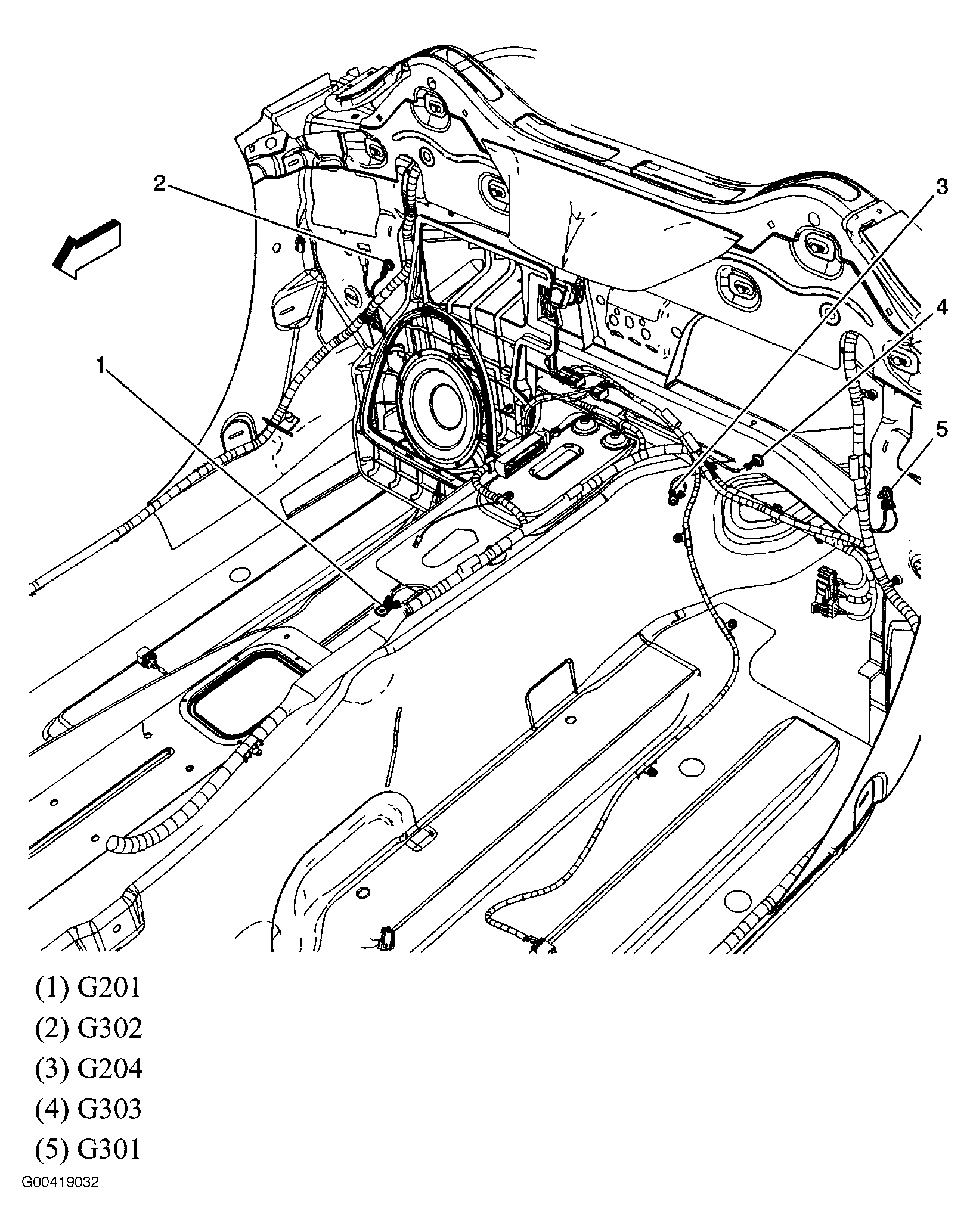

Fig 33: Rear Of Passenger Compartment

G00419032

Courtesy of GENERAL MOTORS CORP.

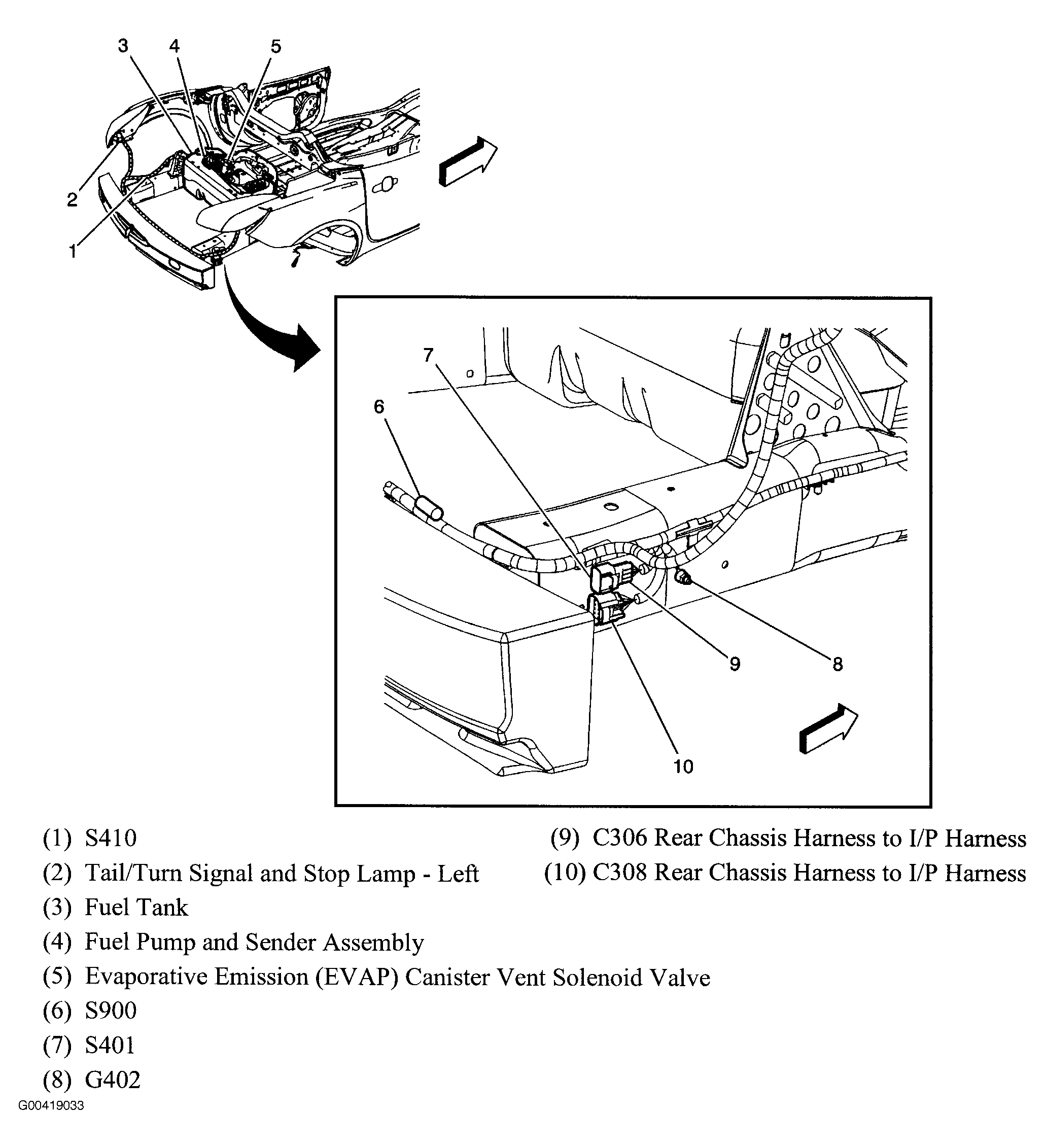

Fig 34: Rear Chassis Harness

G00419033

Courtesy of GENERAL MOTORS CORP.

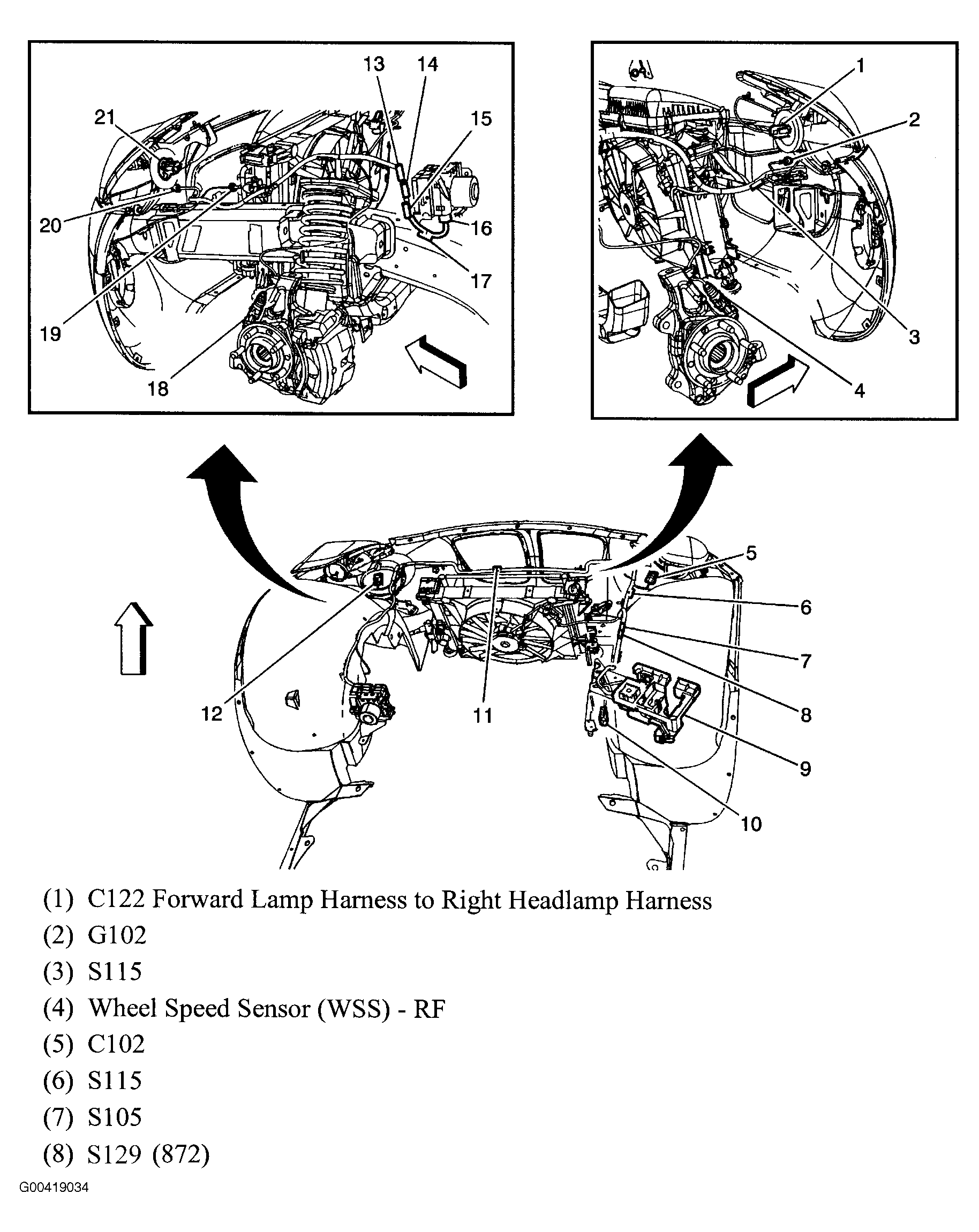

Fig 35: Vehicle Overview (1 Of 2)

G00419034

Courtesy of GENERAL MOTORS CORP.

Fig 36: Vehicle Overview (2 Of 2)

G00419035

Courtesy of GENERAL MOTORS CORP.

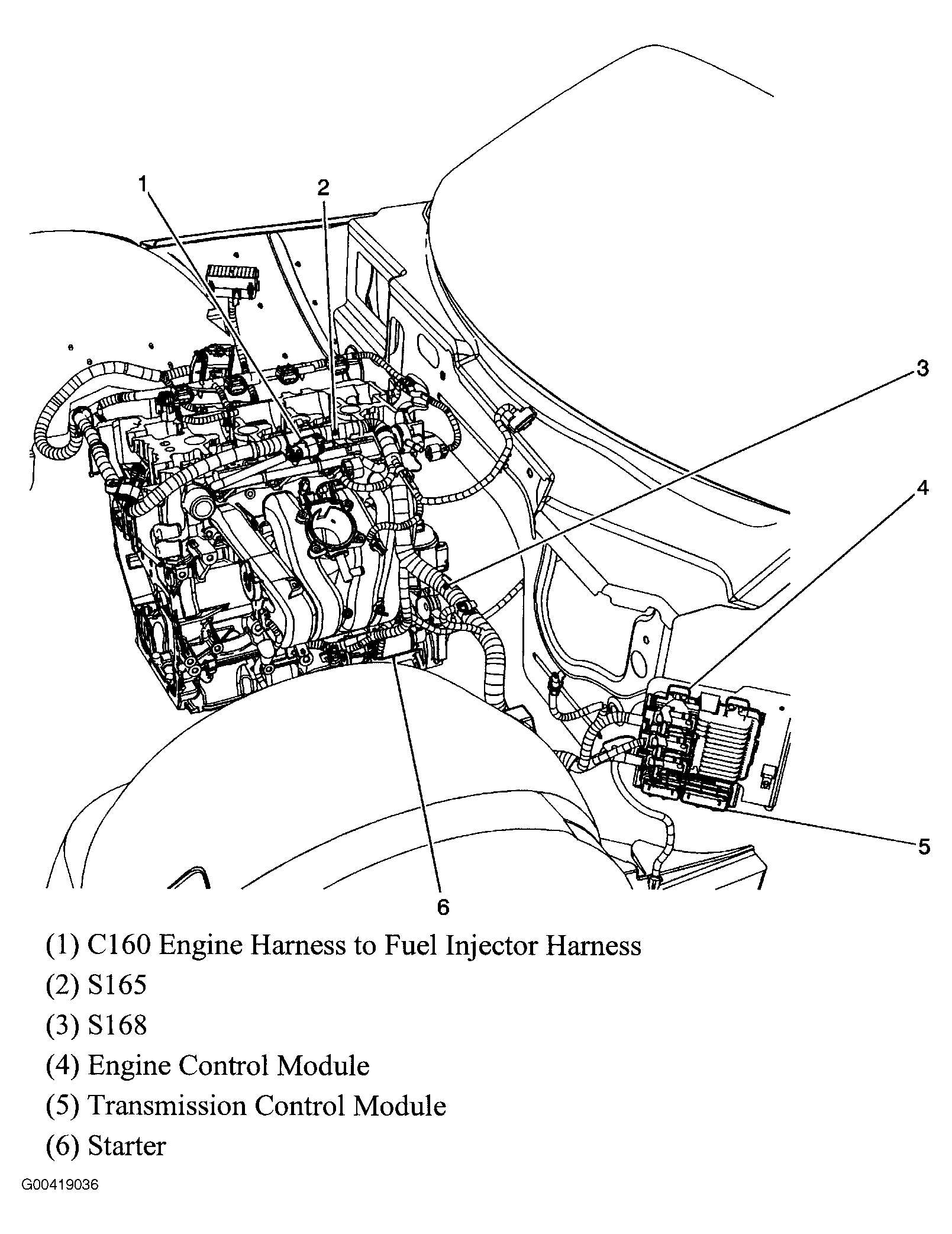

Fig 37: Left Side Of Engine Harness

G00419036

Courtesy of GENERAL MOTORS CORP.

Fig 38: Right Side Engine Harness

G00419037

Courtesy of GENERAL MOTORS CORP.

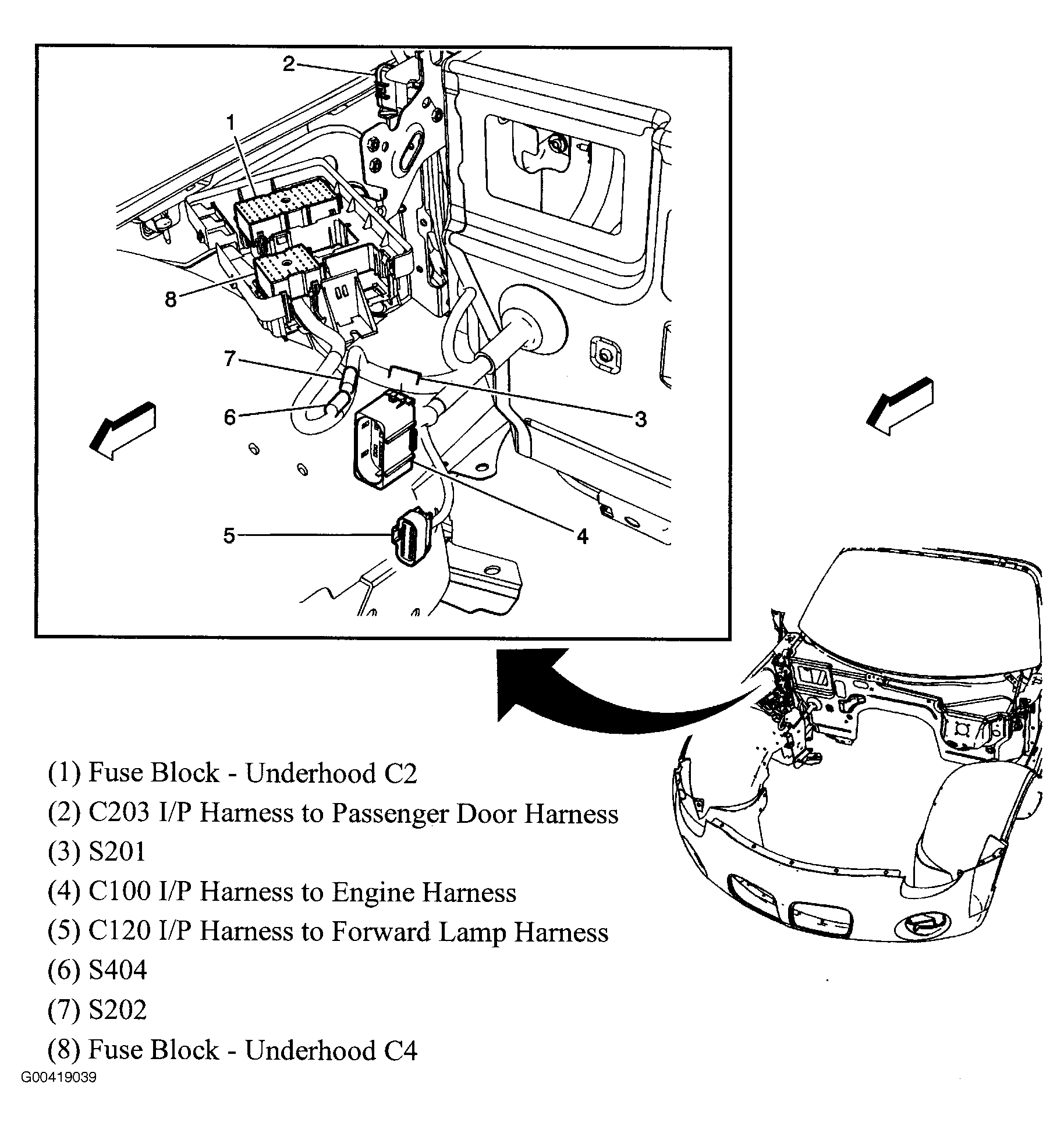

Fig 39: Right Side Firewall

G00419039

Courtesy of GENERAL MOTORS CORP.

Fig 40: Passenger Compartment

G00419040

Courtesy of GENERAL MOTORS CORP.

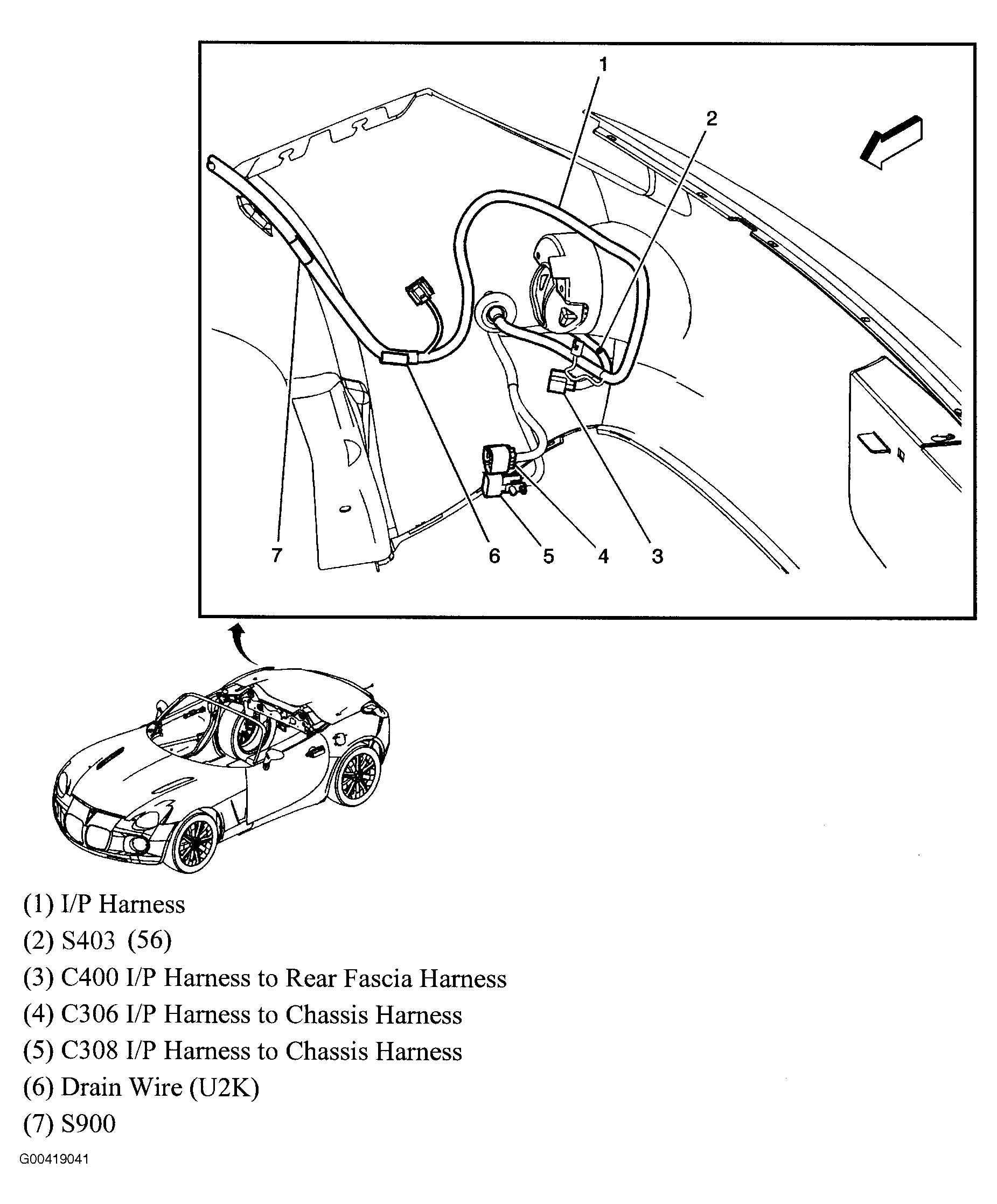

Fig 41: Right Rear Quarter Panel

G00419041

Courtesy of GENERAL MOTORS CORP.

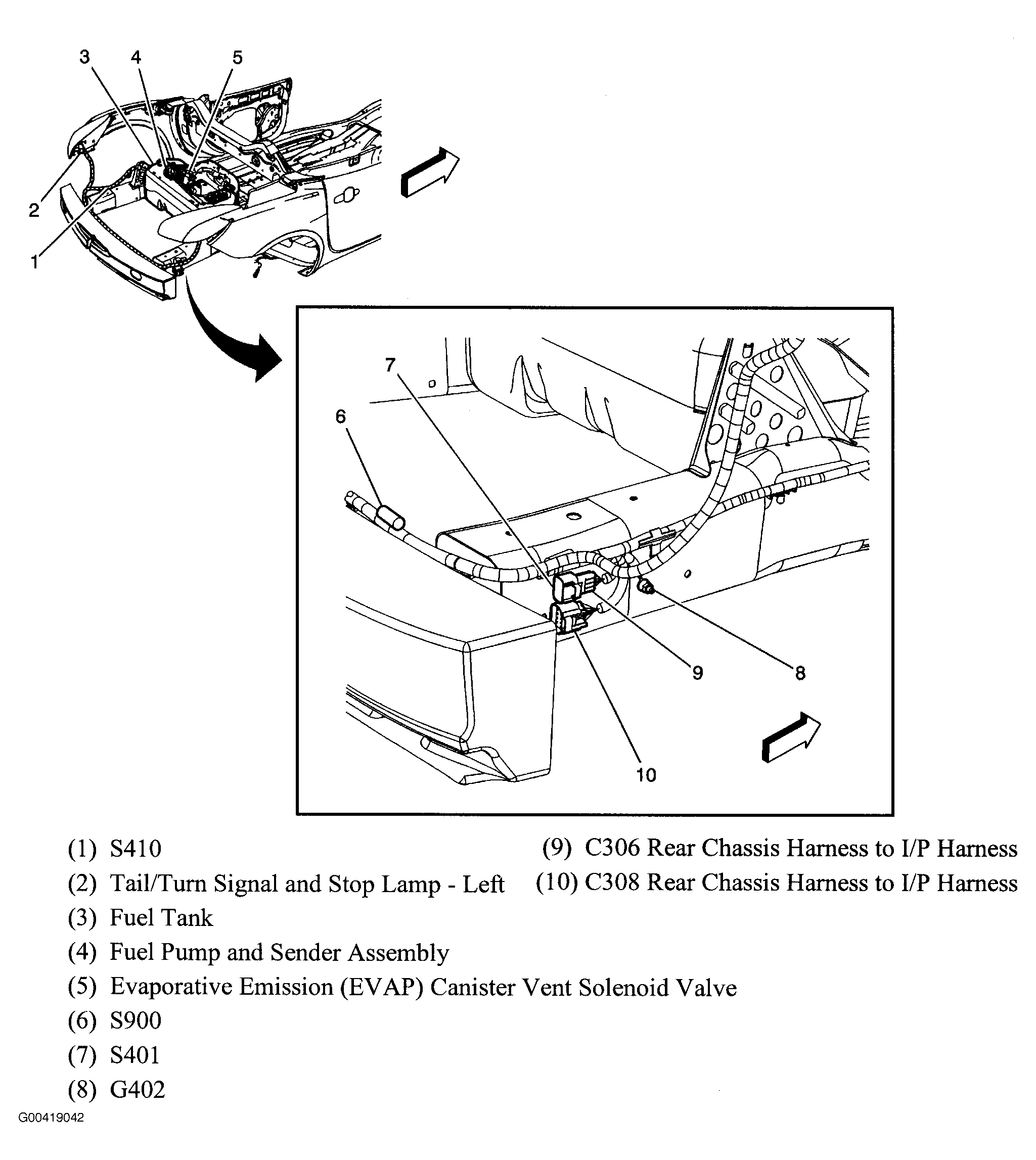

Fig 42: Rear Chassis Harness

G00419042

Courtesy of GENERAL MOTORS CORP.

Fig 43: Chassis Harness

G00419043

Courtesy of GENERAL MOTORS CORP.

Fig 44: Driver's Door

G00419044

Courtesy of GENERAL MOTORS CORP.

Fig 45: Passenger's Door

G00419045

Courtesy of GENERAL MOTORS CORP.

Fig 46: Underhood Fuse Block

G00419046

Courtesy of GENERAL MOTORS CORP.
