Inflatable Restraint Front End Sensor Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

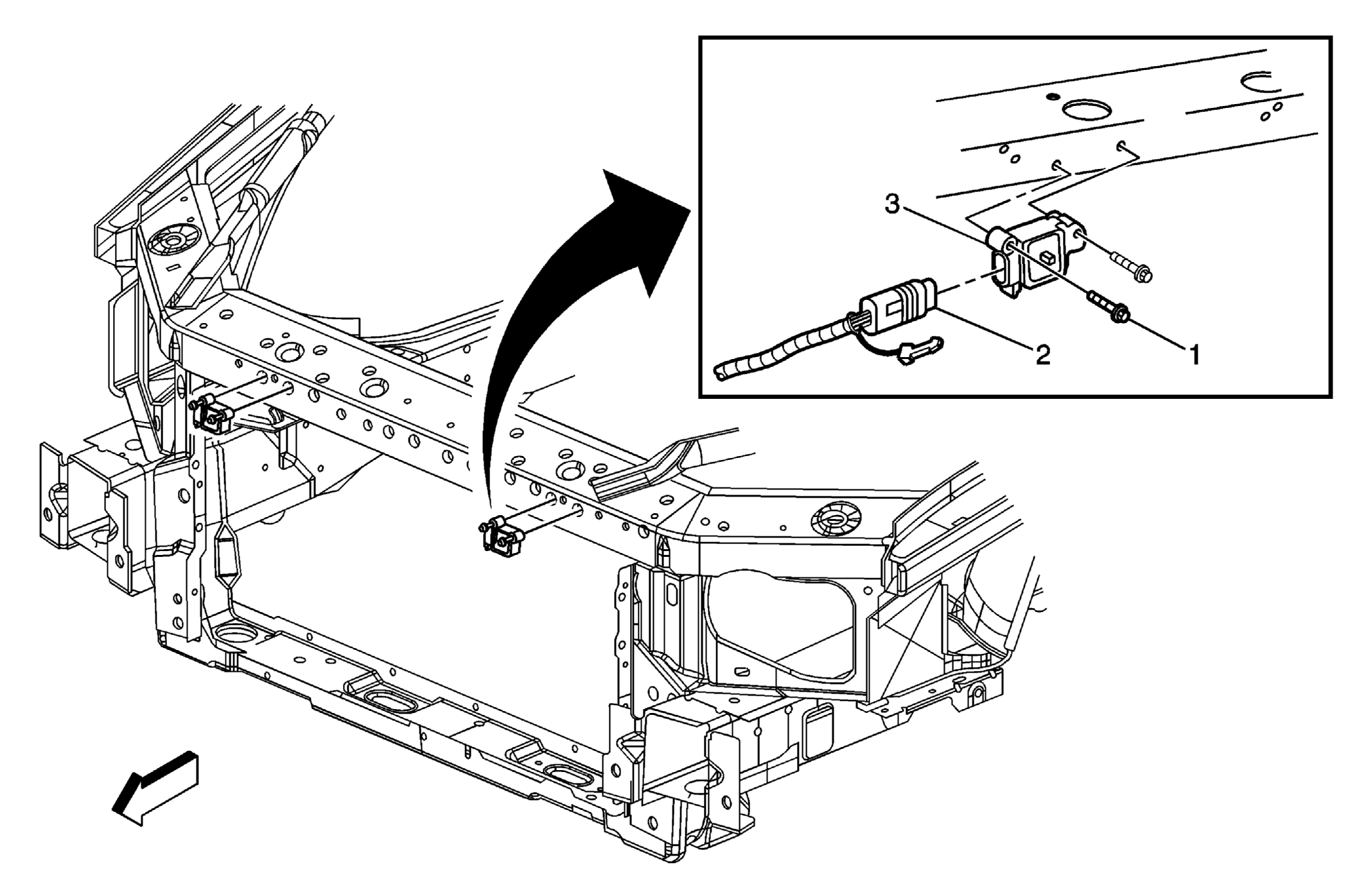

Fig 1: Identifying Inflatable Restraint Front End Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to SIR Caution . Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the upper air baffle and deflector. Refer to Radiator Air Upper Baffle and Deflector Replacement .
1	Inflatable Front End Sensor Mounting Bolts (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 11 N.m (97 lb in)
2	Connector Position Assurance (CPA) Connector
3	Inflatable Front End Sensor
