Inflatable Restraint Instrument Panel Module Replacement (Impala)

WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

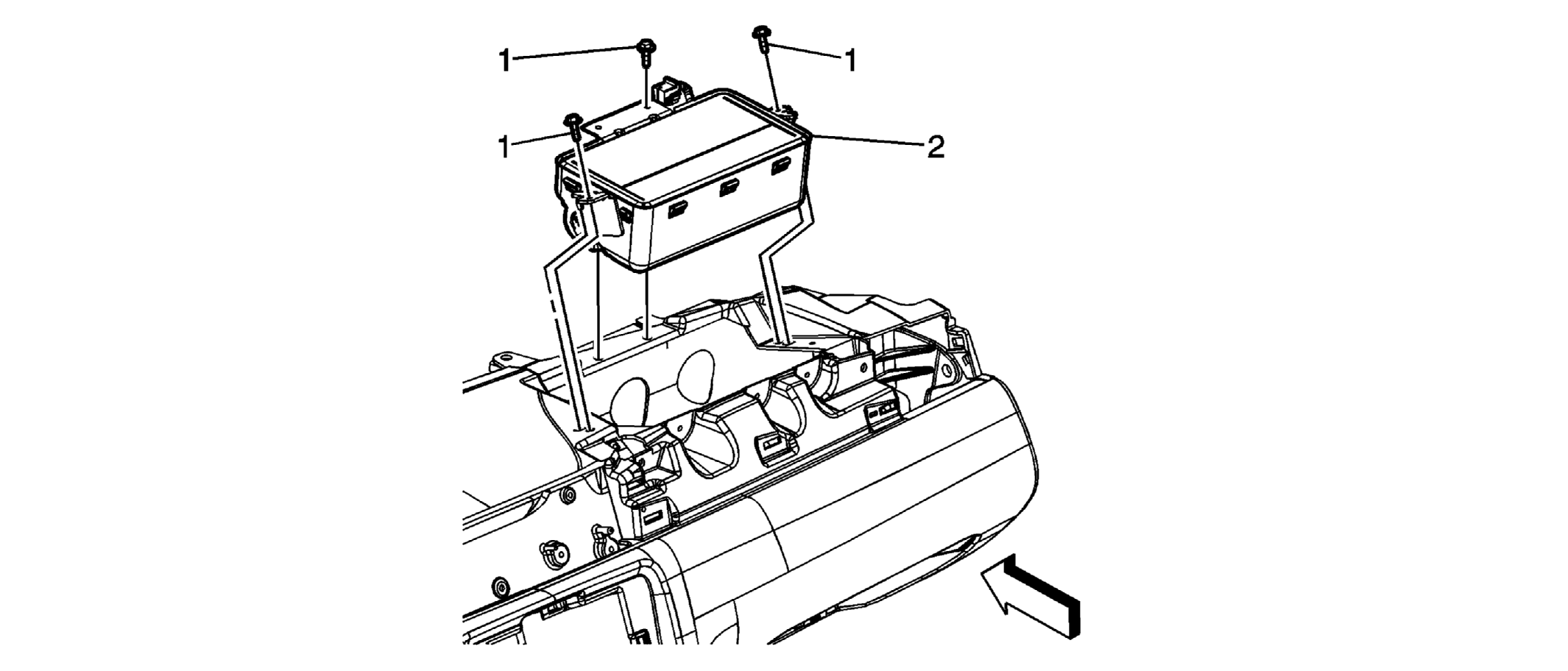

Fig 1: Replacing Inflatable Restraint Instrument Panel Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to SIR Caution . CAUTION: Refer to SIR Inflator Module Handling and Storage Caution . Preliminary Procedures Disable the SIR. Refer to SIR Disabling and Enabling . Remove the instrument panel (I/P) upper trim panel. Refer to Instrument Panel Upper Trim Pad Replacement (Impala) or Instrument Panel Upper Trim Pad Replacement (Monte Carlo) .
1	Inflatable Restraint I/P Module Bolts (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Inflatable Restraint I/P Module Assembly

Callout

Component Name

CAUTION: Refer to SIR Caution .

CAUTION: Refer to SIR Inflator Module Handling and Storage Caution .

Preliminary Procedures

Disable the SIR. Refer to SIR Disabling and Enabling .
Remove the instrument panel (I/P) upper trim panel. Refer to Instrument Panel Upper Trim Pad Replacement (Impala) or Instrument Panel Upper Trim Pad Replacement (Monte Carlo) .

Inflatable Restraint I/P Module Bolts (Qty: 3)

NOTE: Refer to Fastener Notice .

Tighten: 10 N.m (89 lb in)

Inflatable Restraint I/P Module Assembly
