Inflatable Restraint Steering Wheel Module Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

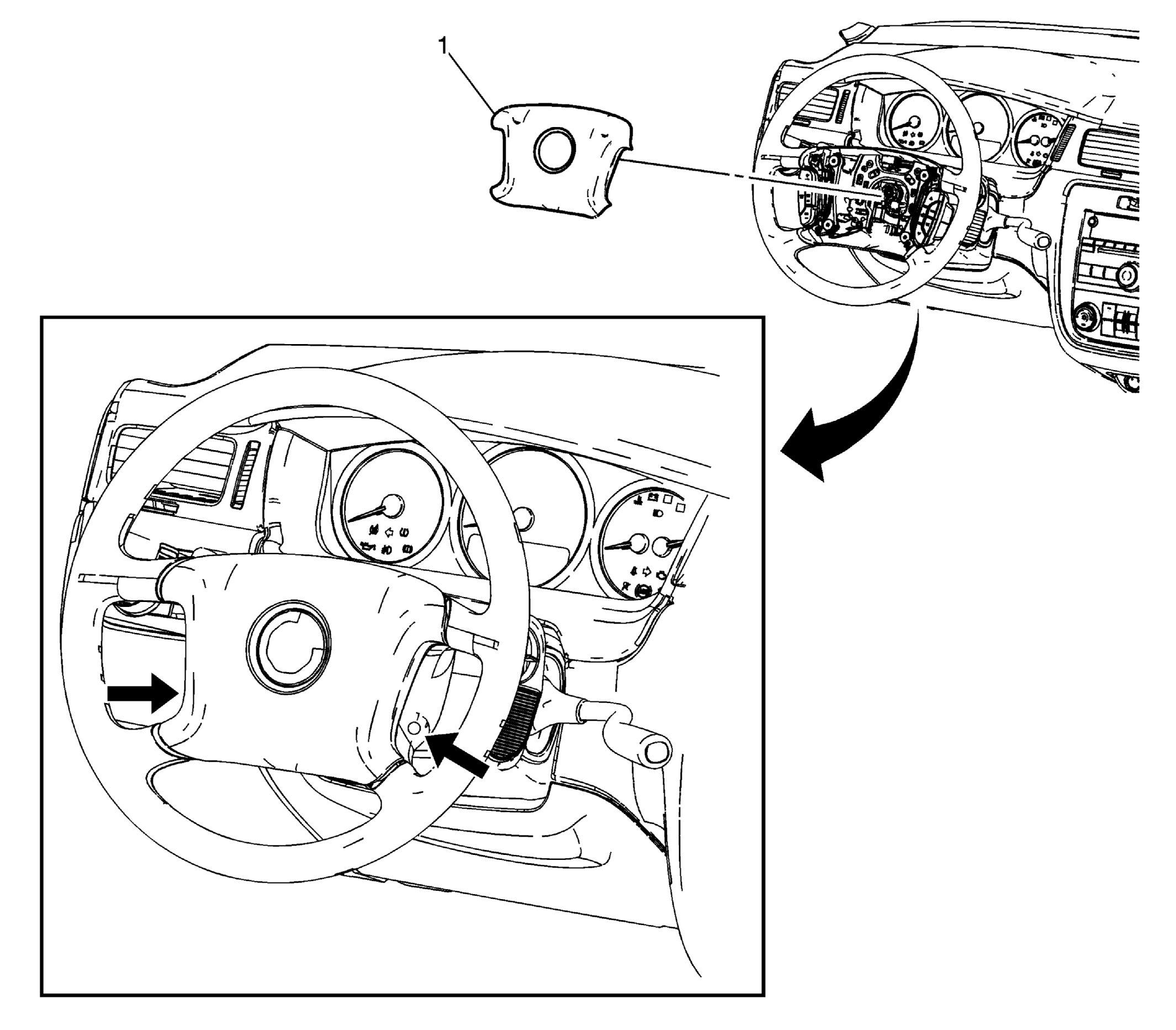

Fig 1: Replacing Inflatable Restraint Steering Wheel Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to SIR Caution . CAUTION: Refer to SIR Inflator Module Handling and Storage Caution . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
1	Inflatable Restraint Steering Wheel Module Assembly Tip: Insert a small blunt-ended tool through the access openings, on the left and right of the steering wheel, push on the blunt-ended tool to release the steering wheel inflator from the steering wheel.
