Instrument Panel Inflatable Restraint Module Indicator Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

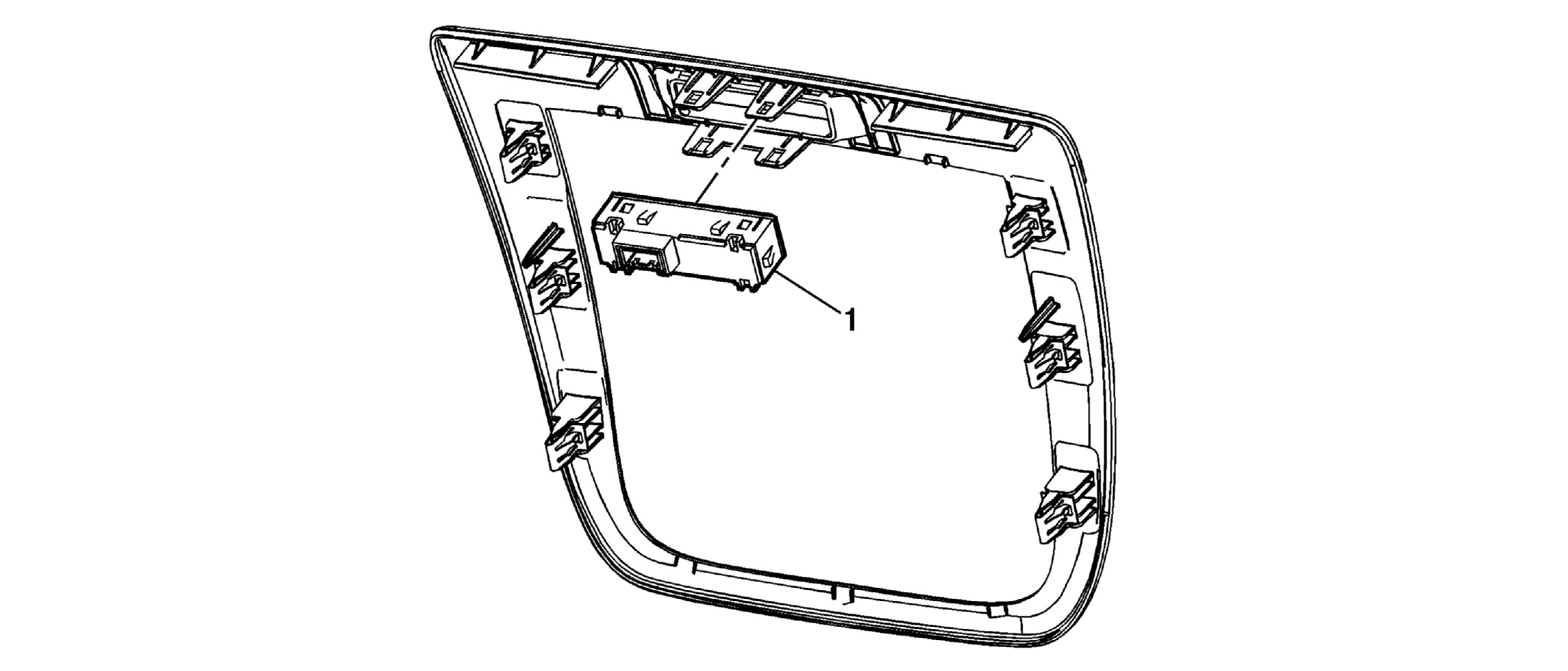

Fig 1: Replacing Inflatable Restraint IP Module Indicator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the instrument panel accessory trim panel. Refer to Instrument Panel Accessory Trim Plate Replacement (Impala) or Instrument Panel Accessory Trim Plate Replacement (Monte Carlo) .
1	Indicator Assembly, Inflatable Restraint Instrument Panel Module
