Automatic Transmission Shift Lock Actuator Replacement

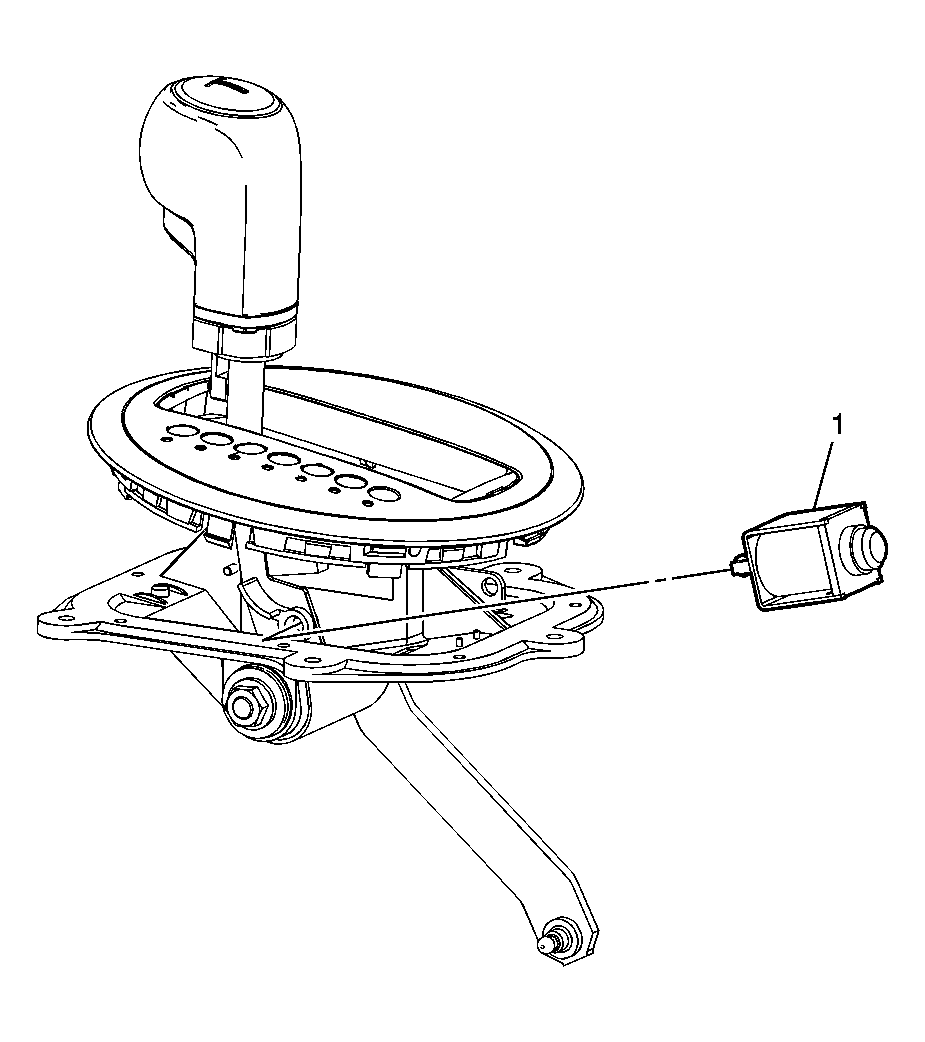

Fig 1: A/T Shift Lock Actuator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications (Unit Repair) or Fastener Tightening Specifications (On Vehicle) . Preliminary Procedure: Remove the shift control. Refer to Floor Shift Control Replacement .
1	Solenoid, Shift Lock
