Connector Views

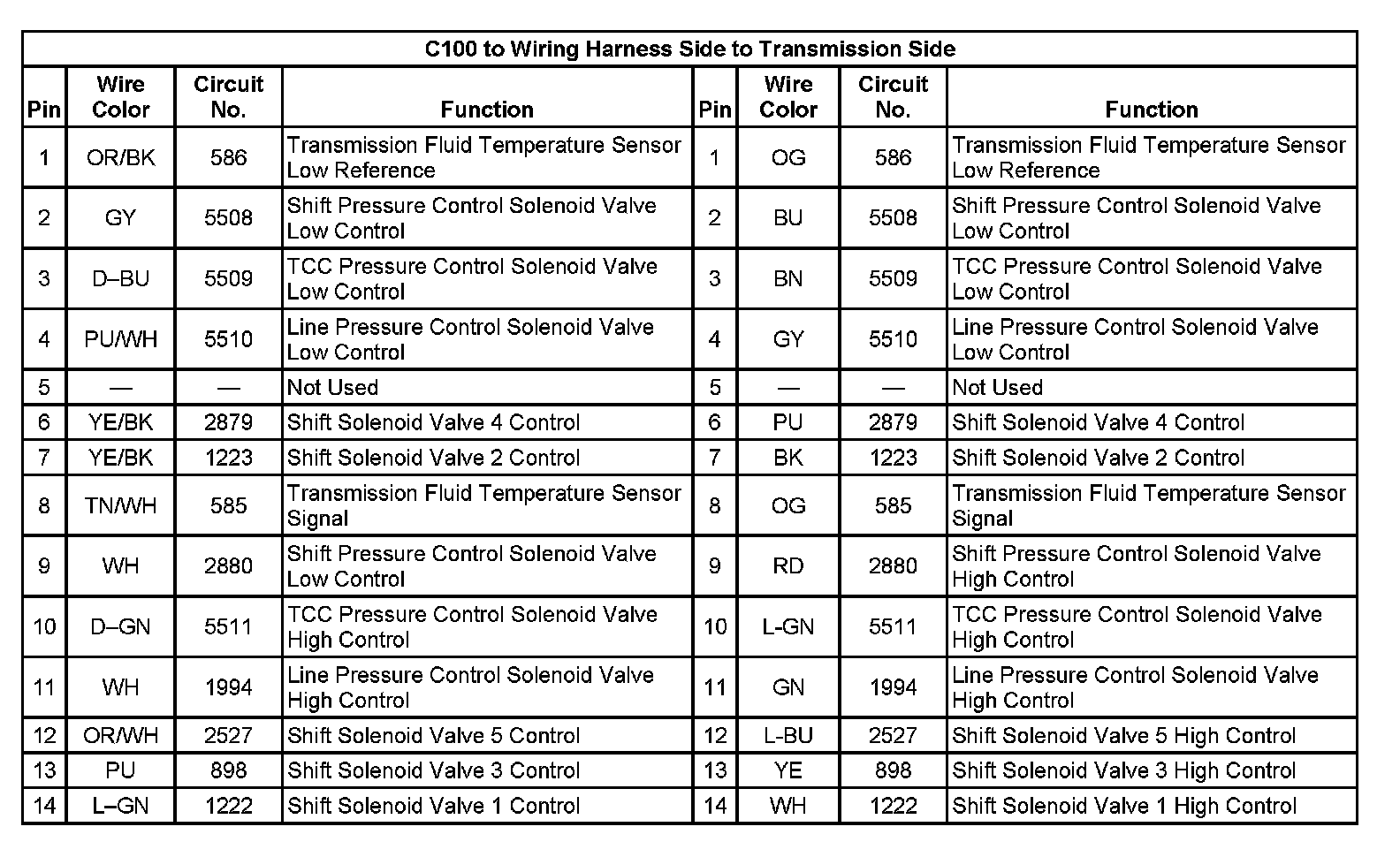

C100 to Wiring Harness Side to Transmission Side:
C100 to Wiring Harness Side to Transmission Side:
