Disassembled Views

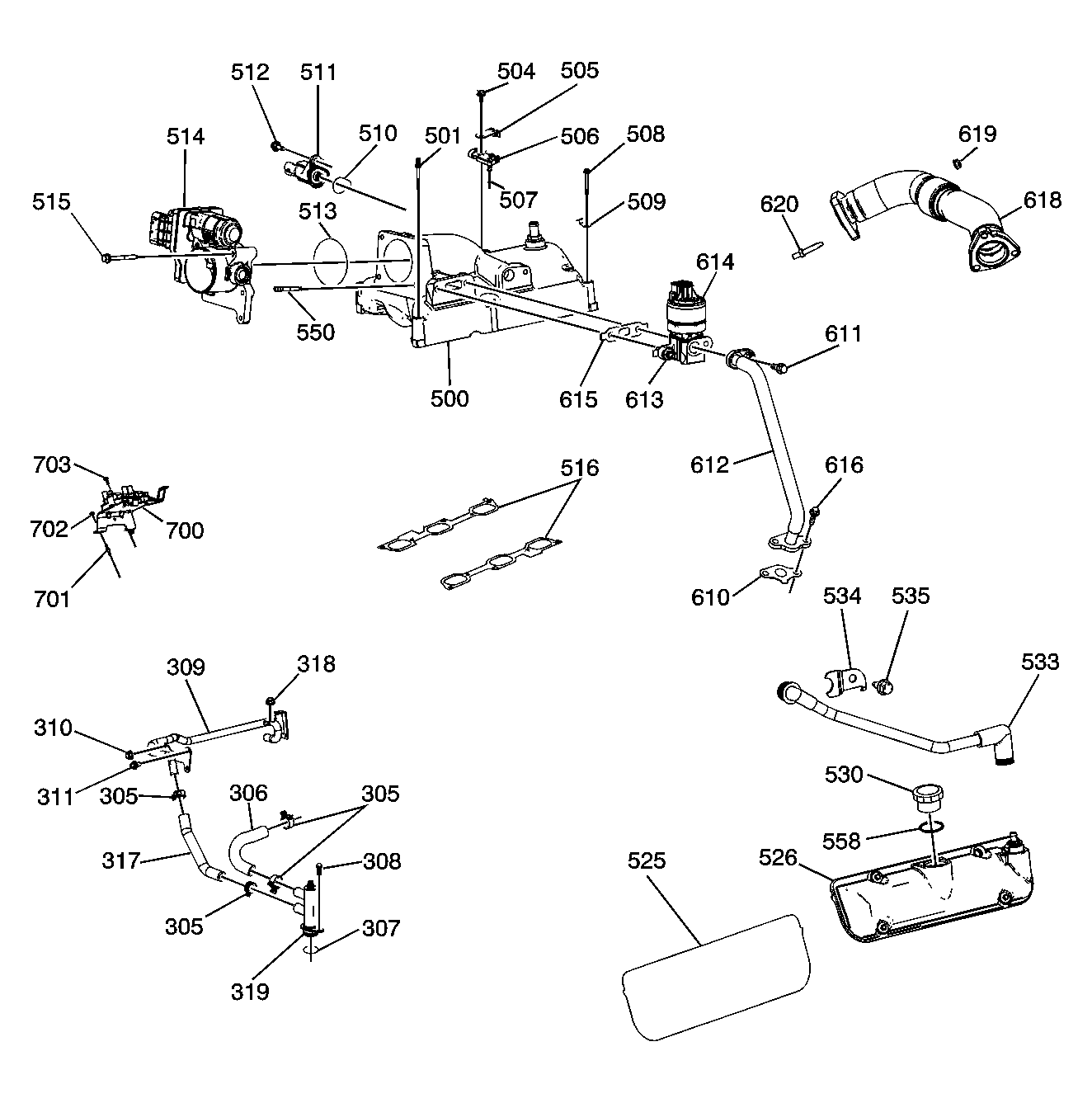

Fig 1: Upper Intake Manifold and Components
GM1352024Courtesy of GENERAL MOTORS CORP.
Callout Component Name
305 Heater Outlet Pipe Hose Clamp
305 Heater Outlet Pipe Hose Clamp
305 Heater Outlet Pipe Hose Clamp
306 Heater Outlet Pipe Hose
307 Heater Outlet Pipe Seal
308 Heater Outlet Pipe Bolt - To Front Cover
309 Heater Outlet Pipe
310 Heater Outlet Pipe Nut
311 Heater Outlet Pipe Bolt - To Throttle Body
317 Heater Outlet Hose
318 Heater Outlet Pipe Nut - To Intake
319 Thermostat Bypass Pipe Adapter
500 Upper Intake Manifold
501 Upper Intake Manifold Stud
504 MAP Sensor Bolt
505 MAP Sensor Clip
506 MAP Sensor
507 MAP Sensor Seal
508 Upper Intake Manifold Bolt
509 Spark Plug Support Bracket
510 EVAP Purge Valve Seal
511 EVAP Purge Valve
512 EVAP Purge Valve Bolt
513 Throttle Body Seal
514 Throttle Body
515 Throttle Body Bolt
516 Upper Intake Manifold Gasket
525 Valve Rocker Cover Seal
526 Valve Rocker Cover - Left
530 Oil Fill Cap
533 PCV Tube - Foul Air
534 PCV Tube Clip - Foul Air
535 PCV Tube Bolt - Foul Air
550 Throttle Body Stud
558 Oil Fill Cap O-ring
610 EGR Valve Gasket - To Exhaust Manifold
611 EGR Pipe Bolt - To EGR
612 EGR Pipe
613 EGR Valve Bolt
614 EGR Valve
615 EGR Valve Gasket - To Intake Manifold
616 EGR Pipe Bolt - To Exhaust Manifold
618 Exhaust Crossover Pipe
619 Exhaust Crossover Pipe Nut
620 Exhaust Crossover Pipe Stud
700 Ignition Coil Assembly
701 Ignition Coil Assembly Stud
702 Ignition Coil Assembly Nut
703 Ignition Coil Assembly Bolt

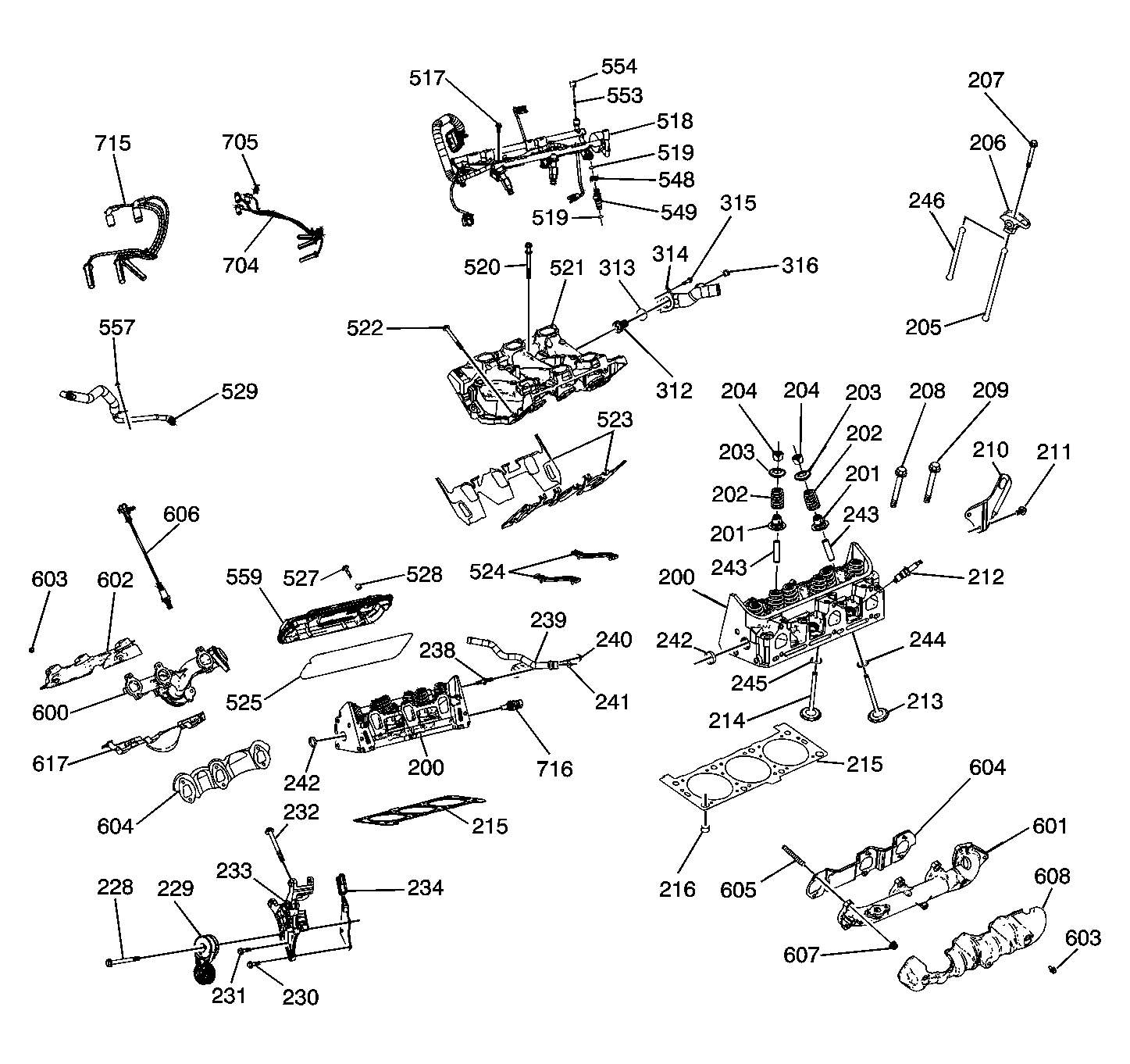

Fig 2: Lower Intake Manifold, Cylinder Head and Components
GM1352027Courtesy of GENERAL MOTORS CORP.
Callout Component Name
200 Cylinder Head
200 Cylinder Head
201 Valve Seal
201 Valve Seal
202 Valve Spring
202 Valve Spring
203 Valve Spring Cap
203 Valve Spring Cap
204 Valve Stem Key
204 Valve Stem Key
205 Valve Pushrod - Exhaust
206 Valve Rocker Arm
207 Valve Rocker Arm Bolt
208 Cylinder Head Bolt - Long
209 Cylinder Head Bolt - Short
210 Engine Lift Bracket - Rear
211 Engine Lift Bracket Bolt - Rear
212 Spark Plug
213 Exhaust Valve
214 Intake Valve
215 Cylinder Head Gasket
215 Cylinder Head Gasket
216 Cylinder Head Locating Pin
228 Drive Belt Tensioner Bolt
229 Drive Belt Tensioner
230 Generator Bracket Bolt - Short
231 Generator Bracket Bolt - Medium
232 Generator Bracket Bolt - Long
233 Generator Bracket
234 Engine Lift Bracket - Front
238 Heater Inlet Pipe Stud
239 Heater Inlet Pipe
240 Heater Inlet Pipe Nut
241 Heater Inlet Pipe Seal
242 Cylinder Head Expansion Plug
242 Cylinder Head Expansion Plug
243 Valve Guide
243 Valve Guide
244 Valve Seat - Exhaust
245 Valve Seat - Intake
246 Valve Pushrod - Intake
312 Engine Coolant Thermostat
313 Engine Coolant Thermostat Seal
314 Water Outlet Housing
315 Water Outlet Housing Bolt
316 Water Outlet Housing Fitting
517 Fuel Rail Bolt
518 Fuel Rail
519 Fuel Injector Seal
519 Fuel Injector Seal
520 Lower Intake Manifold Bolt - Long
521 Lower Intake Manifold
522 Lower Intake Manifold Bolt - Short
523 Lower Intake Manifold Gasket
524 Lower Intake Manifold Seal
525 Valve Rocker Cover Seal
527 Valve Rocker Cover Bolt
528 Valve Rocker Cover Bolt Grommet
529 PCV Tube - Fresh Air
548 Fuel Injector Retaining Clip
549 Fuel Injector
553 Fuel Schrader Valve
554 Fuel Service Port Cap
557 PCV Tube Nut - Fresh Air
559 Valve Rocker Cover - Right
600 Exhaust Manifold - Left
601 Exhaust Manifold - Right
602 Exhaust Manifold Heat Shield - Right - Upper
603 Exhaust Manifold Heat Shield Bolt
603 Exhaust Manifold Heat Shield Bolt
604 Exhaust Manifold Gasket
604 Exhaust Manifold Gasket
605 Exhaust Manifold Stud
606 Heated Oxygen Sensor
607 Exhaust Manifold Nut
608 Exhaust Manifold Heat Shield - Left
617 Exhaust Manifold Heat Shield -Right - Lower
704 Spark Plug Wire Harness - Front
705 Spark Plug Wire Support
715 Spark Plug Wire Harness - Rear
716 Coolant Temperature Sensor

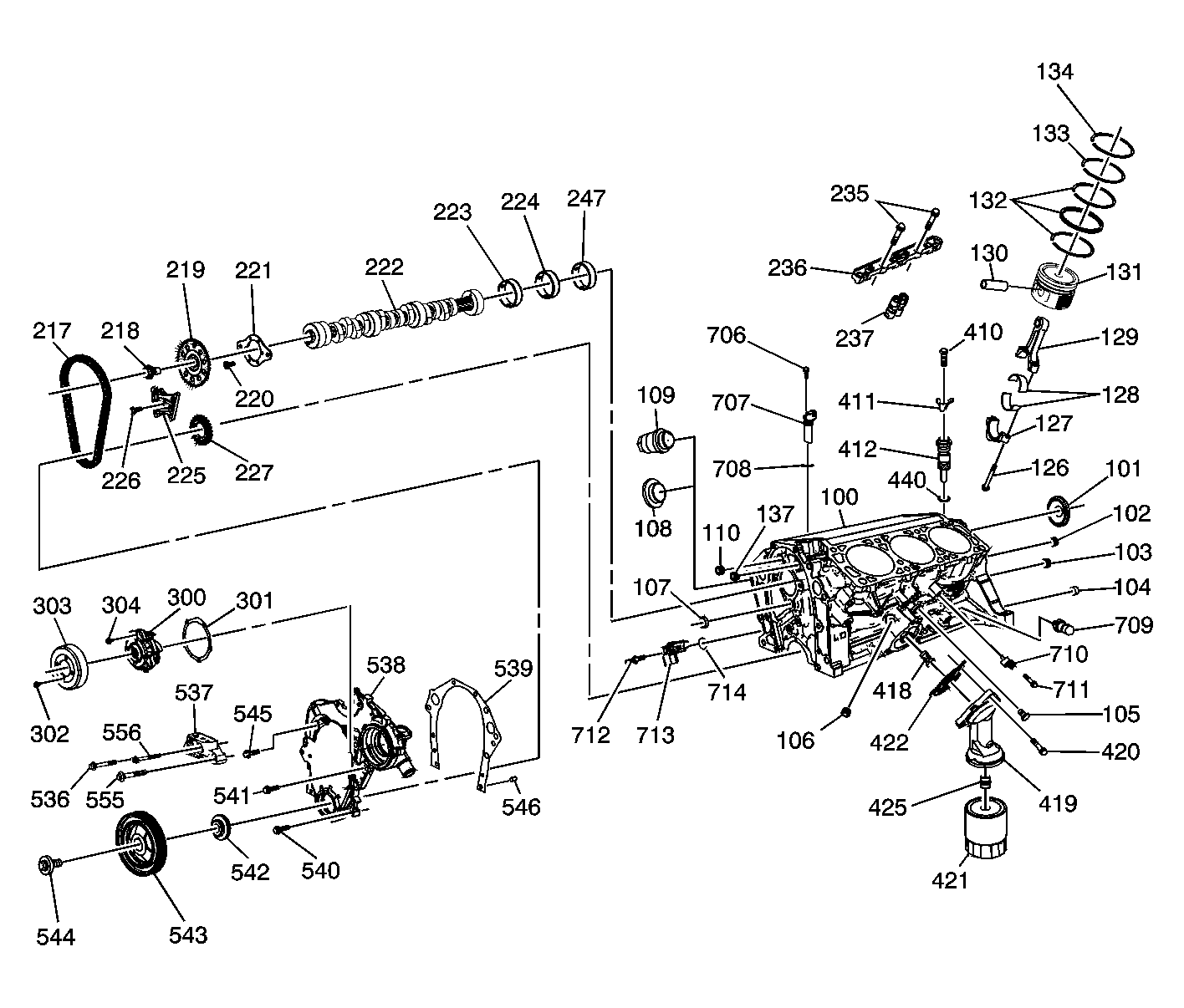

Fig 3: Engine Block and Components
GM1352029Courtesy of GENERAL MOTORS CORP.
Callout Component Name
100 Engine Block
101 Camshaft Rear Bearing Hole Plug
102 Engine Block Oil Gallery Plug Assembly - Rear - Large
103 Engine Block Oil Gallery Plug Assembly - Rear - Small
104 Transmission Locating Pin
105 Engine Block Coolant Drain Hole Plug
106 Oil Filter Bypass Hole Plug Assembly
107 Engine Block Oil Gallery Plug Assembly - Front
108 Engine Block Heater Plug
109 Engine Block Heater
110 Engine Block Oil Gallery Plug - Front - Small
126 Connecting Rod Bearing Cap Bolt
127 Connecting Rod Bearing Cap
128 Connecting Rod Bearing
129 Connecting Rod
130 Piston Pin
131 Piston
132 Piston Ring - Oil Control
133 Piston Ring - Compression - Lower
134 Piston Ring - Compression - Upper
137 Engine Block Oil Gallery Plug - Front - Large
217 Timing Chain
218 Camshaft Sprocket Bolt
219 Camshaft Sprocket
220 Camshaft Thrust Plate Bolt
221 Camshaft Thrust Plate
222 Camshaft
223 Camshaft Bearing - 1
224 Camshaft Bearing - 2 and 3
225 Timing Chain Dampener
226 Timing Chain Dampener Bolt
227 Crankshaft Sprocket
235 Valve Lifter Guide Bolt
236 Valve Lifter Guide
237 Valve Lifter
247 Camshaft Bearing - 4
300 Water Pump
301 Water Pump Gasket
302 Water Pump Pulley Bolt
303 Water Pump Pulley
304 Water Pump Bolt
410 Oil Pump Drive Bolt
411 Oil Pump Drive Clamp
412 Oil Pump Drive
418 Oil Filter Bypass Valve
419 Oil Filter Adapter
420 Oil Filter Adapter Bolt
421 Oil Filter
422 Oil Filter Adapter Gasket
425 Oil Filter Fitting
440 Oil Pump Drive Seal
536 Engine Mount Snubber Bracket Bolt
537 Engine Mount Snubber Bracket
538 Engine Front Cover
539 Engine Front Cover Gasket
540 Engine Front Cover Bolt - Small
541 Engine Front Cover Bolt - Medium
542 Crankshaft Front Oil Seal
543 Crankshaft Balancer
544 Crankshaft Balancer Bolt
545 Engine Front Cover Bolt - Large
546 Engine Front Cover Locating Pin
555 Engine Mount Snubber Bracket Bolt - Large
556 Engine Mount Snubber Bracket Bolt - Small
706 Camshaft Sensor Bolt
707 Camshaft Sensor
708 Camshaft Sensor Seal
709 Engine Oil Pressure Sensor
710 Knock Sensor
711 Knock Sensor Bolt
712 Crankshaft Position Sensor Stud
713 Crankshaft Position Sensor
714 Crankshaft Position Sensor Seal

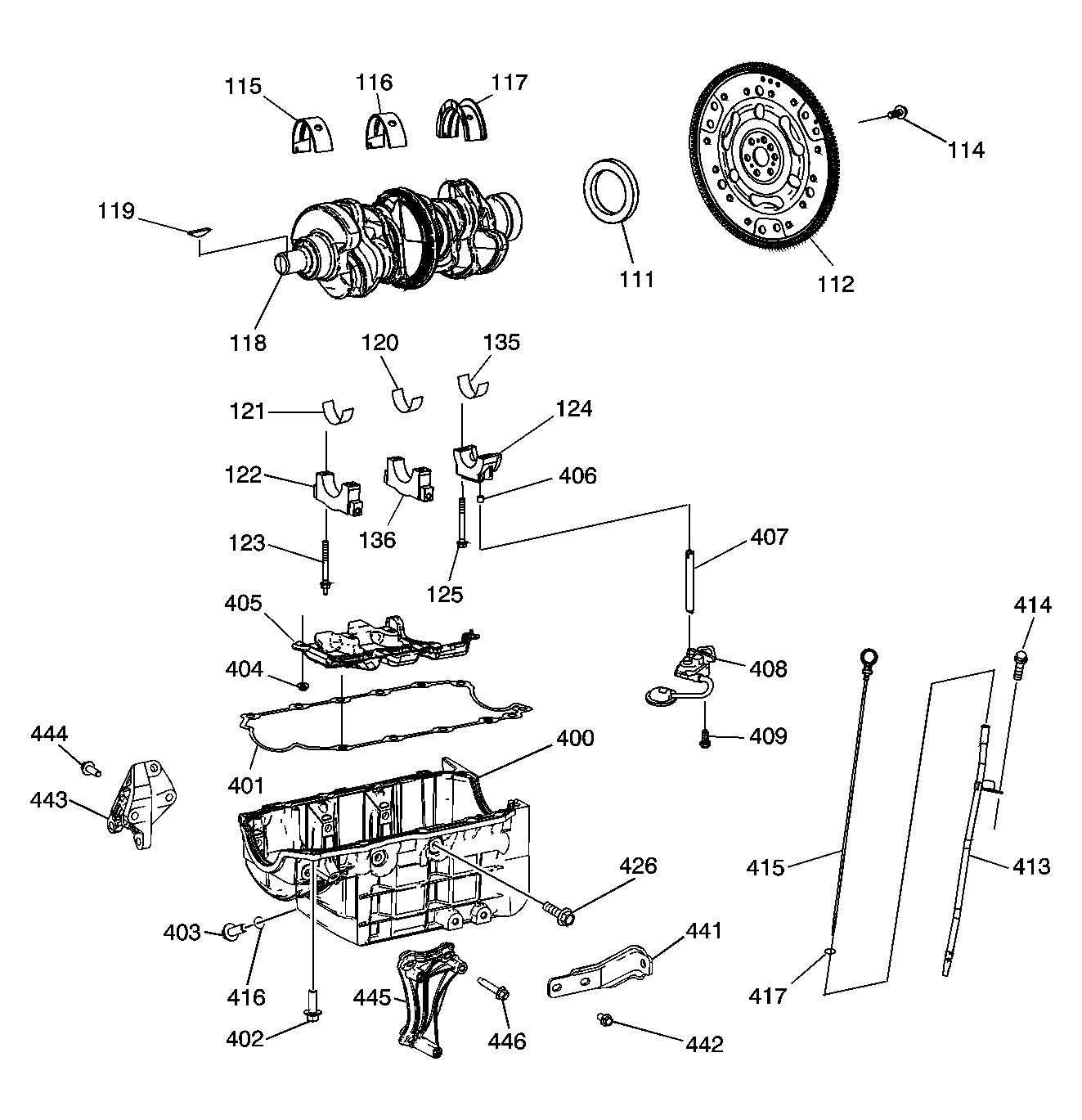

Fig 4: Crankshaft and Components
GM1352030Courtesy of GENERAL MOTORS CORP.
Callout Component Name
111 Crankshaft Rear Oil Seal Assembly
112 Flywheel
114 Flywheel Bolt
115 Crankshaft Upper Bearing - 1 and 4
116 Crankshaft Upper Bearing - 2
117 Crankshaft Upper Bearing - 3
118 Crankshaft
119 Crankshaft Balancer Key
120 Crankshaft Lower Bearing - 2
121 Crankshaft Lower Bearing - 1 and 4
122 Crankshaft Bearing Cap - 1
123 Crankshaft Bearing Cap Stud
124 Crankshaft Bearing Cap - 4
125 Crankshaft Bearing Cap Bolt
135 Crankshaft Lower Bearing - 3
136 Crankshaft Bearing Cap - 2 and 3
400 Oil Pan
401 Oil Pan Gasket
402 Oil Pan Bolt - To Engine Block
403 Oil Pan Drain Plug
404 Crankshaft Oil Deflector Nut
405 Crankshaft Oil Deflector
406 Oil Pump Locating Pin
407 Oil Pump Shaft
408 Oil Pump
409 Oil Pump Bolt
413 Oil Level Indicator Tube
414 Oil Level Indicator Tube Bolt
415 Oil Level Indicator
416 Oil Pan Drain Plug Seal
417 Oil Level Indicator Seal
426 Oil Pan Bolt - Side of Pan
441 Oil Pan Support Bracket - To Transmission Bell Housing
442 Oil Pan Support Bracket Bolt - To Oil Pan
443 Oil Pan Support Bracket - To Transmission Tail Shaft
444 Oil Pan Support Bracket Bolt - To Transmission Tail Shaft
445 A/C Mounting Bracket
446 A/C Mounting Bracket Bolt
