Power Steering System Component Views
Courtesy of GENERAL MOTORS CORP.

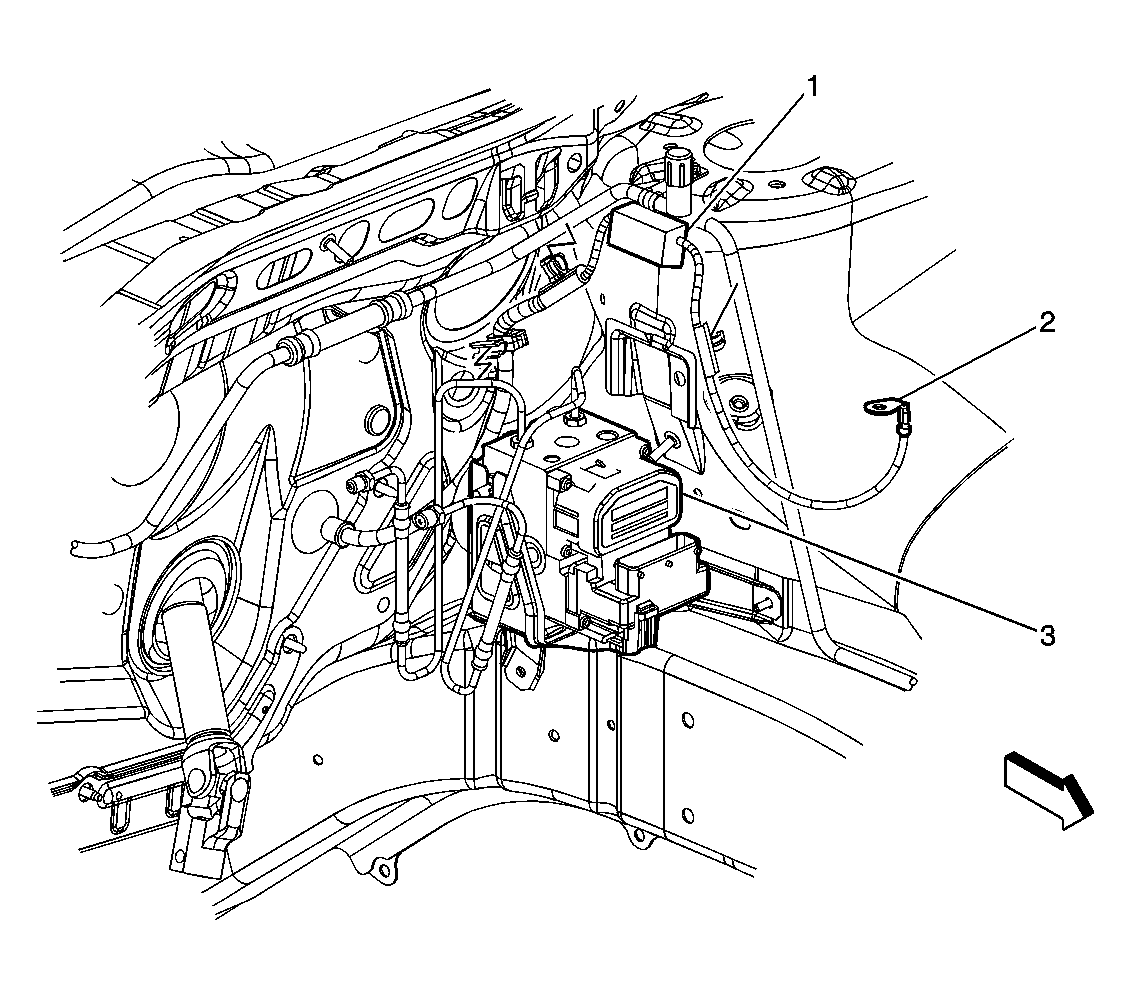

| Callout |
Component Name |
| 1 |
EPS Inline Fuse Holder |
| 2 |
PSCM Harness Connection to the Underhood Fuse Block |
| 3 |
Electronic Brake Control Module (EBCM) |
Courtesy of GENERAL MOTORS CORP.

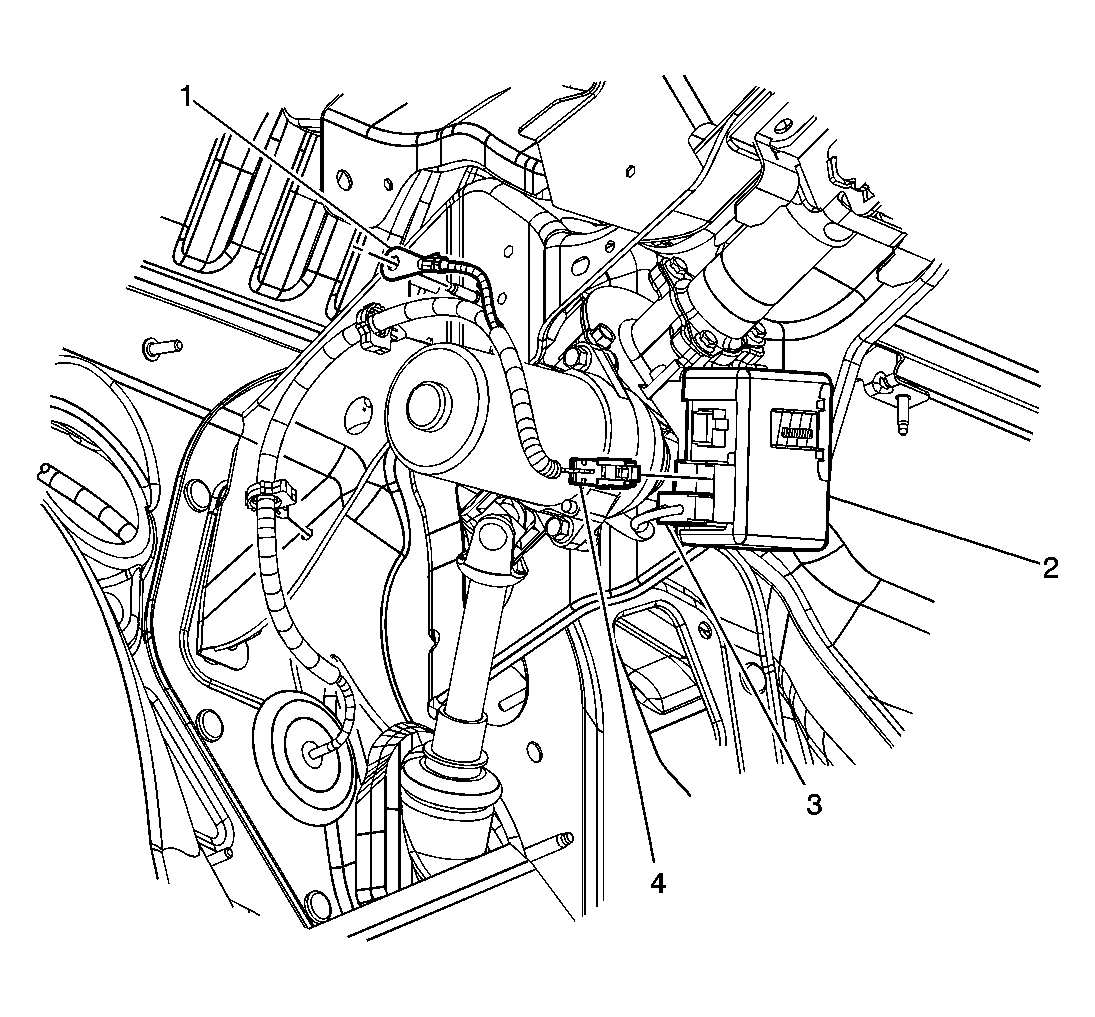

| Callout |
Component Name |
| 1 |
G207 |
| 2 |
Power Steering Control Module (PSCM) |
| 3 |
Power Steering Control Module (PSCM) C3 - EPS Motor Pigtail |
| 4 |
Power Steering Control Module (PSCM) C1 |
