Unit Repair Manual

Disassembled Views

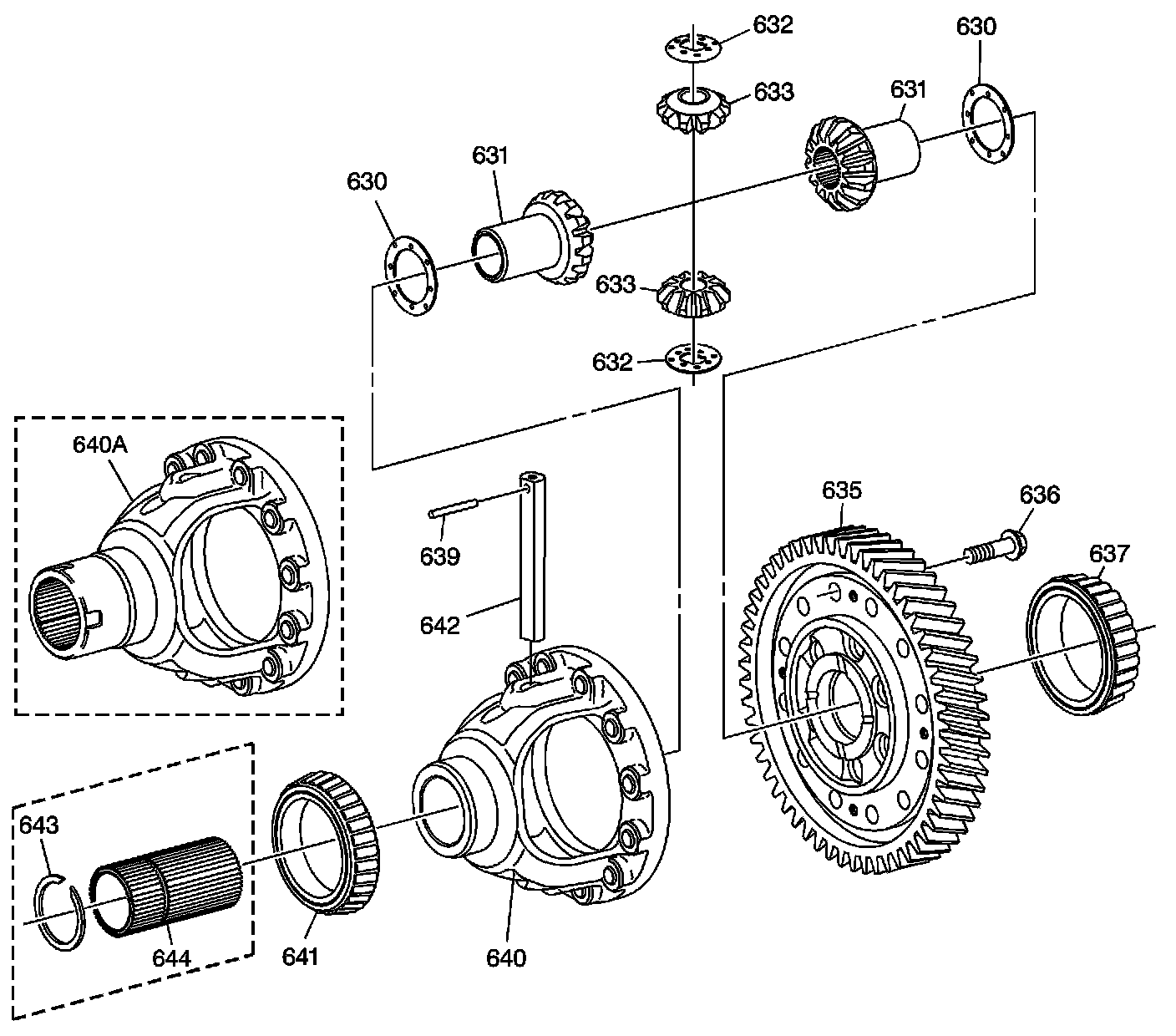

Front Differential Carrier Assembly - AWD/FWD:

630 - Front Differential Side Gear Thrust Washer (2) (Selective)
630 - Front Differential Side Gear Thrust Washer (2) (Selective)
631 - Front Differential Side Gear (2)
631 - Front Differential Side Gear (2)
632 - Front Differential Pinion Shaft Thrust Washer (2)
632 - Front Differential Pinion Shaft Thrust Washer (2)
633 - Front Differential Pinion Gear (2)
633 - Front Differential Pinion Gear (2)
635 - Front Differential Ring Gear
636 - Front Differential Ring Gear Mounting Bolt (M11 x 1.0 x 34) (12)
637 - Front Differential Tapered Outer Roller Bearing (86 mm I.D.)
639 - Front Differential Pinion Shaft Retaining Pin (6 mm x 38 mm) (1)
640 - Front Differential Carrier Assembly - FWD
640a - Front Differential Carrier Assembly - AWD
641 - Front Differential Tapered Outer Roller Bearing (90 mm I.D.)
642 - Front Differential Pinion Shaft (17.0 x 110.4)
643 - Front Differential Pinion Shaft Retaining Ring - AWD
644 - Splined Stub Shaft - AWD Only
