Unit Repair Manual

Disassembled Views

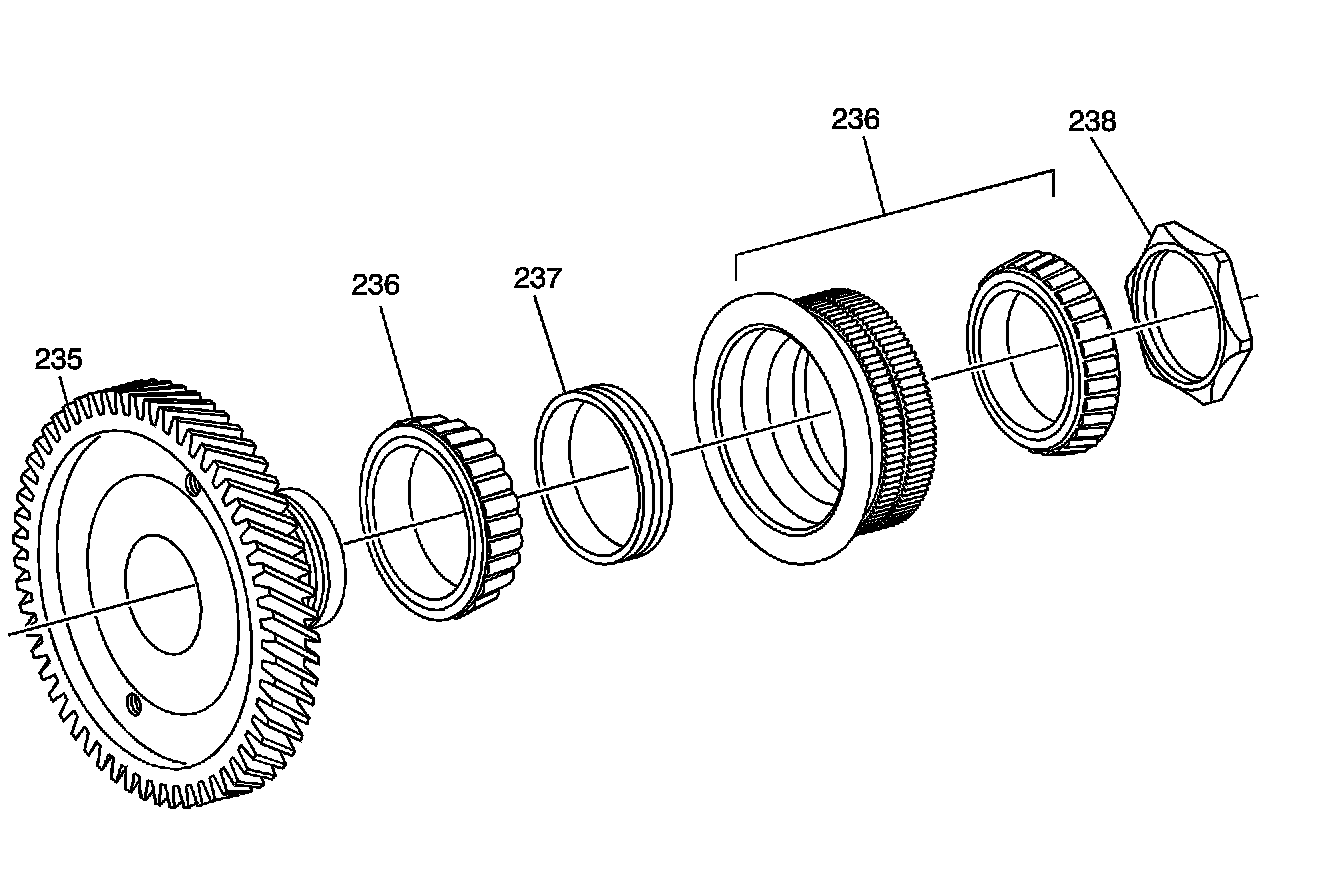

Output Gear Assembly:

235 - Output Gear
236 - Output Gear Bearing Assembly
237 - Output Gear Bearing Assembly Spacer
238 - Output Gear Bearing Assembly Lock Nut

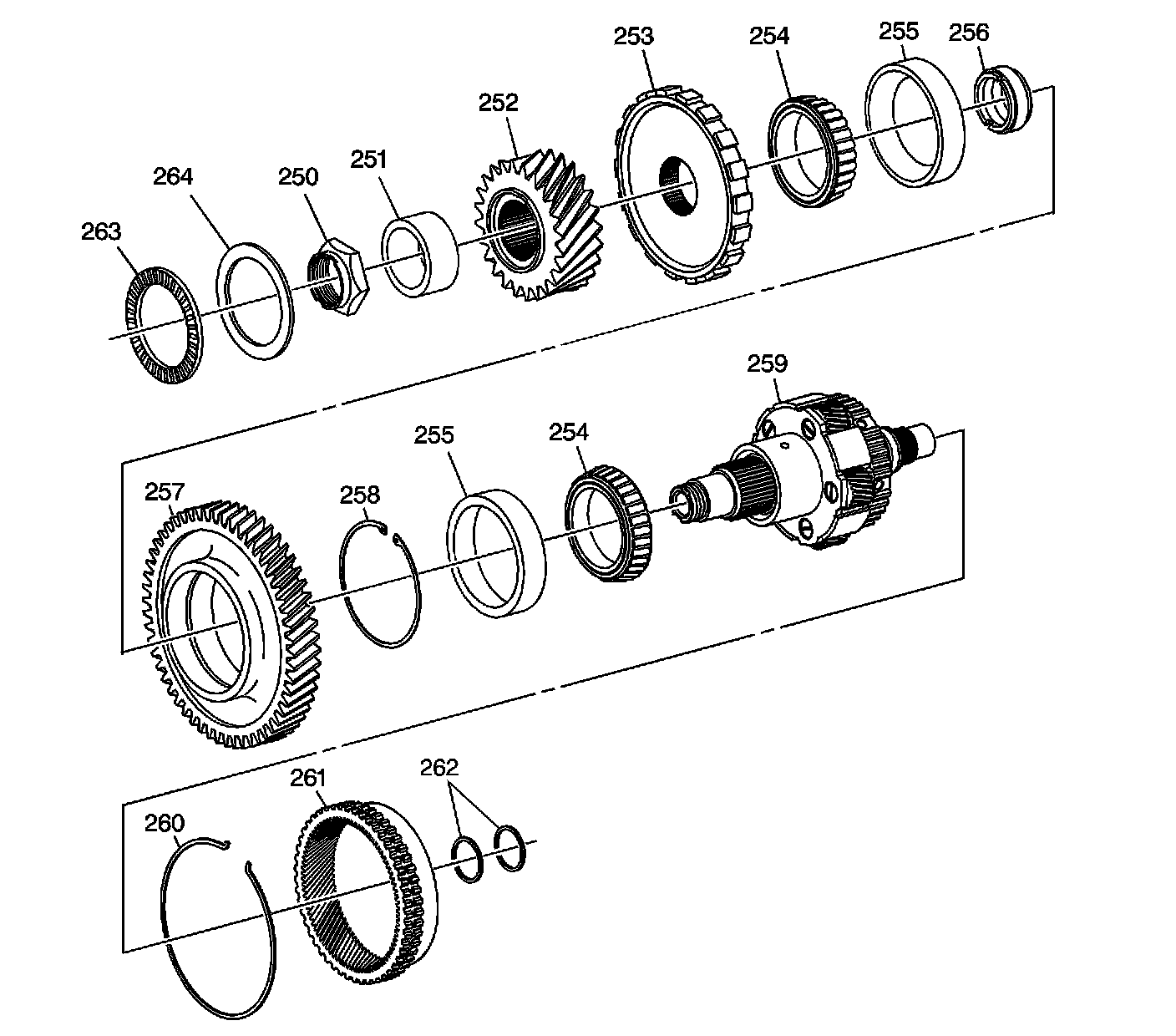

Front Differential Transfer Drive Gear Assembly:

250 - Front Differential Transfer Drive Gear Lock Nut
251 - Front Differential Transfer Drive Gear Bearing Assembly Inner Race
252 - Front Differential Transfer Drive Gear Drive Pinion
253 - Front Differential Transfer Drive Gear Parking Lock Gear
254 - Front Differential Transfer Drive Gear Bearing Assembly (2)
254 - Front Differential Transfer Drive Gear Bearing Assembly (2)
255 - Front Differential Transfer Drive Gear Bearing Race (2)
255 - Front Differential Transfer Drive Gear Bearing Race (2)
256 - Front Differential Transfer Drive Gear Counter Gear Bearing Spacer
257 - Front Differential Transfer Drive Gear Counter Driven Gear
258 - Front Differential Transfer Drive Gear Counter Driven Gear Retaining Ring
259 - Front Differential Transfer Drive Gear Carrier Assembly
260 - Front Differential Transfer Drive Gear Ring Gear Retaining Ring
261 - Front Differential Transfer Drive Gear Ring Gear
262 - 4-5 Clutch Housing Fluid Seal Ring (2)
263 - Front Differential Transfer Drive Gear Thrust Bearing Assembly
264 - Front Differential Transfer Drive Gear Thrust Bearing Washer - Selective
