Removal Procedure

  1. Remove the inner rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .

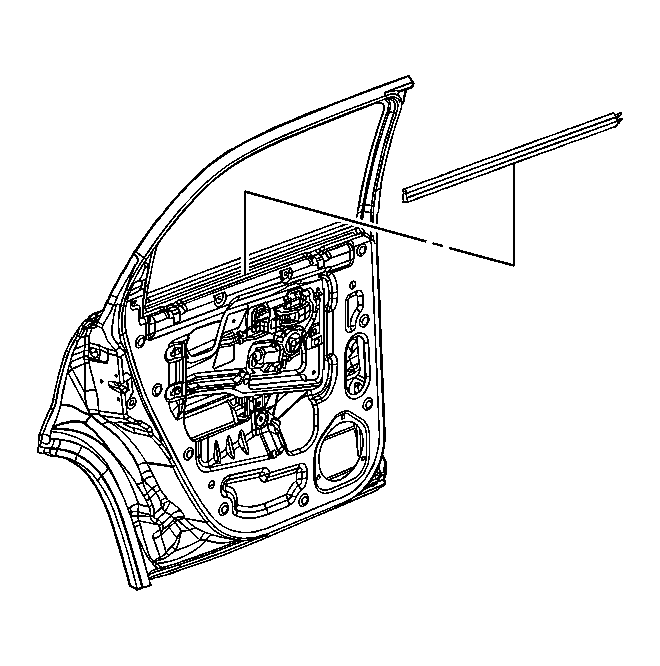

    2. Fig 1: View Of Inner Belt Seal (Rear Door)
    GM1378583Courtesy of GENERAL MOTORS CORP.
  2. Remove the inner belt seal. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner .
  3. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
  4. Remove the door frame appliques. Refer to Door Frame Applique Replacement - Front .

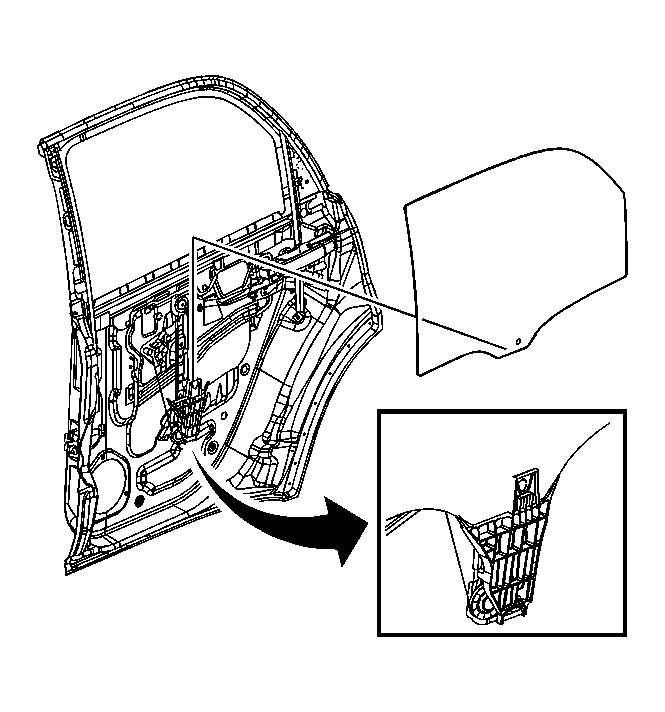

    5. Fig 2: Removing/Installing Rear Door Window
    GM1378593Courtesy of GENERAL MOTORS CORP.
  5. Lower window to access the window release tab.

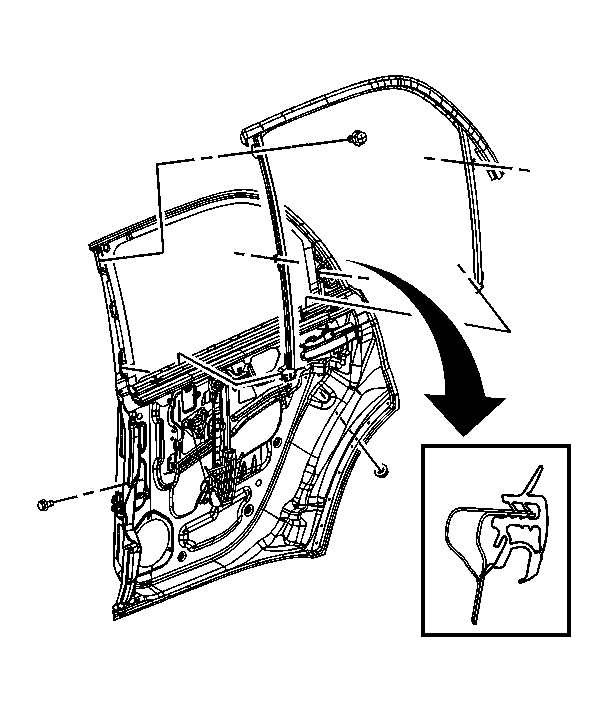

    6. Fig 3: View Of Rear Door Window Run Channel & Bolts
    GM1378603Courtesy of GENERAL MOTORS CORP.
  6. Remove the window run channel bolts and loosen the window run channel.
  7. Depress the window release tab with a flat-bladed tool.
  8. Pull the window out of the window regulator guide plate.
  9. Slide the window down and out of the primary window run channels.
  10. Remove the window through the door belt opening.
