Wiper/Washer Component Views

Fig 1: Steering Wheel and Column Components

GM1543927

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Inflatable Restraint Steering Wheel Module Coil
3	Windshield Wiper/Washer Switch
4	Steering Wheel
5	Steering Wheel Controls - Right (UK3/K34)
6	Horn Switchs
7	Steering Wheel Controls - Left (UK3/K34)
8	Electronic Power Steering Control Module (EPS)
9	Electronic Power Steering (EPS) Control Motor
10	Ignition Switch
11	Ignition Lock Cylinder Control Solenoid (MN5)

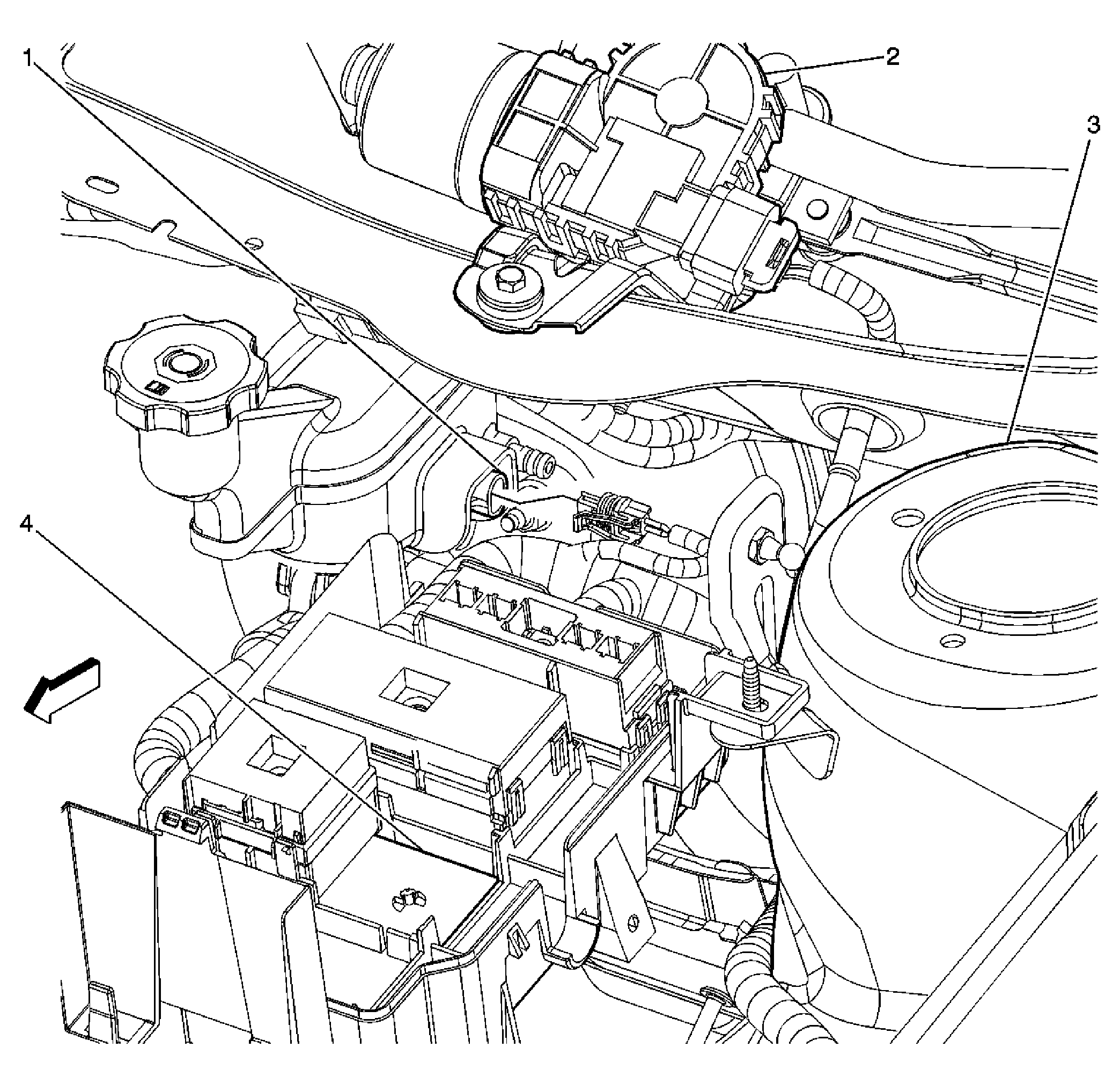

Fig 2: LR of the Engine Compartment

GM1546034

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch
2	Windshield Wiper Motor
3	LF Strut Tower
4	Fuse Block - Underhood Connectors

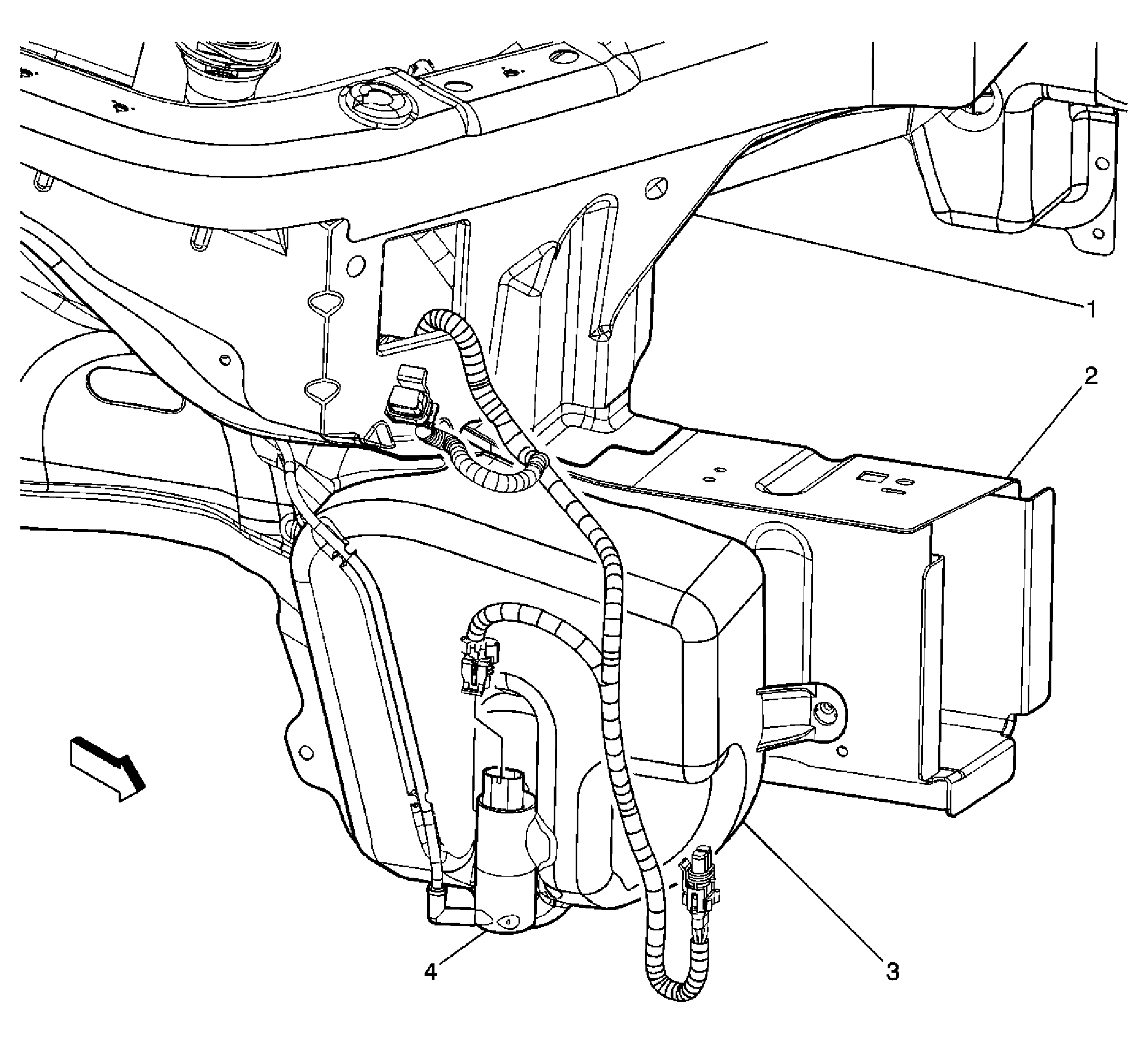

Fig 3: Windshield Washer Fluid Pump

GM1549132

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	RF Frame Support
2	RF Frame Rail
3	Windshield Washer Reservoir
4	Windshield Washer Fluid Pump
