Installation Procedure

  1. Connect the electrical connector to the wiper motor.

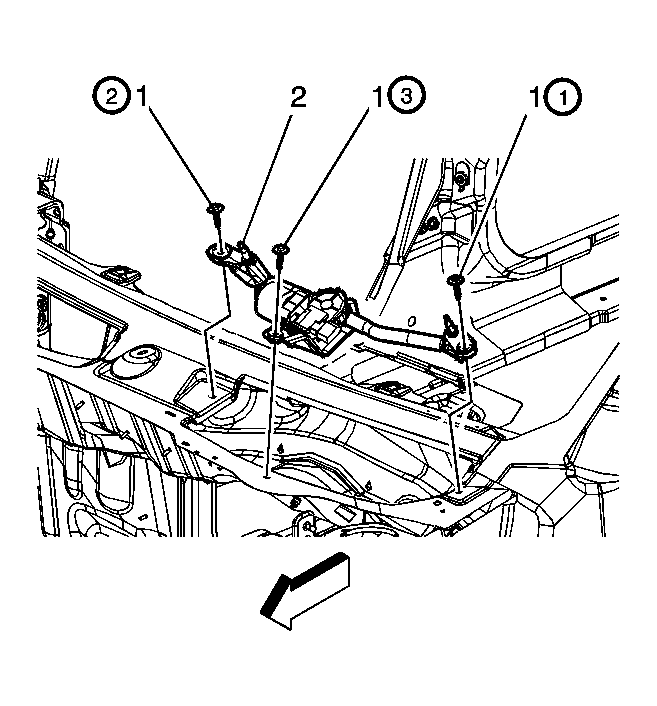

    2. Fig 1: View Of Wiper Module Assembly
    GM1655547Courtesy of GENERAL MOTORS CORP.
  2. Install the wiper module assembly into the plenum.
    3. NOTE: Refer to Fastener Notice .
  3. Install the fasteners (1) attaching the wiper module assembly (2) to the plenum.

    Tighten:  Tighten the fasteners in sequence as shown to 10 N.m (89 lb in)

  4. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
  5. Install the wiper arms. Refer to Wiper Arm Replacement .
