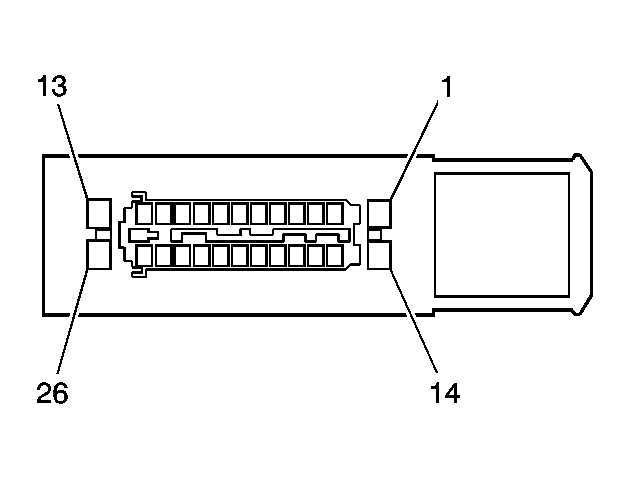

Electronic Brake Control Module Connector End View (EBCM) (JM4/JL9)
Electronic Brake Control Module (EBCM) (JM4/JL9) Connector & Terminal Parts Information
Connector Part Information
|
Terminal Part Information
|
Electronic Brake Control Module (EBCM) (JM4/JL9) Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | RD/WH | 740 | Battery Positive Voltage |
| 2 | OG | 885 | Left Rear Wheel Speed Sensor Low Reference |
| 3 | TN | 884 | Left Rear Wheel Speed Sensor Signal |
| 4 | L-BU | 20 | Stop Lamp Switch Signal |
| 5 | D-GN | 872 | Right Front Wheel Speed Sensor Signal |
| 6 | TN | 833 | Right Front Wheel Speed Sensor Low Reference |
| 7 | - | - | Not Used |
| 8 | YE | 873 | Left Front Wheel Speed Sensor Low Reference |
| 9 | L-BU | 830 | Left Front Wheel Speed Sensor Signal |
| 10 | - | - | Not Used |
| 11 | BN | 882 | Right Rear Wheel Speed Sensor Signal |
| 12 | WH | 883 | Right Rear Wheel Speed Sensor Low Reference |
| 13 | - | - | Not Used |
| 14 | RD/BK | 542 | Battery Positive Voltage |
| 15-19 | - | - | Not Used |
| 20 | PK | 1439 | Ignition 1 Voltage |
| 21 | TN | 2501 | High Speed GMLAN Serial Data Bus (-) |
| 22 | TN | 2501 | High Speed GMLAN Serial Data Bus (-) |
| 23 | TN/BK | 2500 | High Speed GMLAN Serial Data Bus (+) |
| 24 | TN/BK | 2500 | High Speed GMLAN Serial Data Bus (+) |
| 25 | - | - | Not Used |
| 26 | BK | 350 | Ground |
