Radio/Navigation System Schematics

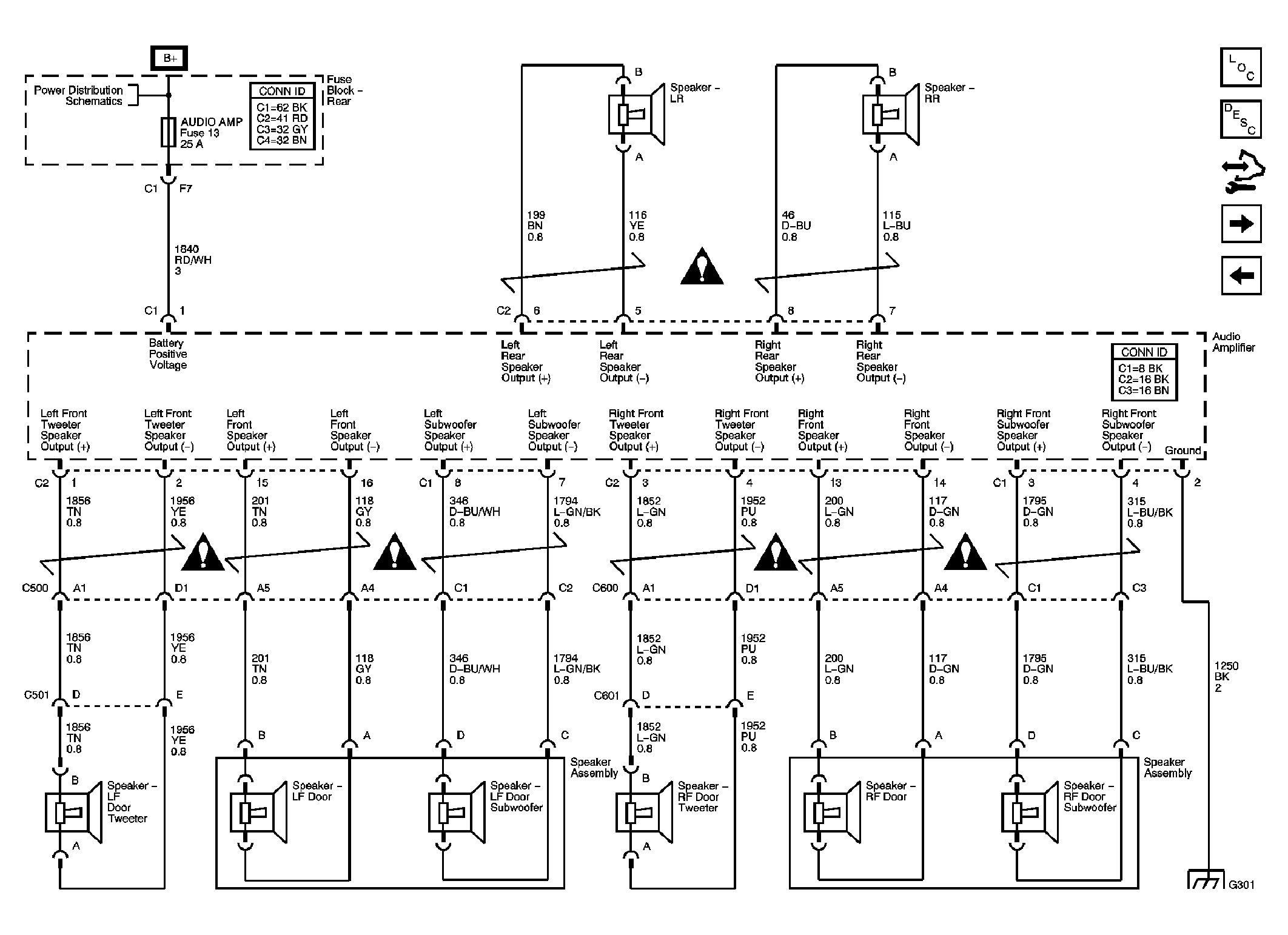

Fig 1: Radio Schematic (w/UZ6)

Courtesy of GENERAL MOTORS CORP.

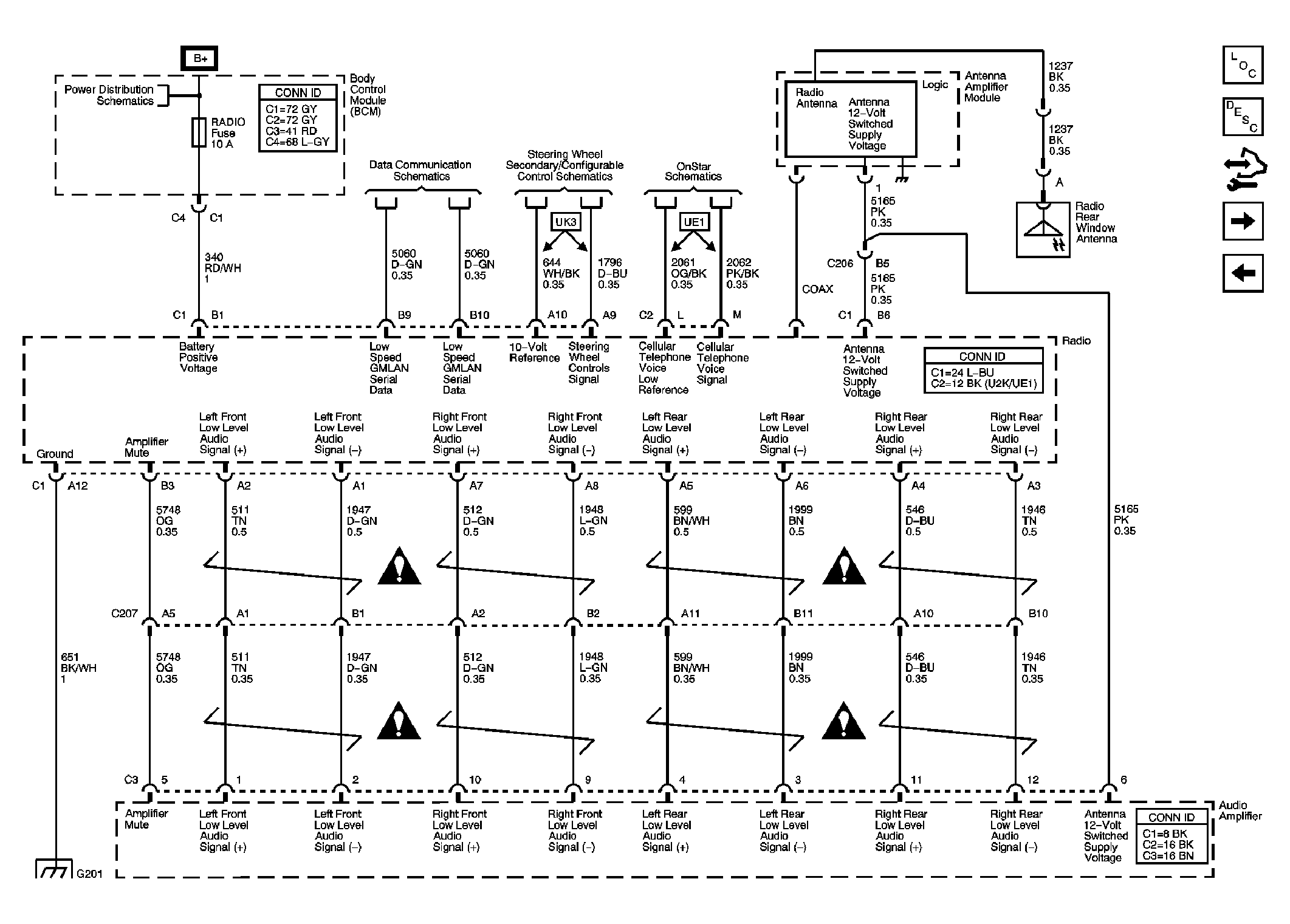

Fig 2: Radio Schematic (w/U85 Audio Signals)

Courtesy of GENERAL MOTORS CORP.

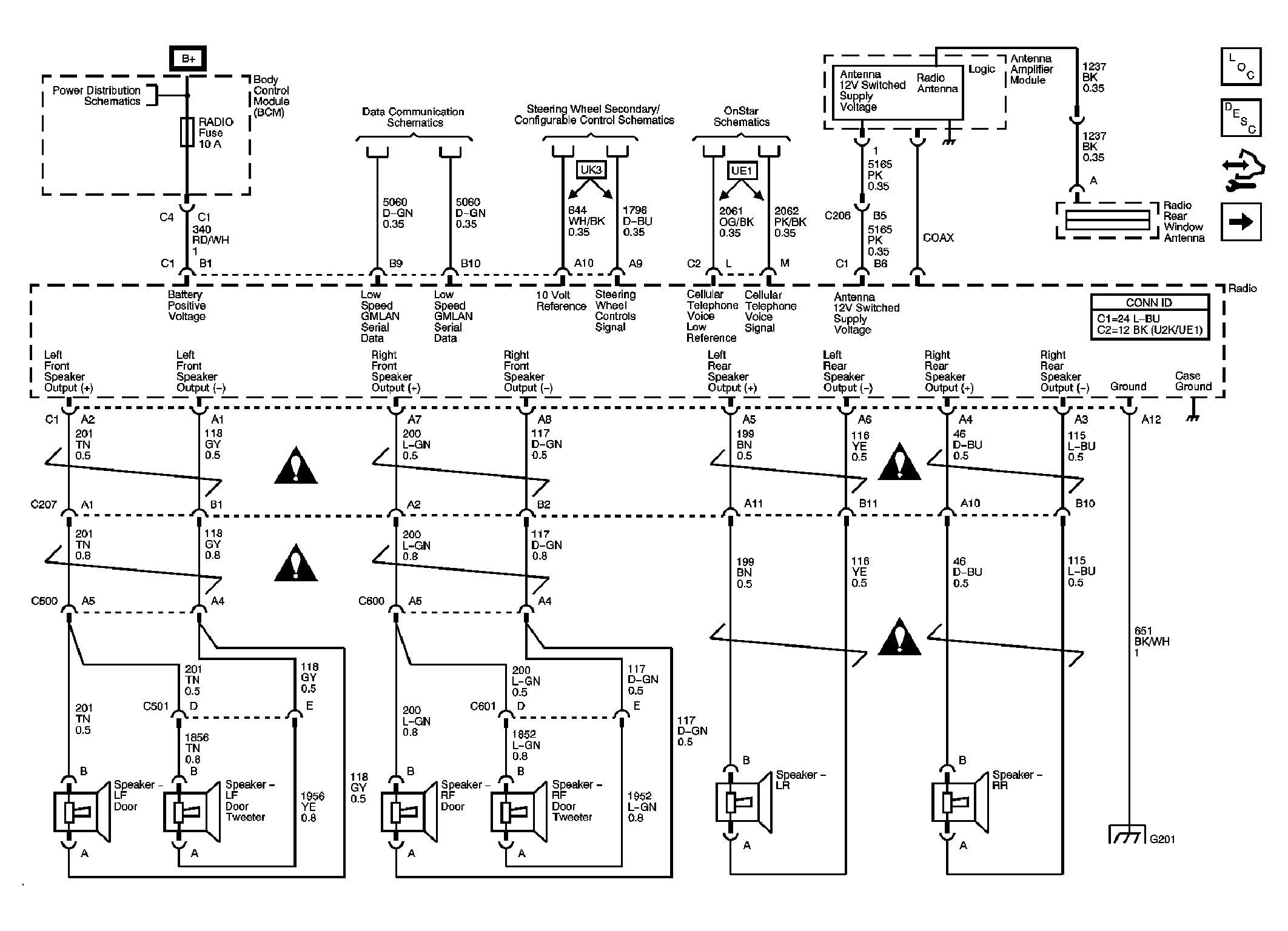

Fig 3: Radio Schematic (w/U85 - Coupe/Sedan)

Courtesy of GENERAL MOTORS CORP.

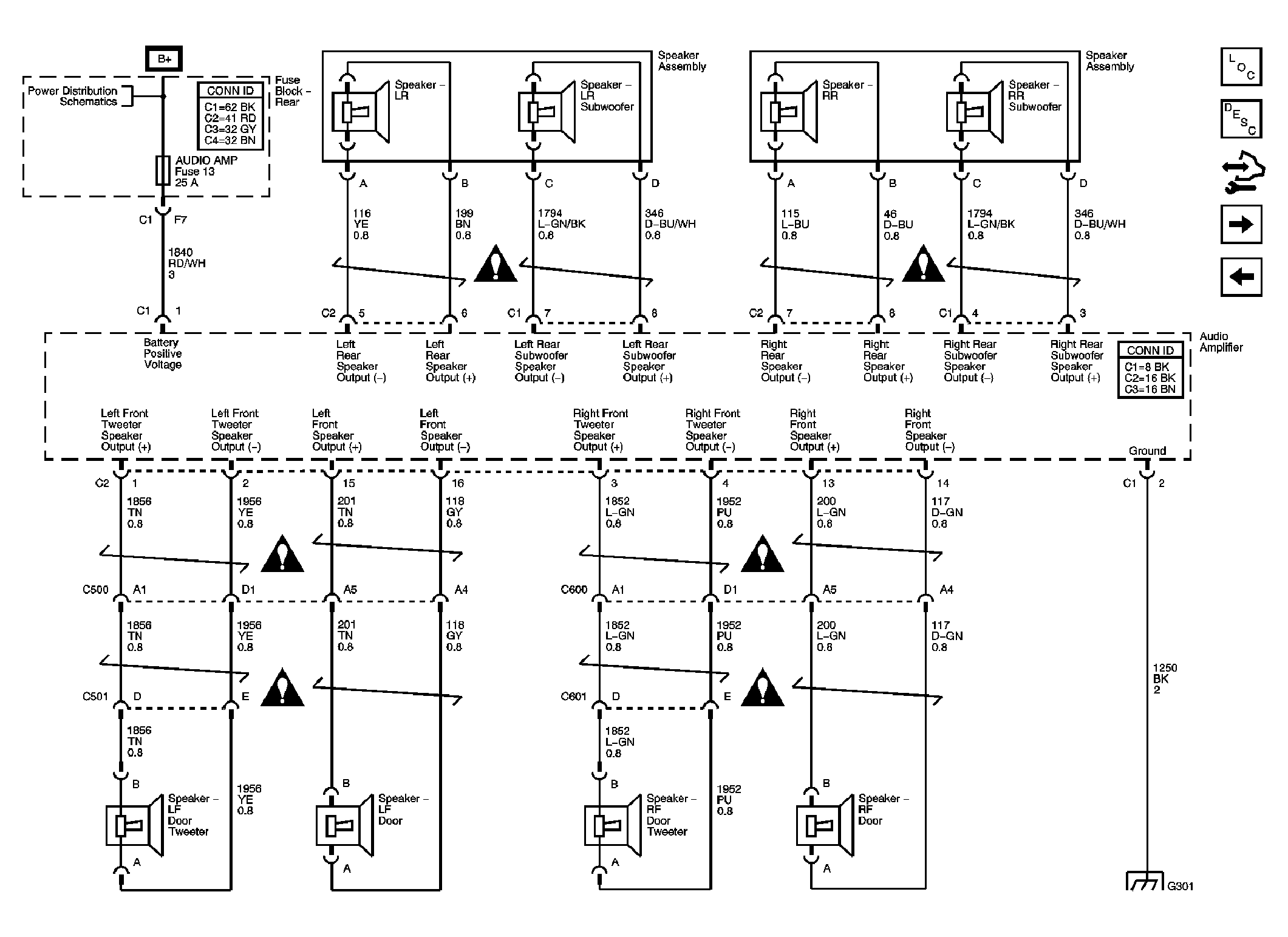

Fig 4: Radio Schematic (w/U85 - Convertible)

Courtesy of GENERAL MOTORS CORP.

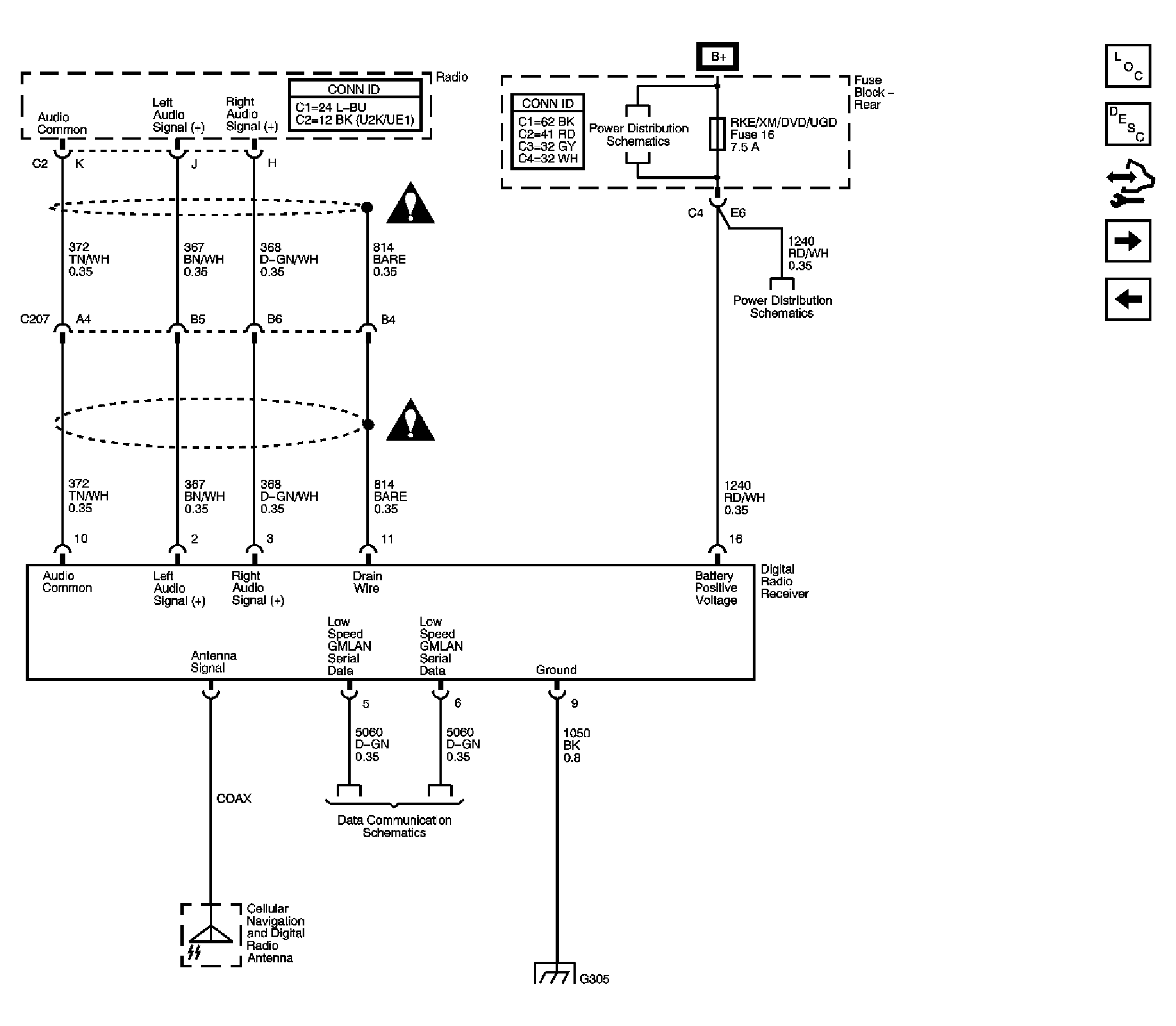

Fig 5: Digital Radio Receiver Schematic

Courtesy of GENERAL MOTORS CORP.

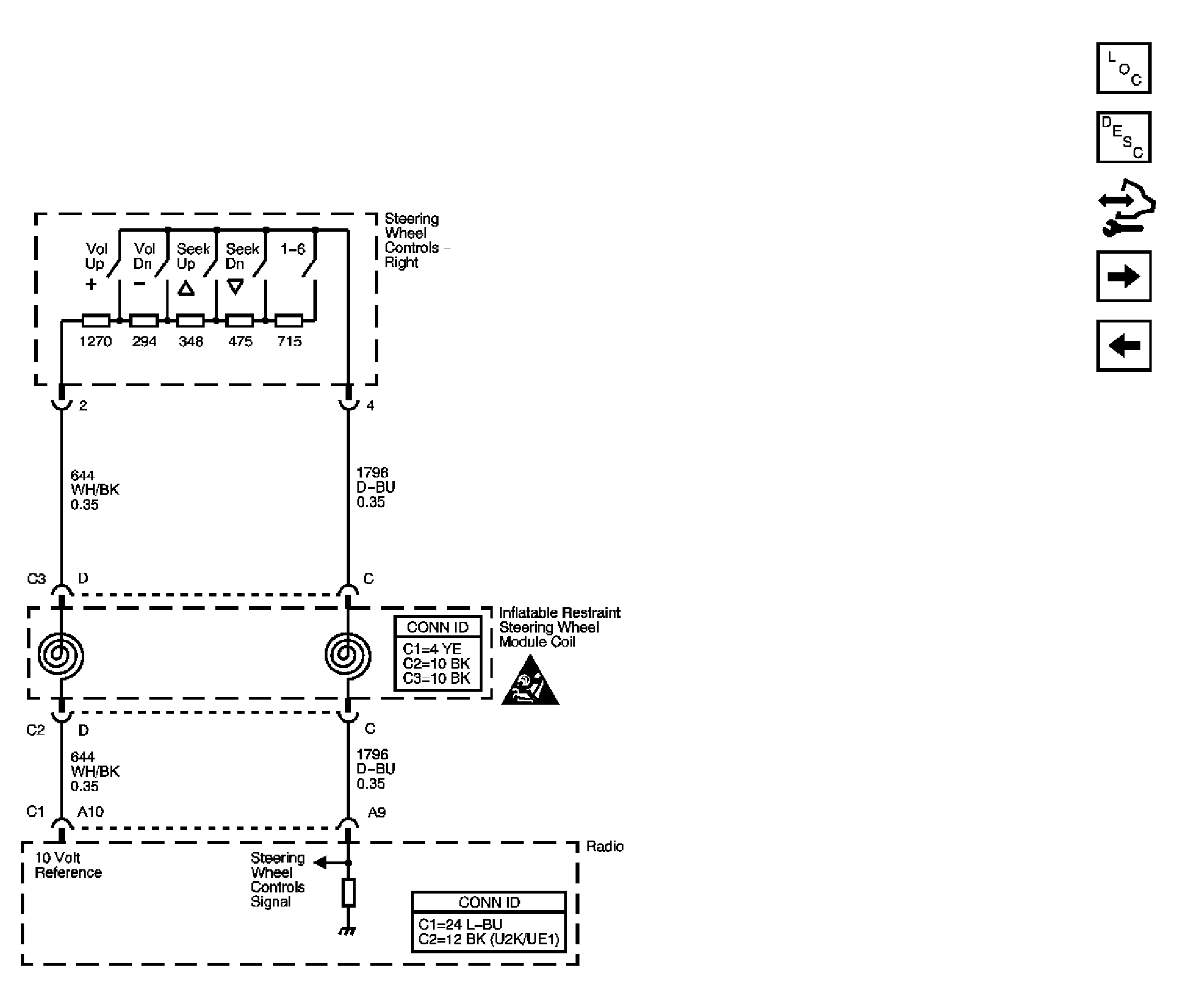

Fig 6: Redundant Radio Controls Schematic - 3 Spoke Steering Wheel

Courtesy of GENERAL MOTORS CORP.

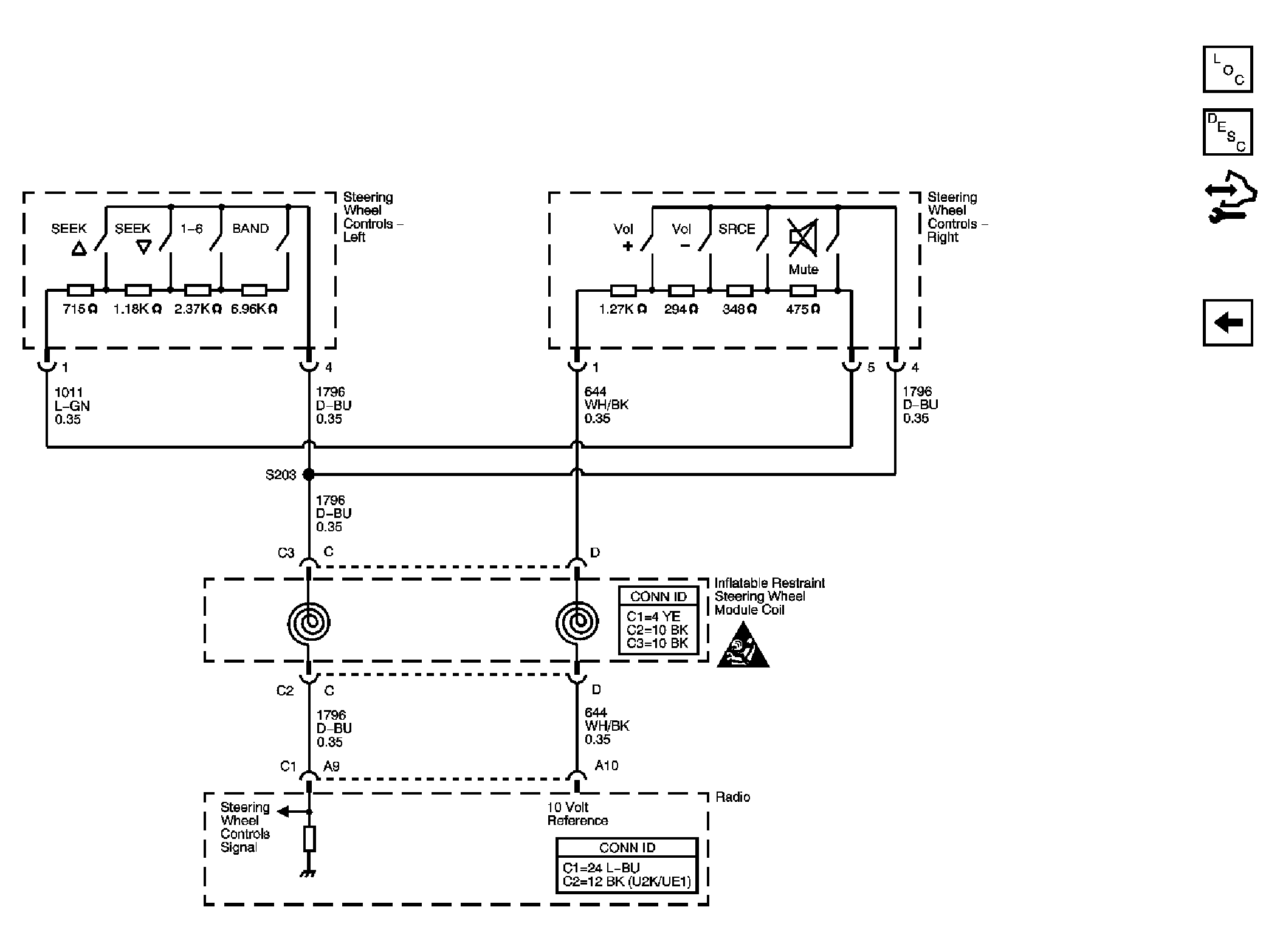

Fig 7: Redundant Radio Controls Schematic - 4 Spoke Steering Wheel

Courtesy of GENERAL MOTORS CORP.
