Installation Procedure

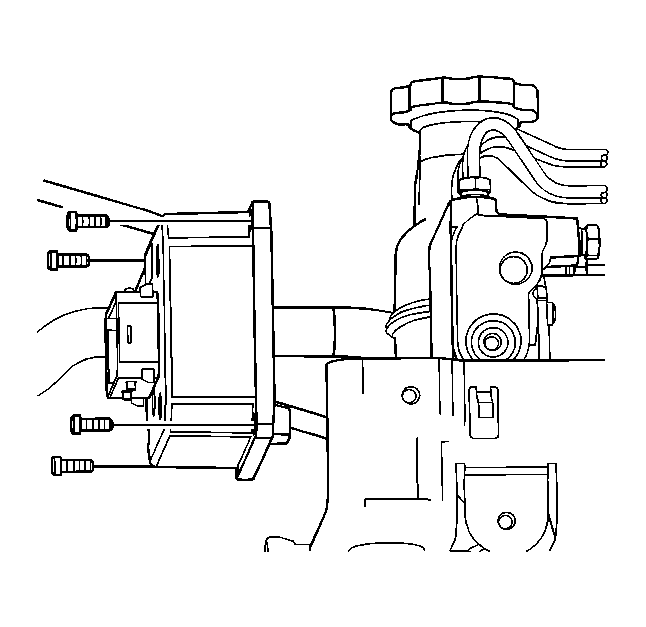

Fig 1: View Of 4 EBCM-To-BPMV Retaining Bolts

Courtesy of GENERAL MOTORS CORP.

Clean the sealing surface of the BPMV with denatured alcohol and a clean shop cloth.
Use care when aligning the EBCM to the BPMV electrical terminals. Install the EBCM to the BPMV.

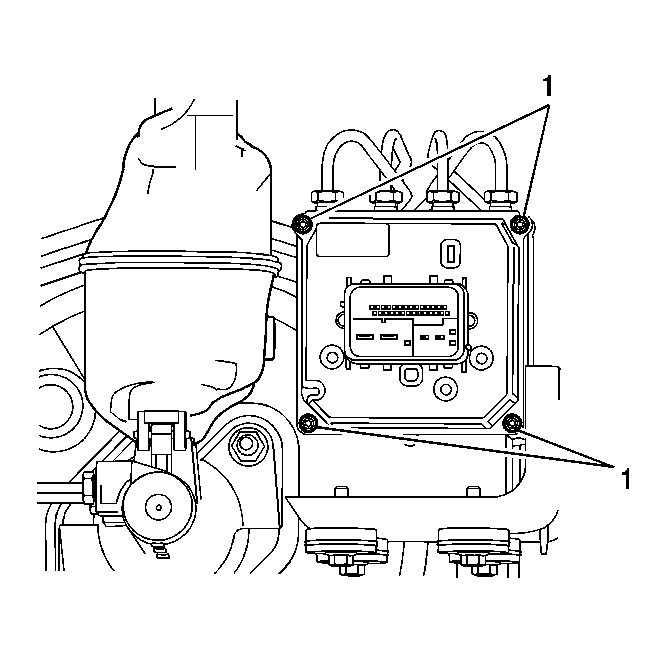

Fig 2: View Of 4 EBCM-to-BPMV Retaining Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the 4 EBCM-to-BPMV retaining bolts (1). Tighten the bolts in a criss-cross pattern.
Tighten: Tighten the bolts to 5 N.m (44 lb in).

IMPORTANT: Ensure that the electrical connector is correctly inserted into the EBCM prior to swinging the assist locking lever into position. Failure to make a proper connection may cause communication problems with the module.

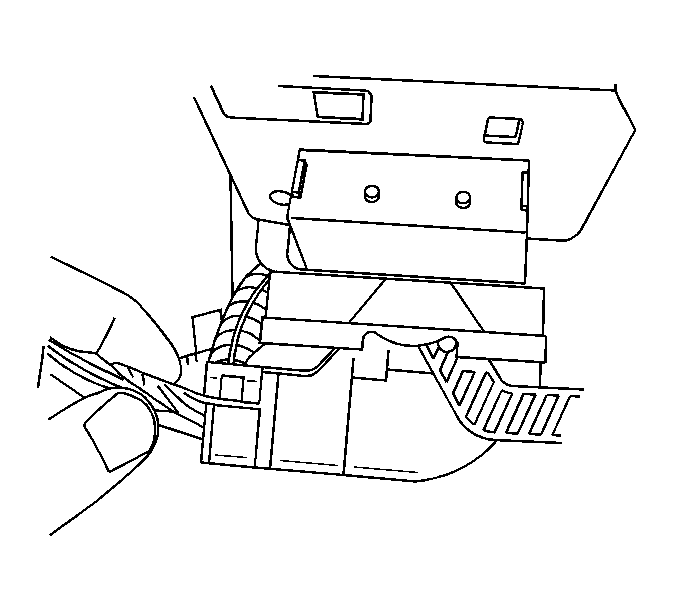

Fig 3: View Of Electrical Connector At EBCM

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector to the EBCM.
If installing a new EBCM, it is necessary to program the EBCM. Refer to Electronic Brake Control Module Programming and Setup .

IMPORTANT: Do NOT start the engine, but only turn the ignition switch to the ON position.

Perform the Electronic Brake Control Module Programming and Setup .
Refer to Control Module References for programming and setup information.
