Fuel Fill Pipe

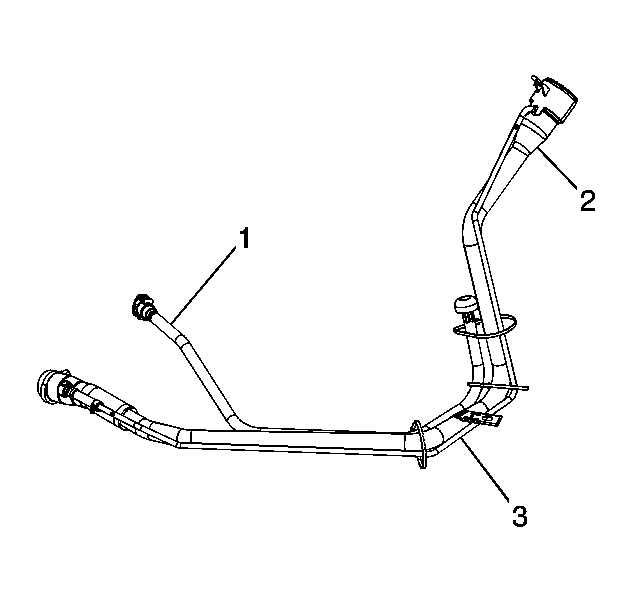

Fig 1: View Of Fuel Fill Pipe
GM1558074Courtesy of GENERAL MOTORS CORP.

The fuel fill pipe (2) has a built-in restrictor in order to prevent refueling with leaded fuel.
