Seat Temperature Control Module: Service and Repair



FRONT SEAT HEATER CONTROL MODULE REPLACEMENT

REMOVAL PROCEDURE

1. CAUTION:Refer to SIR Caution.

Remove the front seat.

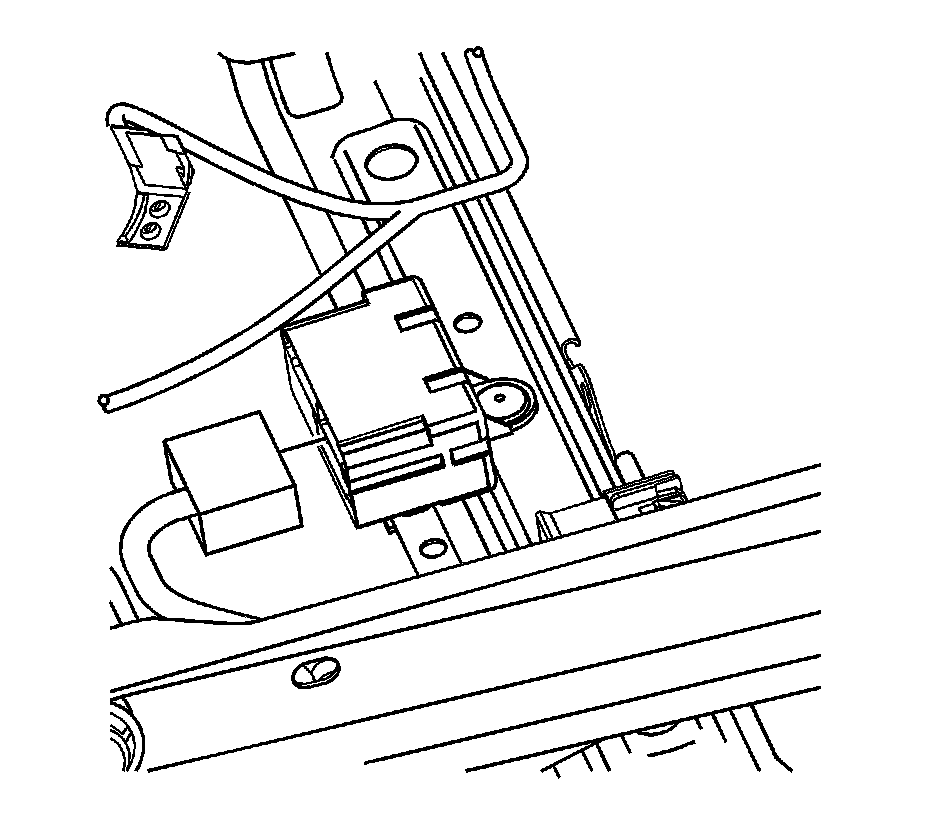

2. Disconnect the electrical connection from the heated seat control module.

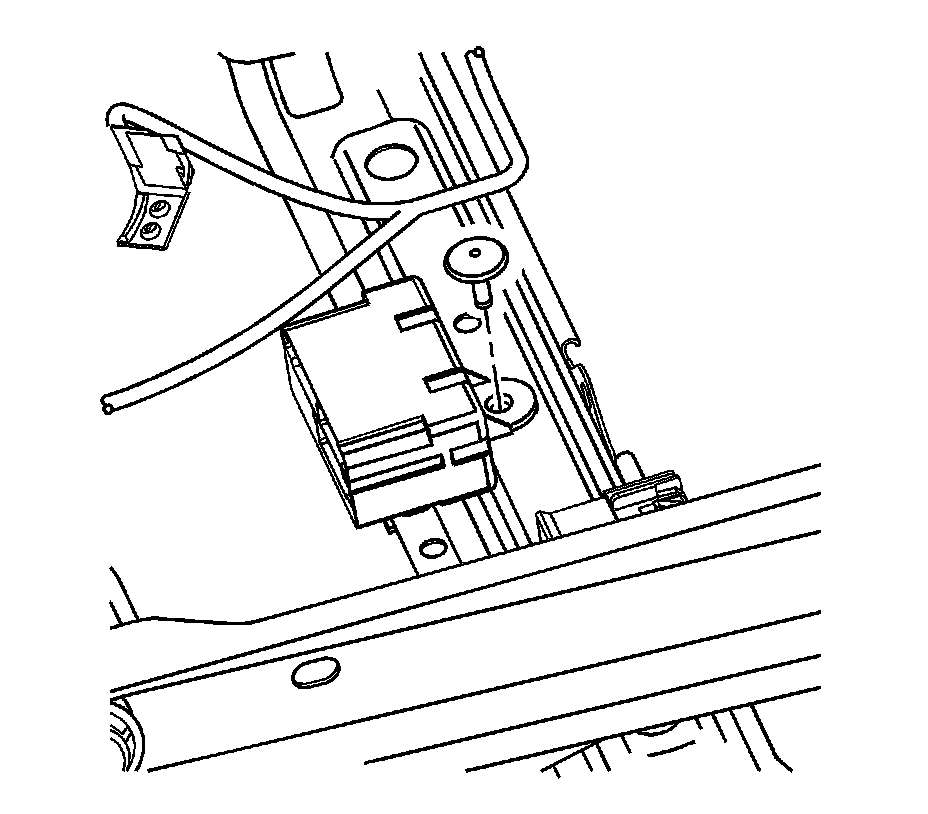

3. Remove the fastener from the heated seat control module.

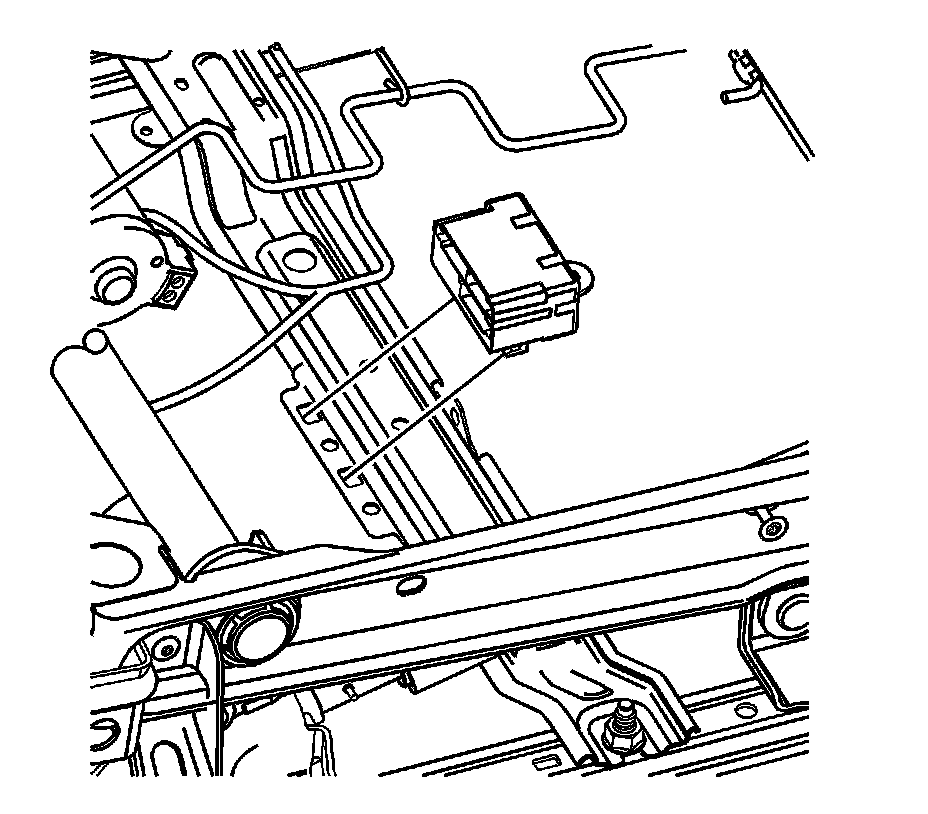

4. Remove the heated seat control module.

INSTALLATION PROCEDURE




1. Install the heated seat control module.




2. Install the fastener to the heated seat control module.




3. Connect the electrical connection to the heated seat control module.
4. Install the front seat.
5. Verify that the heated seat works correctly.
6. Refer to Control Module References for programming and setup information. Programming and Relearning
