Ignition Lock: Service and Repair



IGNITION SWITCH LOCK CYLINDER REPLACEMENT

REMOVAL PROCEDURE
1. Remove the knee bolster.
2. Turn ignition switch to the run position.

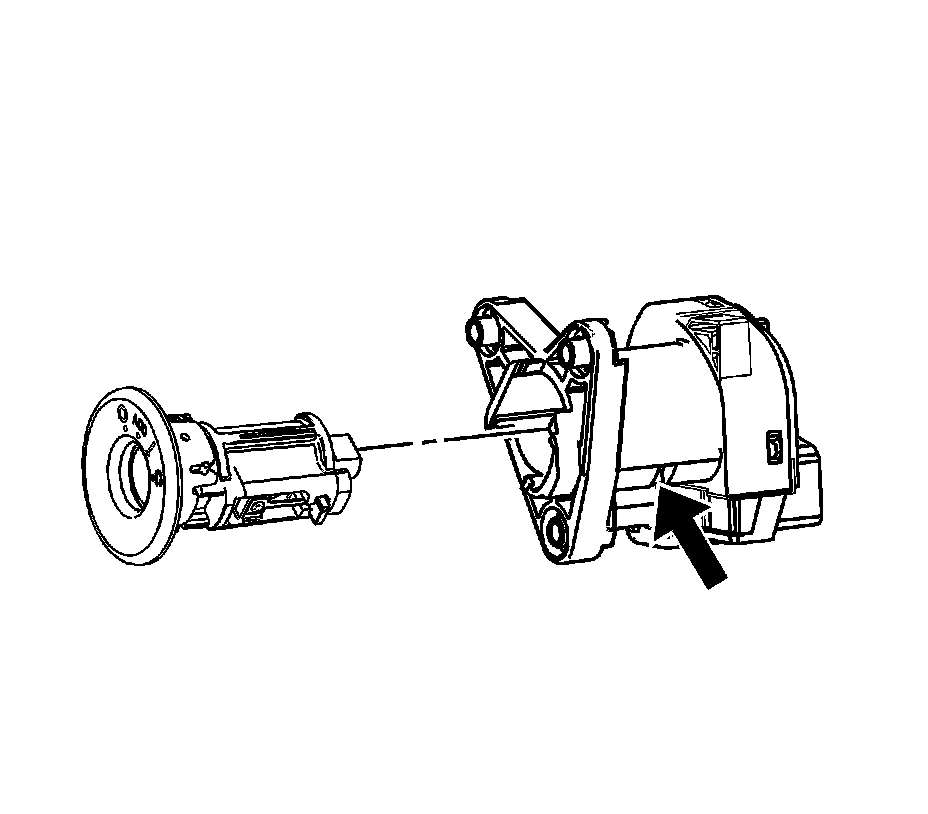

3. Push the ignition lock cylinder tab.




4. Remove the ignition lock cylinder.

INSTALLATION PROCEDURE

1. IMPORTANT: If you are installing a new lock cylinder, refer to Key and Lock Cylinder Coding.




Install the ignition lock cylinder.
2. Install the knee bolster.
