Washer Solvent Container Level Sensor Replacement

WASHER SOLVENT CONTAINER LEVEL SENSOR REPLACEMENT

REMOVAL PROCEDURE
1. Drain the washer solvent from the washer solvent container.
2. Remove the left front fender liner.




3. Disconnect the washer solvent container level sensor electrical connector.

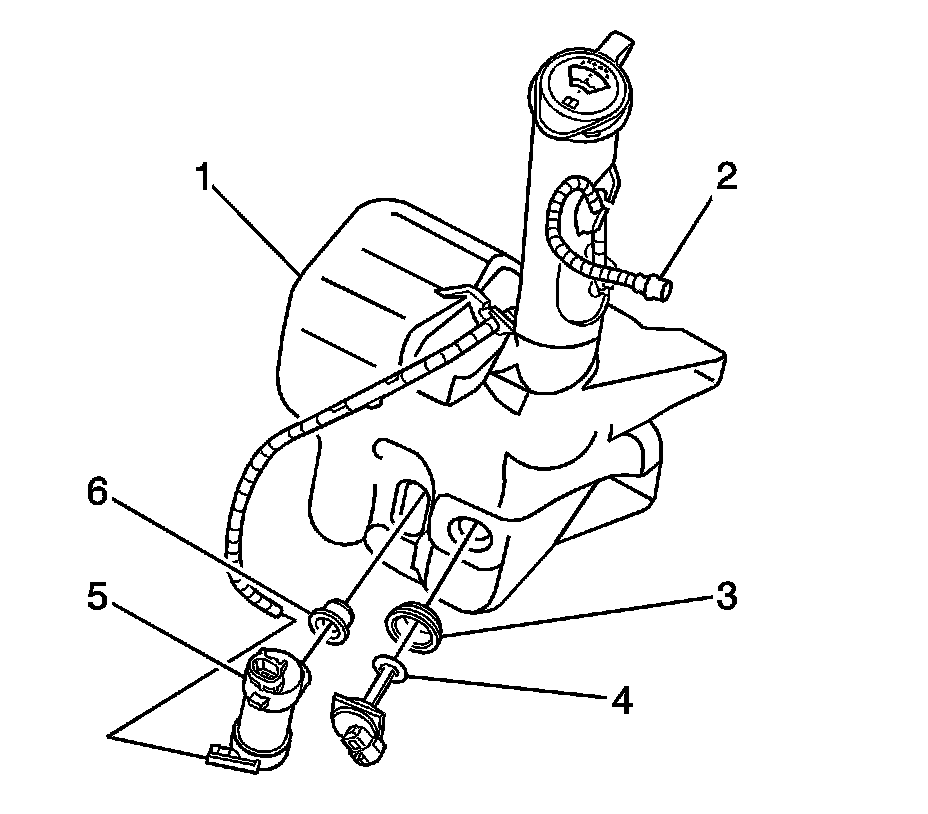

4. Using a small flat-bladed tool, remove the washer solvent level sensor (4) from the washer solvent container (1).
5. Using a small flat-bladed tool, remove the level sensor seal (3) from the washer solvent container (1).

INSTALLATION PROCEDURE




1. Position the level sensor seal (3) to the washer solvent container (1), pressing in until fully seated.
2. Position the washer solvent level sensor (4) to the washer solvent container (1), pressing in until fully seated.
3. Connect the washer solvent level sensor electrical connector.
4. Install the left front fender liner.
5. Fill the washer solvent container with washer solvent.
