Wipers/Washer Switch Replacement



WIPERS/WASHER SWITCH REPLACEMENT

REMOVAL PROCEDURE
1. Remove the steering column trim covers.

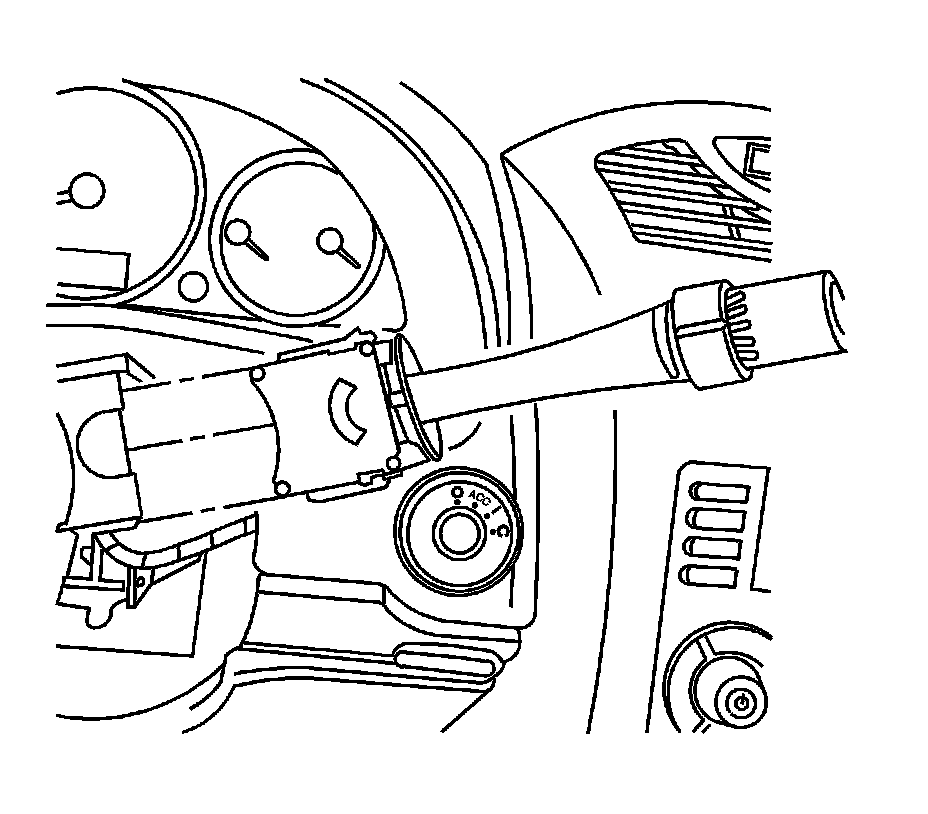

2. Release the windshield wiper switch from the stalk switch mount.
3. Disconnect the electrical connector from the windshield wiper switch.
4. Remove the windshield wiper switch.

INSTALLATION PROCEDURE




1. Install the windshield wiper switch on to the stalk switch mount.
2. Connect the electrical connectors.
3. Install the steering column trim covers.
