System Specifications

Crankshaft Balancer Bolt
First Pass 125 N.m 92 lb ft
Final Pass 130 degrees

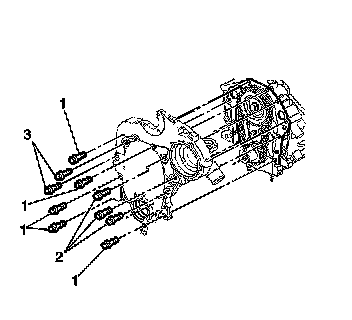

Engine Front Cover Bolt 25 N.m 18 lb ft
