Knock Sensor Replacement - Bank 2

Knock Sensor Replacement - Bank 2

Removal Procedure




1. Raise and support the vehicle. Refer to Vehicle Lifting.

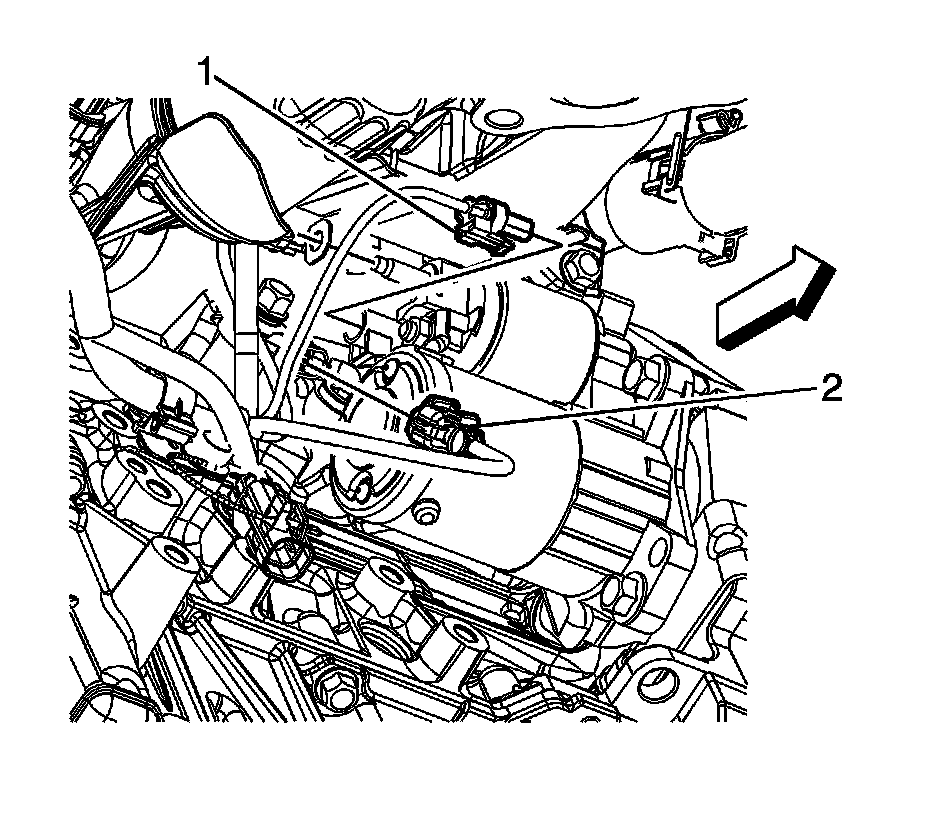

2. Disconnect the engine wiring harness electrical connector (2) from the bank 2 knock sensor.




3. Loosen the knock sensor bolt and remove the knock sensor.

Installation Procedure





Notice: Refer to Fastener Notice.

1. Position the knock sensor and tighten the knock sensor bolt.

Tighten the bolt to 23 N.m (17 lb ft).




2. Connect the engine wiring harness electrical connector (2) to the bank 2 knock sensor.
3. Lower the vehicle.
