Remote Function Component Views

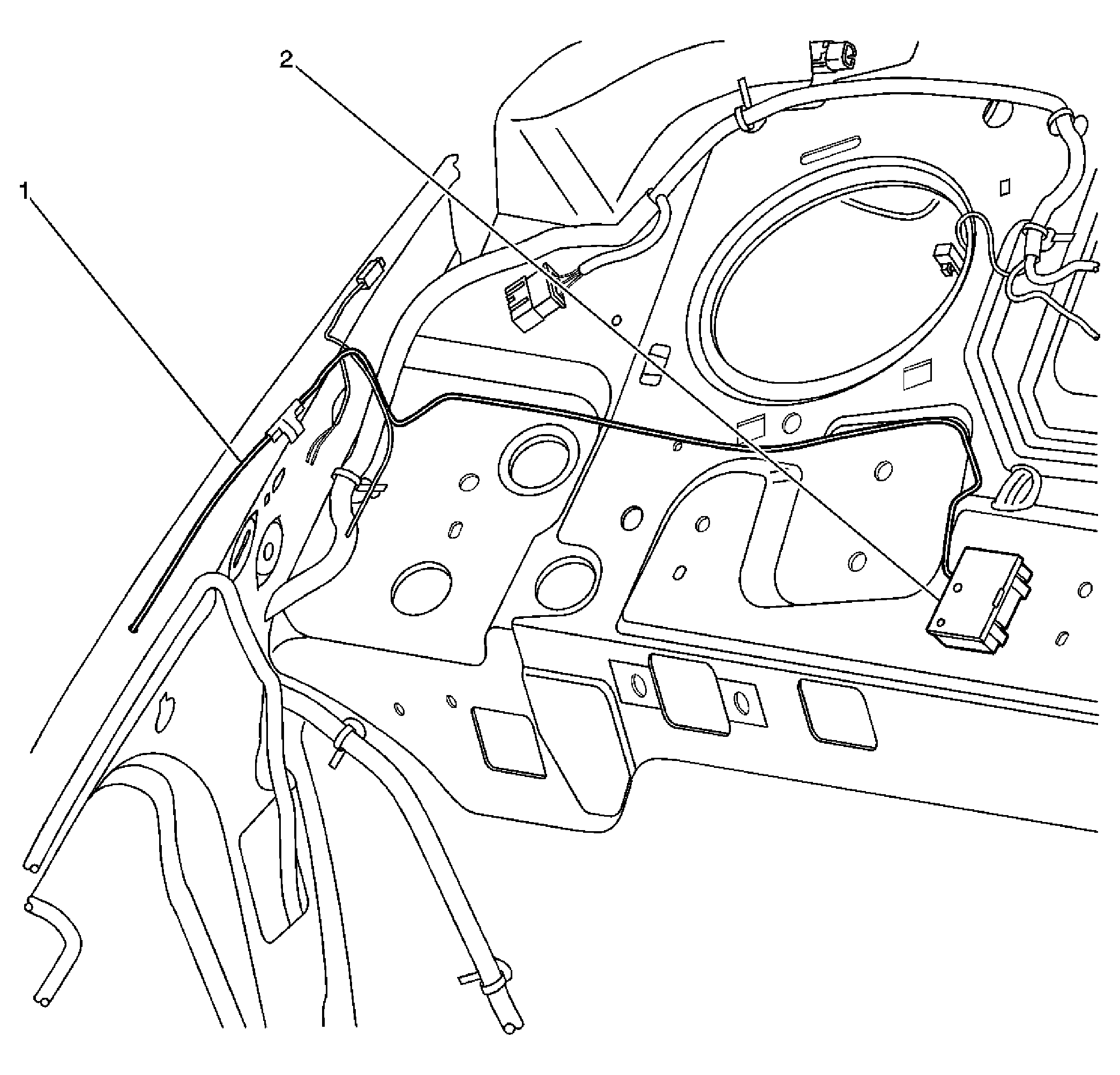

Fig 1: Right Top of Package Shelf
GM1549686Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window Antenna Grid
2 Remote control Door Lock Receiver (RCDLR)
