Control Module, A/T
Automatic Transmission Related Connector End Views

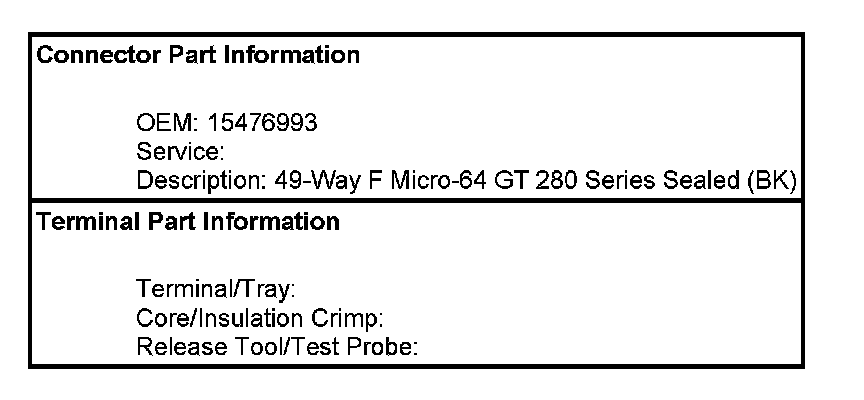

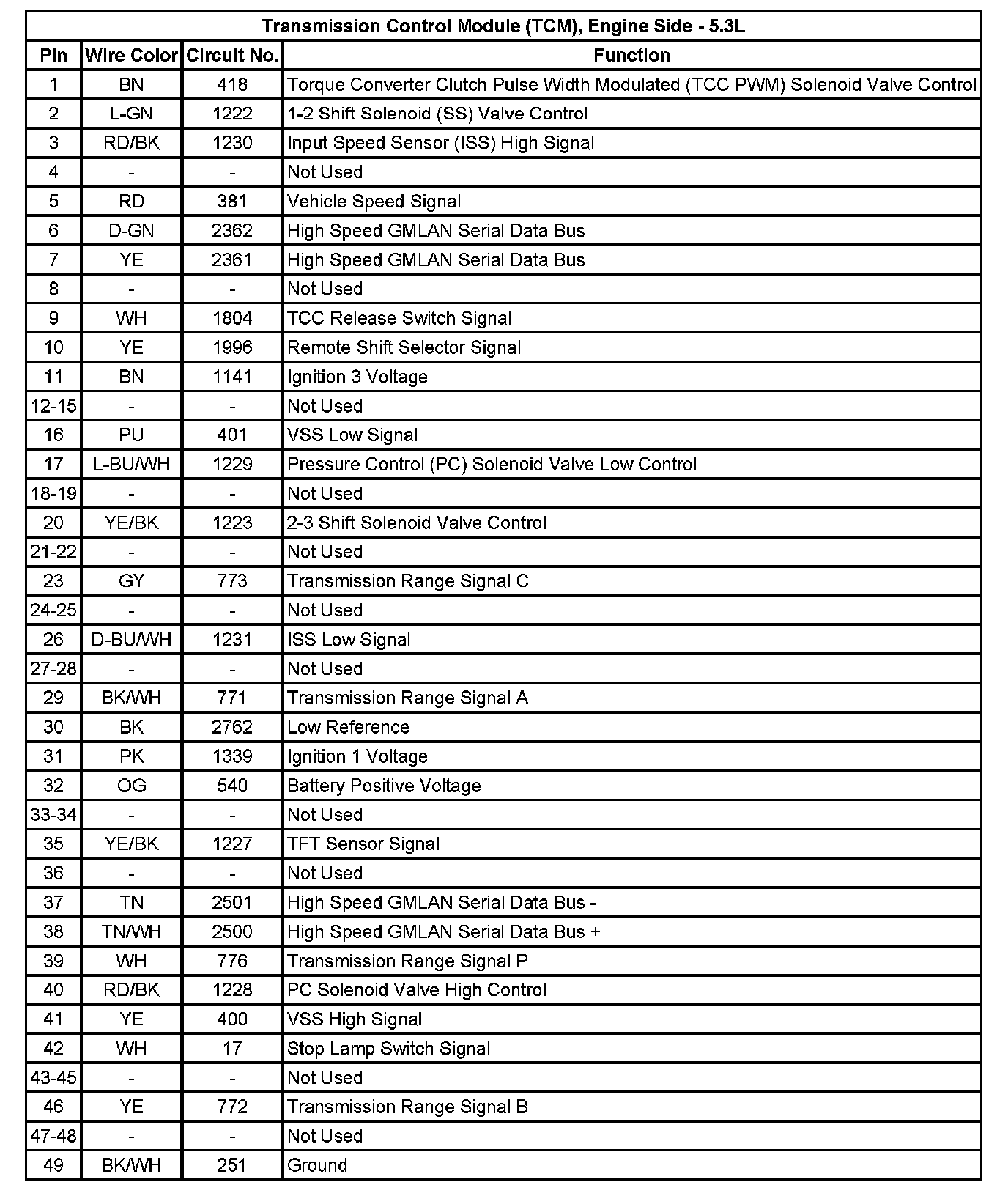

Transmission Control Module, Engine Side - 5.3L:
