Combination Switch

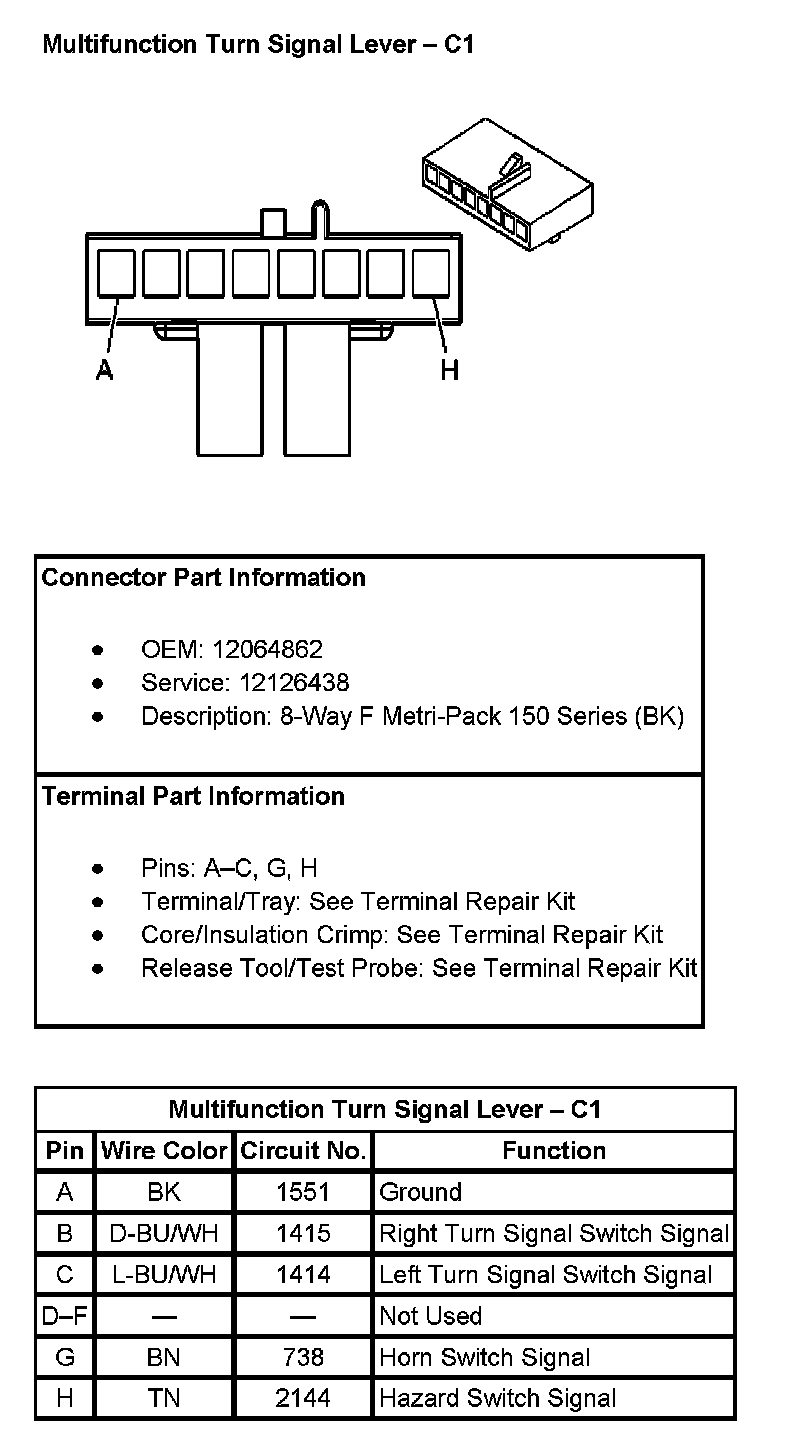

Multifunction Turn Signal Lever - C1:

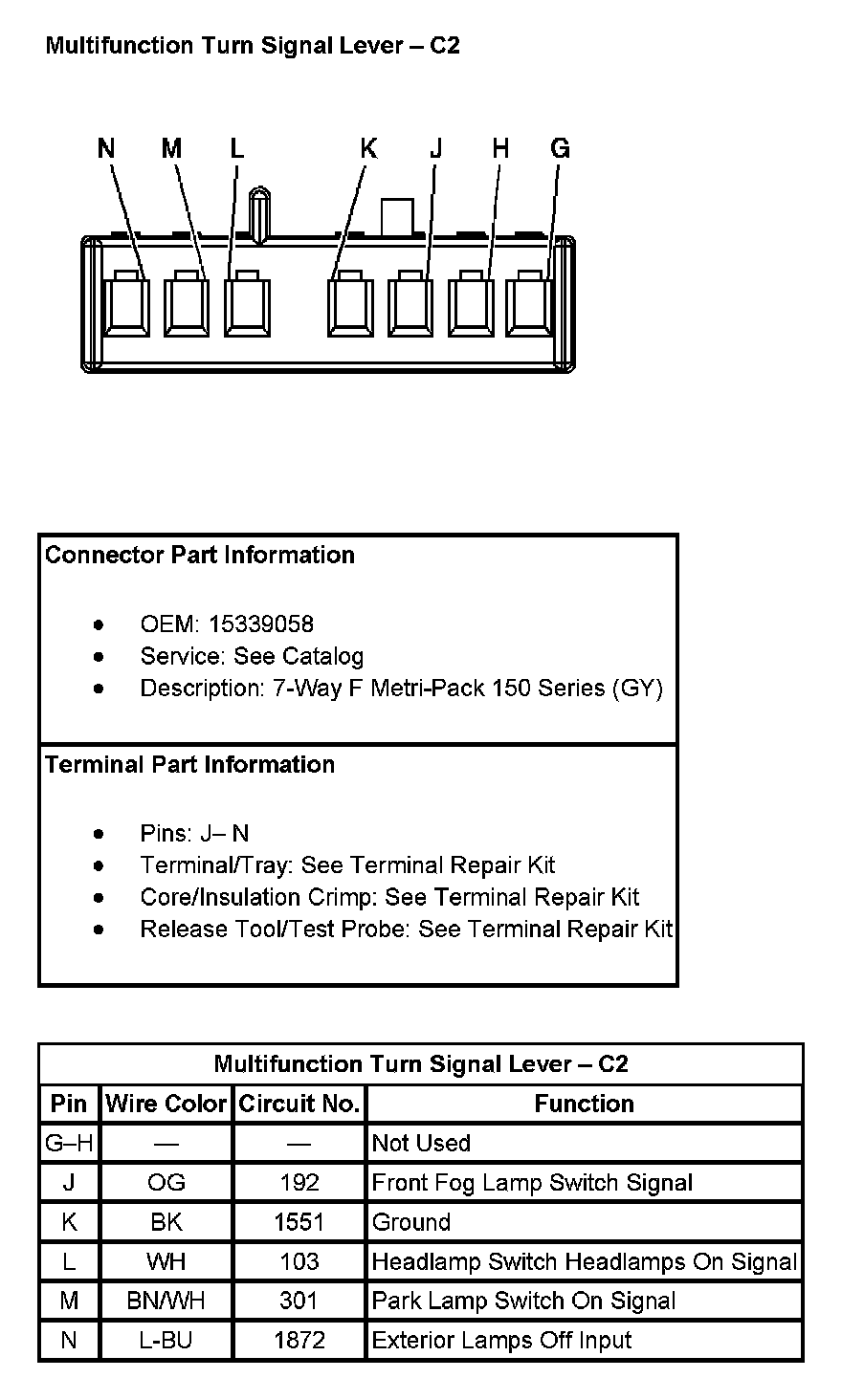

Multifunction Turn Signal Lever - C2:

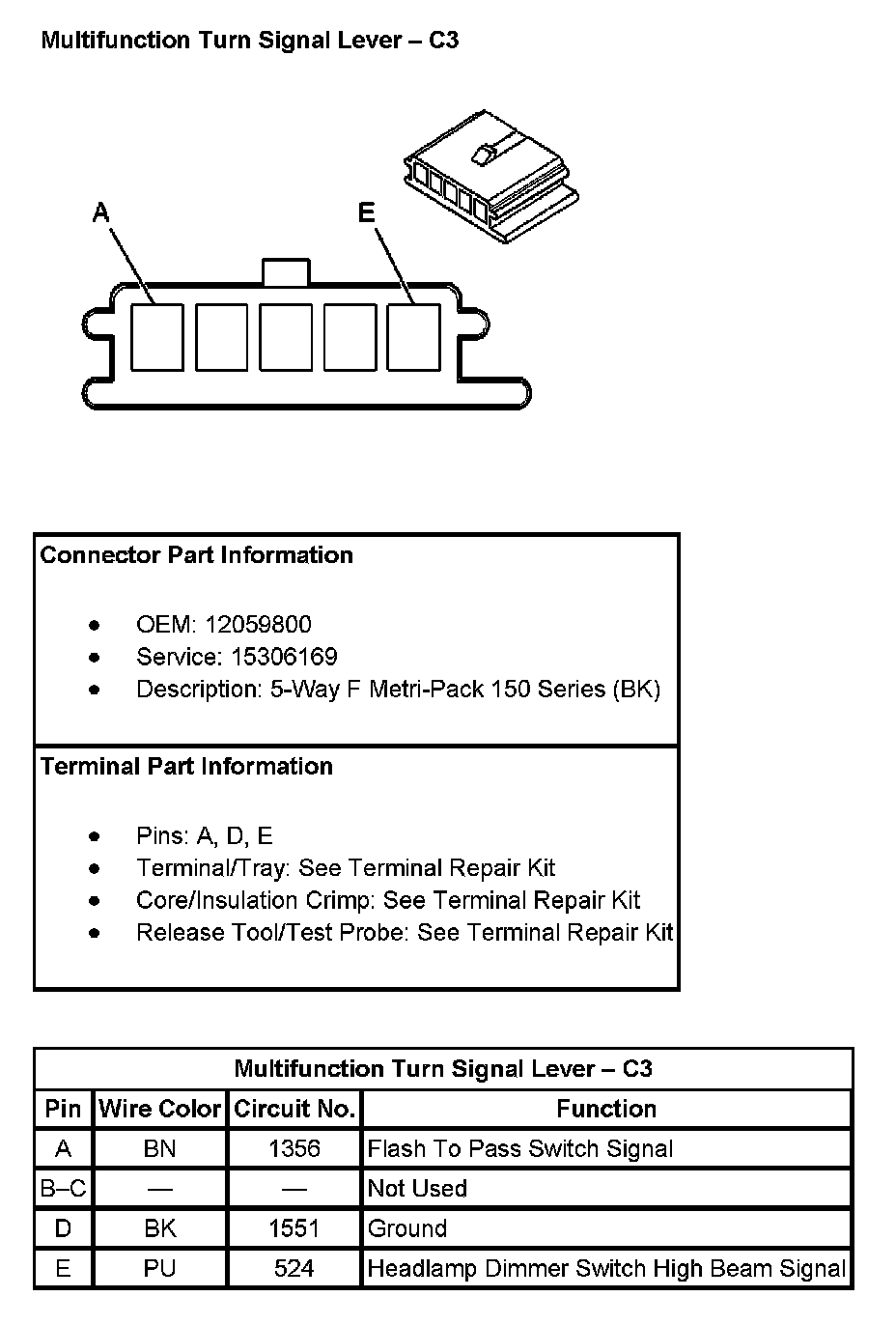

Multifunction Turn Signal Lever - C3:

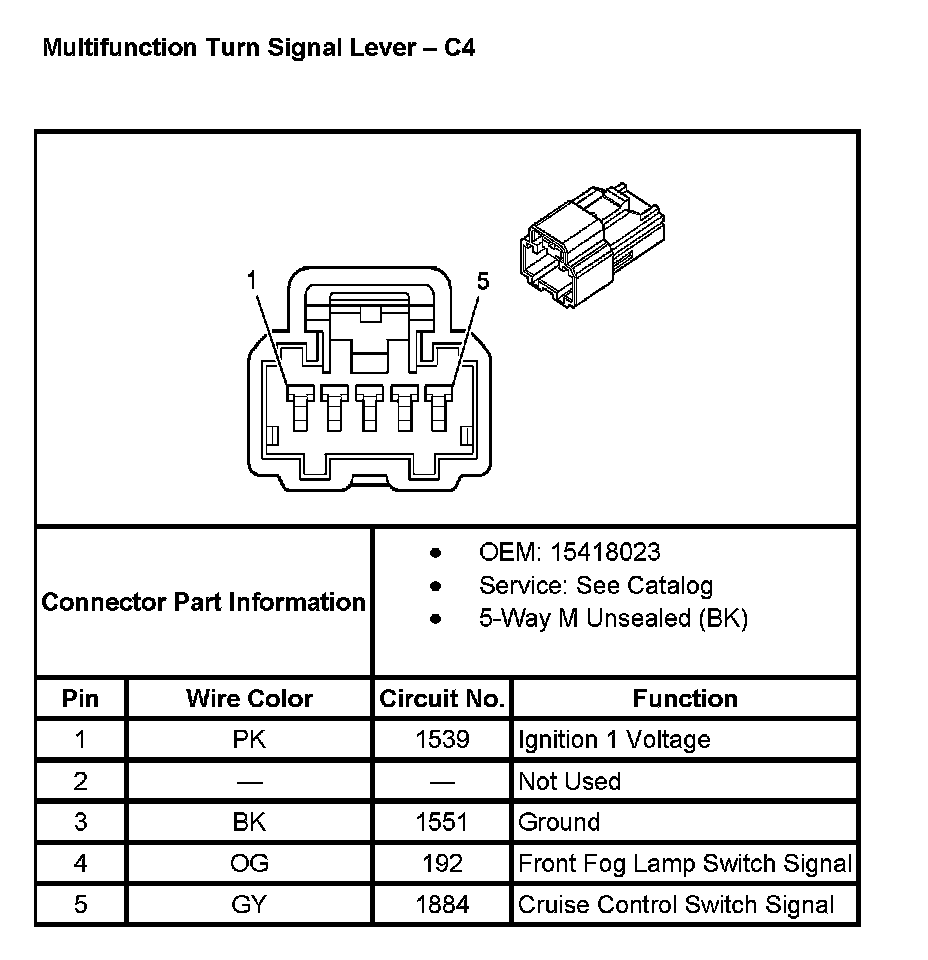

Multifunction Turn Signal Lever - C4:
