Map Light

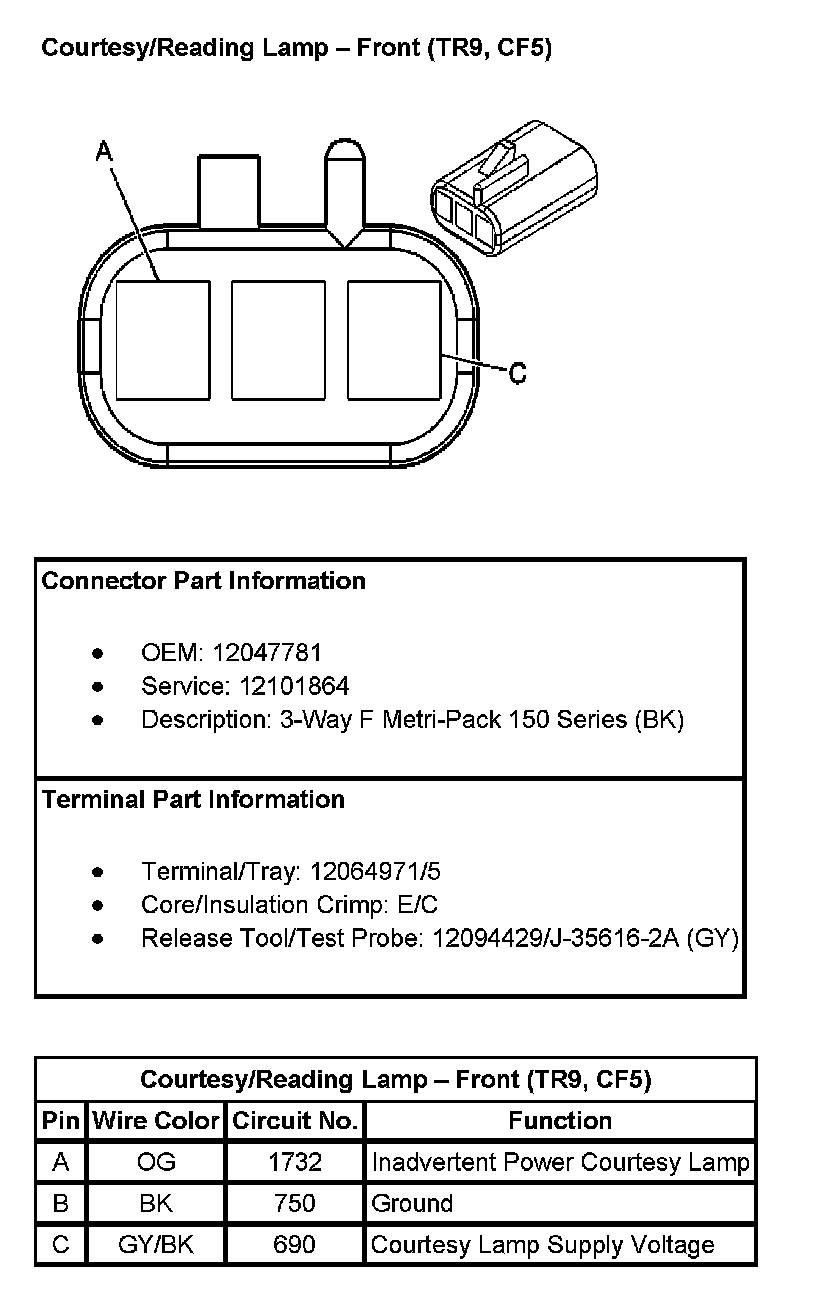

Courtesy/Reading Lamp - Front (With RPO Codes TR9, CF5):

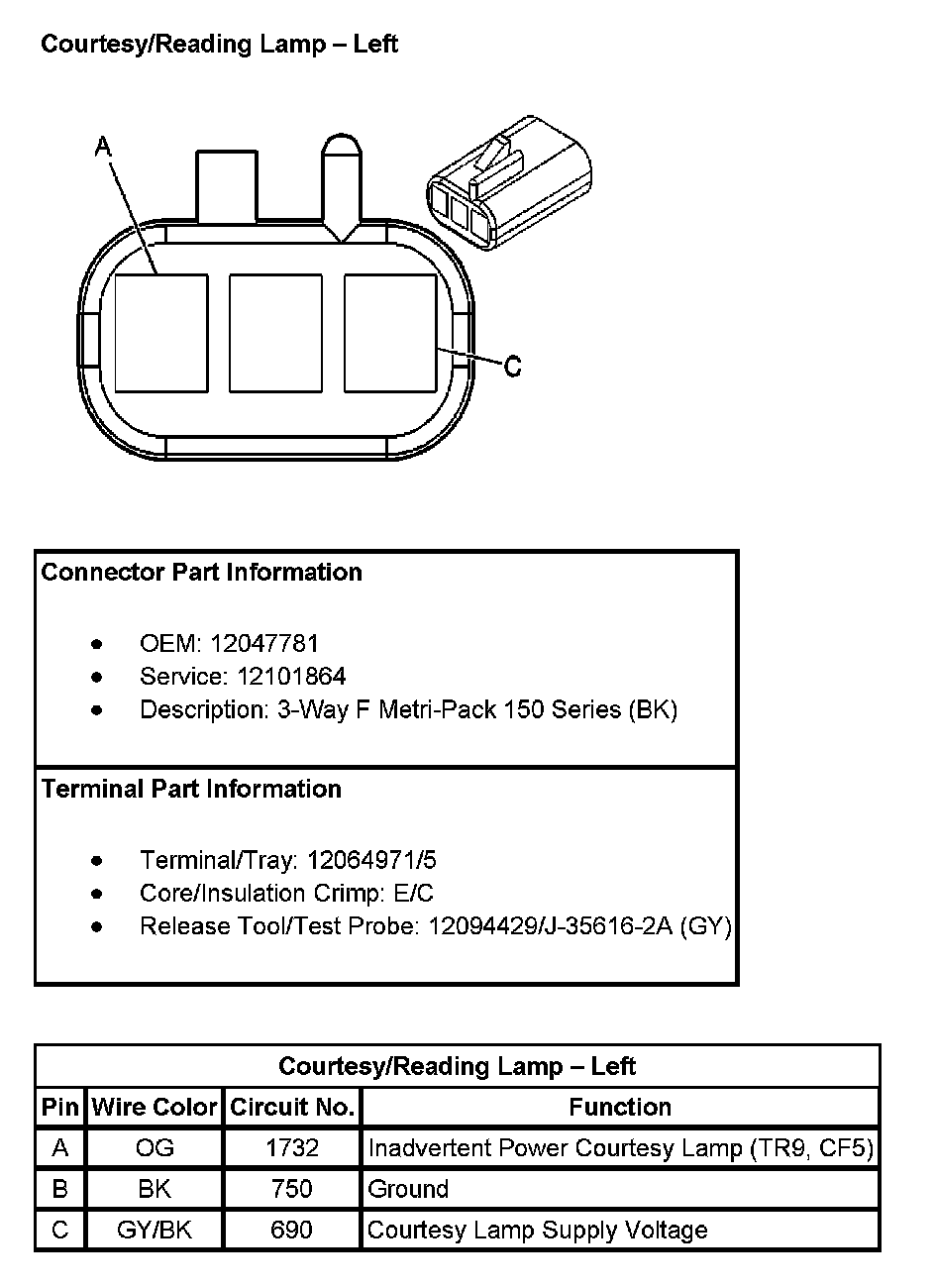

Courtesy/Reading Lamp - Left:

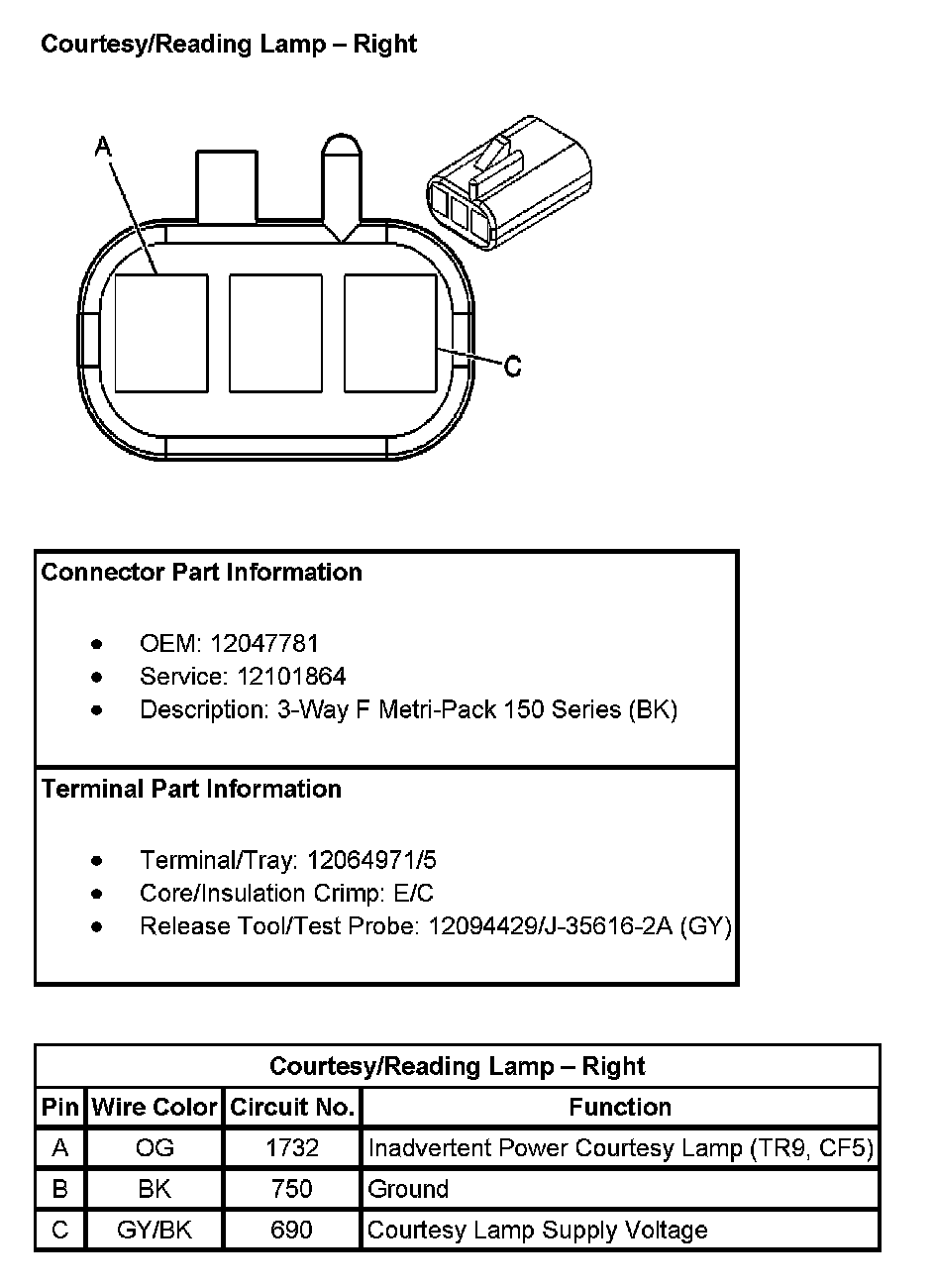

Courtesy/Reading Lamp - Right:
