MCM Inputs and Outputs at Connector A (31P)

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

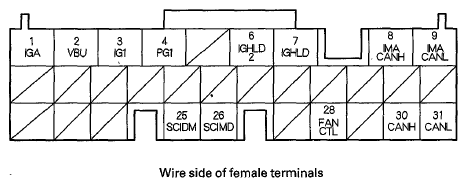

Fig 1: Identifying MCM Inputs And Outputs At Connector A (31P)
G06429659Courtesy of AMERICAN HONDA MOTOR CO., INC.
MCM INPUTS AND OUTPUTS AT CONNECTOR A TERMINAL REFERENCE

Terminal number Wire color Terminal name Description Signal
1 PNK/BLK IGA (IGNITION FOR ASSIST SYSTEM) Power source for MCM control circuit With ignition switch ON (II): battery voltage
With ignition switch OFF: battery voltage for about 10 seconds, then about 0 V
2 WHT/BLU(1)
BRN(2)
VBU (VOLTAGE BACK UP) Power source for MCM circuit and DTC memory Battery voltage at all times
3 YEL/BLK(1)
PNK(2)
IG1 MCM power With ignition switch ON (II): battery voltage
With ignition switch OFF: about 0 V
4 BLK PG1 (POWER GROUND) Ground for MCM Less than 0.1 V at all times
6 LT GRN IGHLD2 (IGNITION HOLD 2) Drives MCM relay 2 With ignition switched from ON (II) to OFF: about 0 V for several seconds
7 ORN(1)
PUR(2)
IGHLD (IGNITION HOLD) Drives MCM relay 1 With ignition switched from ON (II) to OFF: 0-1.0 V for several seconds, then battery voltage
8 WHT IMACANH (IMA CAN COMMUNICATION SIGNAL HIGH) PCM and MCM communication signal With ignition switch ON (II): pulses
9 RED IMACANL (IMA CAN COMMUNICATION SIGNAL LOW) PCM and MCM communication signal With ignition switch ON (II): pulses
25 GRY SCIDM (SERIAL INPUT FOR DC-DC CONVERTER) Detects pulsing communication signal With ignition switch ON (II): pulses
26 GRN SCIMD (SERIAL OUTPUT FOR DC-DC CONVERTER) Sends pulsing communication signal With ignition switch ON (II): pulses
28 LT BLU FANCTL (FAN CONTROL) IPU module fan speed control signal output IPU module fan OFF: battery voltage
IPU module fan ON: duty controlled
30 WHT CANH (CAN COMMUNICATION SIGNAL HIGH) Sends pulsing communication signal With ignition switch ON (II): pulses
31 RED CANL (CAN COMMUNICATION SIGNAL LOW) Sends pulsing communication signal With ignition switch ON (II): pulses
(1) 2010 Model
(2) 2011 Model
